ATK

ATK Binding Parts

From $0.45

In Stock

Free shipping over $50

Whether it's replacement parts or additional accessories, here are all the bits and pieces we have collected for your ATK bindings.

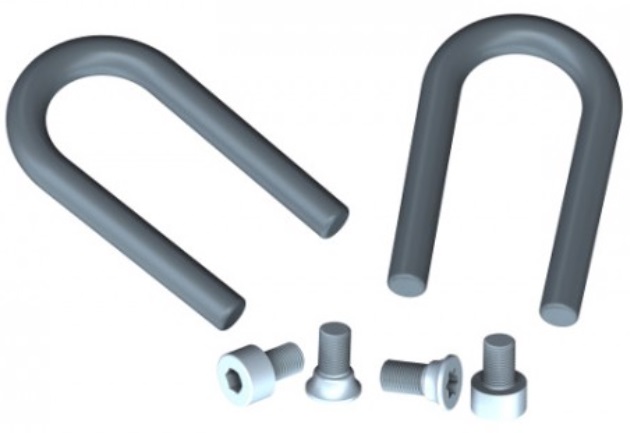

Titanium U-Springs - Pair of titanium heel forks for the SL World Cup and Revolution bindings. Also works with the Hagan Ultra, ZR, and BD Helio 110 bindings. Available in standard stiffness and "lightweight" for lighter folks.

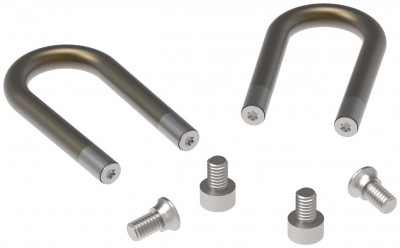

Rolling In U-Springs - The most advanced forks on the market. Made of titanium with rollers on the end to reduce wear, ease step-in, and smooth the forward release function. Choose from standard or lightweight stiffness / skier size.

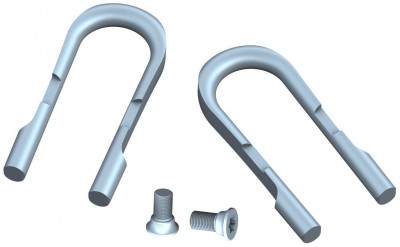

Trofeo Spring - These are the replacement springs for the Trofeo binding. Comes as a pair and includes screws required for installation. Black Diamond was even nice enough to include instructions in the bag.

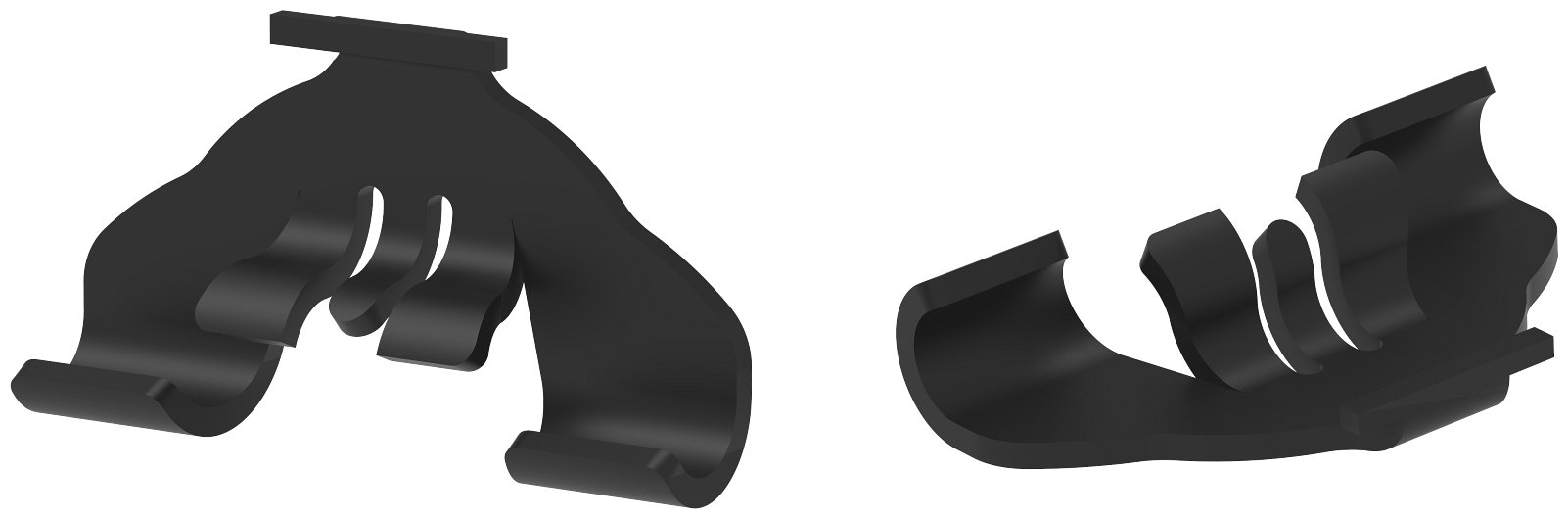

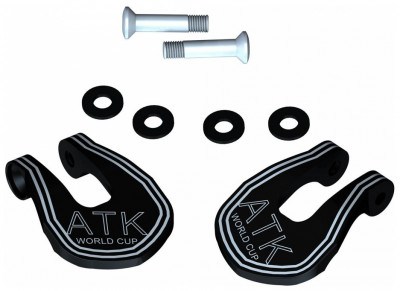

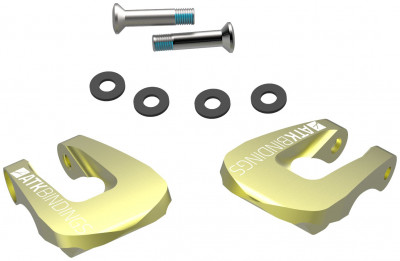

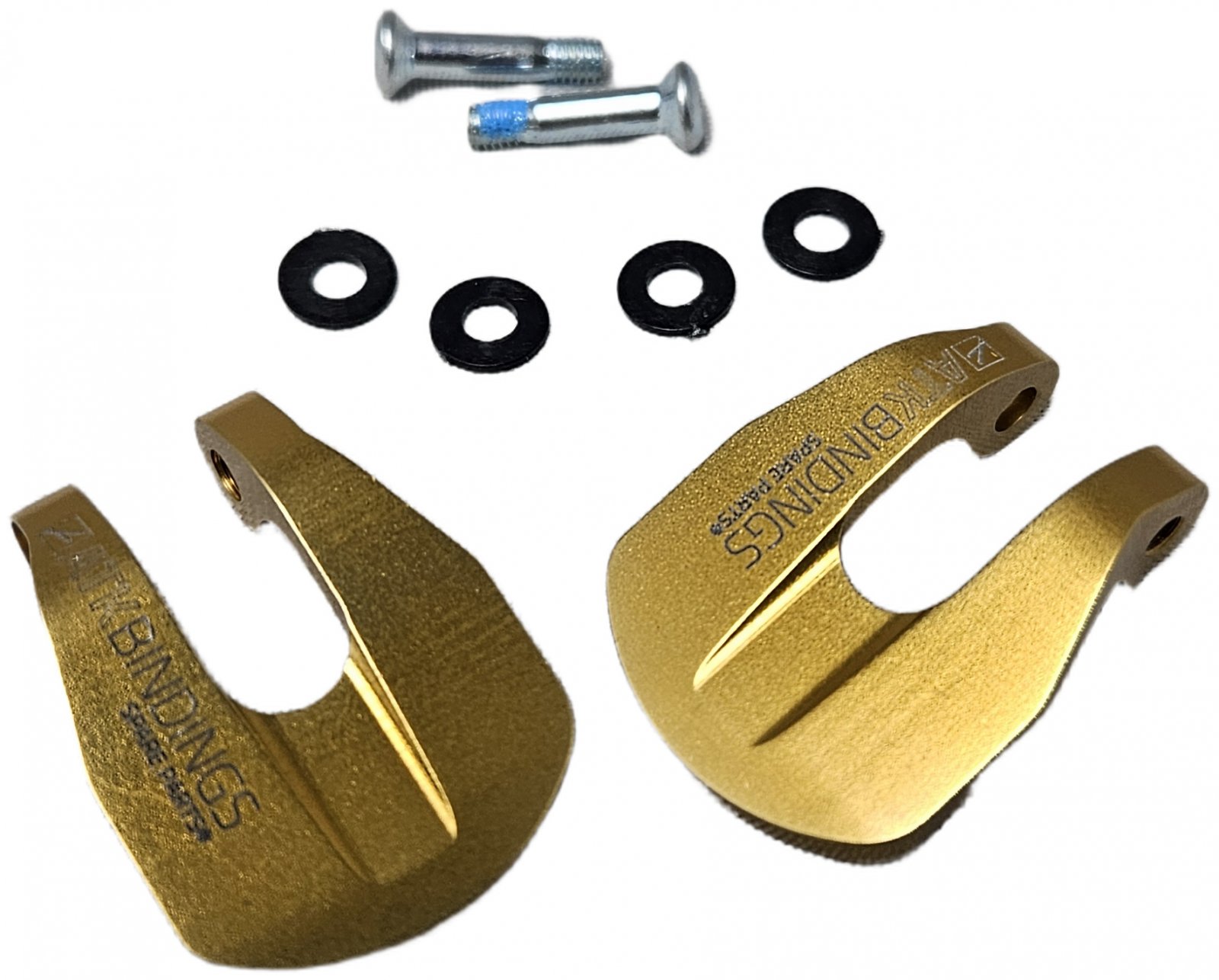

Race Flaps - These are the race flaps that let you change uphill/downhill modes on ATK race bindings (SL and Revolution). Also works with Hagan Ultra, ZR, and BD Helio 110 bindings. Sold in pairs in multiple colors.

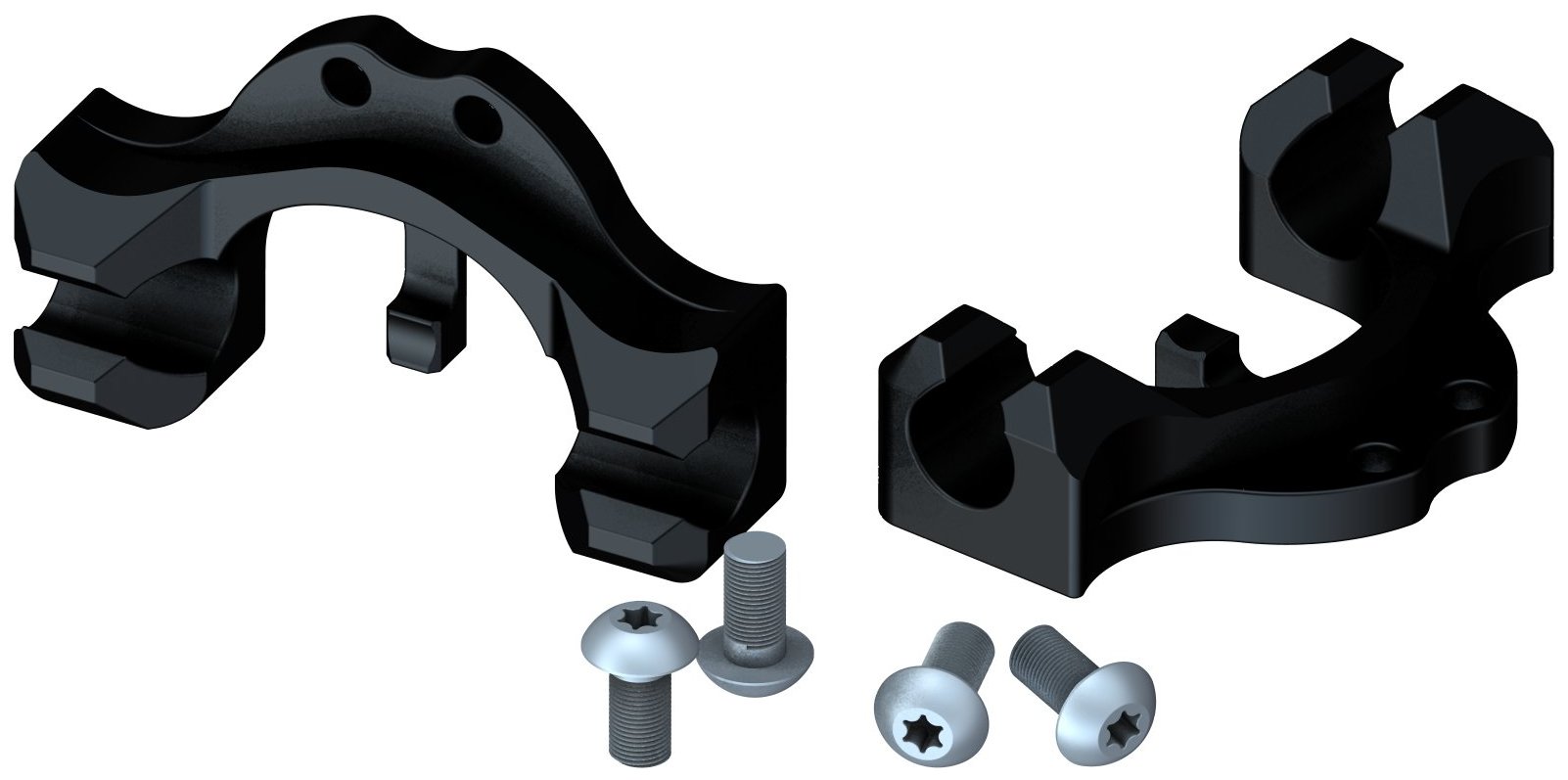

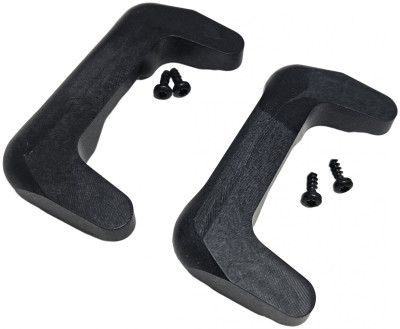

Crampon Slot - Aluminum - For those of us who'd like an option to add some ATK or Black Diamond compatible crampons to our setup, here's a removable receptor. 8 grams per side, plus screws.

Crampon Slot - Carbon - If you need extra bite, these receptors can be added to the C-Raider or Candy bindings. Seven grams each.

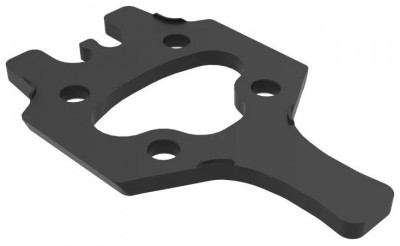

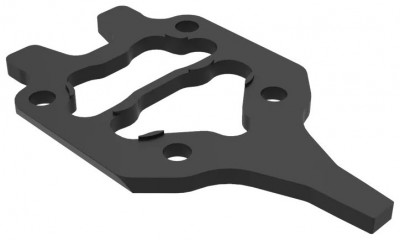

Crest Toe Shim - This is the toe shim designed for Crest, Kuluar, Haute Route, RT Evo, and Trofeo bindings. It is 4mm thick and comes with screws.

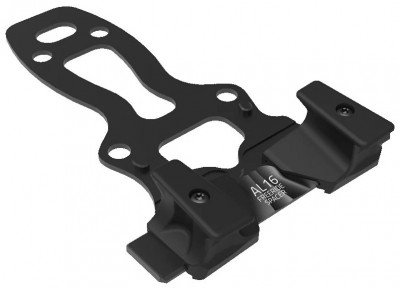

Crest Freeride Spacer - This is the freeride spacer designed to work with Crest, Kuluar, and RT Evo bindings. Please note this goes under the entire base assembly and will slightly increase the ramp angle. These ship with screws.

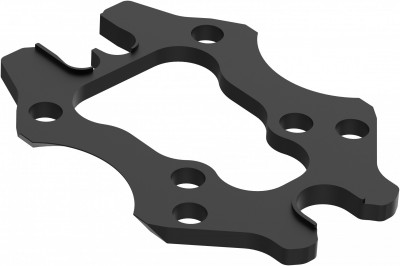

Raider Toe Shim - For our freeride category skiers who like a flatter setup, this binding specific toe shim reduces drop by 4mm on ATK Raider bindings. Includes longer screws necessary to mount. Note: Does not work with C-Raider or EVO toes.

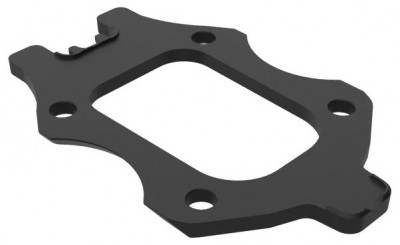

Raider Toe Shim Evo - Designed to work with the Raider Evo series of bindings. These are 4mm thick and come with longer screws necessary for mounting.

Raider Freeride Spacers - The stomp pads that fit the Raider 10/12, C-Raider, Freeraider 14/16, DPS R14, Hagan Boost and Core Pro bindings. Towers sit on either side of the Anti-Friction plates on the brake. Not recommended for skis narrower than 95mm underfoot. These weigh 28g each.

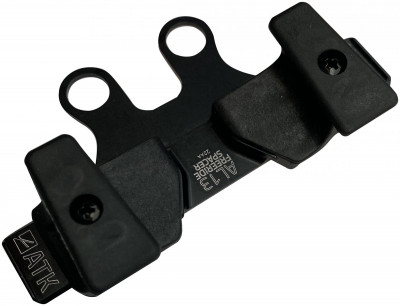

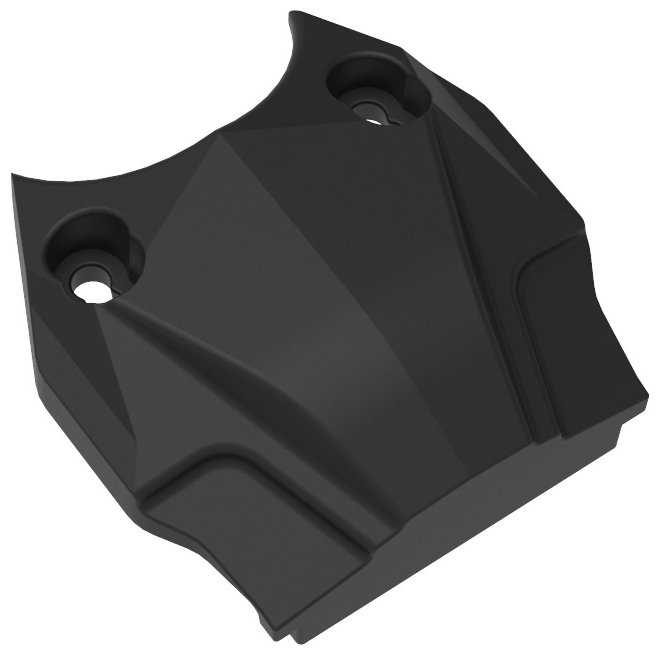

Evo Freeride Spacers - Stomp pad for ATK Evo 11, 13 and 15 bindings. Not recommended for skis narrower than 95mm.

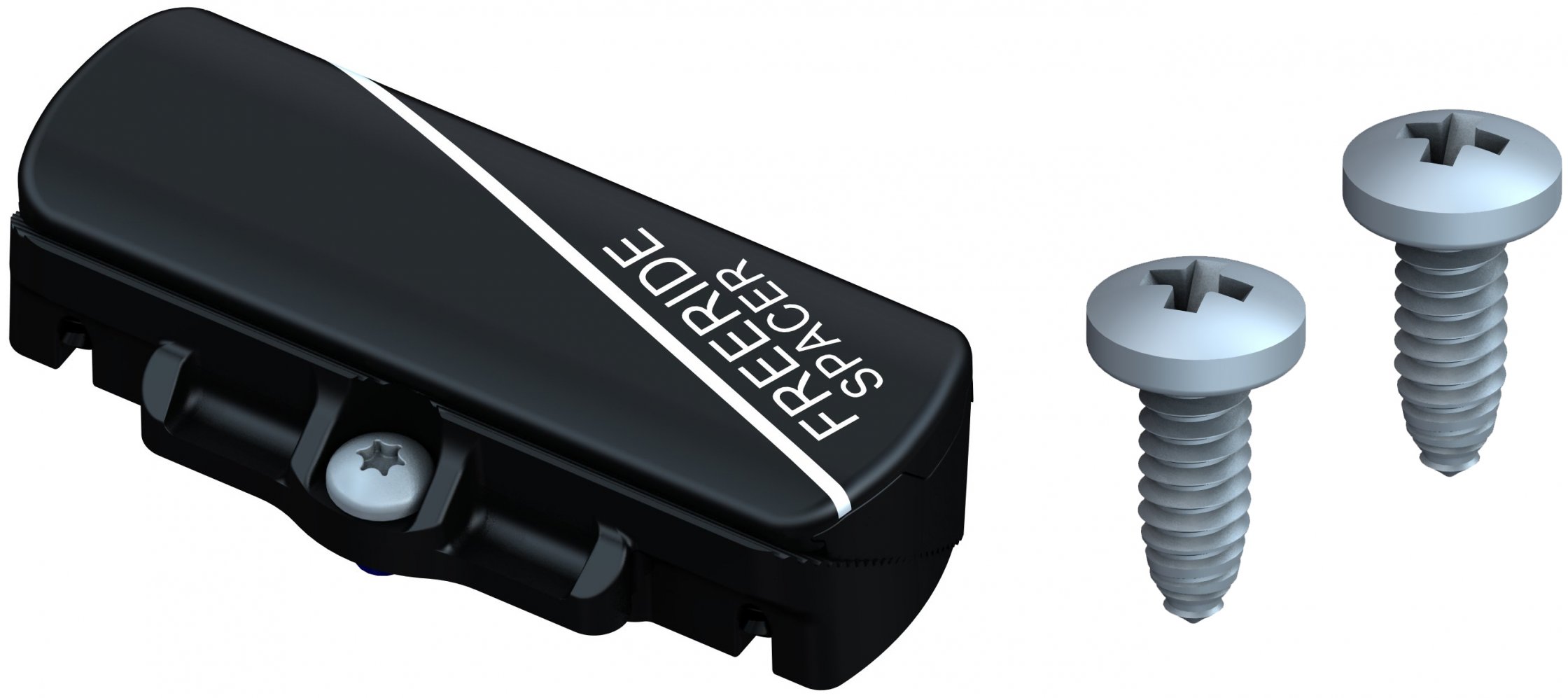

Universal Freeride Spacers - Works with any binding where the gap between the boot sole and the topsheet of the ski is between 14.5mm and 20mm. Spacer attaches directly to the ski. Adds 24g per ski and 2g in screws.

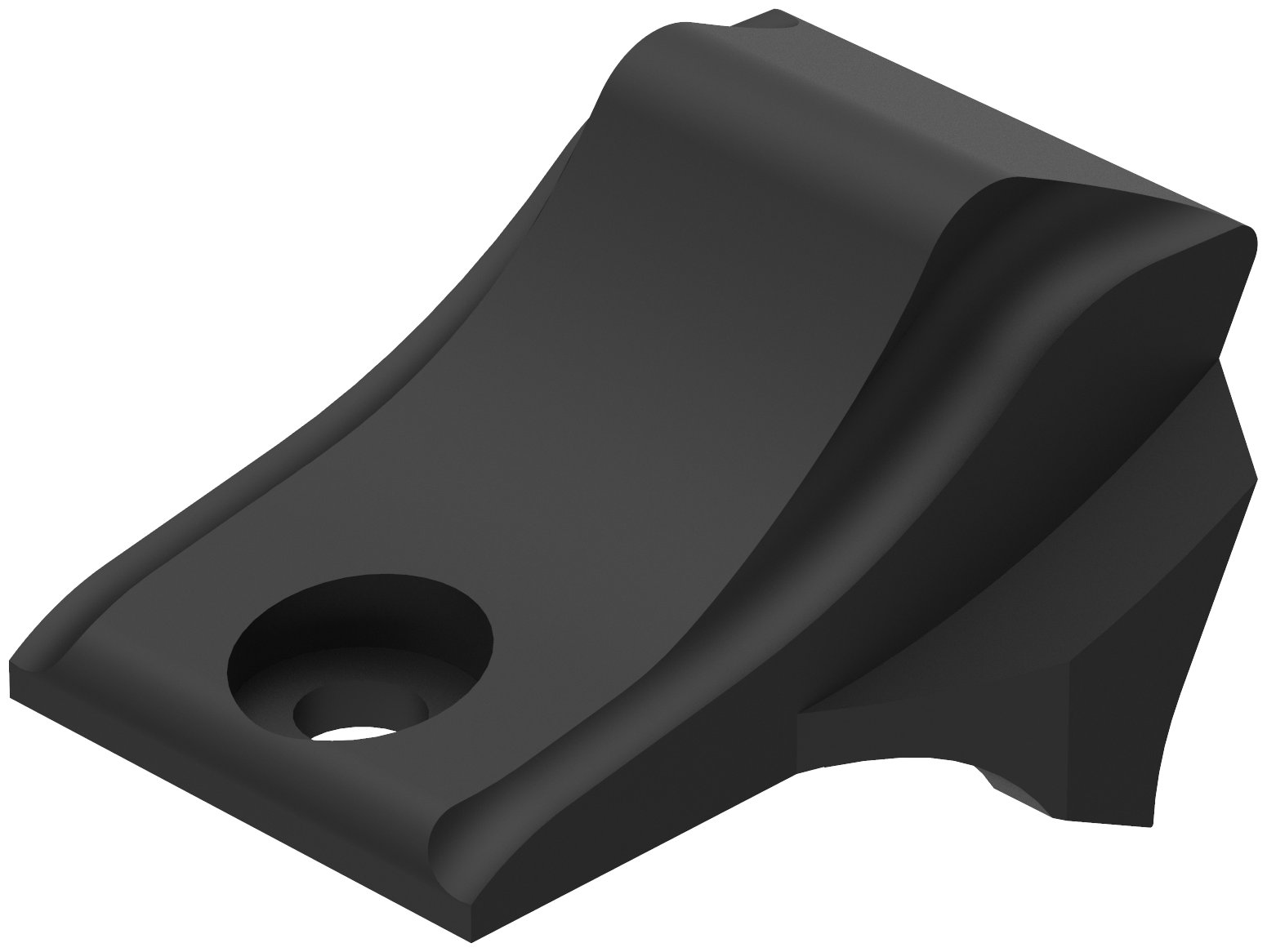

Candy 5 Heel Riser - Optional heel riser for the Candy 5 binding.

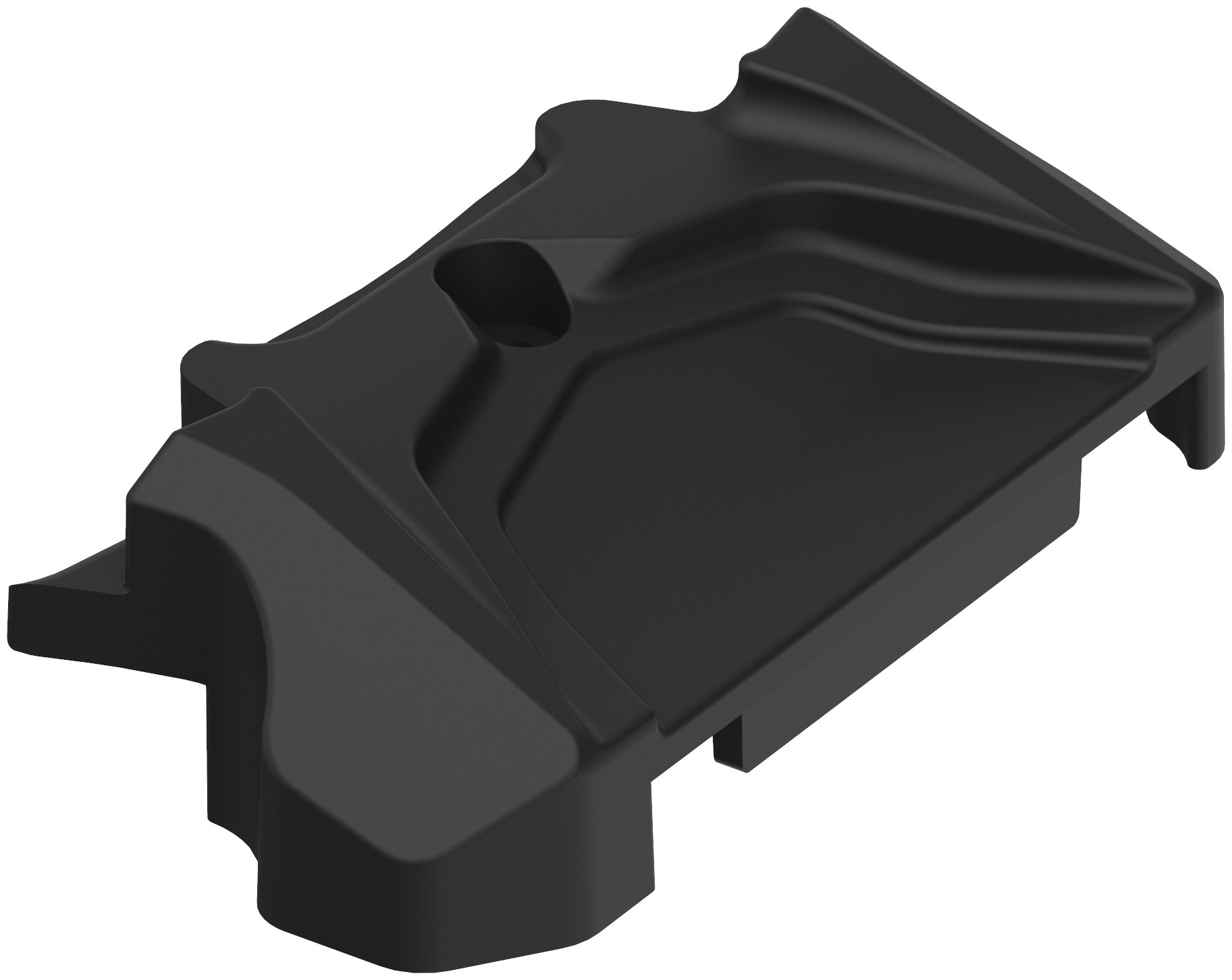

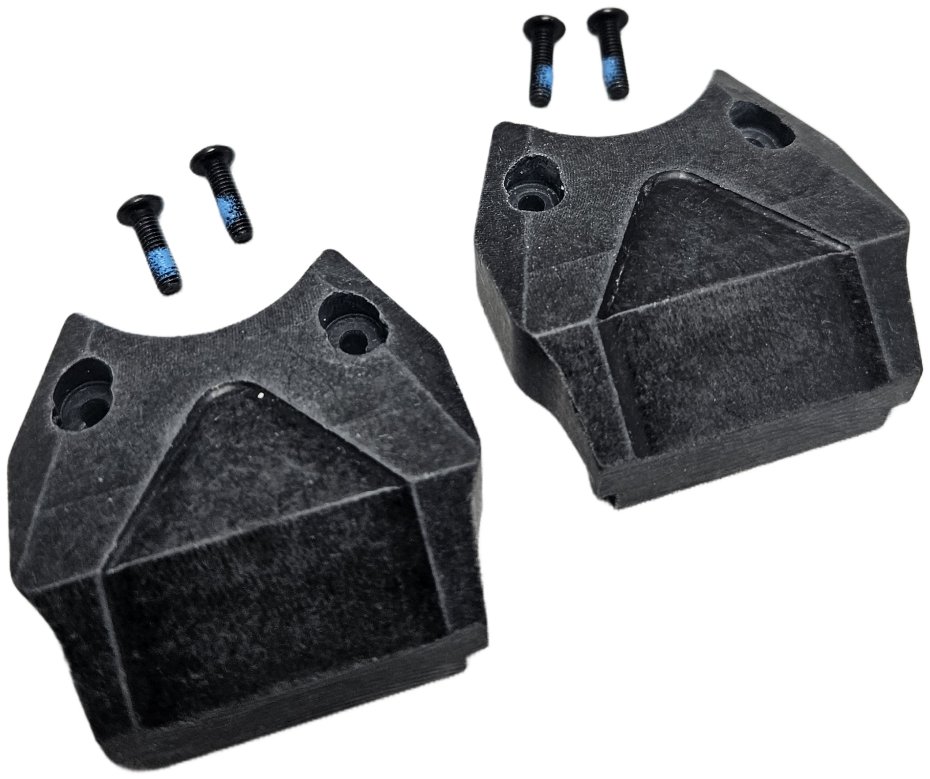

Brake Seat Cover - Optional cover for any ATK binding with the push-button style rear brake (for when you want to take the brake off). NOT compatible with EVO brake system (Raider Evo, RT 8/10 Evo). Sold in pairs. Only adds a svelte 4g per binding.

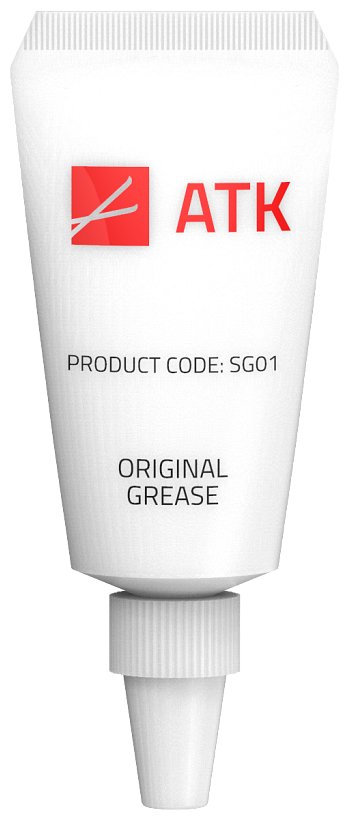

Binding Grease - ATK's original binding grease will help keep your heel tower mobile. Made from ATK's reused oil and lubricants to reduce waste.

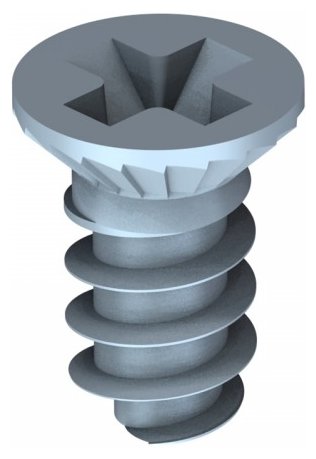

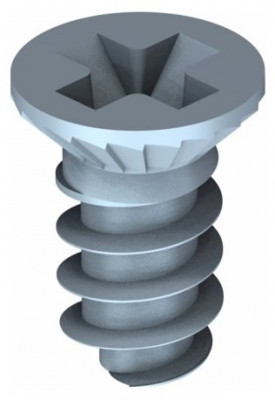

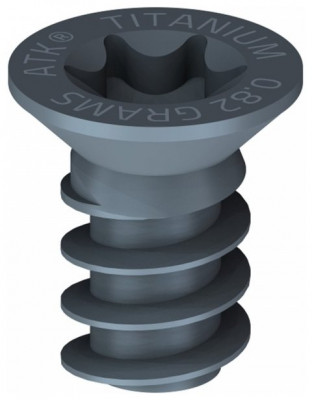

Mounting Screw, 11mm - These are screws for mounting ATK race heel pieces (e.g. Trofeo, SL, Revolution) as well as adjustment plates. They are #3 Pozidrive heads with an ISO-standard thread pitch.

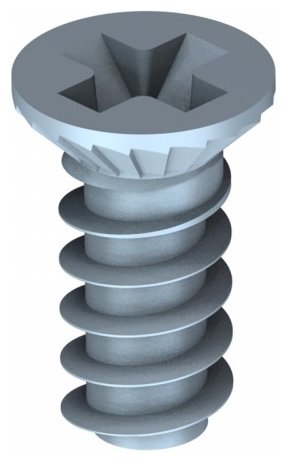

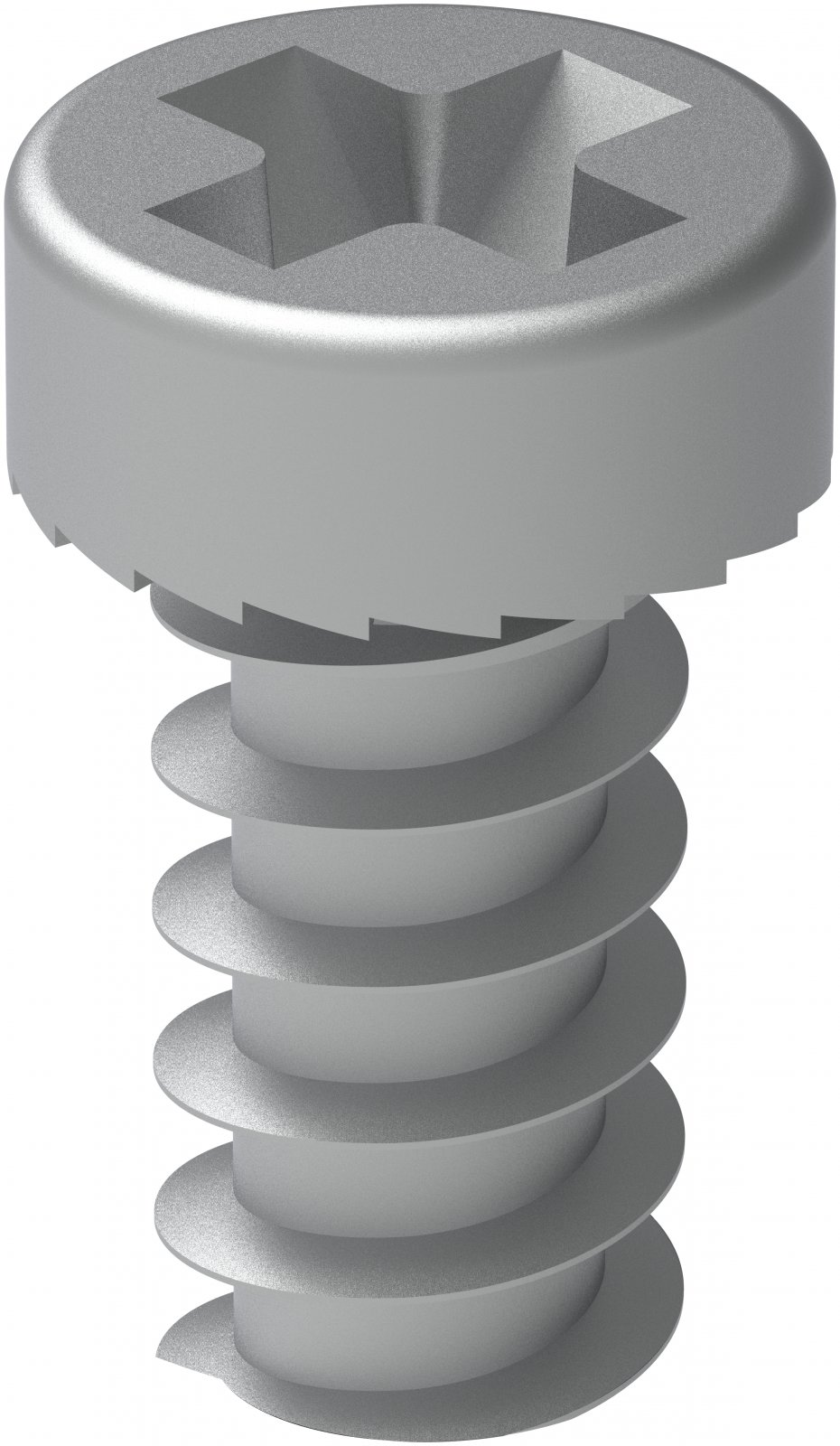

Mounting Screw, 13mm - Mounting screws for many ATK toes, such as Trofeo, Pure, Raider series.

4mm Heel Gap Spacer - A 4mm plastic spacer to help set your heel gap on ATK bindings.

Related Products

Questions & Reviews

2/26/2024
Question from Josh Barilar

Can you use the Universal Free ride Spacer for the Salomon Mtn Touring Binding? I want to add free ride spacer to my existing Salomon Mtn Tour binding, I am okay woth re mounting if need be, thanks!
2/26/2024
Answer from Emmett I

Josh,

The universal spacer won't work with the MTN Tour, the brakes don't leave any room for a spacer. They should work fine with the brakeless version, the MTN Pure.
Answer this question:

2/20/2024
Question from eric b

One of my Trofeo heel pieces is reluctant to turn. It only happens in the field, not at home — and is true for a single heel piece out of 3-4 pairs.

Will the ATK binding grease help with this? I'm wondering if somehow it is a lubrication issue for the track in which the heel rotates.

Or, is the ATK grease designed only for the bindings with adjustable release (i.e., non U-spring)?

I do have plenty of greases/lubrications from bike maintenance and other projects but would prefer to use the manufacturer's formulation if recommended.

Thanks!
2/21/2024
Answer from Carlos M

Hi Eric,

Yep, binding grease will help! It's not just for adjustable bindings. You will want to apply a little bit around the base of the heel that's sticking, in the crack between the base and the heel turret, and then spin it around a few times to work the grease into it.
Answer this question:

2/19/2024
Question from Peter F

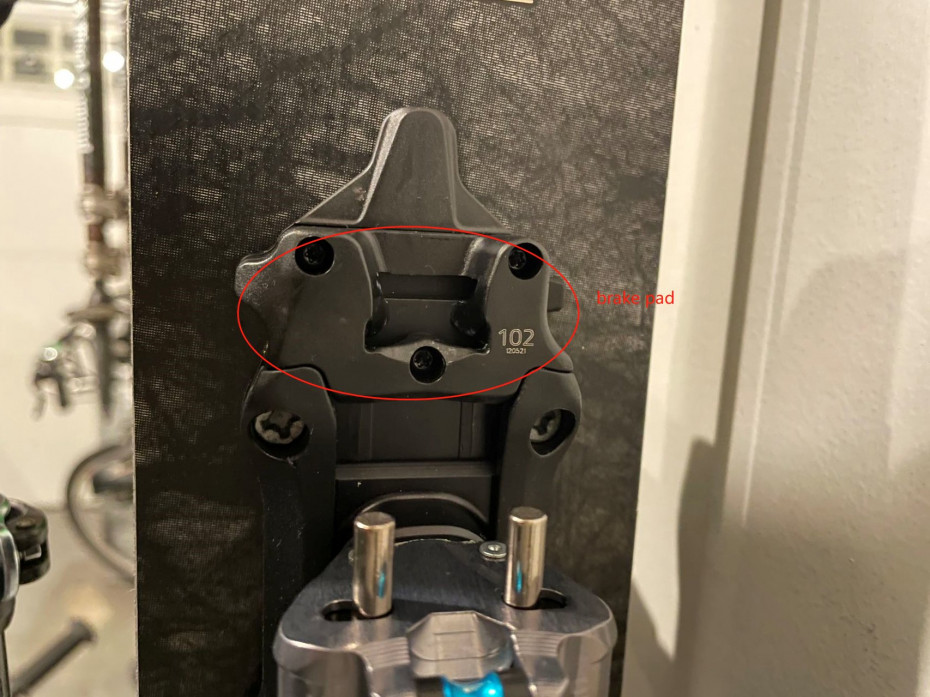

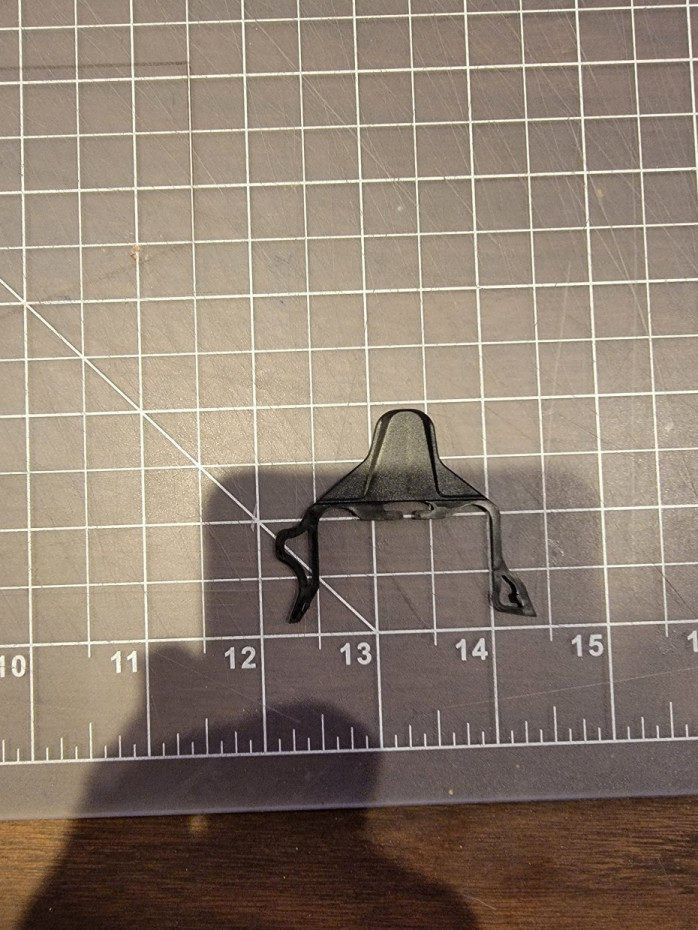

Hi, do you by any chance have any of the brake retention/release things for the Freeraider 14 (see picture)? Somehow one of mine bent and will no longer slide to engage or disengage the brake.
2/20/2024
Answer from Emmett I

Peter,

Shoot us an email at help@skimo.co, we have a few floating around.
Answer this question:

1/29/2024
Question from Cam

Is it pretty straight forward to install the crest free ride spacer on a ski already mounted with crest bindings?
1/29/2024
Answer from jbo

Hi Cam, you must unmount the heels and remount them on the spacer, then double-check your gap. Depending on your familiarity with basic mounting practices you could call this straightforward or not.
Answer this question:

1/26/2024
Question from Dave

Hi, What is the release value for the lightweight ATK U springs. I assume these are the correct ones for the Kuluar binding? Thanks.
1/26/2024
Answer from Niko M

Hi Dave! The lightweight titanium U-Springs release at approximately 6. These U-Springs are specific for the SL World Cup and Revolution bindings however. For the Kuluar, the Trofeo U-Springs are compatible and come in four different release values - 4,6,8, and 10.
If swapping the U-Springs at home, you may want to consider the ATK U-Spring Handling Clamps. They make the process a whole lot easier :) Thanks!
Answer this question:

1/16/2024
Question from ozzy

Hi, I'm considering buying Evo Freeride Spacers (AL13) and for my Raider11 evo.

I will probably install those spacers by myself.
I think its probably not so difficult. Because the ski don't need drilling new holes on them.

Just one question, when installing spacers, should a boot sole and the spacer be completely adhered to each other?

Or should there be about 0.5-1mm clearance between a boot sole and the spacer?
1/16/2024
Answer from Niko M

Hi Ozzy! Installing the spacers is fairly straightforward indeed. You are looking for a ~1mm gap between the sole and the spacer. Thanks!
Answer this question:

1/6/2024
Question from Kip

Hi want to finalize ATK parts order.

I have C Raider 12s.

I want to:

Remove brakes.
Install seat cover.
Add free ride spacer.
Install front shims under the toe.

Which of these parts do you have in stock and which ones exactly do I need from the ATK chinese menu?

Thanks! Would love to get these ASAP...!
1/8/2024
Answer from Gabriel I

Hi Kip, you'll want the Raider Freeride Spacer, Brake Seat Covers, a B&D C-Raider Shim and some screws to match. Please reach out to us at help@skimo.co and we can go over the details!
Answer this question:

1/2/2024
Question from Aidan C

What screws does the ATK AL16 (the crest freeride spacer) ship with?
1/2/2024
Answer from Niko M

Hi Aiden! They ship with 14mm pan head screw. Thanks!
1/2/2024
Answer from Aidan C

Thanks Niko, do you / can you sell those screws?
1/2/2024
Answer from Aidan C

Or do you think i could use the 13mm or 15mm screws you sell above?
Answer this question:

12/3/2023
Question from Mike

Is this the correct crampon slot add on for the ATK Candy 5 or Hagan Grom 5 ?
https://skimo.co/atk-binding-parts?option%5B3275%5D=30749&gad_source=1&gclid=Cj0KCQiA67CrBhC1ARIsACKAa8RS-4O7fHNXMhVqMGEpr49yyPD5H8ia4WT7ig-2f0q-jxjrhtOizRwaAsK0EALw_wcB
12/3/2023
Answer from Jeff

Hi Mike, Yes, it is the C Raider slots.
Answer this question:

11/15/2023
Question from Ben

Do you have the AL15 toe shims for the 30x27mm toe pieces?
11/15/2023
Answer from Jeff

Hi Ben, Sorry, we do not stock that one.
11/15/2023
Answer from jbo

Hi Ben, we have the B&D classic shims for those toes.
11/17/2023
Answer from Ben

Come on jbo, these are like 10g and B&D are closer to 30g. Not equivalent!
Answer this question:

11/12/2023
Question from Michael Wheat

Are the Trofeo U Spring R10 compatible with the Black Diamond Helio 145 bindings?
11/12/2023
Answer from jbo

Hi Michael, yes, they are the same binding.
Answer this question:

8/14/2023
Question from ezra

Which screws should i get for an atk ro1 heel plate, the 11 or the 15?
8/15/2023
Answer from Jeff

Ezra, The RO 1 plate includes the mounting screws. They would be the 11mm mounting screws.
Answer this question:

4/13/2023
Question from lar

I see the description of the brake seat cover, but cannot select it for buying?
4/13/2023
Answer from Emmett I

Lar,

We're out at the moment, current ETA is sometime in August. When we have them, they'll be available in the drop down, or feel free to reach out to help@skimo.co an we can sign you up for an email notification.
Answer this question:

3/16/2023
Question from Steepski

Do you know if the rolling u springs will fit on a kuluar binding?
3/16/2023
Answer from jbo

Hi Steepski, they will not as the Kuluar uses longer steel springs.
Answer this question:

3/9/2023
Question from Caleb Morris

I lost a Helio 110 race flap to airline baggage handlers. It doesn’t look like you currently have any in stock. Do you have any coming in soon?
3/10/2023
Answer from Gabriel I

Hi Caleb, definitely by next Fall. We're seeing if there is availability sooner, but we're not sure yet.
Answer this question:

3/9/2023
Question from Rando Richard

Anybody making aftermarket "extra" risers for ATK Crest heels? (I didn't see such an item on the B&D site).
3/10/2023
Answer from Gabriel I

Hi Rando, not at this time, no. B&D has started making shims for ATK bindings, though, so perhaps they'll look into other products in the future. Let them know you're interested!
Answer this question:

3/3/2023
Question from Gabrielle

Hi, I'm feeling a little bit lost when it comes to ski bindings and crampons. Would you be able to point me in the right direction?

I have the BD Helio 200 bindings. Which ATK binding part should I select here? And do you know if they will be compatible with the Black Diamond Helio Ski Crampons?

Thanks a lot for your time!
3/3/2023
Answer from Gabriel I

Hi Gabrielle, the "Crampon Slot, Aluminum x2" is compatible with the BD Helio (and most ATK toes, besides the C-Raider). They will be compatible with the BD Helio Crampons, and ATK or Hagan branded ones, too!
Answer this question:

2/23/2023
Question from JESSE K

Hey guys! I got the universal freeride spacer. I took em with atk freeraider 12s to my local shop and favorite shop (after you guys!) Bakcountry Essentials in Bellingham. Looking at them with them it looked like they couldn't be installed with the ATK Freeraider 12s without removing the brake. And I want the brake. Does this sound right?

Could these instead be installed with the Volkl BMT 94s and Marker Alpinist bindings or any binding?

There's just one mount hole so it seems like the whole apparatus would just twist.

Best, jesse
2/23/2023
Answer from Gabriel I

Hi Jesse, for the Raider/Freeraider binding, the "Raider Freeride Spacer" on this page is designed to fit around the brake and provide support on the sides of the heel. Even if you did remove the brake to fit the Universal Spacer, there is still a piece of the baseplate under it, so it wouldn't create the clearance you're looking for.

The Universal Freeride Spacer works with any boot/binding combination where there is at least 14.5mm and not more than 20mm of space between the ski and your boot, so it is best to measure! The single screw holds the spacer on with enough friction to keep it stable when tightened down.
Answer this question:

2/18/2023
Question from Paul Lees

Are the universal freeride spacers you have al05 or al06?
2/18/2023
Answer from Gabriel I

Hi Paul, the Universal Freeride Spacers is ATK part AL05.
Answer this question:

2/16/2023
Question from Ethan

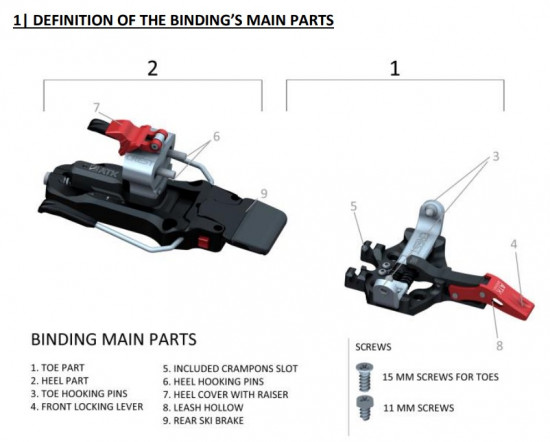

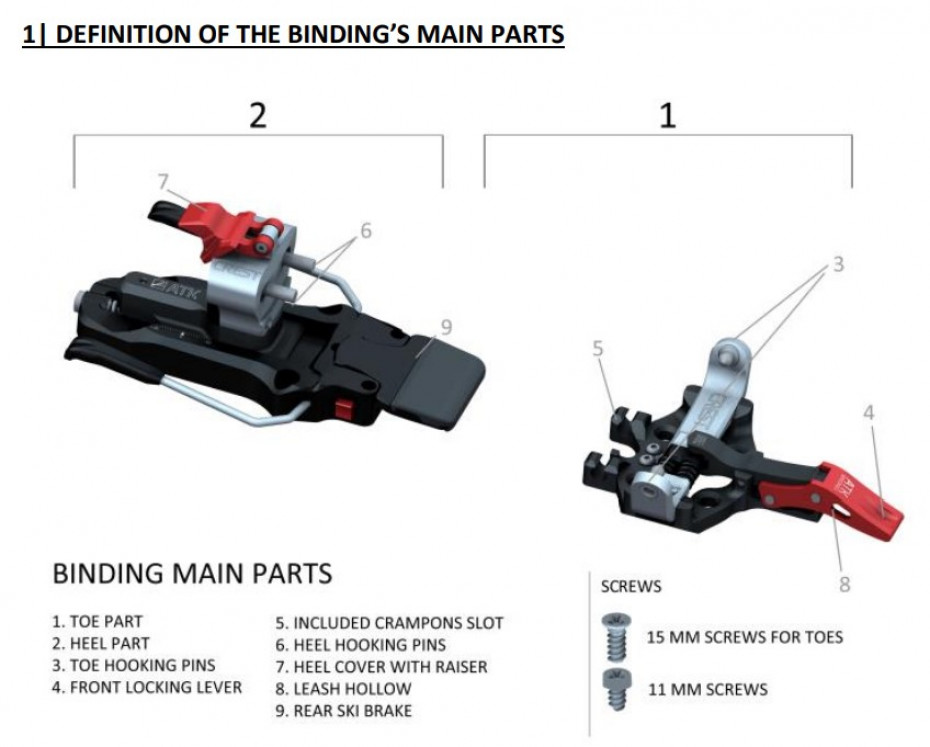

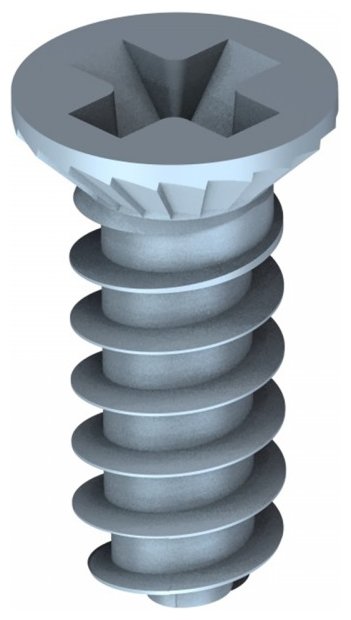

Putting together a take-along repair kit for ATK Crest 8 and 10 bindings. The manual shows 15mm screws for toes and 11m screws.

What screws should I get to have a few in case of emergency? Anything else for these bindings that would be good to carry?
2/16/2023
Answer from Patrick C

Ethan,

Forward-thinking is never a bad thing. We have found these bindings to be very reliable so there are no extra parts I would suggest bringing along. As for the screws, I think having a few for the toe might be helpful, but if a binding piece does come apart from a ski it's pretty tough to put back together in the field.
Answer this question:
