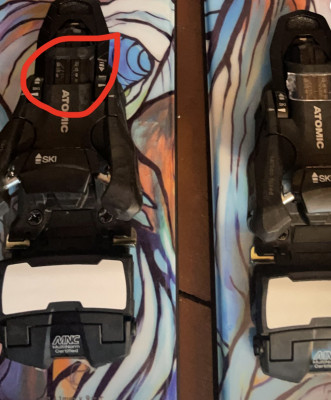

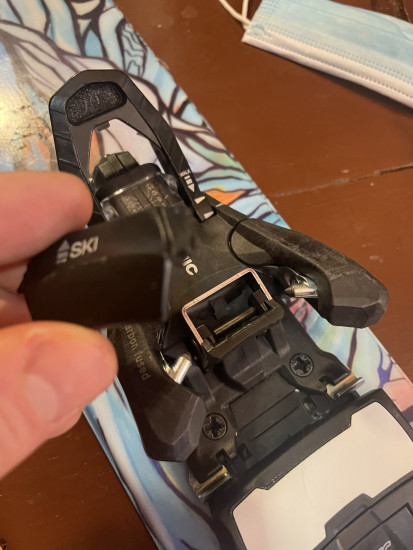

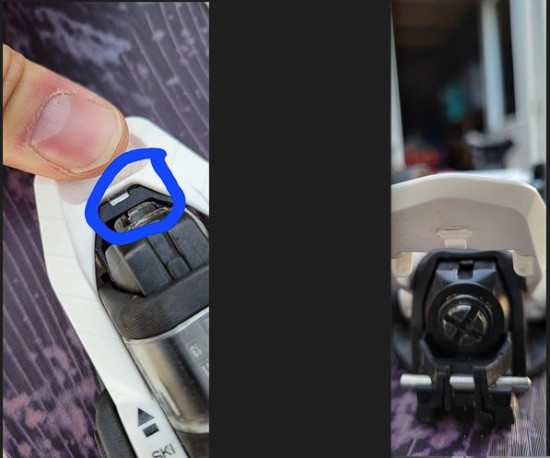

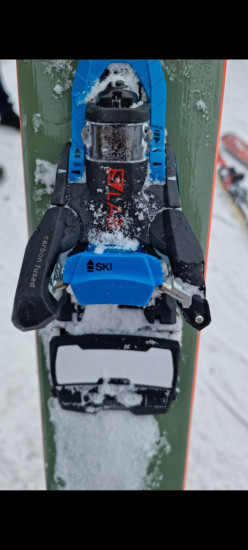

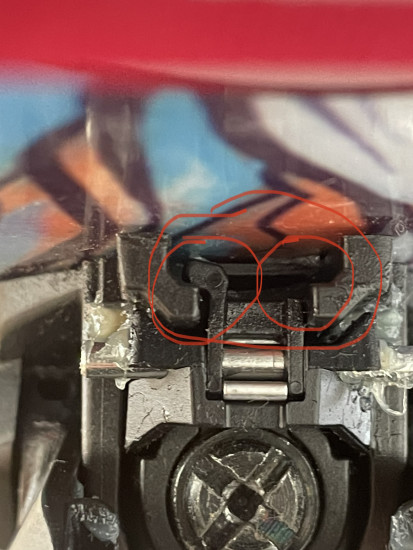

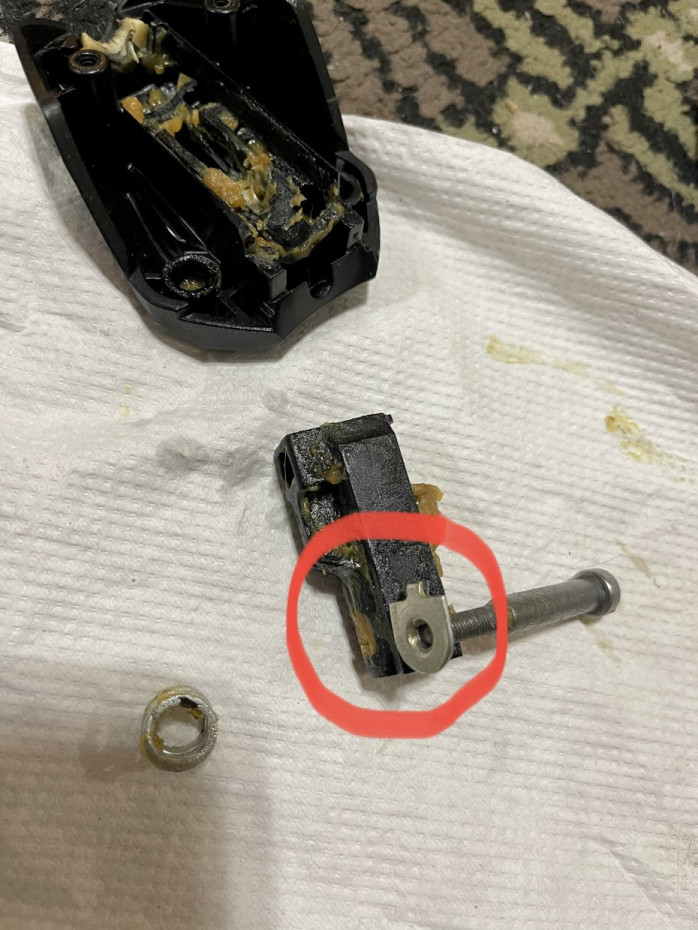

Is it possible to replace this broken piece on a shift bindning and if so where can I find one.
//Jasper Ebenfeldt
Salomon & Atomic Binding Parts
Break a part or lose a set of springs? Don't be glum, we have a growing list of parts for Salomon and Atomic bindings. Details below.

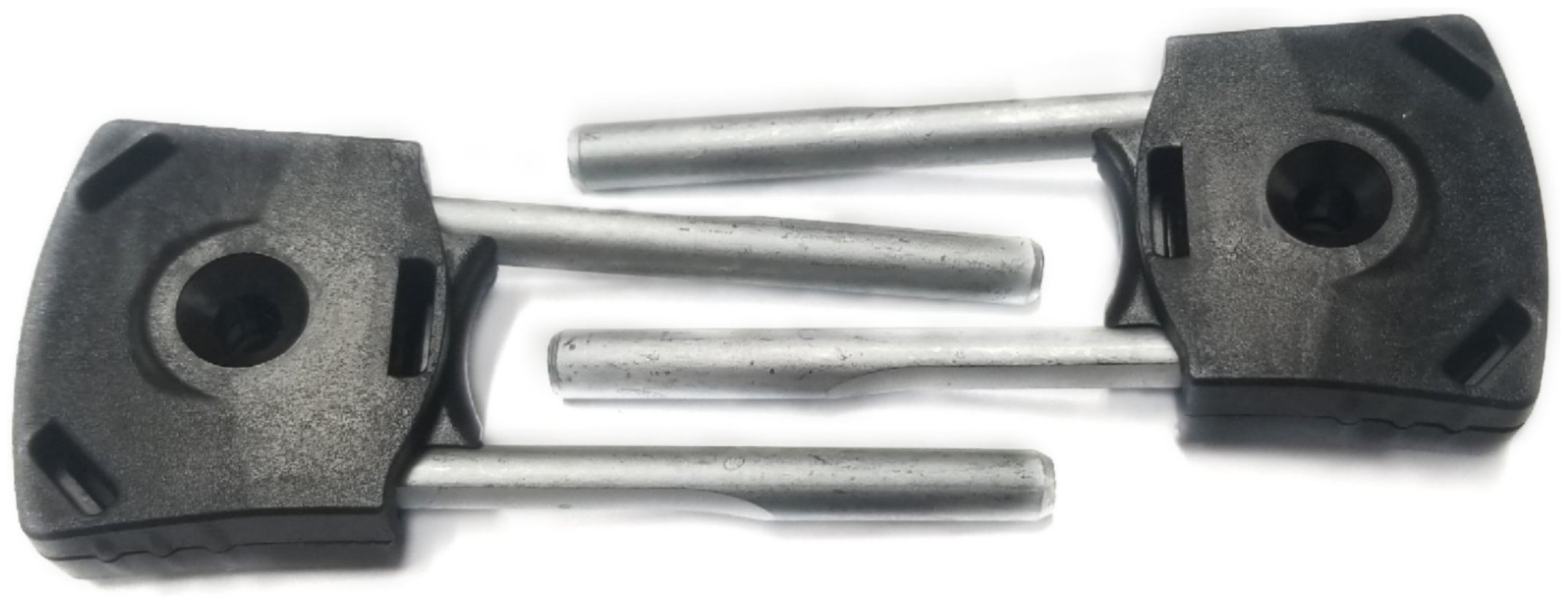

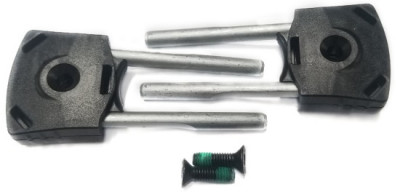

MTN Women’s Heel Springs - The softest heel springs for the Salomon MTN or Atomic Backland binding. Sold as a pair.
MTN Men’s Heel Springs - Pair of the middle release-value springs for the MTN and Backland bindings.
MTN Expert Heel Springs - Set of the stiffest springs which control both lateral and vertical release on the MTN and Backland bindings. Experts only!

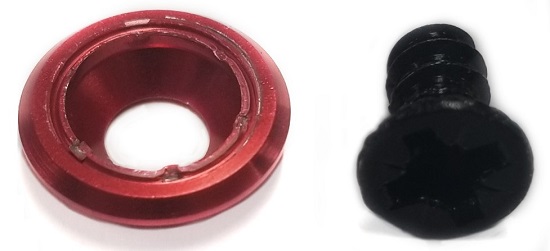

MTN Brake Mounting Screw - The screw and washer that's required to keep the MTN and Backland brake held onto the ski.
MTN/Backland Tour Toe & Heel Screw Set - A set of 4 screws for mounting a toe or heel from a Backland Tour or MTN Pure.

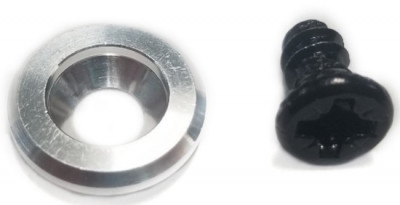

Shift Toe Lug Screw - The 5th screw and washer that's required to mount the Shift toe piece onto your ski.

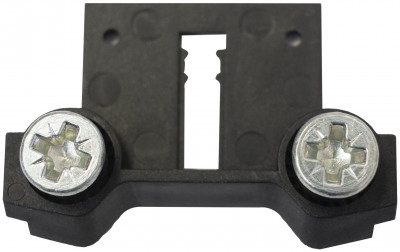

Shift Rear Toe Holder Plus Screws - A pair of plastic holders plus screws for holding the rear of the toe piece down.

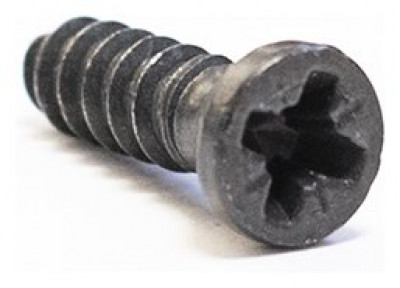

Shift Toe Screw - The two 10mm screws towards the back of the toe used to attach the MNC plate of the Shift binding.

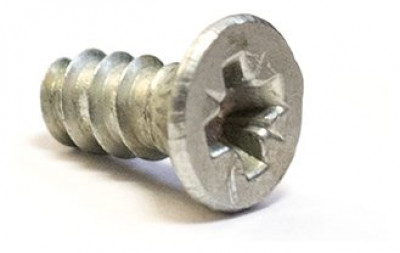

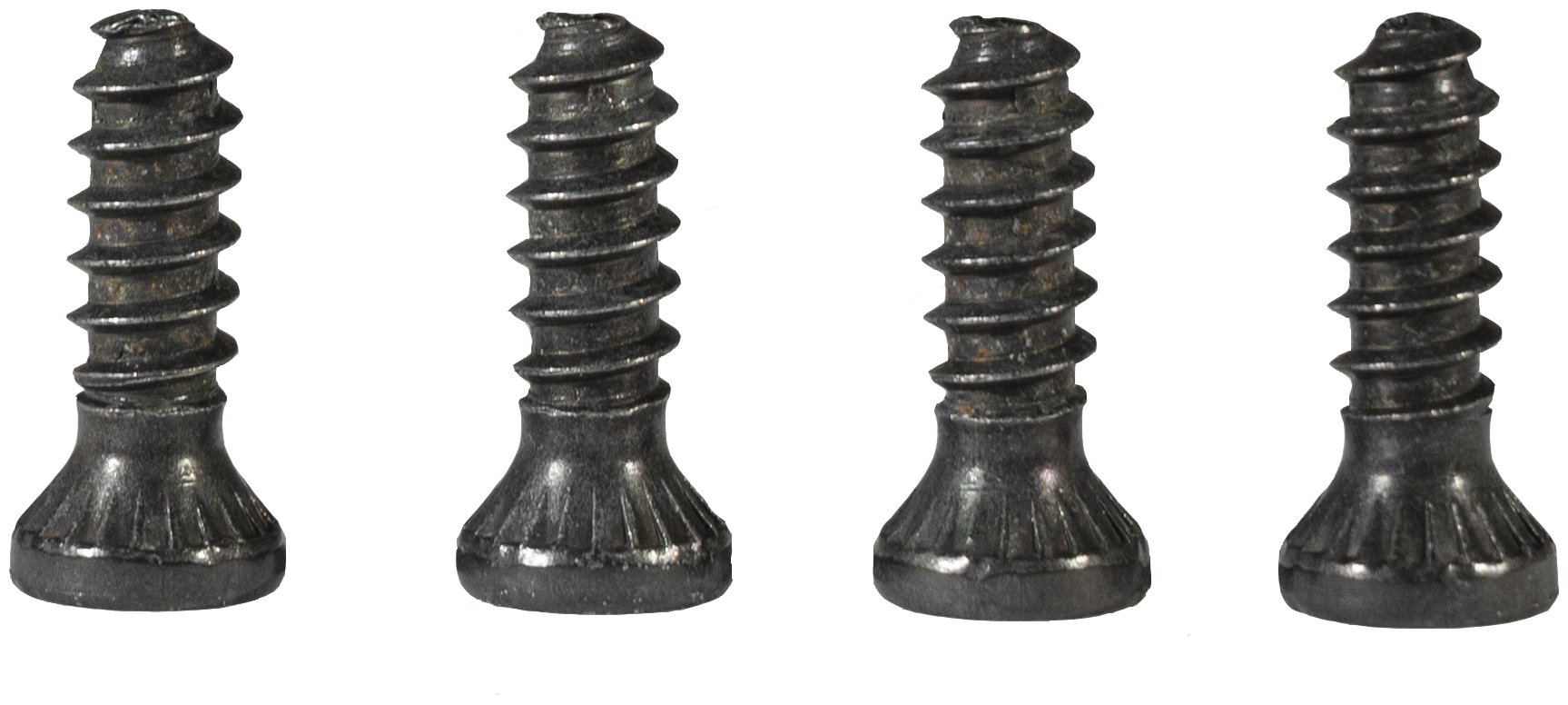

Shift Heel Screw - The 16.5mm screws used to attach the heel of the Shift and the two screws in the middle of the toe of the Shift.
Shift Window x2 - Sold as a pair. These are the windows for generation 1 Shift bindings with a raised bump to help position the lock lever.
Related Products
Questions & Reviews
11/10/2024
6/12/2024
Hi, I have a pair of skis with Atomic XT12 and I have new Tecnica GW boots is it possible to use them in the old bindings (they don’t have the GW logo). Or can I convert my bindings or replace them with Atomic X12 GW bindings, is it the same plate?
6/13/2024
Dan, No , No
These parts are just for the Shift binding, no other.
These parts are just for the Shift binding, no other.
Answer this question:
4/22/2024
Do the Salomon Mtn Pure bindings or Atomic Backland version come with the plastic crampon keeper clips to use Dynafit ski crampons with Salomon MTN bindings or Atomic Backland Bindings? Or are these sold with dynafit ski crampons?
Or do you sell these crampon keeper clips?
Thanks
Or do you sell these crampon keeper clips?
Thanks
4/22/2024
Hi Mike, those come with the Salomon/Atomic bindings. We don't currently have any available separately.
Answer this question:
4/1/2024

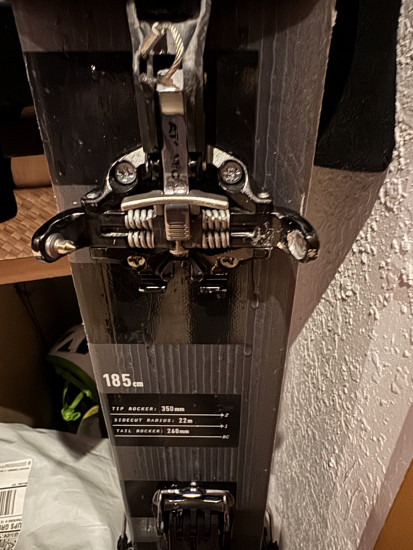

I lost 1 screw per binding.
Do you know if it is still usable without it and what happens if I use it?
Do you know where to find and how to replace it, it looks it is difficult to put it back.
Do you know if it is still usable without it and what happens if I use it?
Do you know where to find and how to replace it, it looks it is difficult to put it back.
4/1/2024
Hi Edoardo,
We need to know what screw, and what binding you have. You can send photos or more details to help@skimo.co and we can try to help you out!
We need to know what screw, and what binding you have. You can send photos or more details to help@skimo.co and we can try to help you out!
Answer this question:
2/23/2024

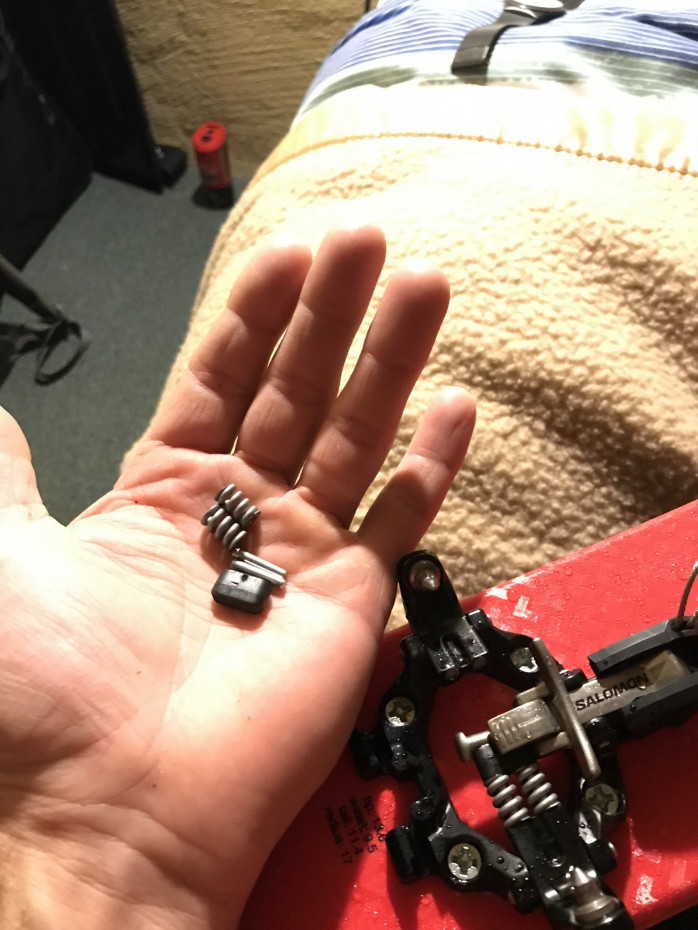

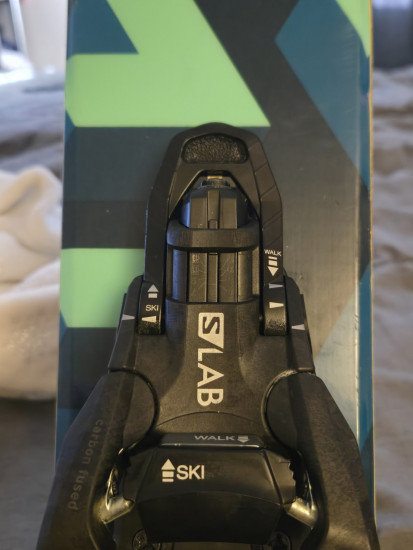

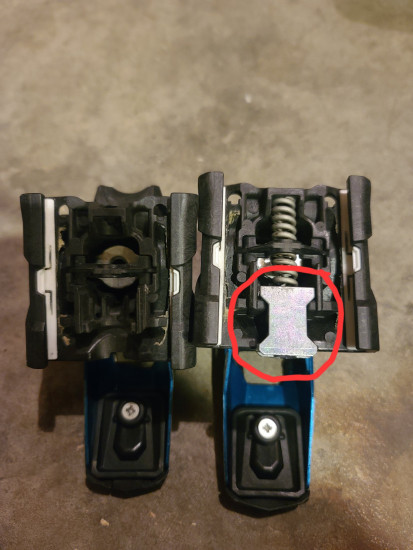

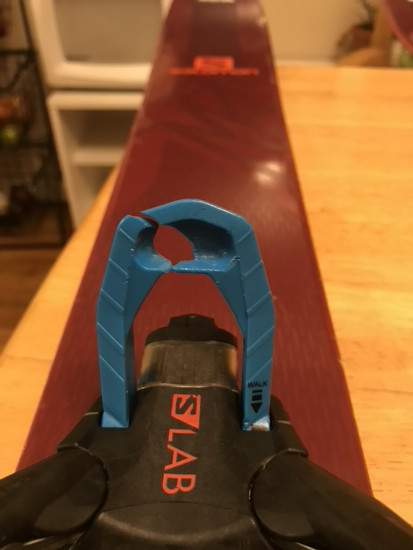

I seem to have lost springs for my S/Lab 13 front toe plate?
I’d not noticed them before, but found 2 loose springs in the snow after an uphill walk!
I’ve put one in the photo. Is that where they should live? 2 on each ski? Can you get replacements?
Any advice gratefully appreciated. Cheers
I’d not noticed them before, but found 2 loose springs in the snow after an uphill walk!
I’ve put one in the photo. Is that where they should live? 2 on each ski? Can you get replacements?
Any advice gratefully appreciated. Cheers
2/23/2024
Hi Alec,
That looks like the AFD plate. Our tech's recommendation at this point would be to replace the AFDs rather than trying to put them back together. You can buy a set of 2x Shift AFD plates under the Salomon/Atomic Binding Parts listing on our website here.
That looks like the AFD plate. Our tech's recommendation at this point would be to replace the AFDs rather than trying to put them back together. You can buy a set of 2x Shift AFD plates under the Salomon/Atomic Binding Parts listing on our website here.
Answer this question:
1/27/2024

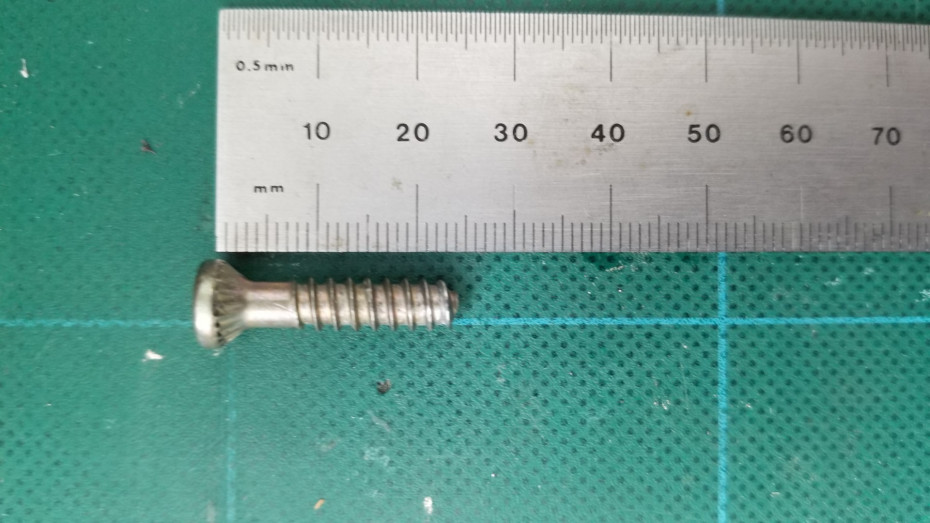

So seeing if the Shift Toe screws are like that in photo. The diameter of the threaded section measured with calipers is 5.5mm. This is to attach an S810 Ti binding to a Crossmax Pilot 8 which has the plates already as part of the ski. Thanks
1/27/2024
Hi Nick,
Thanks for the clarification. The Shift Toe Screws are not that long. They are approximately 5.4mm in diameter on our digital calipers. The diameter of the threads is pretty standard. But the screw in your picture is around 24mm, which is quite a bit longer than the Shift Toe Screws (10mm).
Thanks for the clarification. The Shift Toe Screws are not that long. They are approximately 5.4mm in diameter on our digital calipers. The diameter of the threads is pretty standard. But the screw in your picture is around 24mm, which is quite a bit longer than the Shift Toe Screws (10mm).
1/27/2024
OK, thanks for the info!
Answer this question:
1/23/2024
Hi,
Is the MTN heel/toe screw x1 a set of 4 screws? Thanks
Is the MTN heel/toe screw x1 a set of 4 screws? Thanks
1/23/2024
Hi Darren, no the "x1" means it's just one.
Answer this question:
12/17/2023

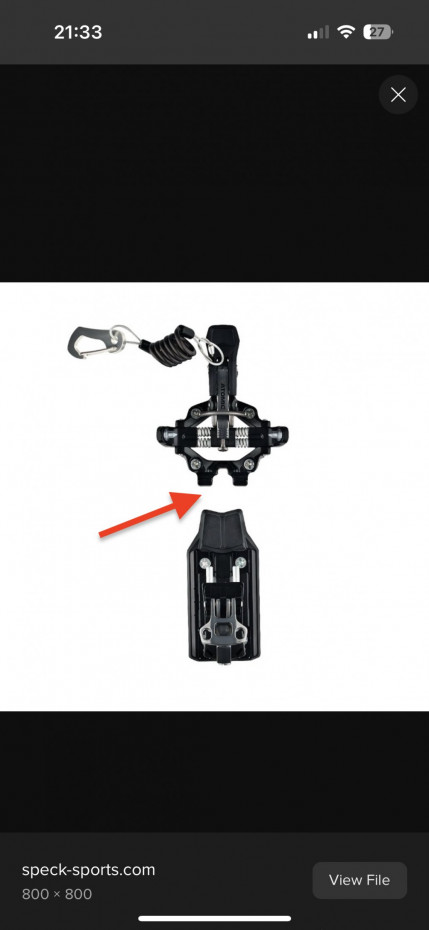

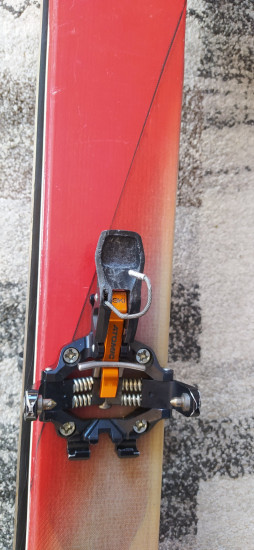

Hello everyone, the cable securing the safety leash broke in the atomic backland
Can I buy such a loop somewhere?
Can I buy such a loop somewhere?
12/18/2023
The closest we have is Titan leash loop. The fun part will be installing.
Answer this question:
12/13/2023

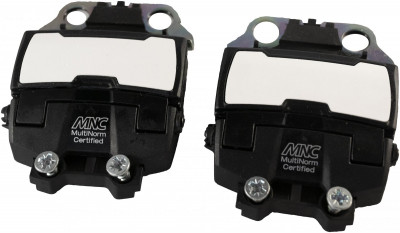

Does the Shits Toe AFD come w/ the screws as pictured or do I need to buy screws?
12/13/2023
Hi Steve,
It comes as pictured with the two screws on the back. The front two are not included.
It comes as pictured with the two screws on the back. The front two are not included.
Answer this question:
9/3/2023

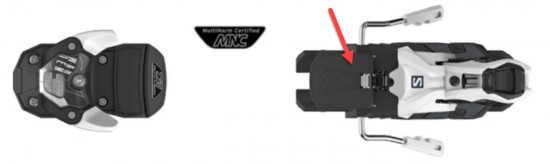

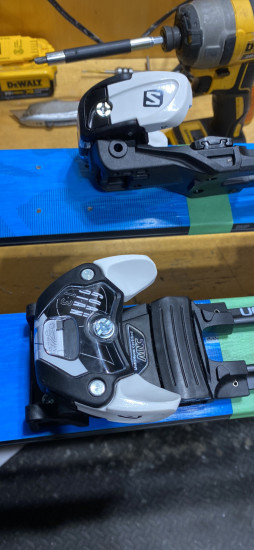

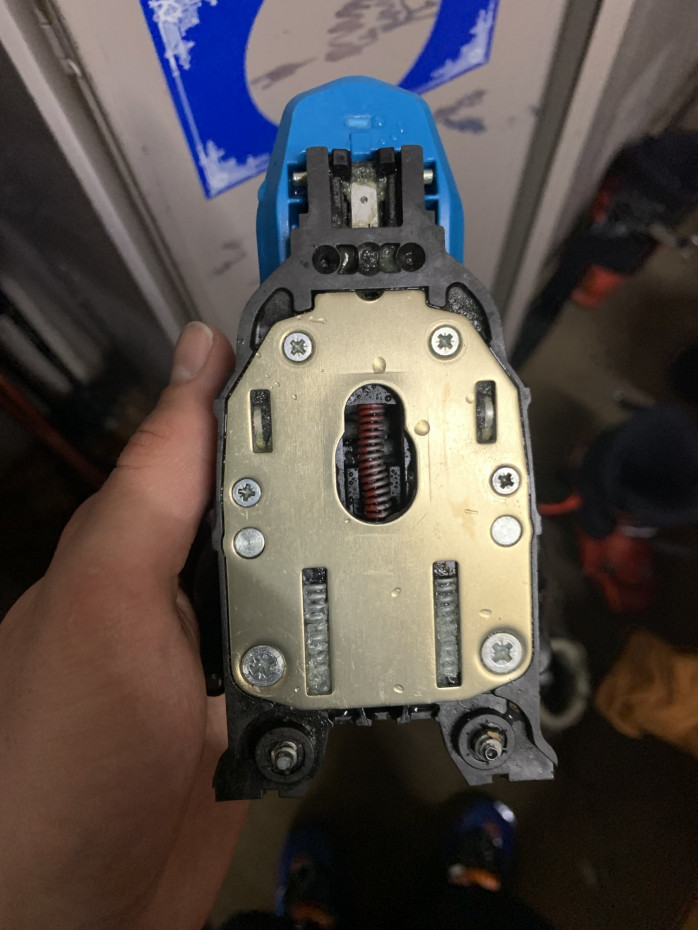

Do you guys sell the heel base plates along with the screws for the Salomon shifts? Like the one in the attached picture
9/3/2023
Christian,
We don't have the plates, but the screws you'll need are the "Shift Heel Screw" above.
We don't have the plates, but the screws you'll need are the "Shift Heel Screw" above.
1/15/2024
Wondering if you ever got a heel base plate. I’m also in desperate need
1/17/2024
Tony,
Sorry, we haven't gotten any in.
Sorry, we haven't gotten any in.
Answer this question:
5/20/2023
Screw length question.
The Salomon MTN Tour bindings have the brake base plate secured by the binding heel plate screws. Given that there is an extra few mm of plastic under the binding heel plate do you recommend using a slightly longer screw? or are the same screws used with the MTN pure binding still ok?
Thanks
The Salomon MTN Tour bindings have the brake base plate secured by the binding heel plate screws. Given that there is an extra few mm of plastic under the binding heel plate do you recommend using a slightly longer screw? or are the same screws used with the MTN pure binding still ok?
Thanks
5/22/2023
Hi Simon, the MTN Pure also has a plastic shim underneath the baseplate that is the same thickness as the brake plate, so you'll want to use the same screws as the Pure. Both versions come with the same screws in the box.
Answer this question:
3/28/2023

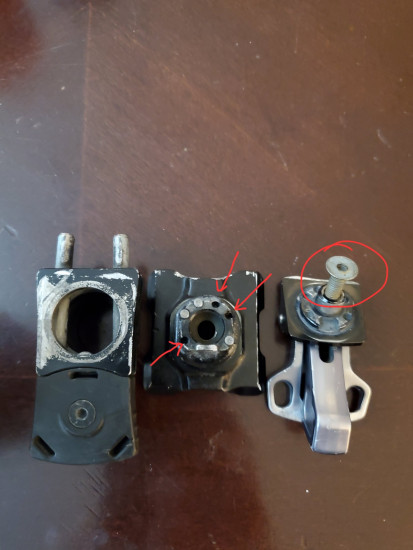

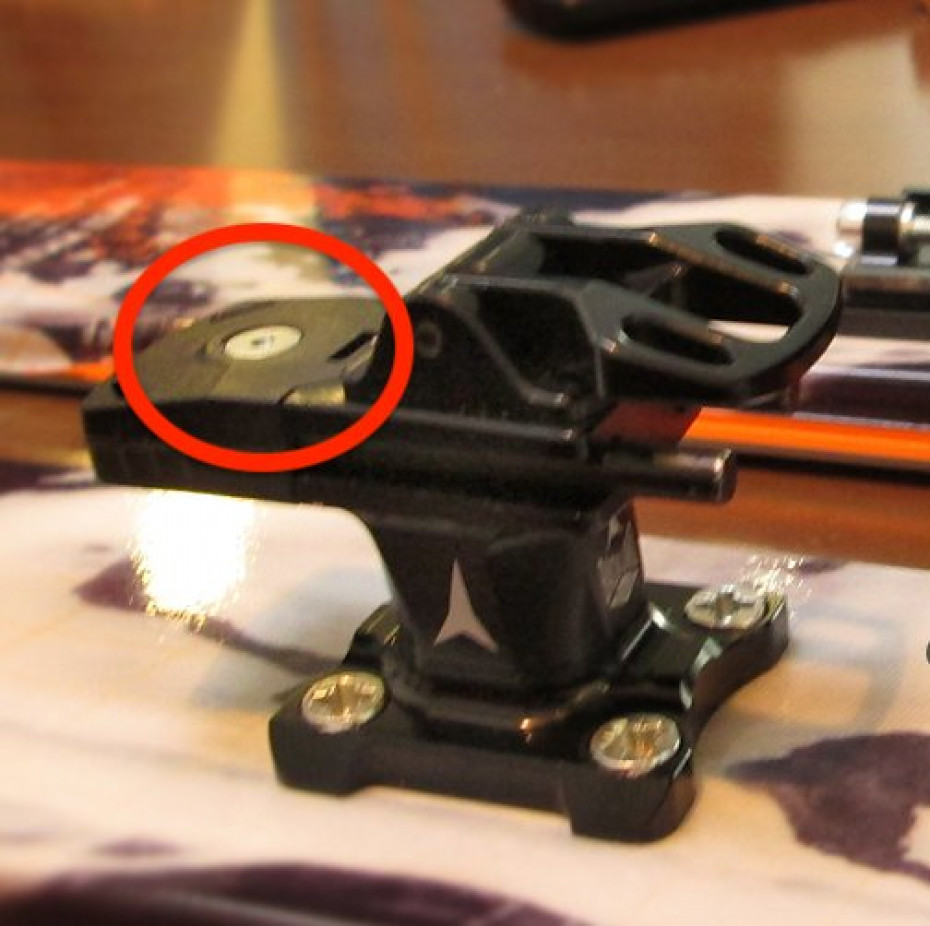

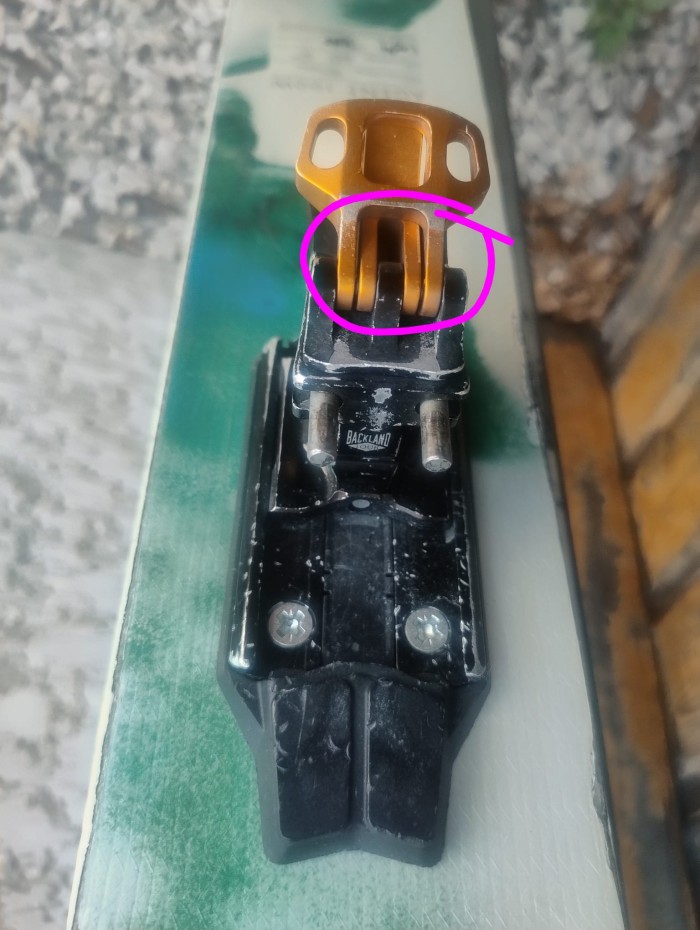

The heel tower came apart on my Armada Tracer (same as the Atomic Backland Pure bindings). Basically the screw holding the piece with the 2 heel risers and the rest of the structure came loose which caused the other piece to detached. It detached while I was skinning up and 2 of the steel gliders fell in the snow I'm guessing. Would you happen to have spare steel gliders and screw for that binding? If not, would you have that specific heel tower?
3/29/2023
Emilie,
Unfortunately, we don't have any of those parts, or heel towers, sorry! We occasionally have heel pieces available.
Unfortunately, we don't have any of those parts, or heel towers, sorry! We occasionally have heel pieces available.
Answer this question:
3/20/2023
hello, I am looking part for binding salomon L10
3/20/2023
Hi Ivan! We do not carry parts for your particular binding, unfortunately. Send us an email at help@skimo.co with a few more photos and we may be able to help point you in the right direction. Thanks!
Answer this question:
3/9/2023
Hey I have a pair of the atomic backland pure bindings and they did not come with the plastic piece needed for dynafit ski crampons. do you guys sell that part?
3/10/2023
Hi Benjamin, we don't sell that part specifically, but please reach out to "help@skimo.co" and we can see if there's some kicking around the shop.
Answer this question:
3/7/2023

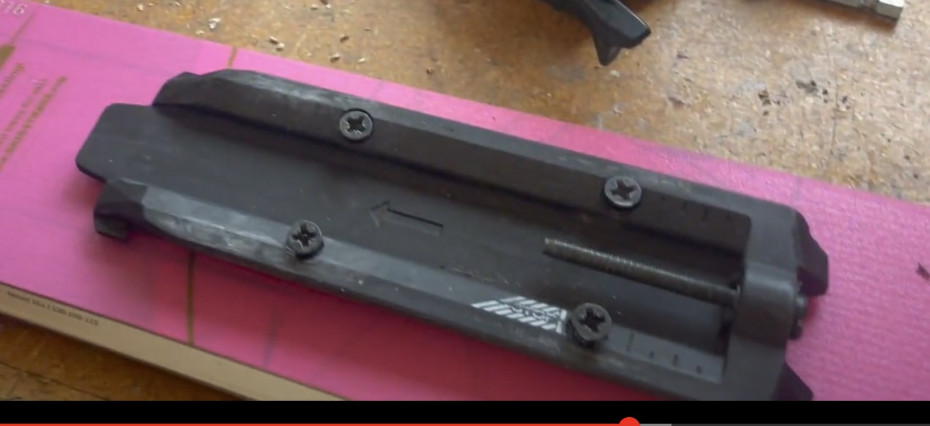

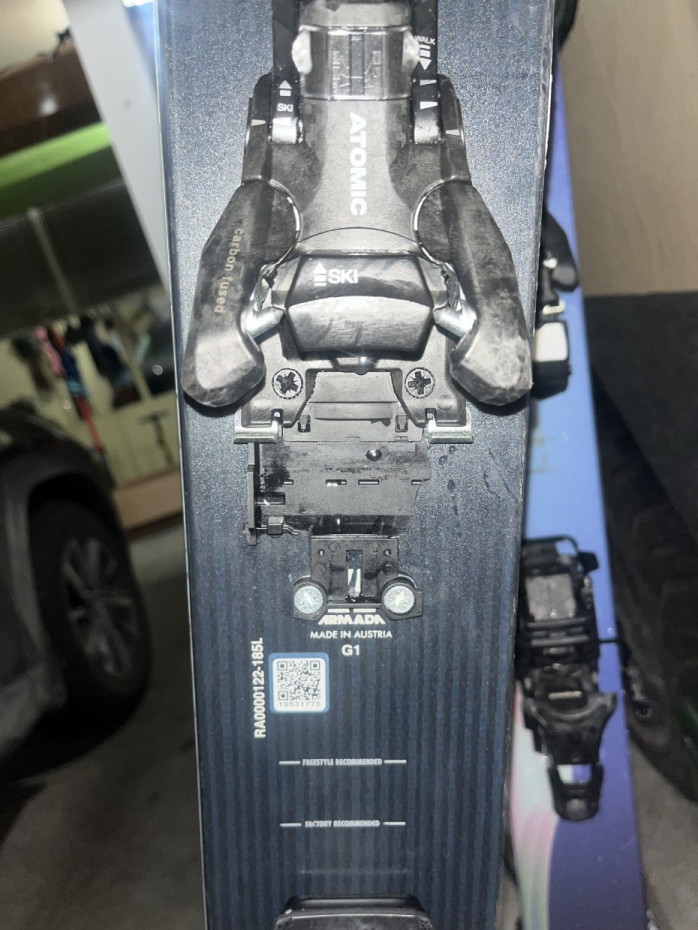

I lost a part to attach the binding to the ski and I wanted to know if you have it.
Attached is a photo of the binding with the missing peace
Attached is a photo of the binding with the missing peace
3/7/2023
Hey Joaquin,
We may have a solution for you. Send us an email at help@skimo.co with a few more photos of the binding and we can go from there. Thanks!
We may have a solution for you. Send us an email at help@skimo.co with a few more photos of the binding and we can go from there. Thanks!
Answer this question:
3/7/2023
Hi there,
The AFD plate on my Atomic NEOX binding broke. I know these are very old bindings, so I wasn't sure if these Shift Toe AFD Plates would fit to replace the broken plate. Do you know if these AFD plates work on Atomic NEOX bindings?
The AFD plate on my Atomic NEOX binding broke. I know these are very old bindings, so I wasn't sure if these Shift Toe AFD Plates would fit to replace the broken plate. Do you know if these AFD plates work on Atomic NEOX bindings?
3/7/2023
Hi Tyler,
Unfortunately, in general, the Shift Toe AFD Plates are specific to the Shift plates and would not work with your binding.
Thanks!
Unfortunately, in general, the Shift Toe AFD Plates are specific to the Shift plates and would not work with your binding.
Thanks!
Answer this question:
3/1/2023

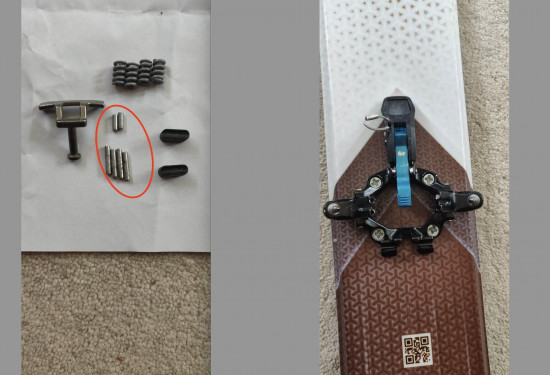

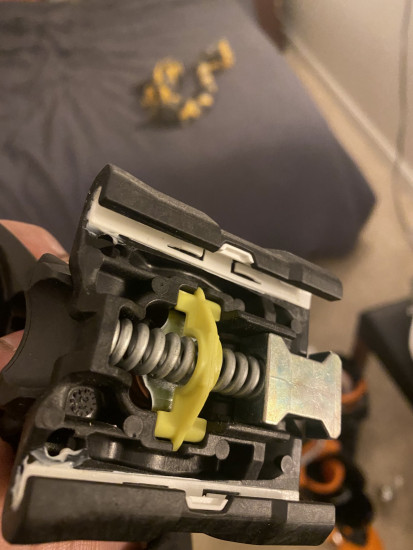

I recently bought a pair of new Salomon MTN bindings from someone on FB marketplace and mounted them on a pair of Voile Hyper V8's that I bought from Skimo. I really enjoyed the setup until the pins holding the front toe piece springs all snapped one morning when I stepped into my bindings (in the parking lot). I had skied them for 12 days prior to this occurring with no issues.
Because I bought the bindings off FB marketplace and the original owner doesn't have the original purchase receipt, Salomon isn't providing me a warranty and hasn't been helpful at all, even though the bindings were mounted brand new with the tags still on them. I called them, but they said they can't sell me the four little pins required to fix the bindings and they can't even sell me a new front toe piece.
Any chance Skimo can help me either source the 4 pins required to re-assemble my toe or sell me a new toe piece? I'd appreciate any help as it has been really frustrating trying to find a solution with Salomon. It seems incredibly wasteful and unprofessional that Salomon won't help me with this minor fix on brand-new bindings and can only sell me new bindings.
I've included a couple of photos.
Cheers!
Because I bought the bindings off FB marketplace and the original owner doesn't have the original purchase receipt, Salomon isn't providing me a warranty and hasn't been helpful at all, even though the bindings were mounted brand new with the tags still on them. I called them, but they said they can't sell me the four little pins required to fix the bindings and they can't even sell me a new front toe piece.
Any chance Skimo can help me either source the 4 pins required to re-assemble my toe or sell me a new toe piece? I'd appreciate any help as it has been really frustrating trying to find a solution with Salomon. It seems incredibly wasteful and unprofessional that Salomon won't help me with this minor fix on brand-new bindings and can only sell me new bindings.
I've included a couple of photos.
Cheers!
3/1/2023
Hi Micah, bummer! Please reach out to help@skimo.co and we'll see what we can do.
7/8/2023
Hi,
I have had the same issue as Micah with my toe piece.
The pins that locate and hold the toe piece springs sheereed off while stepping in.
Just wondering if Salomon resolve the issue in some way for Micah.
Thanks
I have had the same issue as Micah with my toe piece.
The pins that locate and hold the toe piece springs sheereed off while stepping in.
Just wondering if Salomon resolve the issue in some way for Micah.
Thanks
7/8/2023
Hi Simon, if you're the original owner and have proof of purchase for these bindings, please do reach out to Salomon and see what they can do for a warranty. Otherwise, feel free to email us at help@skimo.co and we can see what options we've got!
Answer this question:
2/22/2023
Hoping someone out there has a spare Salomon Shift 13 binding toe piece! I am the second owner so I cannot warranty.
Reply to this comment:
2/13/2023
Hi there - any way I can buy just a single AFD plate?
2/13/2023
Jon,
Unfortunately, we only sell them in pairs.
Unfortunately, we only sell them in pairs.
Answer this question:
12/15/2022
I am mounting a set of Solomon Marker 13's and I have misplaced one of the heal screws. The specific screw is one of the 2 closer to the toe. Do you have this screw available? I already mounted the others, so getting a measurement would require removing/measuring. Just thought I'd ask before I went down this road.
12/15/2022
Hi Johnny,
We do not carry resort gear at Skimo Co, so it is unlikely that we have that screw around the shop. If you remove one of heel screws, get some dimensions with a caliper, and send them to help@skimo.co, we can see if we have something that will do the trick!
We do not carry resort gear at Skimo Co, so it is unlikely that we have that screw around the shop. If you remove one of heel screws, get some dimensions with a caliper, and send them to help@skimo.co, we can see if we have something that will do the trick!
Answer this question:
