The Aski adjustment plates let you move otherwise-fixed Dynafit-style ski bindings. This lets you use multiple boots or can help work around existing drill holes in your ski. The adjustment plates rely on bolt-tension to hold the toes or heels in place. Specialized bolts screw into jam nuts under the plates.

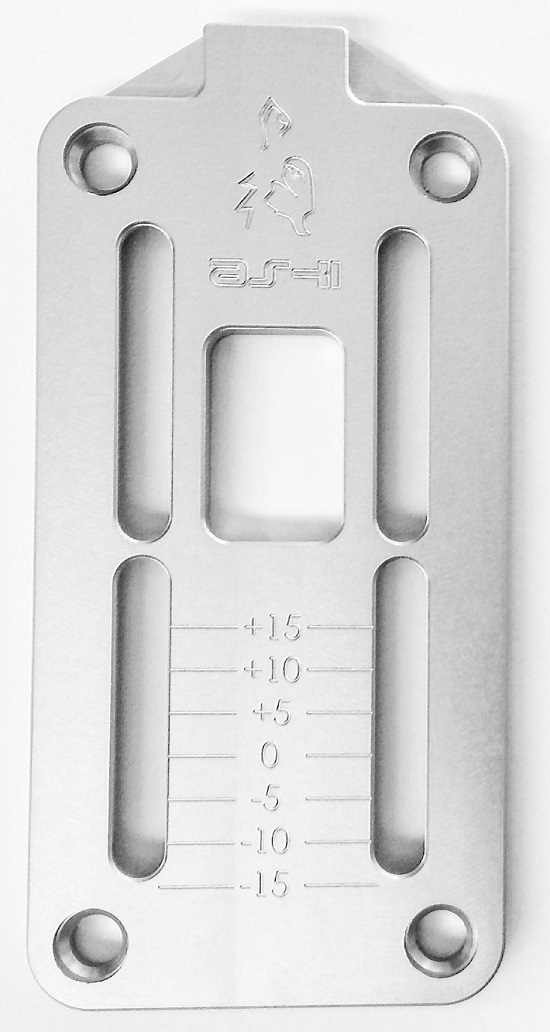

- Radical Toe plate works with any four-hole binding with a 30mm width. See patterns.
- LTR / Superlite 1.0 heels are for Dynafit Low Tech Race 1.0 and Superlite 1.0 bindings.
- All plates are sold in pairs and come with jam nuts, but are currently shipping without bolts.
- Toe mounting pattern is 40 x 91 (mm WxL), heel is 26 x 54; same as Dynafit, see plates.
Questions & Reviews
It's not clear to me from this thread whether or not the toe plates shown in the dropdown menu here (Radical Toe 2.0 x2) will fit my need. I'm trying to mount used Dynafit Superlite 1.0s with some measure for future adjustment. I read the thread of questions on your other adjustment plate page (https://skimo.co/dynafit-binding-adjustment-plates) and it referred me here. Do you have a product in stock that will meet this need and does it come with everything I will need to mount it?
Can you clarify the bolts for me.
Am I right the nuts are M6? And the countersunk bolts have to be ground down to a head of 8mm to fit the binding? If so, doesn't that leave only a 1mm overlap between bolt and binding? Seems thin to me!
Do the unavailable dynafit plates use M6 as well?
I'm keen to mount these DPS' on the center-line so that they ski the way they were designed, therefore avoiding having to move the mount point fore or aft 1cm. Two questions for you:
1) Would you know if the mounting pattern of the Dynafit Rotation differs enough from the Marker Kingpin so that I can drill new holes and mount on the center line? From what I can discern from Wild Snow's mounting patterns, it looks like the heel piece mounting patterns are too close.
2) If the patterns for the KP's and Dynafit Rotations are too similiar, forcing me to move up/down 1CM, would these Ski plates allow me to work around the drill holes and mount the Dynafit's center-line?
And finally, would y'all be able to do this mount for me? (I live about 45 minutes from the SkiMo office)
Thank you in advance for your help!
Unfortunately these toe plates only work with the Radical 1.0 pattern so they are no help.
The heads on standard M6 flat head machine screws is too big to fit in Speed Superlight 1.0 heel piece.
I couldn't find any suitable bolts from a supplier -- so to make standard M6 bolts work I'll need to grind down the sides of the heads.
I have a bunch of suitable M5 bolts from a Binding Freedom kit -- but M5 jam nuts are too small for the channels in the plates.
It's real pain that ASKI doesn't include suitable nuts and BOLTS in the kit -- or at least offer the a set of suitable bolts.
What length M6 bolt is needed ?
Although I've the following questions
- does it comes with the bolts
- is it compatible with the Dynafit low tech race 1.0 (they both have the Heel Pattern with 23)
- How much of adjustment will I get from them
