Where did that screw go? Lose a screw behind the workbench or on your last run? We have more here. All hardware is sold individually.
Titanium Screw - Ultralight and strong screw for mounting Low Tech Race and Speed Superlite bindings.
12.5mm Torx Screw - For mounting Low Tech Race & Speed Superlite bindings, plus Speed Radical & Speed Turn 2.0 toe pieces.
15.5mm Torx Screw - The ST Rotation/Radical 2.0 flat head mounting screws, toe and heel. Also used for Radical and Vertical rental heels.
15.5mm Pan Head Torx Screw - For mounting all Radical 1.0 & Vertical heel pieces, except the Speed Radical from 2014/15 on.
16.5mm Pan Head Screw - Torx pan heads for Speed Rads with the anti-rotation peg, which started shipping in 2014/15 and is 1mm higher.
19mm Torx Screw - For mounting Radical ST/FT 1.0 & Vertical ST/FT toe pieces. Also used for shimming Speed Rads & Turns.
LTR Adjustment plate bolt + Nut - Used for mounting LTR race heels to Dynafit adjustment track.
DNA & Mezzalama Adjustment Plate Bolt + Nut Set - Used for mounting DNA & Mezzalama (and plus versions of each) to Dynafit heel adjustment tracks. Ten fasteners are included for affixing any version of either binding.
Hi Magnus, the adjustment screw in the Radical FT baseplate is unavailable as a separate part. It is integrated into the brake/baseplate unit. You can purchase those here.
Answer this question:
4/9/2017
Question from
stefan
Hi I am looking at ordering a radical ST Toe piece, toe plate and crampon receptor. I was wondering about what length of screws I need to mount these. Thank you
Hi Stefan, you will need the 19mm Torx screws for that setup.
Answer this question:
2/17/2017
Question from
Lars
I need an adjustment screw for my radical st (1st gen) bindings (The ones that makes it possible to adjust binding sizes- located under the heel piece). Which of these parts do i need. Also- is it a hassle to change this? The old one is almost without any patterns.
Hey I'm looking for mounting screws for my speed turns. Which ones should I get? Thanks. And I think it's awesome that you sell individual parts like this.
Hi Jeremy, for the Turns you need 8 or 10 12.5mm Torx screws (depending on 1.0 or 2.0 version), and 8 Pan-head Torx screws.
Answer this question:
1/5/2017
Question from
Dimitris Pantelias
hello, i live in Greece and i ve got an older version of the low tech heel piece(grey -black) mounted on an adjustment plate and i am looking for the torch screws and nuts that are screwed on the adj.plate and the screws that would be used if the heel piece is mounted dirrectly on the ski.is there any hope? if yes i would like to order a set for both heel pieces. thank you
Hi Dimitris, unfortunately those are a rare commodity and we don't have any at the moment.
Answer this question:
10/14/2016
Question from
Donovan Best

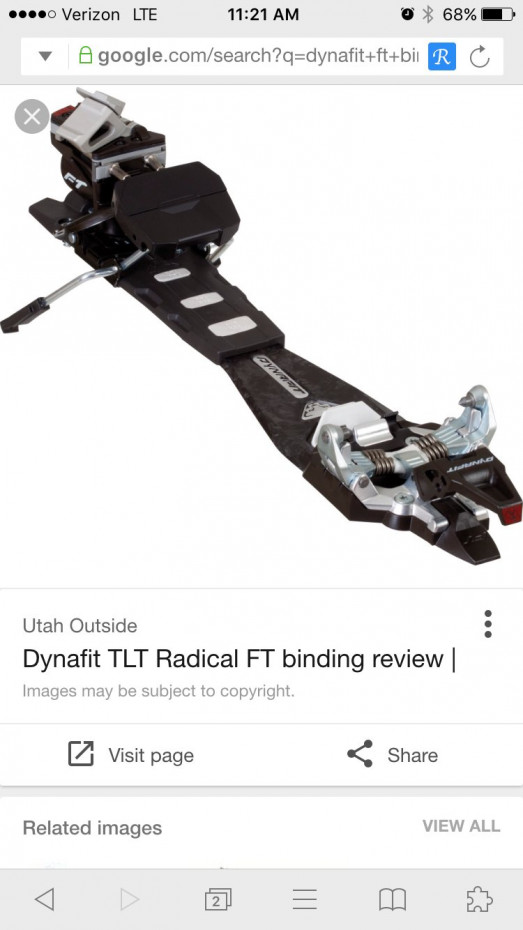

I believe I have a pair of Dynafit TLT Radical FT bindings. They look like the bindings in the attached photo. I am putting a riser between the binding and the skis and need longer mounting screws. Can you please let me know what screws I need?
I am mounting up speed radicals with a 3.2 mm B&D shim under the tow and the anti rotation piece under the heel. Would I need 15.5mm screws for the toe and 16.5 mm pan head screw for the heel? Thanks
I have a TLT Speed binding mounted on a heel adjustment plate and need replacement screws. Do you have these? I see my question wasn't wordy enough, so let me add I think it is great you offer this forum (and hopefully a solution for me). thanks.
Hah, sorry for word requirement, that is only for reviews (select Ask a Question to be terse). Unfortunately Dynafit doesn't offer replacement screws for the adjustment plates. Standard M5 screws can work, but you may have to grind the heads.
