Plum Binding Parts
Wear out a fork? Lose a screw? Decide to add the oddly expensive crampon attachment? Whatever you're into, we will try to help. Find our growing list of parts for Plum bindings below:

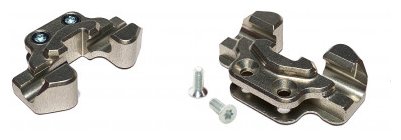

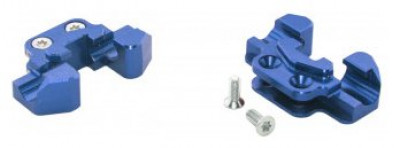

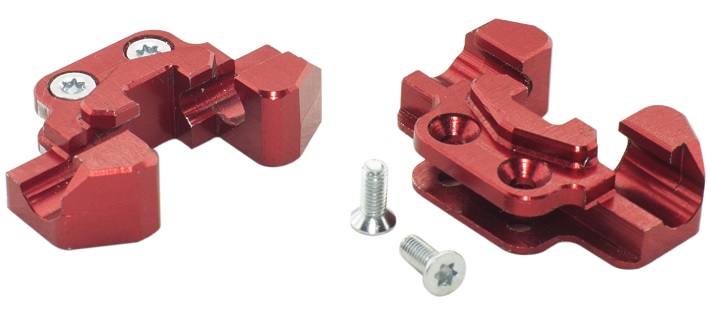

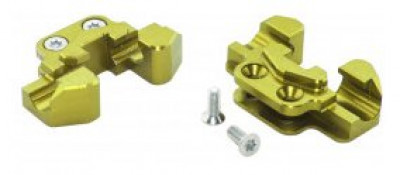

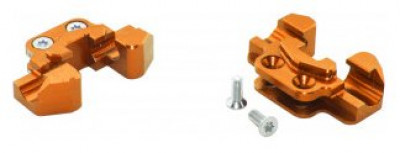

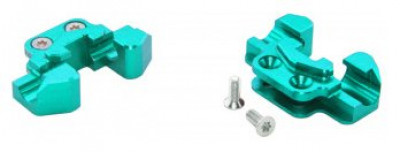

Crampon Attachments - New (x2) - Machined receptors for Oazo and Race 150/170 toe pieces, including the required screws. This attachment system is only compatible with Plum ski crampons, and will not accept Dynafit-style ski crampons. Multiple colors available.
Crampon Attachments - Old (x2) - The metal crampon receptor brackets that slip under race 135/145/165/185 toe pieces and screw in. Comes with the necessary screws. This older version of the Plum crampon attachment system will accept Dynafit-style ski crampons, and not modern Plum ski crampons.

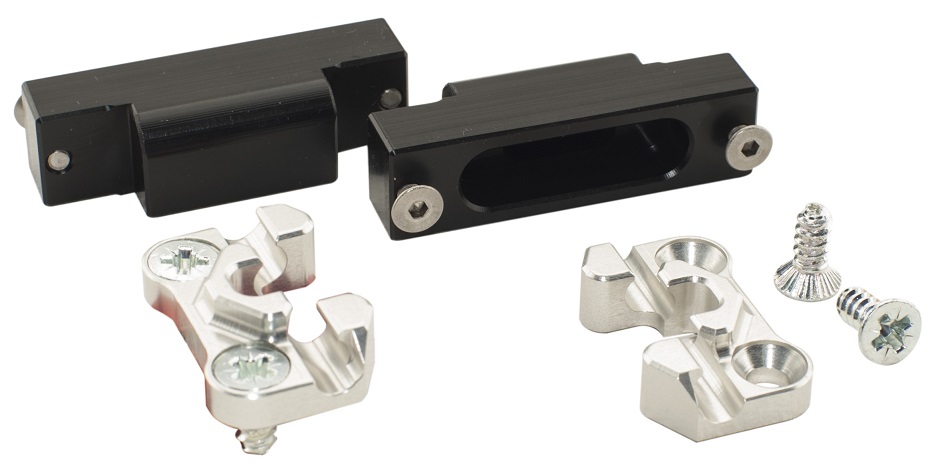

Universal Crampon Mount (x2) – Love your Plum ski crampons so much you want them on every ski regardless of whether it actually has a Plum binding or not? We don’t blame you. Thanks to the Universal Crampon Mount, it’s easy to make that a reality. The mounts include two wood screws and a spacer to enhance crampon teeth bite, and this whole kit can be mounted anywhere on the ski. Weighs 10g per side. Also included are crampon risers for use with telemark bindings.

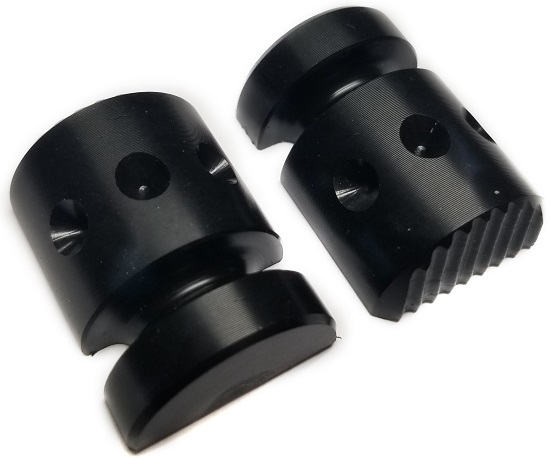

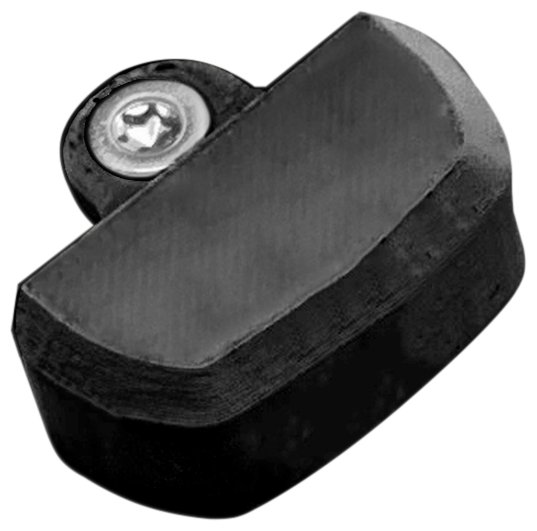

Heel Risers (x2) - Plastic risers that mount onto the forks of Race 145/150/165/170/185 bindings. Mount by punching the pins and removing fork; rotate heels 180 degrees to use. 13g each and gives approximately 25mm of extra height.

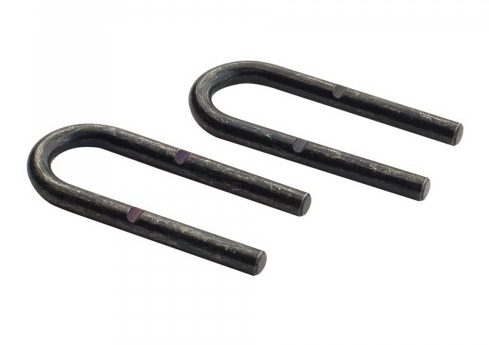

Steel Forks (x2) - Replacement forks for Race 145, 150, 170, and 185 bindings, as well as the Oazo 8. Lots of options but not hard to replace.
Titanium Forks (x2) - Shed a few grams from a Plum Race 145-185 or replace notched forks on a Race 135.
Titanium Forks 99 (x2) - Replacement forks for the Race 99 binding.

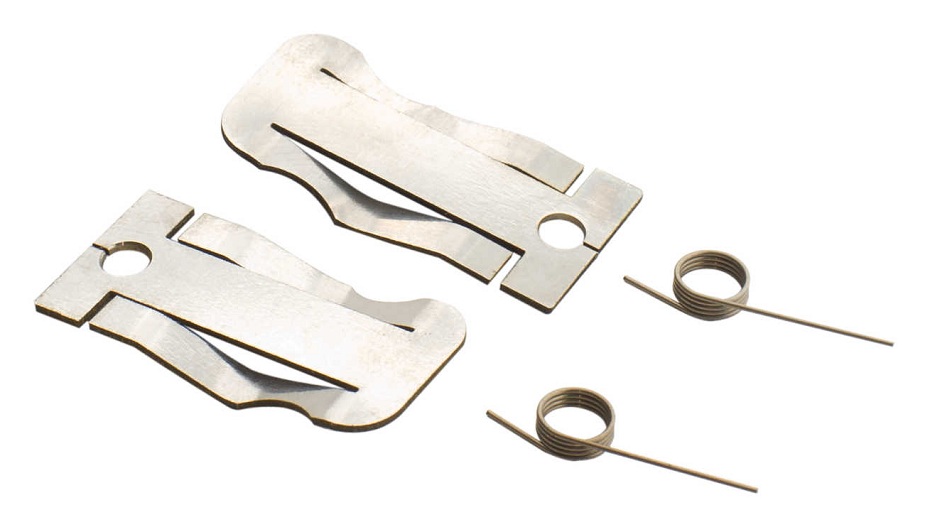

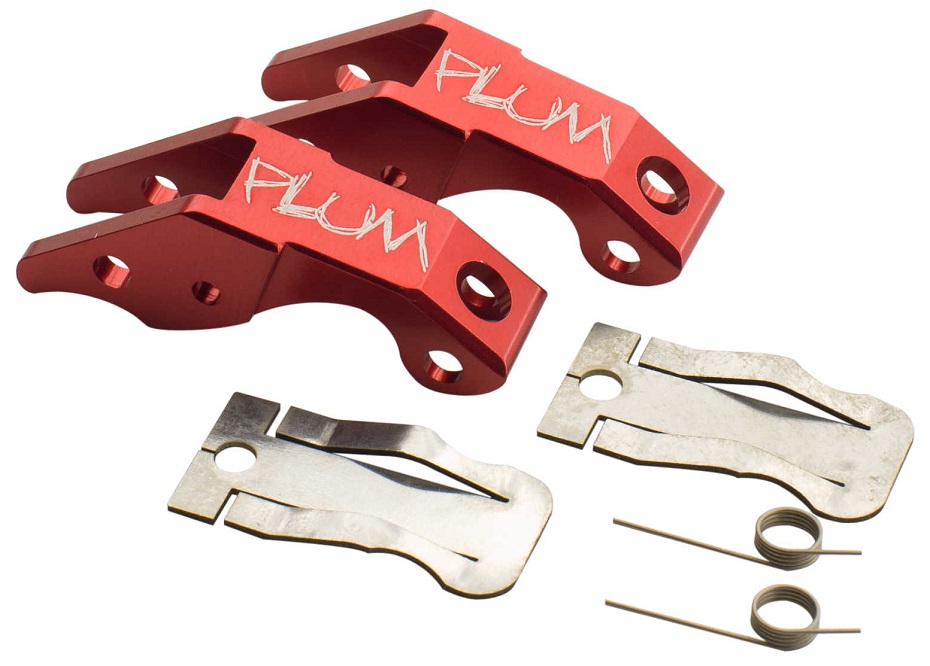

Lock/Unlock Kit (x2) - The humped metal striker plates under the toe levers that enable ski & locked modes. Comes with thin springs to control the lever tension.

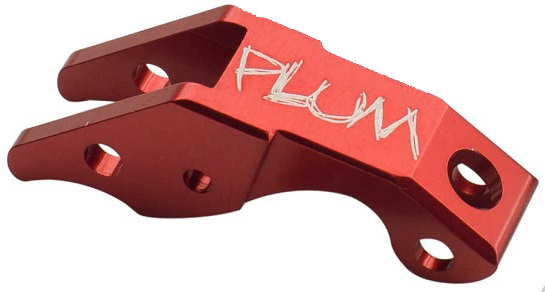

Old Race Toe Lever (x1) - A replacement toe lever for model years up to 2015, e.g. 145 & 165. Also works to upgrade pre-2011 toes using the lock / unlock kit to be ISMF compatible.

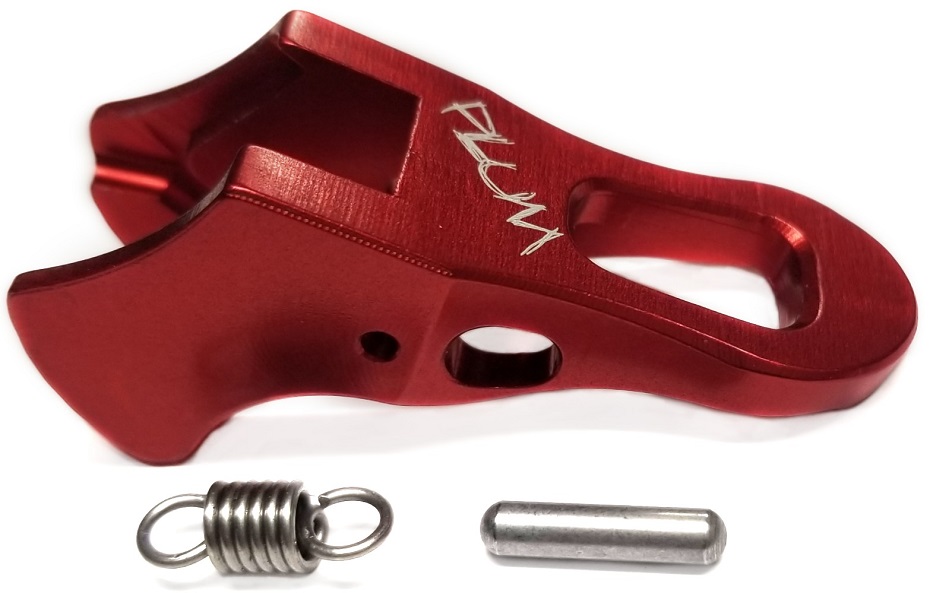

Race 150/170 Toe Lever (x1) - Replacement toe lever for Race toe pieces belonging to the 2016 vintage and later.

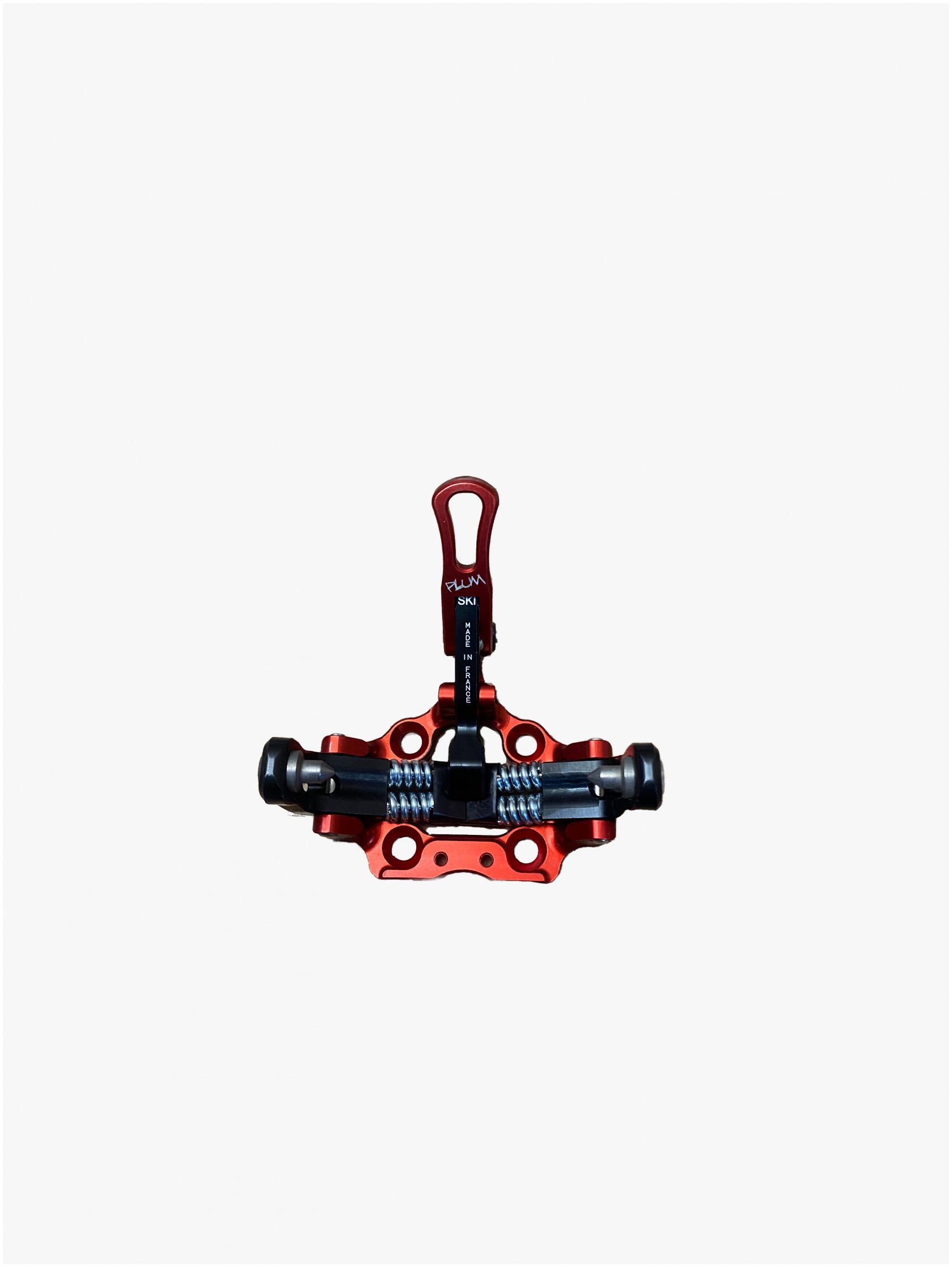

Race 120 Toe Lever (x1) - This is the thinner lever found on the svelte Race 120.

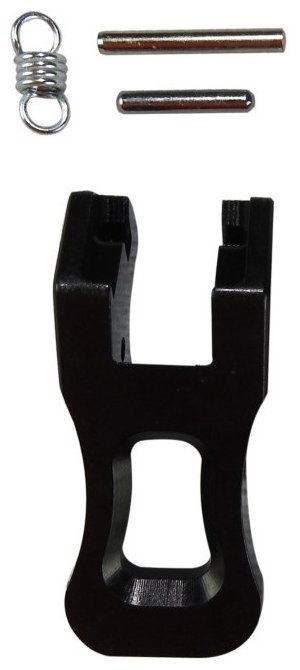

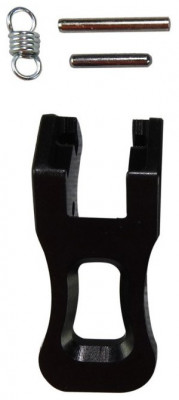

Guide/Yak Toe Lever (x1) - This is the replacement toe lever for Guide and Yak bindings. Comes with a toe lever, spring, and two pins.

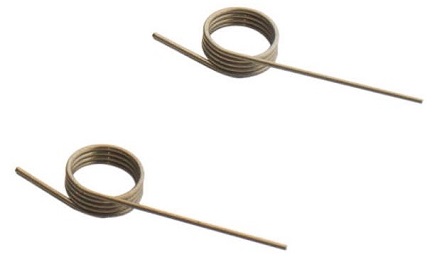

Race Toe Lever Springs (x2) - Replacement springs for the toe levers if yours were damaged or scattered to the wind.

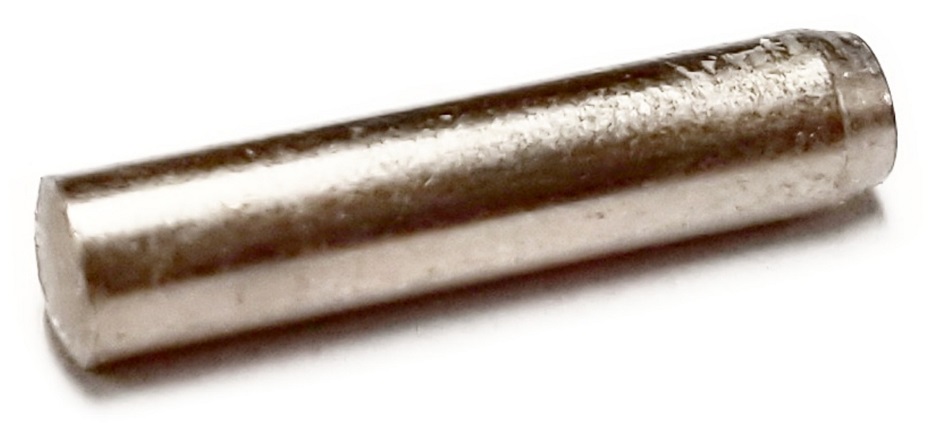

Race Toe Lever Pin - The pins that hold the toe lever in place, about which they pivot.

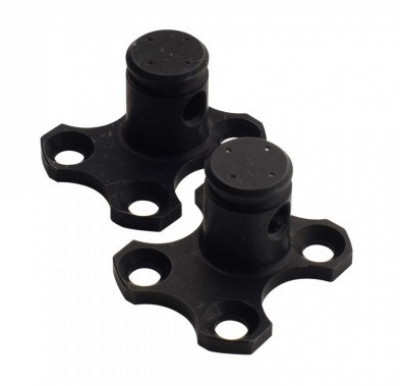

2mm Base Offsets (x2) - Move your Race 145 or 150 heel piece back or forward 2mm by re-mounting with this base pedestal.
3mm Base Offsets (x2) - Re-mount your fixed race heel 3mm fore or aft if you change boots by swapping pedestals.
4mm Base Offsets (x2) - 4mm is a little too close for another drill hole so use this offset pedestal instead.

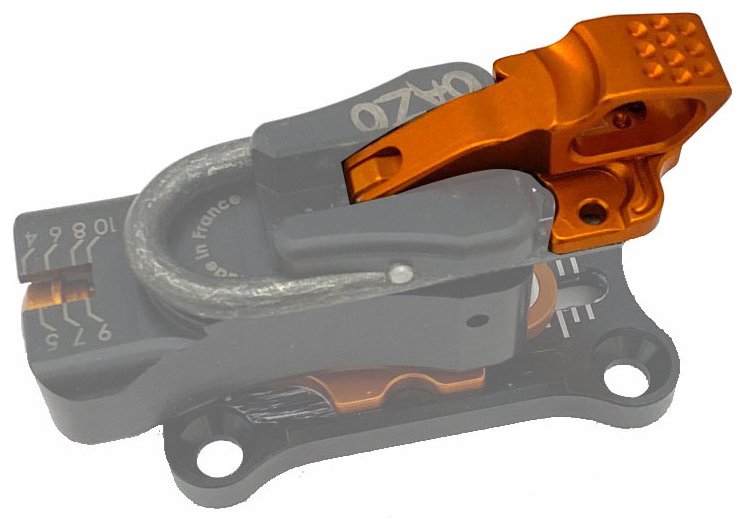

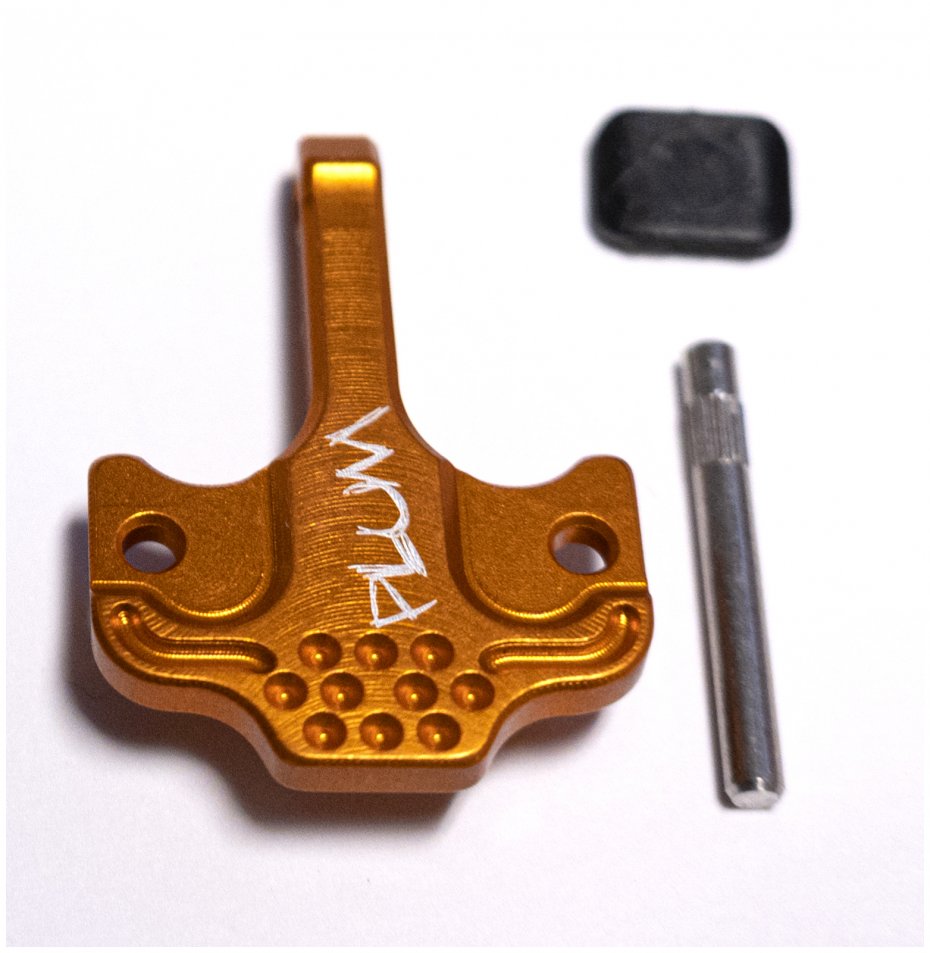

Oazo Toe Lever - 2020/21 (x1) - Replacement toe ski/tour lock lever. Comes with springs and spring pin.
Oazo Toe Lever - Update for 2021/22 the hole in the lever is smaller to catch more poles. Comes with springs and spring pin.

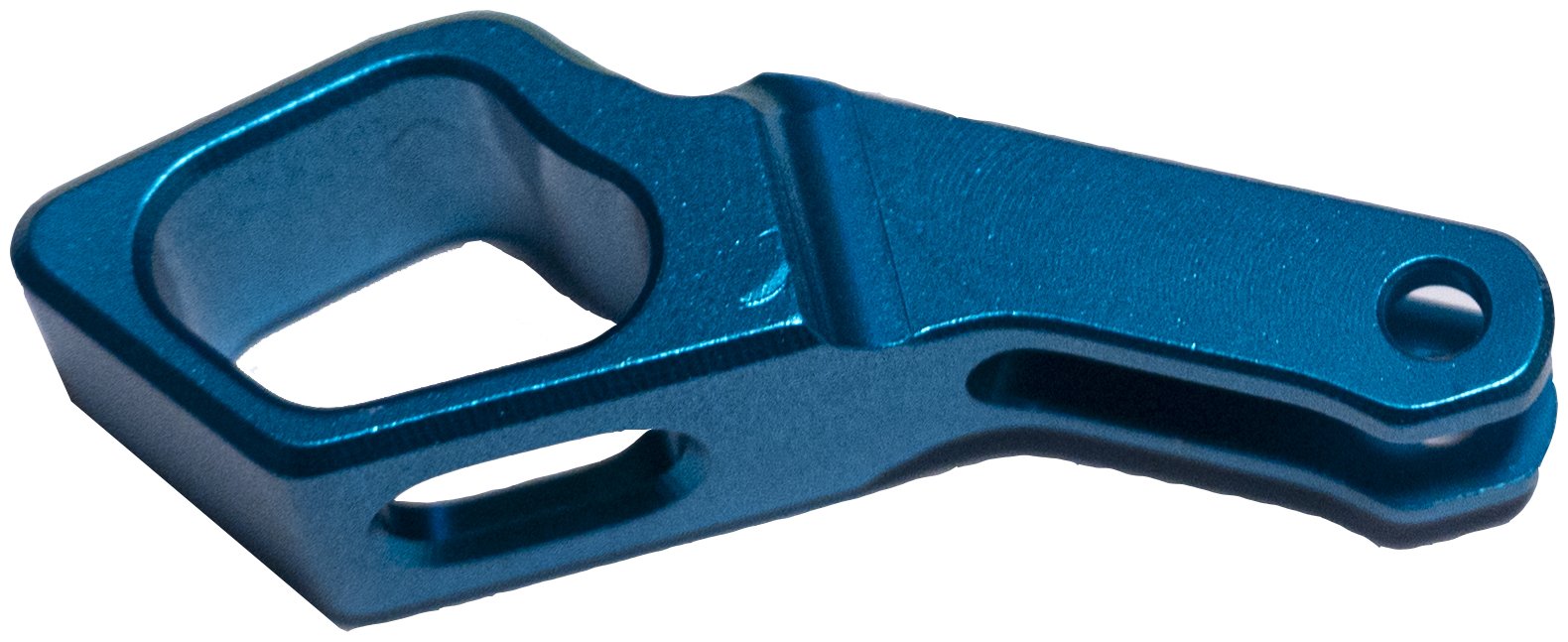

Oazo High Heel Riser (x1) - Replacement high heel riser for all Oazo bindings.

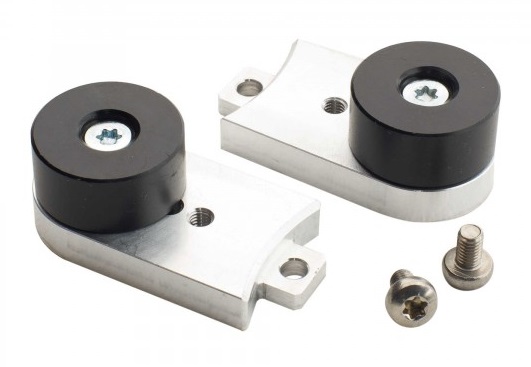

Oazo Heel Pads (x2) - Removable rubber pads on plates that screw into Oazo heel pieces for additional support.

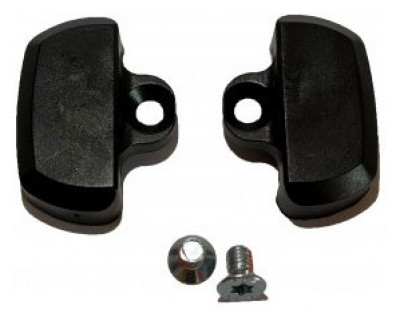

Pika Heel Pads (x2) - Removable rubber pads on plates that screw into Pika heel pieces for additional support.
Guide Heel Pads (x2) - Removable rubber pads on metal plates that screw onto the heel pieces for extra boot support.

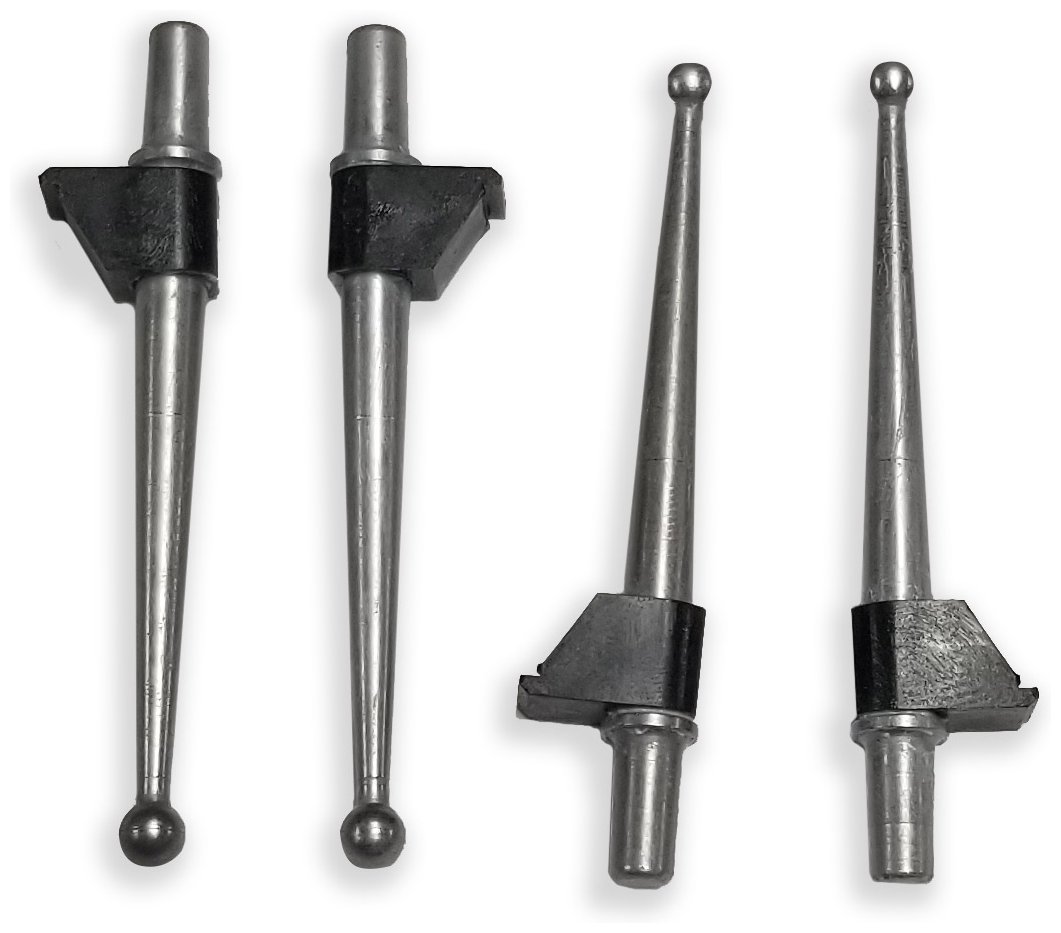

Guide Heel Pins (x4) - Replacement heel pins for the Guide binding; Plum recommends replacing all 4 at the same time.

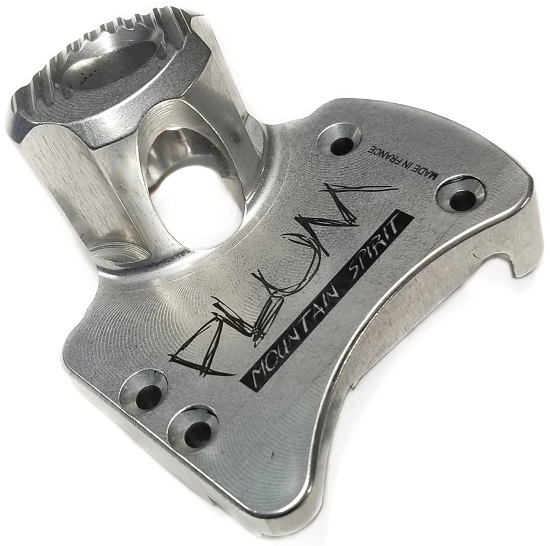

Guide Heel Roof (x1) - The metal top with climbing post that comes stock on most Guide heel pieces.

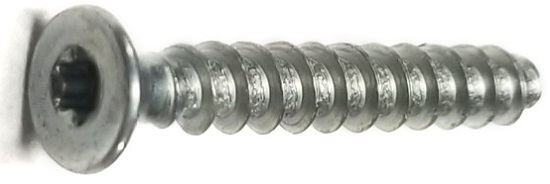

Guide Roof Screw (x1) - The mini Torx T9 screws that hold the roofs onto the heel pieces.

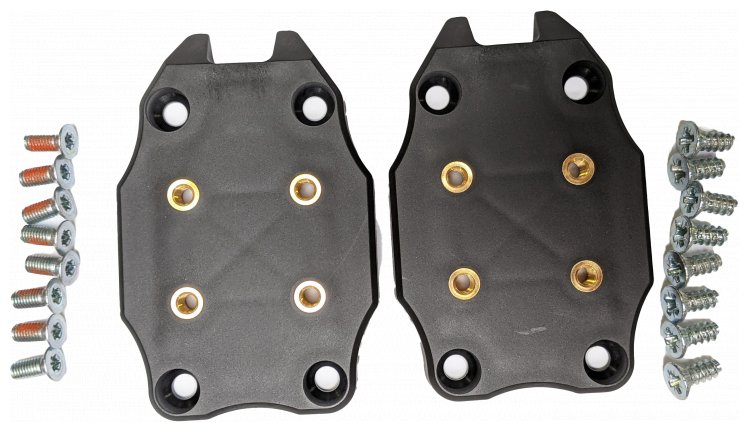

Summit Toe Plate (x2) - Base plates to create a wider mounting pattern for Guide toes. 48 grams each with the included machine screws to attach a toe. Also comes with a set of mounting screws.

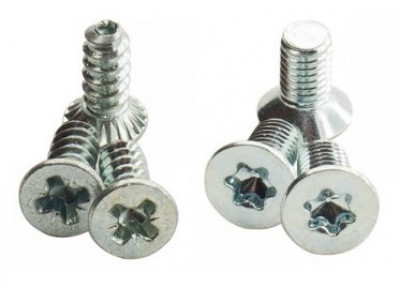

Race Mounting Screw (x1) - Specialized screws from Plum that are the perfect size for their race bindings.
Race Adjustment Screw (x1) - Torx T25 fasteners that stop the Race 165, 170 & 185 heels from sliding back or forward.

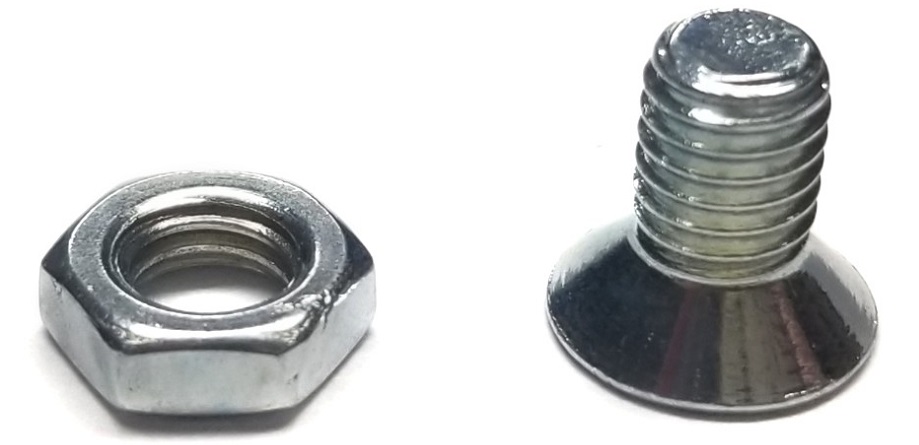

Race Adjustment Nut (x1) - 5mm replacement nut for under adjustment plate. Will work for ATK as well.

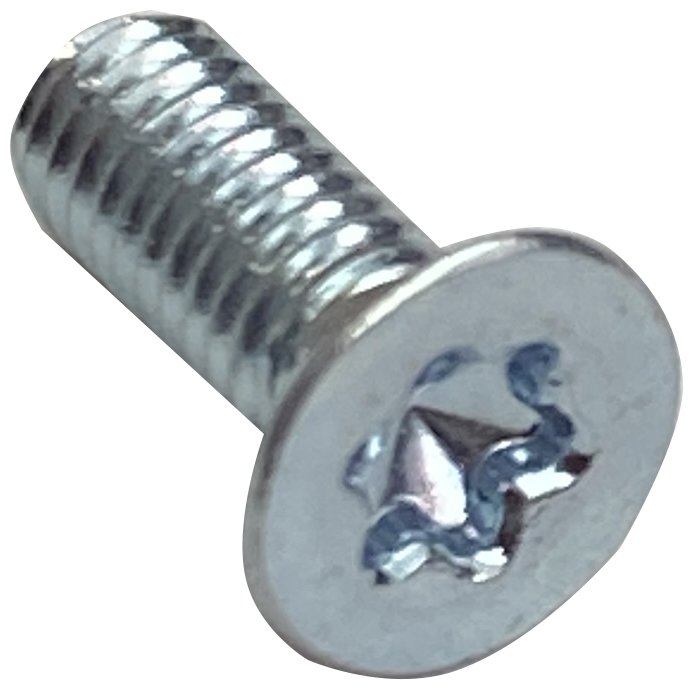

Race / Oazo Crampon Attachment Screw (x1) - The tiny Torx screws that hold the crampon receptors onto the Race or Oazo toes.
Guide Mounting Screw (x1) - The countersunk Pozidriv wood screws used to mount Plum Guide bindings.
Guide Adjustment Screw (x1) - Replacement Torx T25 screws used for the Guide and Yak heel fore/aft adjustment systems.

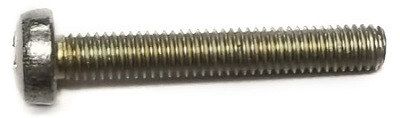

Vertical Release Screw (x1) - Screw used to adjust the vertical release on the Guide, Yak, and WEPA bindings.

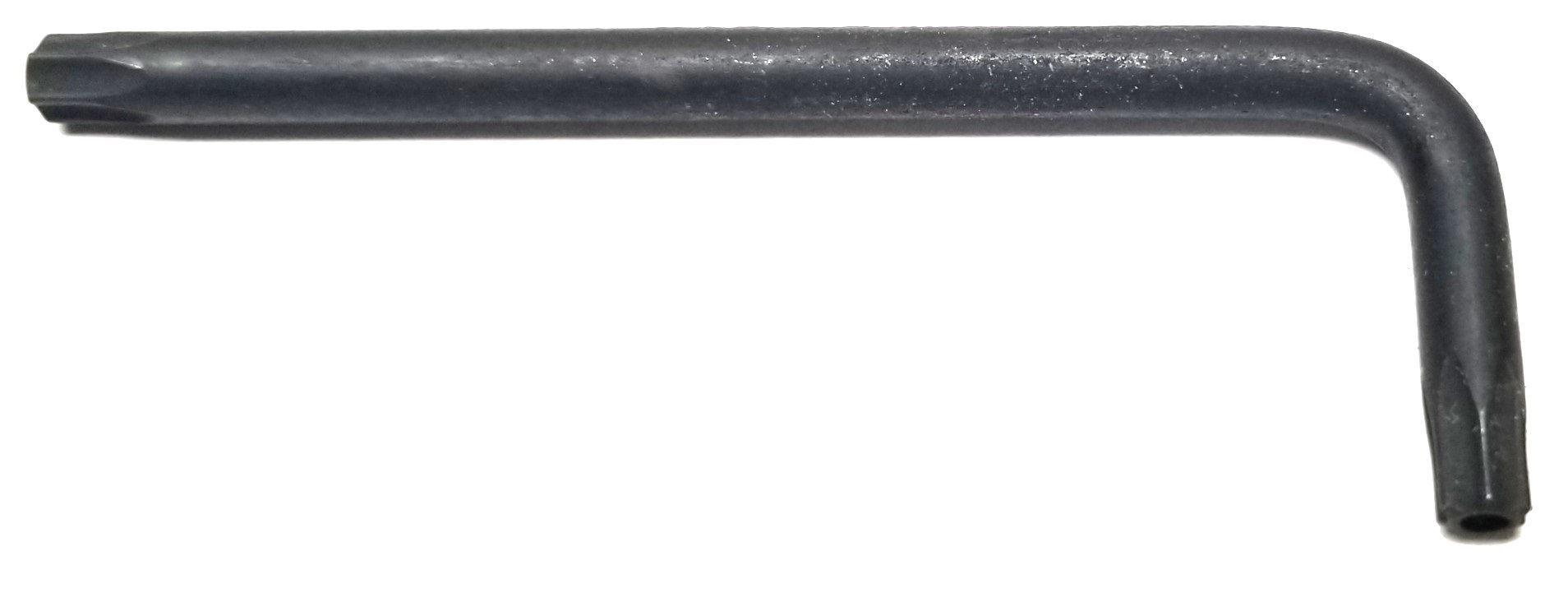

Torx T25 Tool - The fore/aft adjustment tool that ships with Guide and Race 165/170/185 bindings.

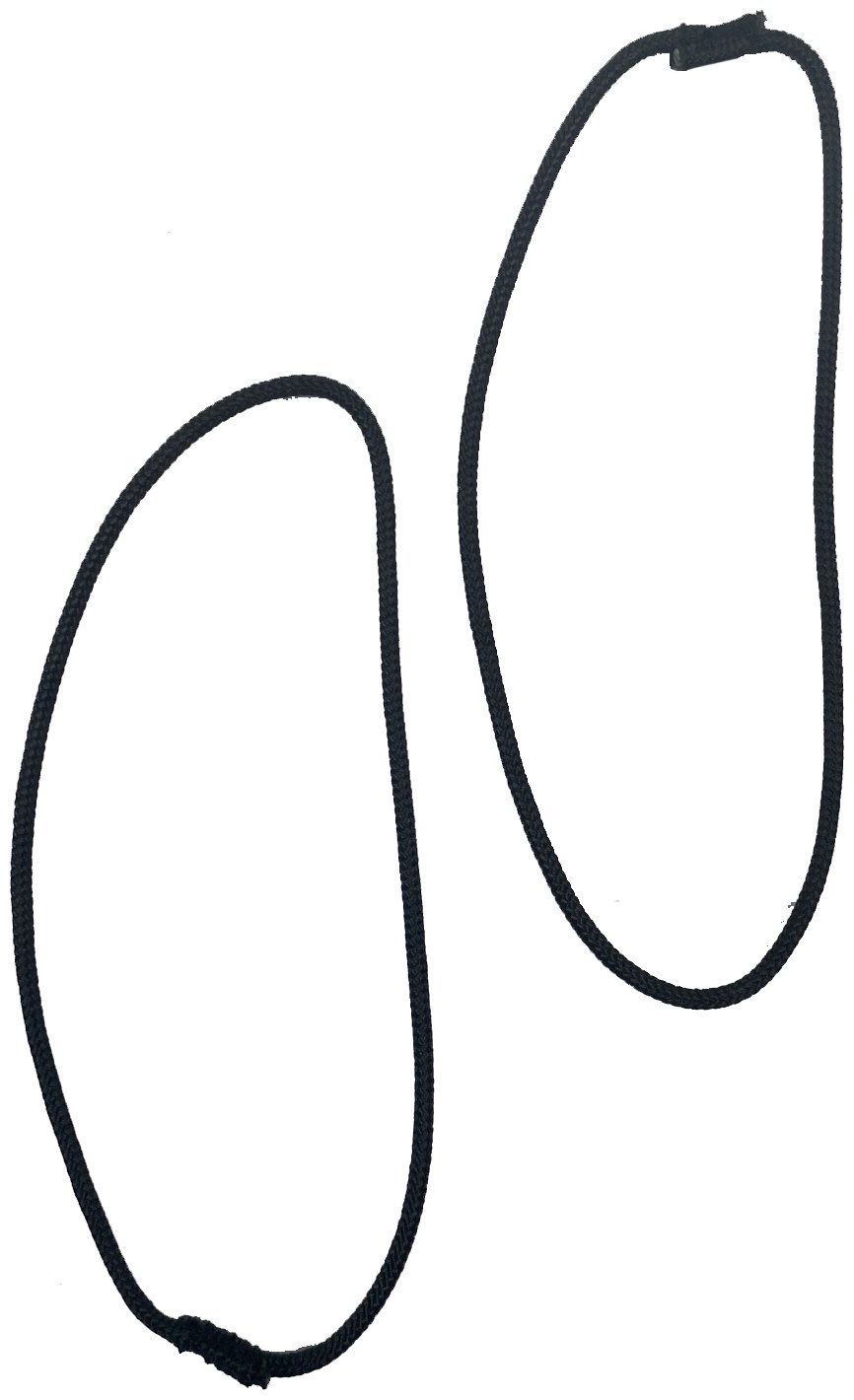

Fuse Cord for Leash (x2) - Fuse cord attachment to install on boot and attach leash to; alternative attachment for Plum leash.

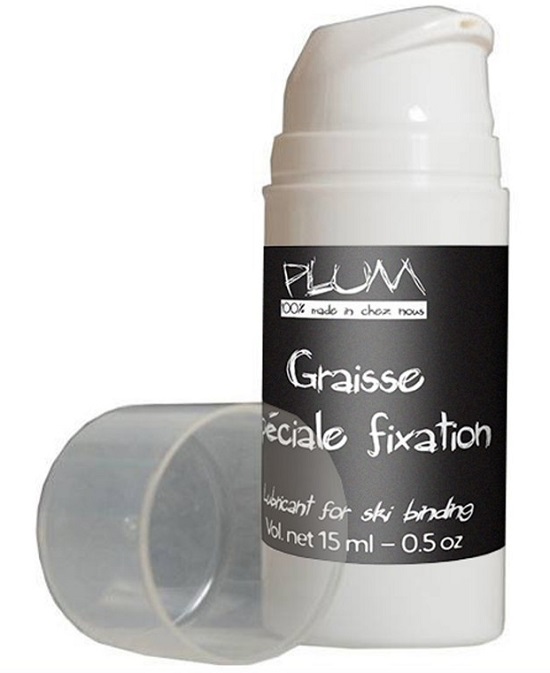

Grease Spray - Some nice binding grease for moving parts like toe springs. Comes in a 15ml (1.5oz) spray bottle.
Related Products
Questions & Reviews
I'm curious if you think one could just use the regular adapters, and some tall but narrow screws, along with a plastic shim to fill the gap...? Thoughts appreciated!
Note that the screw holes in the regular adaptors are skinnier than the those in the universal adaptor, made for machine screws instead of thicker mounting screws. I'd be a little concerned with the holding force of smaller diameter screws, and you may need to take the adaptor to a hardware store and try a few screws to see what feels best.
We do have some on order. Shoot us an email at help@skimo.co and we can get you on a notification list for when those arrive!
Thanks
The Wepa heel has the same baseplate style as the Plum Race 170, therefore would need the Race Mounting screws and Race Adjustment screws. Hope this helps!
The distance from hole center to hole center on the Plum Universal Crampon Mount is 26mm.
The pins are pressed in at the factory and cannot be replaced. Your best bet is a new toe piece.
The newer guides have a burlier toe pin. These have just worn out, and now I have two toe pieces that are each missing a pin. It's too bad I can't replace the pin and keep these as spares for long overnight trips.
Oh well.

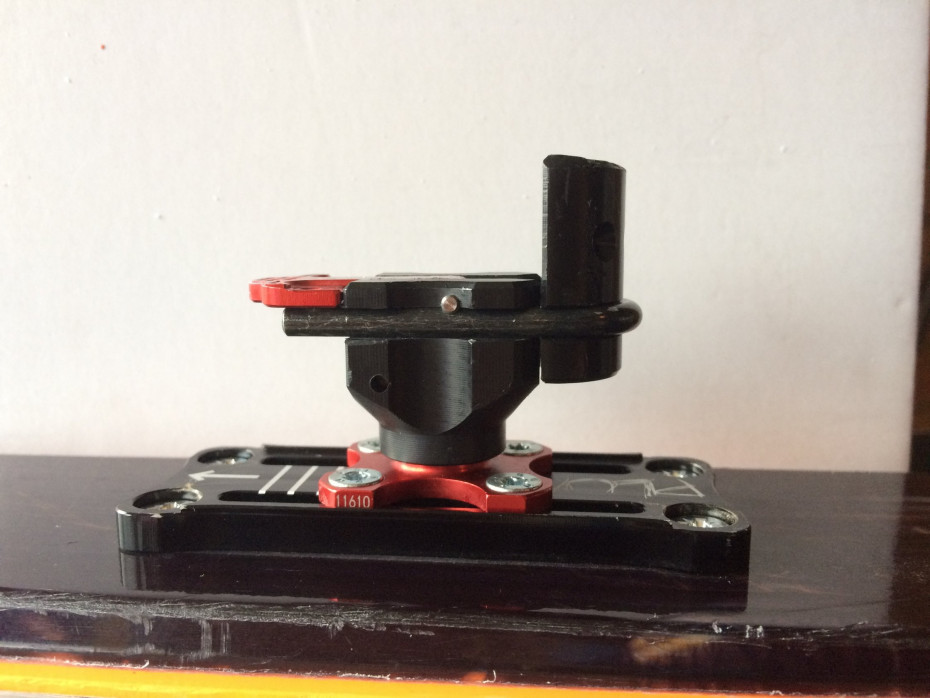

They were a little tricky to install. After consulting friends and Skimo, this is what I ended up doing:
*Mount binding (with old base) on a piece of scrap wood
*Set up a jack screw system on both sides of the tower at the pins and the back of the U spring
*Alternate turning each screw each revolution or so to slowly lift off the tower
*Watch out for the internals falling out when it finally disengages
*Swap the spring system to the new base
*Push the tower down hard on the new base (I don't remember if I used pliers to squeeze the spring for initial engagement)
A word of caution: I'd recommend against buying a particular offset based on MFR stated BSL. In my case the new boots have a BSL that is 4 mm shorter than the old ones, but the actual offset I needed was 3 mm based on measurement with the new boot installed.
Post diameter: 16 mm
Post height above base top surface: 21.9 mm
Spring hole diameter: 6 mm
Spring center from post top: 9.6 mm
Retainer pin groove width: ~3 mm
Groove center from top of post: ~3.6 mm
I just measured the adjustment channels on the current plate and they come in at 5.5mm wide. If you have any other questions you can always reach us at help@skimo.co. Hope this helps!
I bought some Hagen skis with Plum 170 bindings from you guys last year. I realized the bindings do not have the crampon piece. Do I just need to order that accessory and then screw it on to the binding?
Thanks!
Greg
