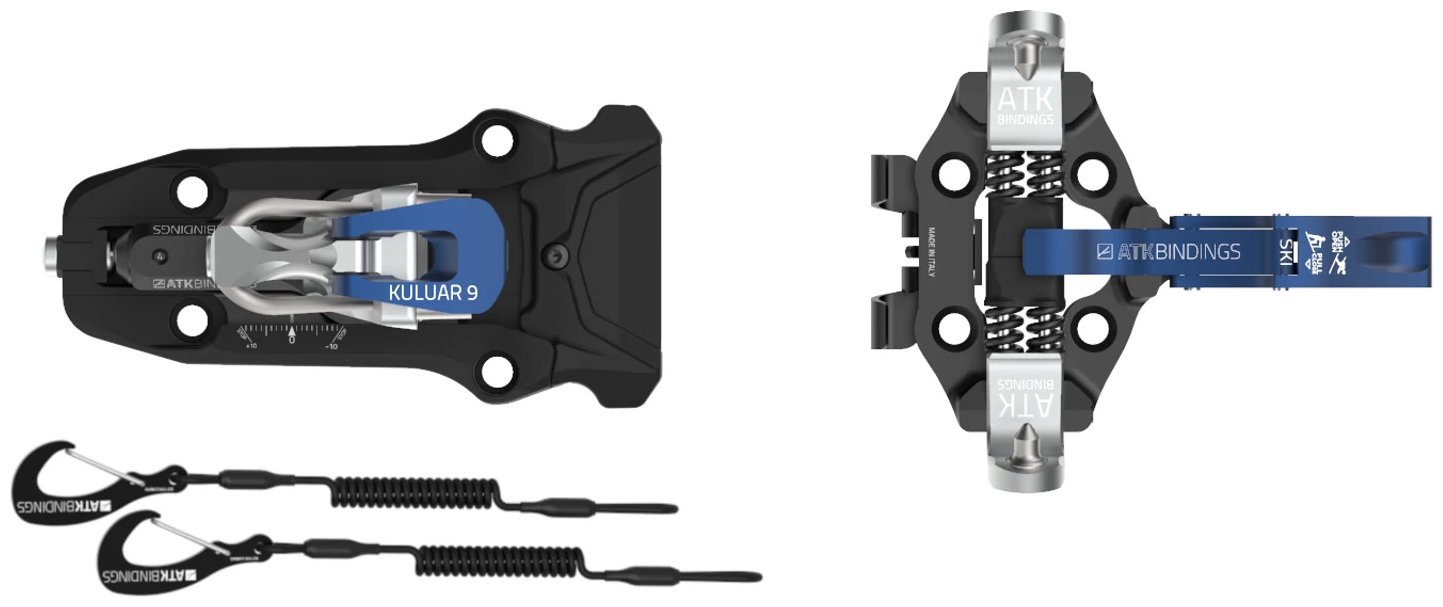

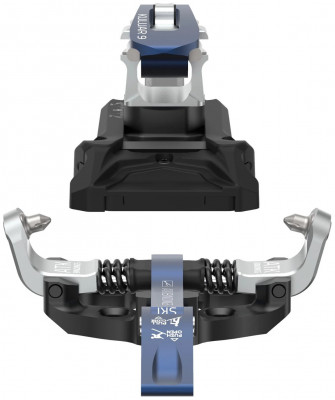

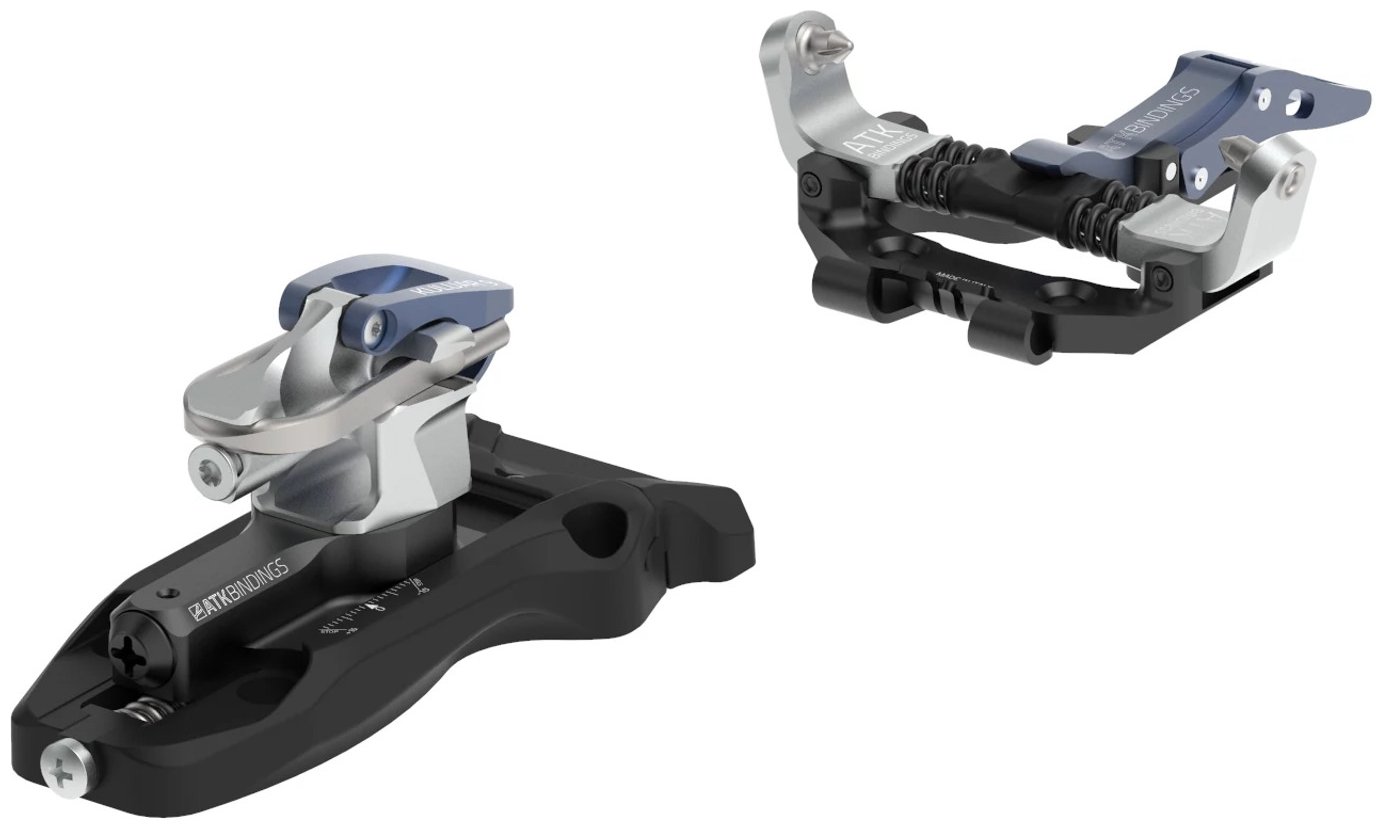

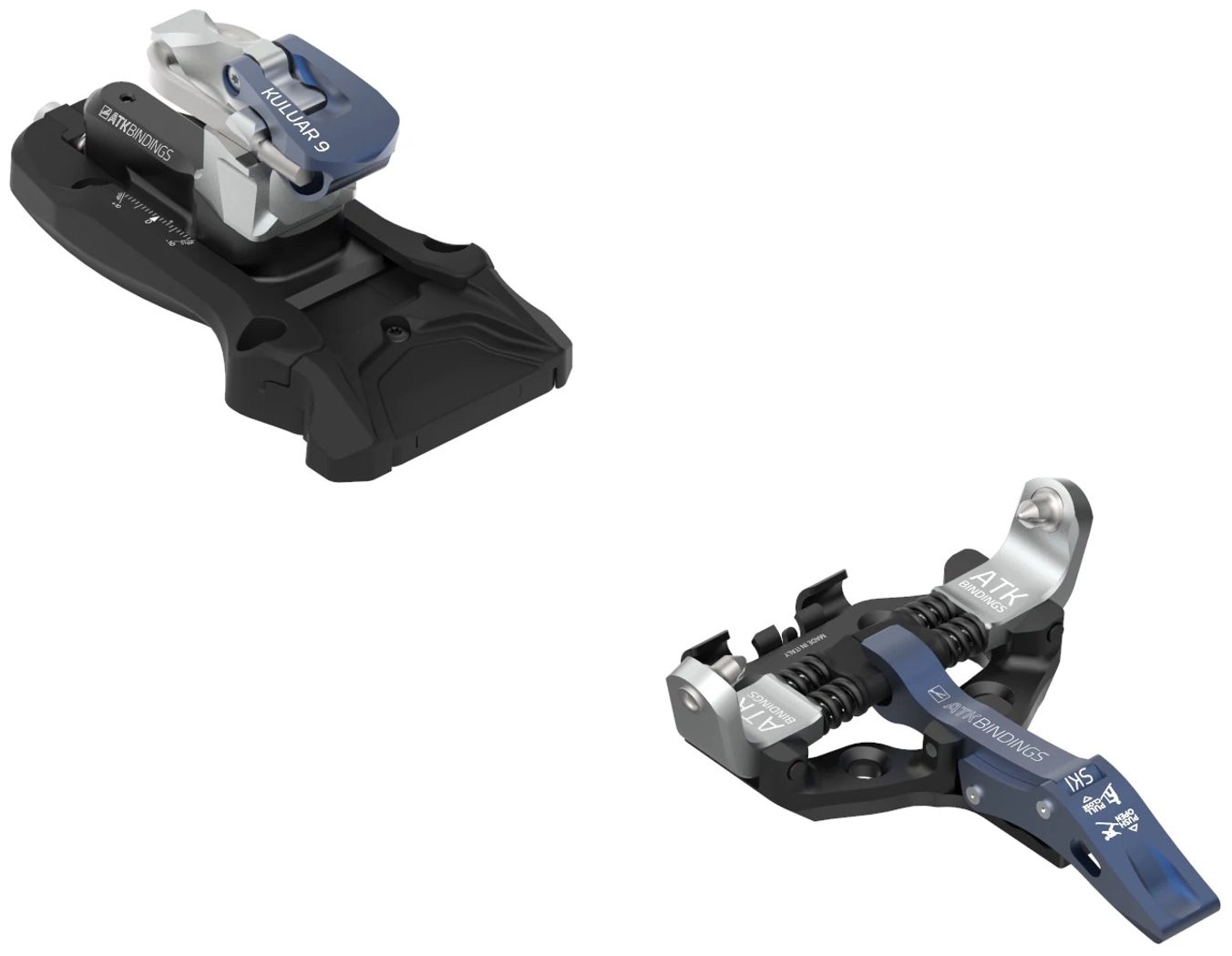

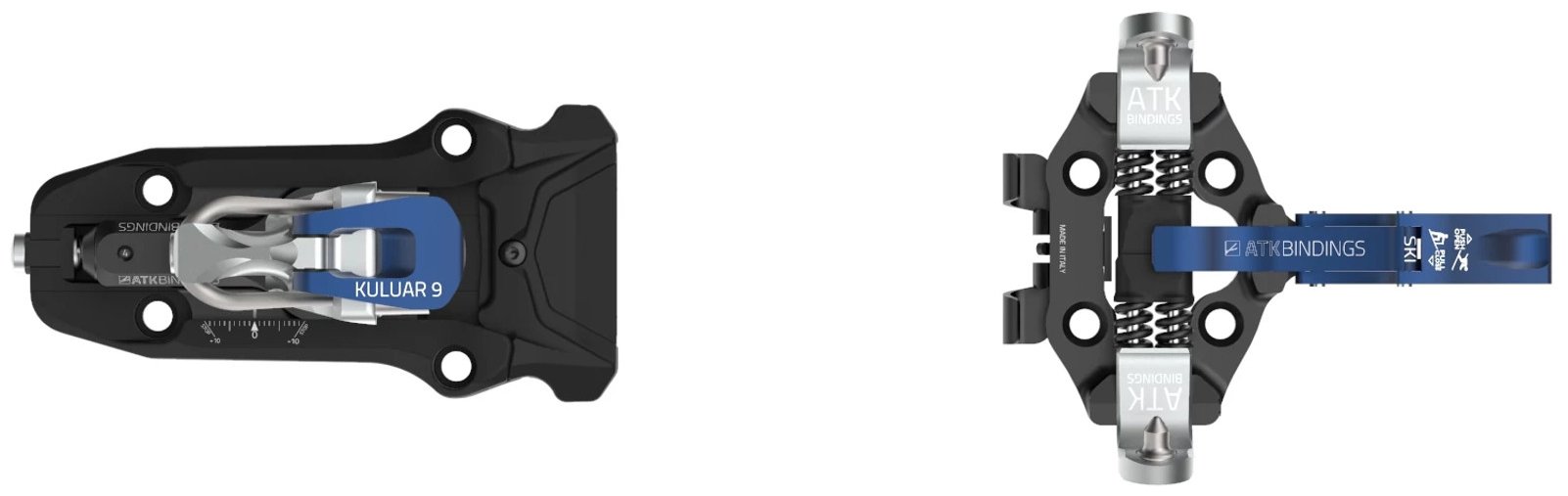

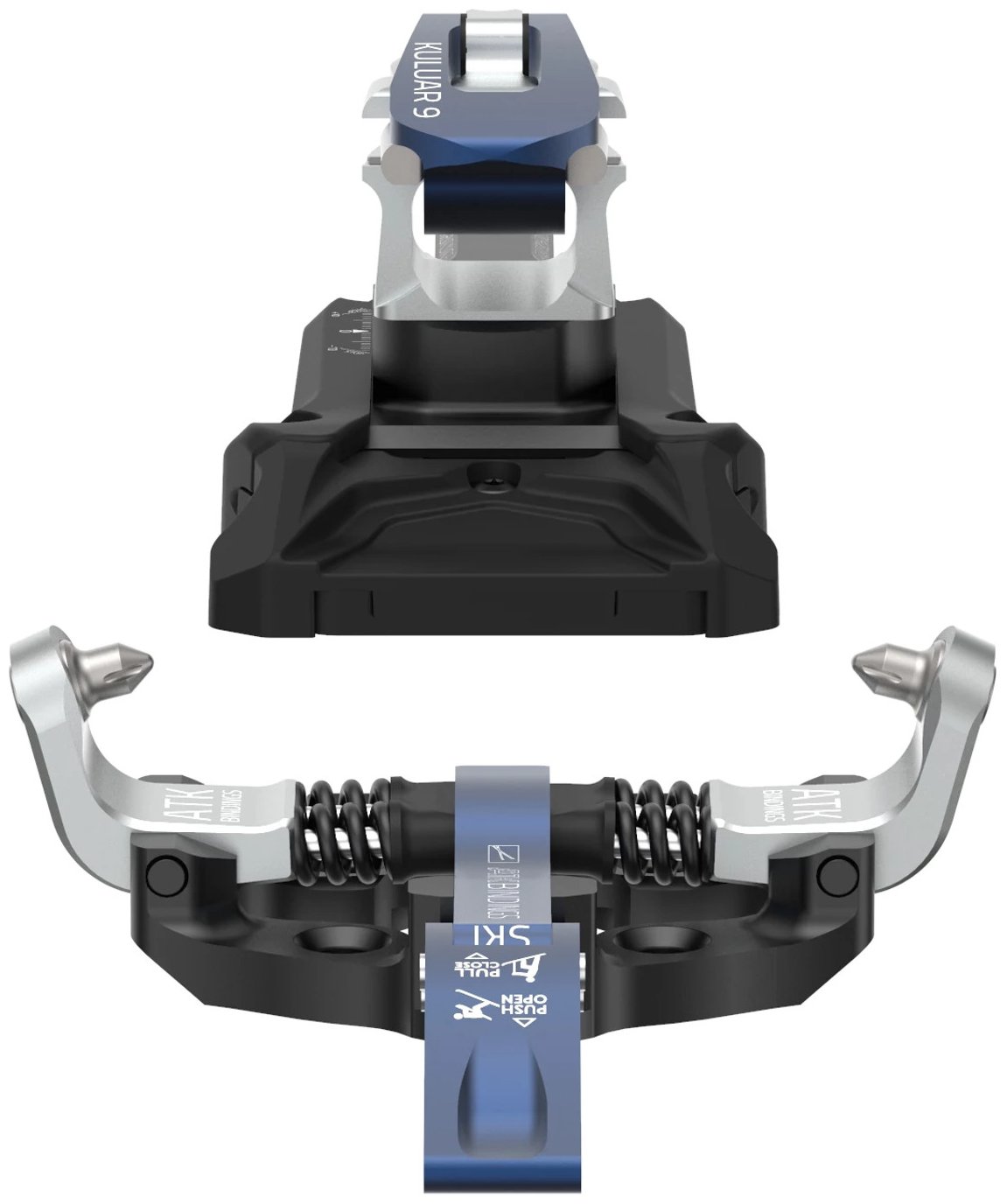

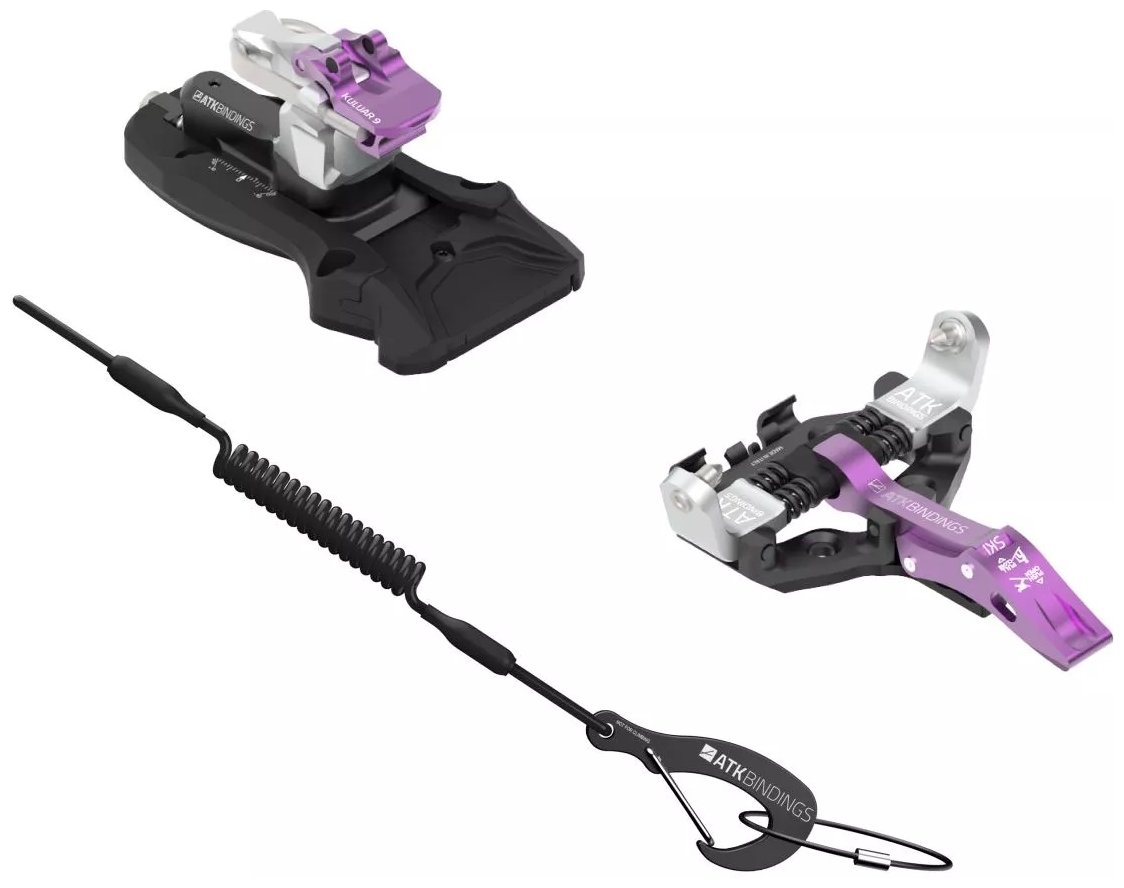

ATK Kuluar 9 LT Binding
Does a dawn patrol mean at least 4-5000 feet of climbing? Do you want to ski lines in multiple drainages in one day? Weighing in around the 200-gram mark, the ATK Kuluar 9 LT should be the lightweight speed tourer's weapon of choice. As you begin your day, you’ll notice the efficient race flaps. When the skinner gets steep, you’ll happily enjoy the fact that such a lightweight binding has a second riser, available by rotating the heel 180°. Should you take a spill and lose a ski, the included Kevlar core leash will keep the ski from sliding to the bottom. As you descend in style, the spring-loaded heel allows 10mm of fore and aft travel in case you bottom out on a drop. You’ll also appreciate the 20mm of adjustment in the heel that accommodates multiple boots, the removable crampon receptor, and adjustable lateral release. Rest assured that you'll have everything you need and nothing you don't. With critical features and a bantamweight build coming from a renowned binding manufacturer, you can trust that the ATK Kuluar 9 LT will keep you touring for years.
- 20mm of heel adjustability allows the use of multiple pairs of boots.
- A flat mode and two riser heights allow you to stay moving efficiently.
- Included kevlar core leash keeps your ski from running away in case of a binding release.
- Convenient race flap lends itself to quick transitions, flipping over completely for a high riser.
- A spring-loaded heel track will absorb those drops without a pre-release.
- Also available with a 12 release spring.
| Specifications | |
|
Weight |
214g |
| Weight (pair) | 428g |
|
Boot |
Tech |
|
Brakes |
Leashes |
|
BSL |
20mm |
|
Riser |
2 + Flat |
|
Vertical |
Fixed |
|
Lateral |
4-9 |
|
Crampon |
Included option |
| Specs Verified | Yes |
| Design | |
|
|
7075 aluminum, stainless steel, POM |
| Skimo Co Says | |
| Usage | Speed touring until the street lights go on |
| Notes | Faster transitions with race flap |
| Bottom Line | Generously featured binding at an exceptional weight |
| Compare to other Lean Bindings | |
Related Products
Questions & Reviews
5/30/2025
Do you need to rotate the heel binding again to get to the second riser position from the first riser position (like with the Dynafit Speed Turns) or can you simply use the first and second riser positions with the heel rotated in the same direction (as with the Dynafit Radicals)?
5/31/2025
Gman, These will be similar to the Speed Turn. First riser is the flap over the pins as pictured. Turn 90 degrees for Flat, then turn 180 for the second riser.
If you want to be able to use flat and both risers, check out the Haute Route
If you want to be able to use flat and both risers, check out the Haute Route
Answer this question:
5/4/2025
Is this version discontinued? Looking at their website, there's now an SL version with the heel piece updated to have a mounting plate with length adjustment (same as trofeo plus?) Any thoughts on performance of the old vs new version?
5/5/2025
Christoph, ATK is always mixing and matching parts into new or different models. This discontinued model has the old Push button brake base plate. The new one you mentioned in the R 01 plate. All you loose is the Elastic Response system (spring). I wouldn't say that changes performance.
Answer this question:
2/20/2025
Does the black thing for the brakes double as a free ride spacer? Does the boot rest on it at all? Also, is the u spring swappable to get different release values?
2/20/2025
Hi Arda, the black brake seat cover just keeps the sharp edges from damaging the sole of your boot in flat mode, your boot won't touch the cover when skiing. You can swap the Trofeo U-Springs onto these to get different release values, they're on the ATK Binding Parts page.
Answer this question:
I have these mounted to the current version of the Movement Alptracks 106. It's a lightweight, powder slaying setup, and I love these bindings. The race flap is useful unless you're on a steep skinner. If you want the high riser, you have to flip the heel. Not a deal breaker for me since these are not race skis and the heels turn easy enough. I've had no pre-release issues or other issues. The slight elasticity in the heel provides noticeable reduction in chatter, especially when I have them mounted to a large, carbon ski that loves to get rattled. I put the brakes on them, and I have no complaints there. I would get these again in a second. I'm 6'00" and 155lbs and got the Kuluar 9, which are perfect.
Comment on this review:
11/10/2024
Can you put a brake on this binding? I see you can buy replacement brake kits for the kuluar and was curious if you could just slap one of those on this.
11/10/2024
Hi Bill, absolutely. Make sure to get the Push Button Kit as it comes with the necessary hardware.
Answer this question:
10/23/2024
Can you add or remove brakes easily on this (older model now) of the Kuluar? Thanks
10/23/2024
Hi El-MOe,
Yes, you can add and remove brakes on this binding with relative ease. It just requires you to unscrew and then re-install three small torx screws and the spring/plunger setup.
Yes, you can add and remove brakes on this binding with relative ease. It just requires you to unscrew and then re-install three small torx screws and the spring/plunger setup.
Answer this question:
12/27/2023
Is this binding adjustable in length once mounted? I might need to use them with a different pair of boots later on(the two pairs of boots will be close in length)
12/27/2023
Zoe,
Yep, they have 20mm of adjustment when mounted.
Yep, they have 20mm of adjustment when mounted.
Answer this question:
2/1/2023
Hi,
which has a higher heel riser option the ATK Kuluar or the ATK crest?
Thanks!
which has a higher heel riser option the ATK Kuluar or the ATK crest?
Thanks!
2/1/2023
Hi Petere, they are almost exactly the same at +51mm off the toe pins. We've got the riser heights of many bindings listed here.
Answer this question:
11/29/2022
I can’t tell if the first riser position is meant to be the metal flap flipped over the heel pins, or this configuration turned 180 degrees (in this case the boot heel comes to rest on the silver part of the binding, rather than the blue flap. ) please advise. Also is there an effective way to turn the heel tower with a pole?
11/30/2022
Hi Kevin,
The first riser position is either the blue flap flipped over the heel pins or the heel turned 180 degrees. They're both the same height. If you think you'll be using the second riser position (the blue flap flipped back away from the heel pins with the heel rotated 180 degrees), then spin the heel to get to the first riser position. If you won't need the second riser on a climb, it'll be faster to use the blue flap to cover the heel pins.
The simplicity of this binding makes turning it with your pole pretty difficult. Much easier to just turn it with your hand.
The first riser position is either the blue flap flipped over the heel pins or the heel turned 180 degrees. They're both the same height. If you think you'll be using the second riser position (the blue flap flipped back away from the heel pins with the heel rotated 180 degrees), then spin the heel to get to the first riser position. If you won't need the second riser on a climb, it'll be faster to use the blue flap to cover the heel pins.
The simplicity of this binding makes turning it with your pole pretty difficult. Much easier to just turn it with your hand.
Answer this question:
10/12/2022
Any thoughts on using this binding as someone who normally skis at a DIN of 5 or 6? I like that the lateral release can be adjusted as needed but wouldn't skiing with a lateral release of 5 and a vertical release of 9 make for really strange release characteristics?
10/12/2022
Hello Erin, The majority of releases are lateral, so that is the more important. Having a fixed vertical release, for the most part, will not affect that. I liken Vertical releases as stopping Dead in your tracks, or Hitting a wall. So those have a pretty high force that you will release readily.
12/16/2022
Hi Erin, I am also looking for light weight skimo binding with vertical release at 5-6din. Check out Dynafit Low Tech Race - the Guuru said they release at light pressure)
12/16/2022
Hi Maya, that does not sound correct, and more also, which LTR? There have been many bindings with that name.
Answer this question:
4/18/2022
I assume ATK uses the same U-springs in these as the Trofeo bindings. My question is: does the Kuluar 9 use the heel spring from the R6 or R8 Trofeo?
4/18/2022
Hey Ben, the Kuluar release values differ in our tests from the Trofeo, so it appears to be a different u-spring.
Answer this question:
11/24/2021
What is the difference between the Kuluar 9 LT and the Haute Route? Any major performance differences?
Thanks!!
Thanks!!
11/24/2021
Hi Annie! These are both lighter touring bindings made by ATK so they will have a similar overall performance. I would say the main advantage of the Haute Routes is their fully adjustable vertical release, whereas the Kuluar vertical release is fixed at a fairly stiff value. The machining on the toes is a little different but nothing major.
On the other hand, the Kuluar has elastic heel travel, which is a feature the Haute Routes lack. Let us know if you have any other questions!
On the other hand, the Kuluar has elastic heel travel, which is a feature the Haute Routes lack. Let us know if you have any other questions!
Answer this question:
11/2/2021
Hi. I was wondering if the LT version is the same as the binding just without brakes. In other words, can I buy the version with brakes and then choose not to mount the brakes?
/Rikard
/Rikard
11/2/2021
Hi Rikard,
The LT version comes with a brake seat pad installed where the brakes would usually be, this is what you would be missing if you got the not-LT version and mounted it without the brakes, though it is sold separately. The brake seat cover protects the spot where the brakes attach and also prevents snow and ice from building up, so it is nice to have but is not necessary for the binding to be functional.
The LT version comes with a brake seat pad installed where the brakes would usually be, this is what you would be missing if you got the not-LT version and mounted it without the brakes, though it is sold separately. The brake seat cover protects the spot where the brakes attach and also prevents snow and ice from building up, so it is nice to have but is not necessary for the binding to be functional.
Answer this question:
10/17/2021
Do Dynafit-style crampons fit or do you have to go ATK?
How would you compare this with the Plum Oazo 8? Looks like the same weight, similar build, but this Kuluar gets 10mm of elastic travel in the heel. Seems like a big winner.
How would you compare this with the Plum Oazo 8? Looks like the same weight, similar build, but this Kuluar gets 10mm of elastic travel in the heel. Seems like a big winner.
10/18/2021
Hey Tim,
Yes you can use Dynafit crampons with this binding!
As far as the elastic travel goes, you likely won't notice it when you're skiing it. This binding is mounted with a gap just like the Oazo and the travel is designed so that you don't damage the binding if you manage to really overflex the ski. I personally like the Oazo since you can access both riser heights without turning the binding, and I also happen to like the Plum crampons a little better than the Dynafit crampons. But other than those minor differences they are very comparable bindings, and I think this one is an excellent choice--especially if you're a fan of Dynafit-style crampons.
Yes you can use Dynafit crampons with this binding!
As far as the elastic travel goes, you likely won't notice it when you're skiing it. This binding is mounted with a gap just like the Oazo and the travel is designed so that you don't damage the binding if you manage to really overflex the ski. I personally like the Oazo since you can access both riser heights without turning the binding, and I also happen to like the Plum crampons a little better than the Dynafit crampons. But other than those minor differences they are very comparable bindings, and I think this one is an excellent choice--especially if you're a fan of Dynafit-style crampons.
Answer this question:
