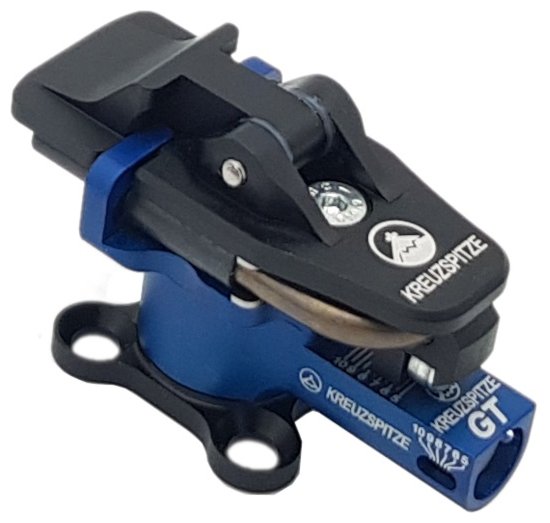

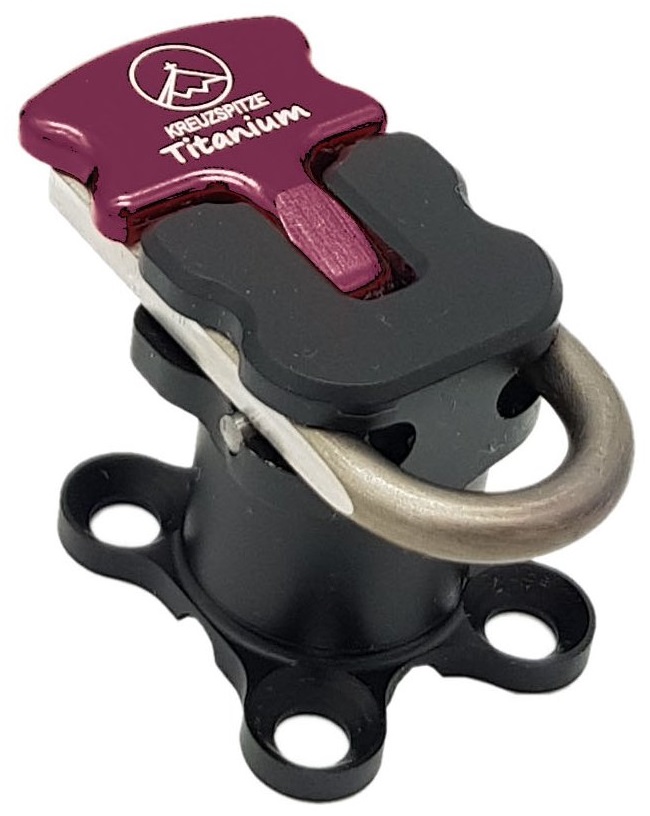

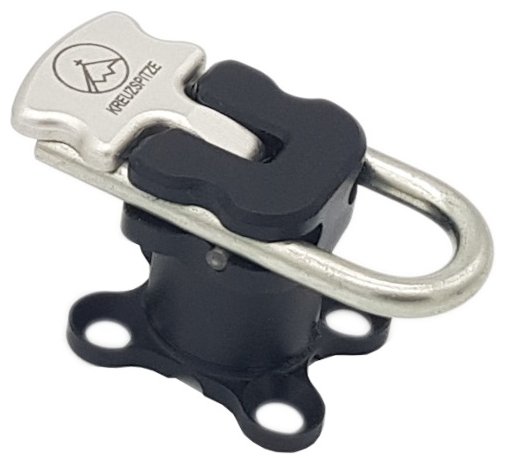

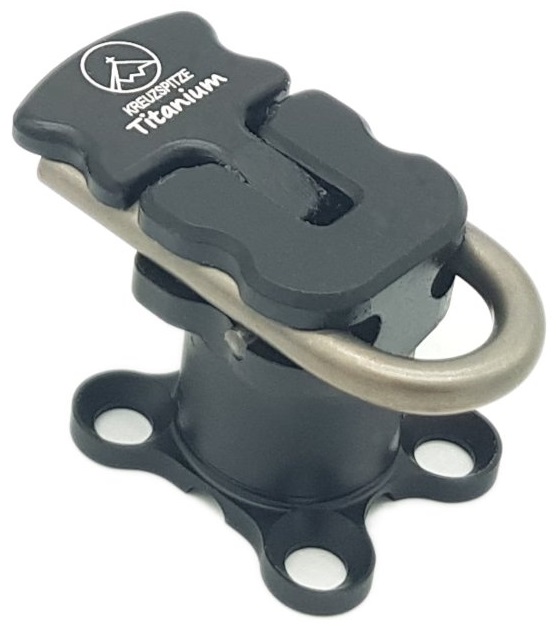

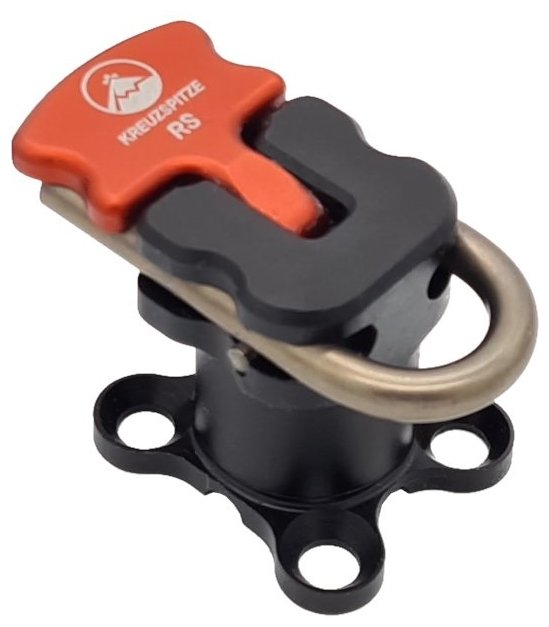

Kreuzspitze Heel Pieces

Brand: Kreuzspitze
Shipping: FREE*
Availability: In Stock & Ships Today
Price: From $89.95
* Binding Model:
 - OR -

Hardened steel forks? Check. Flat-on-ski mode? Check. Optional risers? Check. Optional adjustment plates? You betcha. The Trofeo heels from Kreuzspitze are long on features and quality. The small Italian manufacturer makes the heels in house with the rest of their SCTT bindings and accessories. We think Kreuzspitze won't be a strange name for long. Sold individually, so get 2 for both your feet.

  • Replaceable steel forks are hardened to support heavy loads and wear.
  • 6mm heel gap can handle aggressive skiing and makes for a great flat-on-ski mode.
  • Tower rotates in either direction for a flat-on-ski touring mode.
  • Optional risers can be screwed onto the forks and used by rotating the heel 180 degrees.
  • Optional adjustment plates add 14, 18, or 40 millimeters of adjustment.
  • The 14mm adjustment plates are screw hole compatible with Dynafit touring bindings.
Binding Model Weight (g) Weight (oz)
SCTT 61 2.2
GT 76 2.7
SCTTT 53 1.9

For matching toe pieces, see here.

Question from Yann
I'm hoping to couple this heel with the G3 ION toe.

The top of the ION's heel pins are 55mm above the ski (i.e. the pins are 5mm thick, so are located between 50mm and 55mm above the ski).

I suspect that the Kreuzspitze pins are a fair bit lower. Can you tell us how high the pins are above the ski?

An how thick are the Kreuzspitze adjustable plates?

Answer from Trace Leches
Hi Yann! The ION toe pin will be 40.5mm off the top sheet, the Kreuzspitze heel pieces are 28.5 or 29mm off the top sheet depending on the model, and the Kreuzspitze adjustment plates are about 5mm thick. Even with the plate you'll still be at almost a -7mm delta when paired with the ION toe piece.
Answer this question:

Question from Quone Woo
Hi just a few questions for you.
I'm skiing a TTSystem and found that mounting a Dynafit Speed Turn heel unit will not allow me to use both the heel unit and spring cartridges in tandem like the Moonlight Tele Rando binding.
I've noticed that the Kreuzspitze SCCT / Plum Race 150 heel units look similar in design to the Tele Rando heel units.
If you are familiar with the Tele Rando binding would you be able to tell me if installing either one of the Kreuzspitze SCCT / Plum Race 150 heel units allow me use both spring/heel in tandem like the Tele Rando does?

Thanks, Kwan
Answer from jbo
Hi Quone, Moonlight and Kreuzspitze worked together on the TTS design. They are essentially the same heels.
Answer this question:

Question from Brendan
Wondering if you could give me a sense of the release on these?
I'm running 6 and 6 on speed radicals. how might these compare?
Answer from jbo
Hi Brendan, the toe also factors into the release, quite significantly. There isn't a lateral release value for just a heel. I'd suggest visiting our binding finder to see if something would work for you.
Answer this question:

Question from dub_xion
Does the hole pattern of the SCTT match any other typically-available heels (ie. Plum, etc)?
Answer from jbo
Hi dub_xion, close but not quite. Look here for all the gory details.
Answer this question:

Question from Dillon
I'm looking to pair these heels with some TLT Radical ST toes, to keep the cost down, save some weight, and configure an expedition type setup on some DPS Tour 1 112's. Whadya think?
Answer from Trace Leches
Hey Dillon, thanks for reaching out! Absolutely! There are two heel pieces offered, which one are you planning on using? The toe spring stiffness differs between the SCTT, GT, and Radical ST, so it's possible that you'll get some varied release values pairing up various toes and heels, but with the versatility of the GT you could dial it in a bit more accurately. I'd say it's a good plan, but will depend largely on the style of boot that you will be pairing this setup with. What boot are you thinking of?
Answer this question:

Question from Kelly
How would these work with a Plum 145 Toe Piece?
Answer from jbo
Hi Kelly, there are a couple models listed here. Both could be paired with Plum toes, though the release values might be different than if you used Kreuzspitze toes.
Answer this question:

Question from lyman
if I order a pair of KREUZSPITZE HEEL and 1 set of 14 adjustment plate and a pair of heel support pad, are they will be available? and how long to take these to be delivered to NY states? suppose all the screws and nut will be included, right? and also to make sure these 14 plate will not require re-drill for dynafit speed radical heel (I had then mounted on my ski already try to reuse my dynafit toe) ?
Answer from jbo
Hi Lyman, yes all nuts and bolts are included with the plates, and the 14mm version matches the Speed Rad without drilling. Everything listed as available on our site is in stock and ready to ship. It only takes a few days to get to NY, you will have a couple options at checkout.
Answer this question:

Question from Kjetil
So what is the "RV" on these? Or what is it comparable to? I have at pair of extra dynafit radical toes that's looking for a pair of heels.
Answer from jbo
Hi Kjetil, the release value is affected by both the toe and heel, plus the length of your boot. These do work well with Speed Rad toes for a lot of folks. You could try our binding finder to see if it's a good match for you.
Answer this question:

by Chris W (used product regularly)
These are small, light, simple, robust, and release at a reasonable value. I raced half-ish of last season with them and took them touring a few times combined with some Dynafit Radical toes. I had one lateral release in a race, stopping clumsily on icy chop. My technique sucks, and so did that hill, so I'm not calling it pre-release (and I ski with toes unlocked). I trust these skimo racing or mountianeering with lighter/shorter skis. Mind the heel gap, when mounting, as it's non-standard, and enjoy.
Comment on this review:

Question from JCoates
Hi, how do these compare with the Plum Race145's on the "burly-ness" scale? I am looking for a light-weight race style heal piece to mount with some heavier Dynafit toe pieces for a expedition type ski system. Something light but it has to withstand some abuse. Thanks in advance for your thoughts.
Answer from jbo
I'd say they are fairly close in durability, with similar builds, mounting patterns, and steel forks. They do have somewhat different release mechanics and if that's a concern for you, plugging your info into the release calculator would help for a recommendation.
Answer this question:
