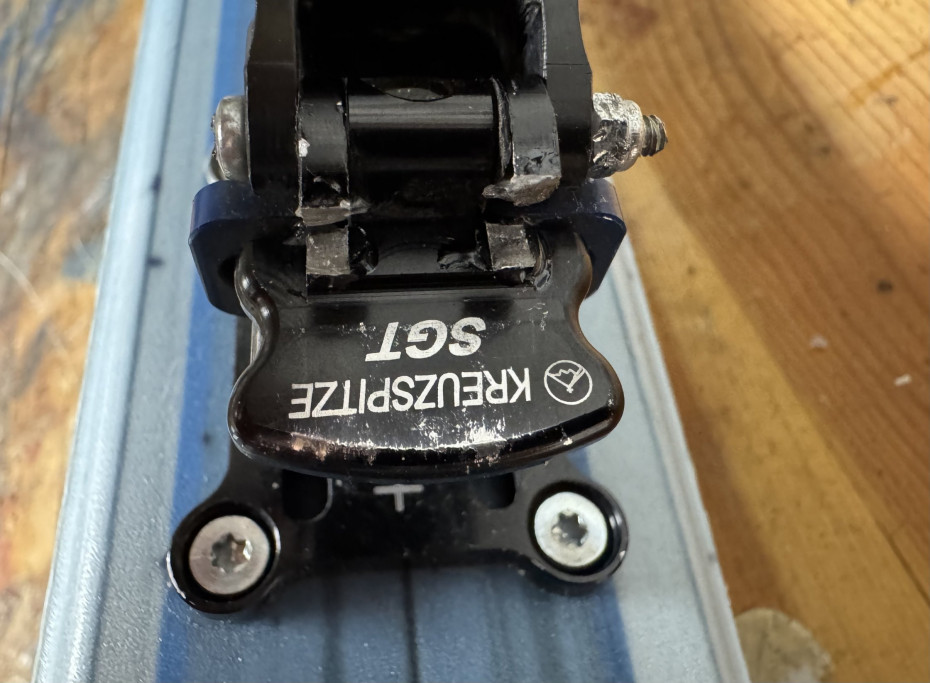

What are the dimensions of the Torx Adjustment Plate Bolt? Are they M5x8mm with a T20 torx driver?
I need replacement machine screws for a ATK adjustment plate.
Kreuzspitze Binding Parts
Replacement parts and innovative accessories from Kreuzspitze. Find our growing collection of Kreuzspitze binding parts below, typically sold in pairs except for the screws/bolts/nuts.

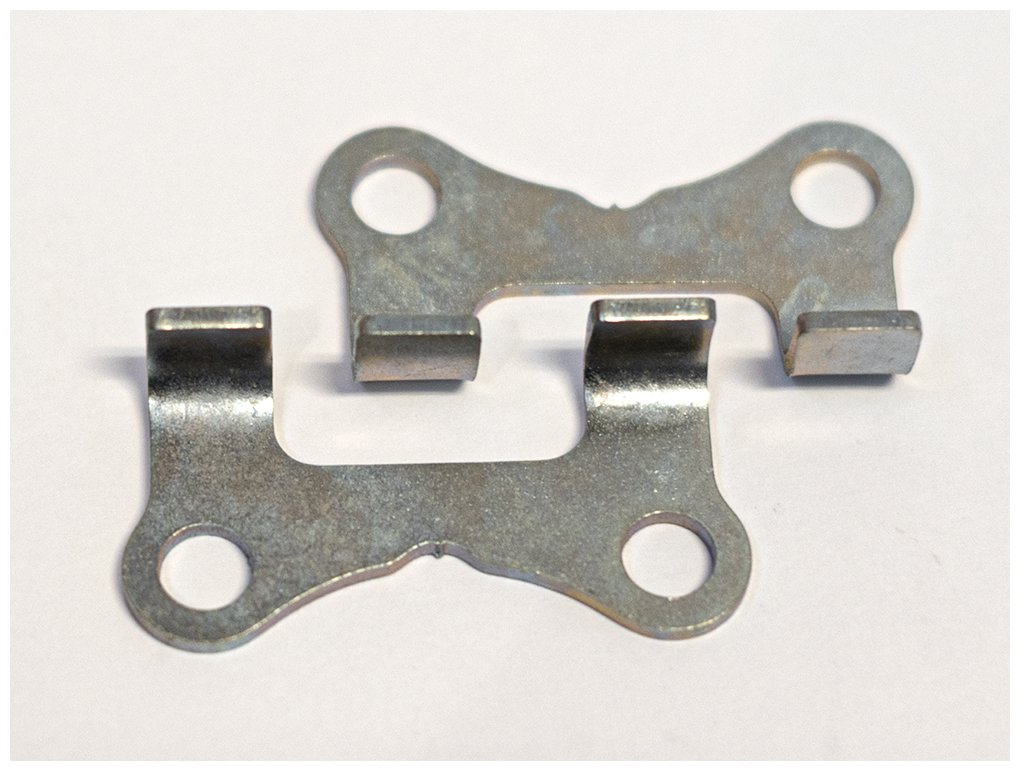

Crampon Attachments, Race - The machined receptors that need to be mounted under the RS, RSA, SCTT, SCTTT toe pieces. Accepts standard tech binding crampons. 8 grams.
Crampon Attachments, Steel - These crampon receptors fit the EL and GT toe pieces.
Race Heel Risers - Plastic wedges that clamp onto the steel forks of RS-A & SCTT bindings. Rotate the heel piece 180 degrees to use. Not compatible with the titanium forks. 21g w/ bolt.

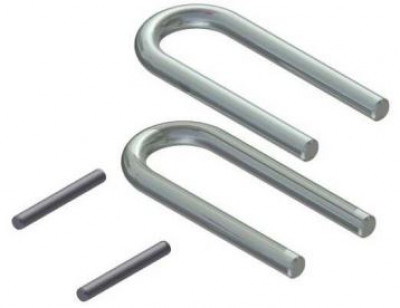

Steel Forks - Replacement forks for the RS-A and SCTT bindings, or turn an RS or SCTTT titanium version into a steel one.
Titanium Forks - Ti forks for the RS and SCTTT bindings, or shave about 9g off your steel RS-A or SCTT.
Lady Forks - Softer forks for lighter skiers that come stock on the RS Lady bindings.

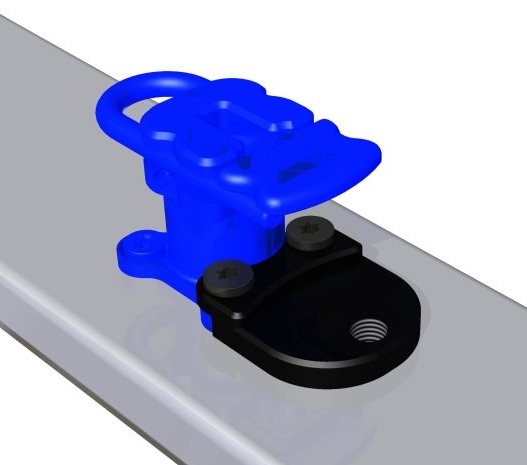

Heel Support Pads - Support pads to take some weight off the heel pins of Kreuzspitze race bindings. Set comes with longer pan head screws and an adjusting bolt for height-tuning.

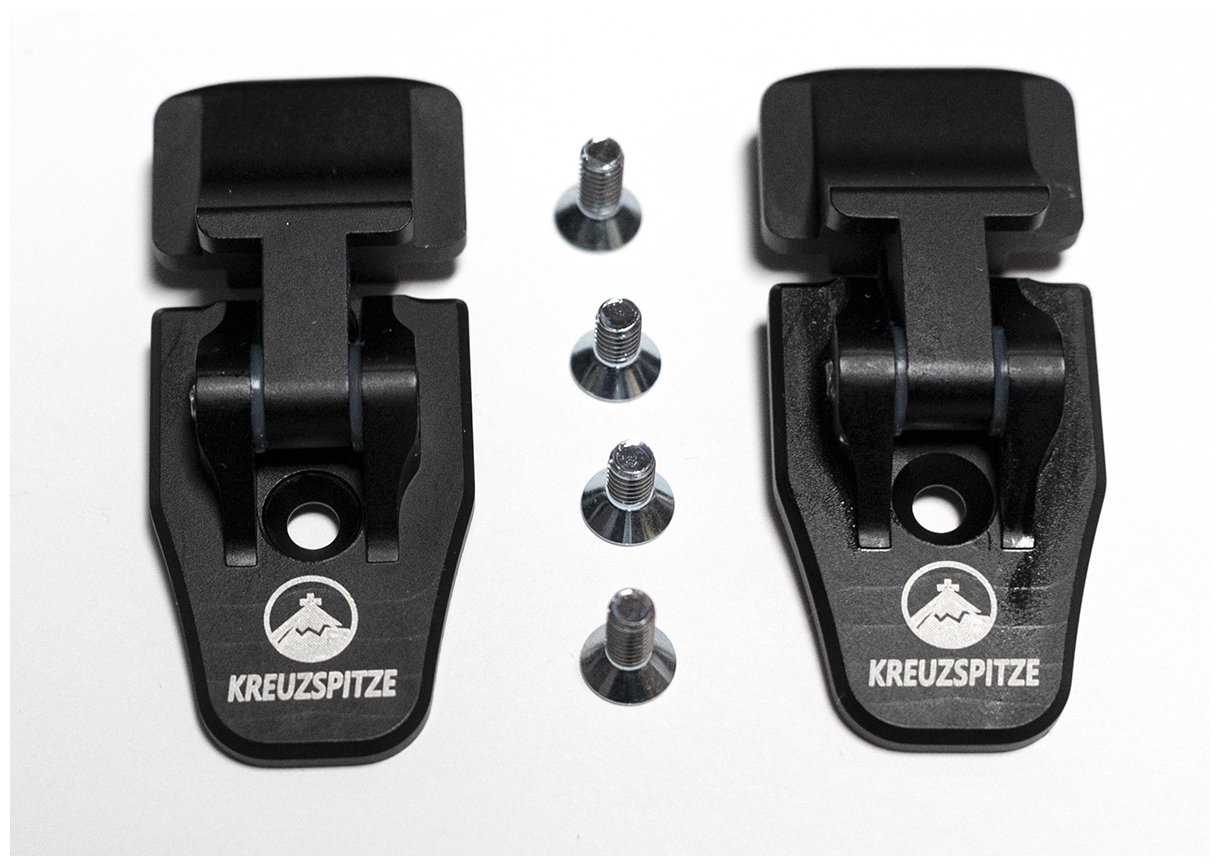

GT 2.0 Heel Covers - Integrated race flap plus high-riser (if you turn your binding 180 degrees) for the GT 2.0 and EL 2.0 bindings. Works as an upgrade for the original GT.

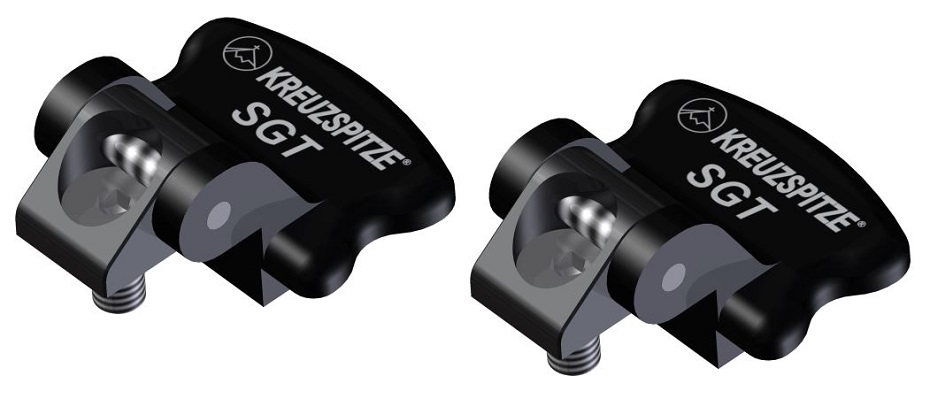

GT Heel Flaps - Race-style pin covers for quicker transitions using the GT binding. The flaps screw onto the heel roofs.
GT Heel Risers - Extra riser that sits on the GT Heel Flaps to offer a higher climbing position. Comes with long bolts to hold them onto the (required) flaps.

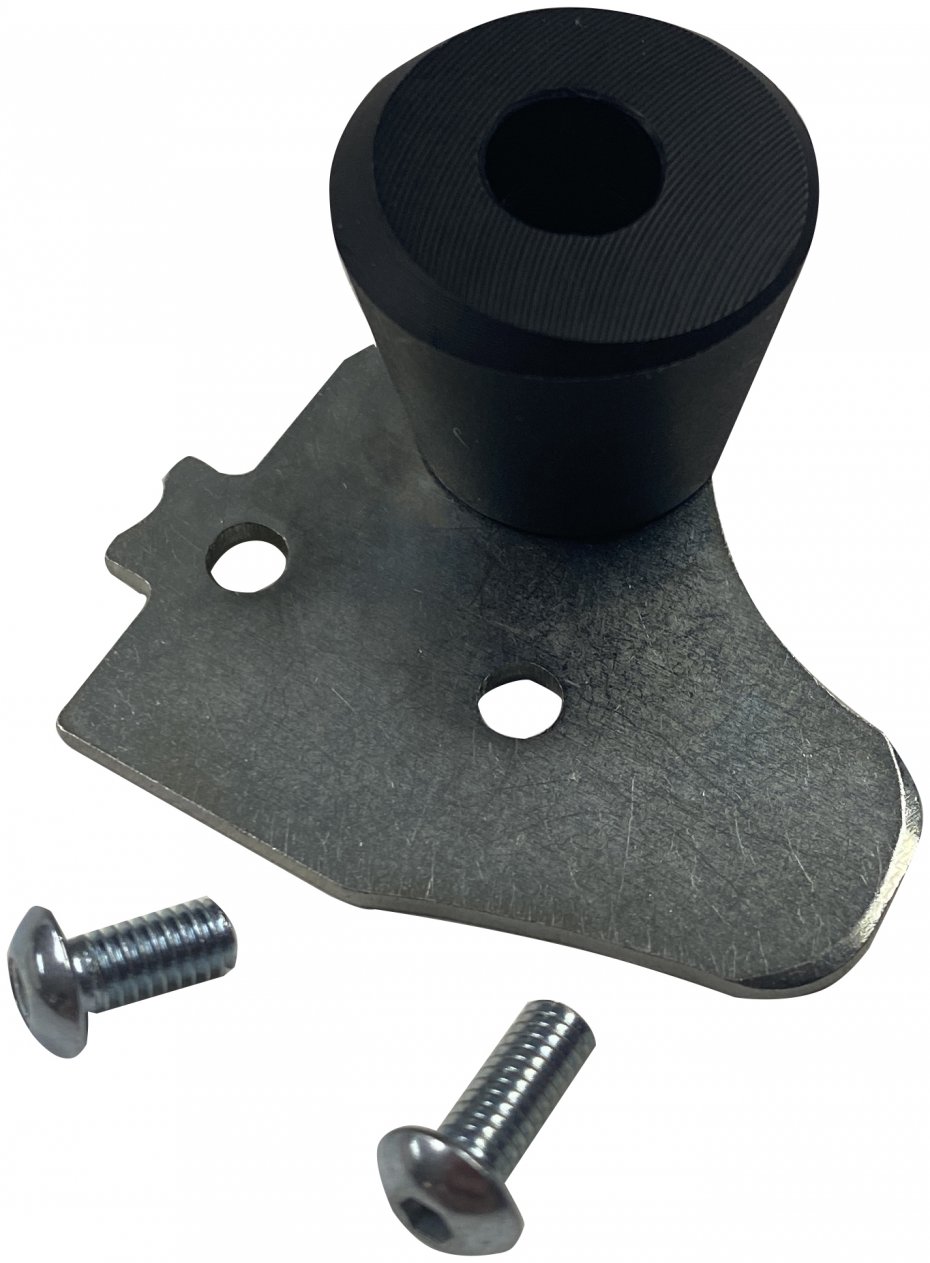

EL-R Roof and Riser - Replacement roof and riser for the EL-R binding.

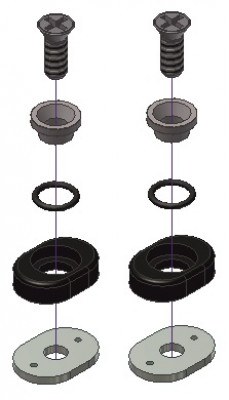

Brake Mounts - Extra locking switches for the brakes so you can use them on more than one pair of skis.

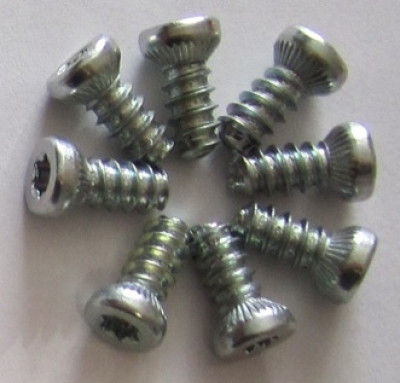

Torx Mounting Screw - Standard ski screws for mounting Kreuzspitze toe and heel pieces (or adjustment plates).
Torx 16mm Mounting Screw - Longer mounting screw for adding shims and some tele parts.

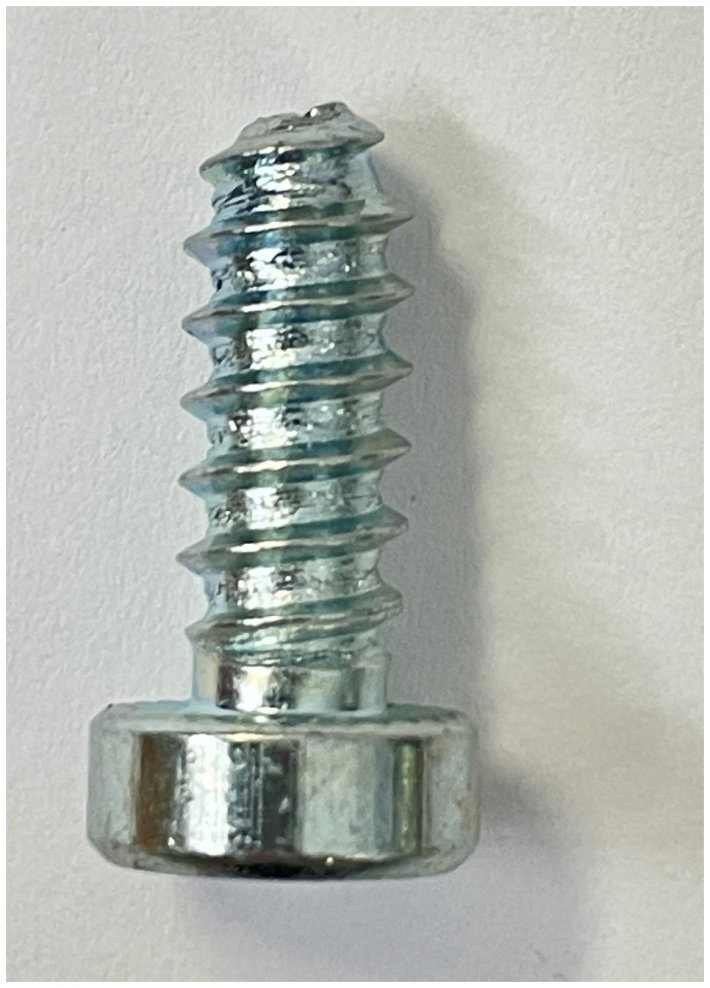

Pan Head Mounting Screw - Pan head ski screws designed for the EL binding and also work for other bindings. 14mm thread length.
Pan Head 17mm Mounting Screw - Longer pan heads for adding shims and other creative uses.
Torx Adjustment Plate Bolt - Adjustment plate screws with Torx heads to resist stripping.
Torx Adjustment Plate Nut - Nuts that fit under the adjustment plates and accept the adjustment bolts.

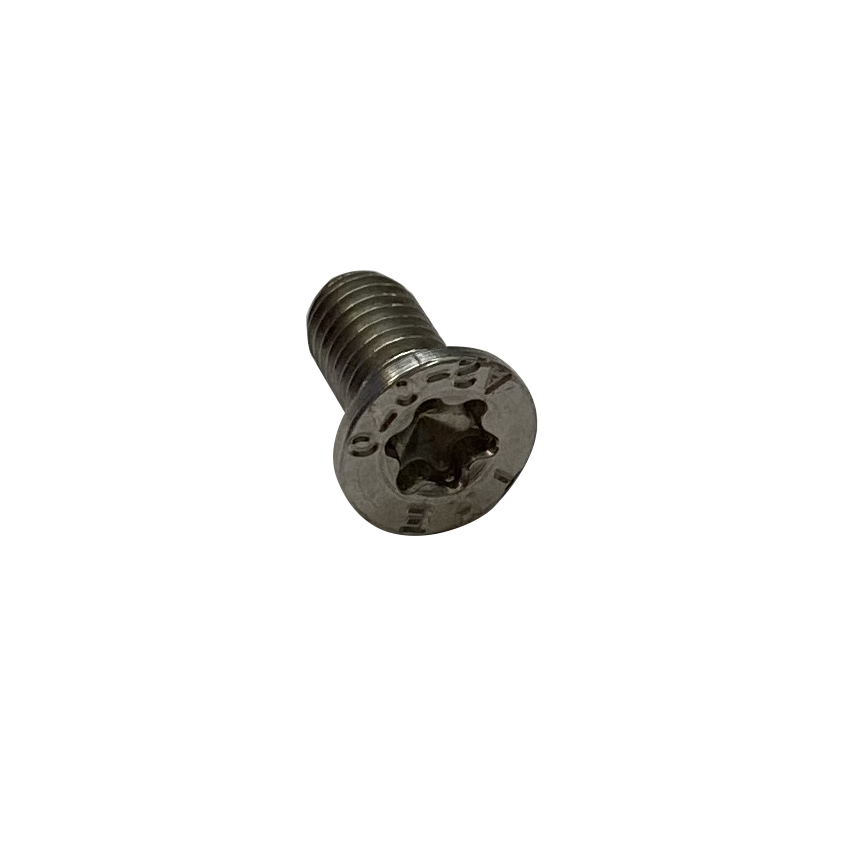

Small Head Adjustment Bolts - M5 bolts with smaller milled heads that will seat cleanly into Dynafit binding feet, perfect for the Superlite 2.0/150 plates.
Related Products
Questions & Reviews
3/22/2022
3/23/2022
Thanks for reaching out, TZed. These are M5x8.8mm and a T20.
Answer this question:
11/1/2021
Is the EL-R Roof and Riser in the dropdown menu the same as the GT 2.0 Heel Covers in the descriptions? After looking at the Kreuzspitze website, I think it might be. Also, it looks like only one is included -- is that correct?
11/1/2021
Hey Andy,
Great question! The EL-R Roof & Riser is not the same as the GT 2.0 Heel Covers. The EL-Roof and Riser will be much more similar in style to the Plum Guide heel piece. Whereas the GT 2.0 Heel Covers will be much more similar to the Plum Oazo heel piece.
Also, the EL Roof & Riser comes as a single piece. You'll need to order two for a set of bindings.
Great question! The EL-R Roof & Riser is not the same as the GT 2.0 Heel Covers. The EL-Roof and Riser will be much more similar in style to the Plum Guide heel piece. Whereas the GT 2.0 Heel Covers will be much more similar to the Plum Oazo heel piece.
Also, the EL Roof & Riser comes as a single piece. You'll need to order two for a set of bindings.
11/1/2021
Thanks. Maybe you should add a description (and a photo) for the EL-R Roof and Riser.
11/2/2021
Andy,
Thank you for bringing this to our attention! Image and description have been added. Thanks again!
Thank you for bringing this to our attention! Image and description have been added. Thanks again!
Answer this question:
3/4/2021
You seem to be out of Kreuzspitze SCTT heel risers. Do you know when you'll be getting more in stock? Danke.
3/5/2021
Thanks for your question, James. Please send us an email to help@skimo.co and we can get a timeline for you!
Answer this question:
1/12/2021
I just got the SCTT heels, and it looks like you're out of the SCTT risers. Will I still have one level of heel lift? Is there another riser that would be compatible? What would you recommend? Thanks.
1/12/2021
Nathan-Adding a riser will still allow your current riser plus the added riser on the rear of the heel piece. There is not another riser that fits the SCTT heel piece. We do have some of those on order which should be in shortly.
1/12/2021
Ok, cool, thanks, I'll keep a lookout.
Answer this question:
1/9/2021
hello!!

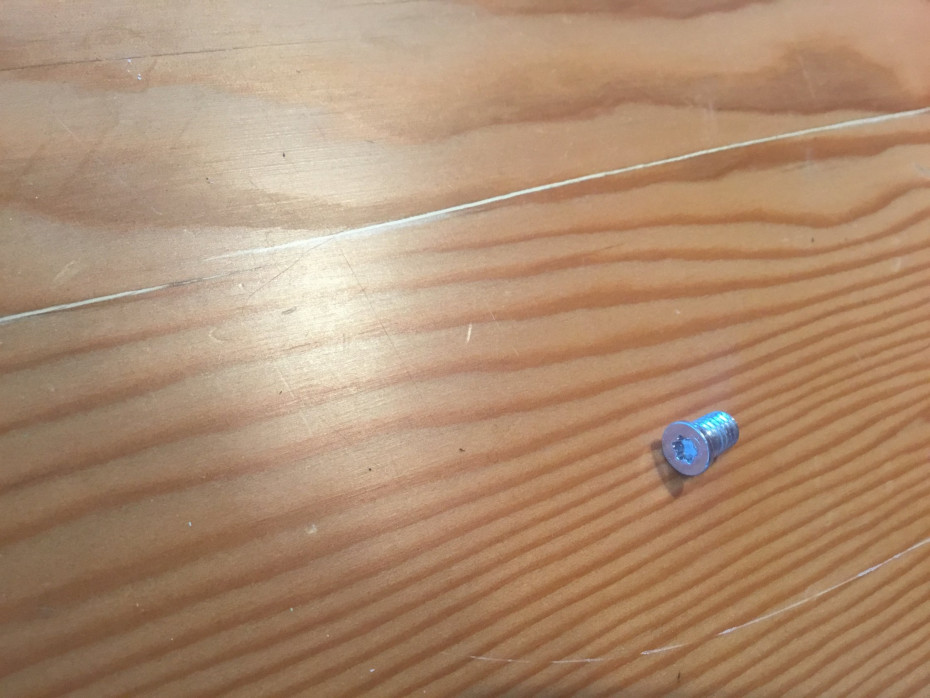

looking for a part of Dynafit Superlite..that i screw to the plate..
see pic..
i stripped one of the screws..
would this screw fit?
looking for a part of Dynafit Superlite..that i screw to the plate..
see pic..
i stripped one of the screws..
would this screw fit?
1/12/2021
Josee- If you are using the Dynafit plate you need a screw-like that but is 6mm in diameter. If you are using a Kreuzspitze plate that screw might work. For that plate, you need a 5mm screw
1/12/2021
thanks:) you have available this screw for Dynafit plate ? 6mm ??
1/12/2021
Sorry Josee, we are out of those and having trouble getting more.
Answer this question:
1/29/2020
Do you have the parts to convert regular Kruezspitze heels to the ‘Lady’ version (lower release value). Thank you
1/30/2020
Hey Andrew, unfortunately we do not have parts to lower the release value, my apologies!
Answer this question:
4/28/2018
I have the gt heel flaps. What tool do I use to remove the top of binding screw and then install the flap? Doesn't seem to be hex 2.5 or 3.0 mm. A smaller torx than the binding mount screws? Thank you.
5/1/2018
Hey Dgg! Should be a 2.5mm Allen Key. Just make sure it's really sharp otherwise you can definitely strip it out.
Answer this question:
4/9/2018
Hi, I am thinking about adding the crampon attachment for my Kreuzspitze bindings. Will I need to remove the toe piece to install the crampon attachment? Do I need other parts to most these? Thanks!
4/10/2018
Hi Teal, you will have to remove the toe piece to install the crampon adaptor but the kit comes with all the parts you will need.
Answer this question:
4/22/2017
Will the support pads work with SCTT adjustment plates or do they require that the heel piece is mounted directly to the ski?
4/24/2017
Hey Patrick. There are enough "well, I guess in theory it would work but..." scenarios about the Heel Support Pad working with an adjustment plate that my initial thought would be that the heel must be mounted directly to the ski to make the Support Pad work. There is a good chance (if you can find bolts to attach the heel pad to the adjustment plate in the first place) that if the heel isn't all the way back on the adjustment plate to support the pad, you could stomp the heads of the bolts right off and render your heel and support pad somewhat useless.
Answer this question:
4/1/2017
Will the heel support pad still allow the GT to rotate 90 degrees or does it only work with the SCTT? I'm assuming it will prevent the GT from rotating 180 to the elevated position. That being said, do the GT heel flaps rest on the pins so that one's body weight on the flaps does not create a leveraging force on the single forward screw to which the flap is mounted?
4/3/2017
Hi Robert, you are correct. The heel support pad prevents the GT from rotating 180 degrees so you would need the heel flaps to go uphill. The flaps rest on the heel pins, which is a common design with race bindings.
Answer this question:
3/7/2017
I have some Torx (T20) mounting screws rattling around in my parts bin. They are 13mm total length and have an angled or sloped head on the underside. Is that the appropriate length for attaching a Kreuzspitze adjustment plate. They seem kinda short.
3/7/2017
Hey Richard, you got it, those should work just fine unless your ski is particularly thin. If it's a thin ski you may have to grind the screws down to get them to not dimple the base when you screw into it. Otherwise you're safe to use the 12.5mm screws.
Answer this question:
2/4/2017
Hi,
I damaged torx head of bolt (screw?) which keeps front piece of binding on Kreuzpitze adjustment plate. What part should I order from you: torx bolt or screw?
I appreciate your help.
I damaged torx head of bolt (screw?) which keeps front piece of binding on Kreuzpitze adjustment plate. What part should I order from you: torx bolt or screw?
I appreciate your help.
2/4/2017
Hi Vadim, you'll need a Torx Adjustment bolt.
Answer this question:
1/9/2017
Hi, if I order the heel support pads for 19.95 am I receiving 1 or 2?
thanks
thanks
1/9/2017
Hi Drew, they are sold in pairs (x2).
Answer this question:
1/5/2017
How can I get the GT heel risers? Will those be available any time soon?
1/5/2017
Hey Aaron, we're looking at an early-mid February ETA on those heel risers. -Trace
Answer this question:
10/4/2016
How do I order the kreuzspitz crampon attachments I can't see where to add them to my cart?
10/4/2016
Hi Jeff, we temporarily sold out of those, but are expecting more by the end of the week.
Answer this question:
6/17/2016
Question from
Kaj
Hi,
I'm after some replacement forks (preferably steel) for some ATK Race SL bindings and curious about what brands might be compatible. As far as I can gather Hagan & Fisher race bindings are identical, but I cannot track down replacement parts for any of them. Do you know if the forks from Kreuzspitze or SkiTrab would fit?
I'm after some replacement forks (preferably steel) for some ATK Race SL bindings and curious about what brands might be compatible. As far as I can gather Hagan & Fisher race bindings are identical, but I cannot track down replacement parts for any of them. Do you know if the forks from Kreuzspitze or SkiTrab would fit?
6/17/2016
Hi Kaj, we have the titanium forks listed under Hagan bindings parts. Unfortunately steel ones aren't available for that binding, and no others fit well. At least the titanium version is relatively inexpensive.
Answer this question:
8/12/2015
When will the heel support pads be available?
Can they be used over an adjustment plate? Presumably with a longer bolt through the plate...
Does the boot heel touch them when skiing normally? Maybe resisting lateral heel exit from binding. Am I understanding right that they are meant to save the heel piece from fatigue when skiing with a pack - resulting in rotation slop or bent springs?
Thanks heaps
Can they be used over an adjustment plate? Presumably with a longer bolt through the plate...
Does the boot heel touch them when skiing normally? Maybe resisting lateral heel exit from binding. Am I understanding right that they are meant to save the heel piece from fatigue when skiing with a pack - resulting in rotation slop or bent springs?
Thanks heaps
8/16/2015
Hi Joe, the support pads work with a bare heel or the adjustment plates. Both lengths of screws will be included in the kits (expected 9/15). Also included is a front screw that can adjust the height of the pad slightly to account for variations in boot sole thickness. This allows tuning of the desired amount of support versus lateral-release interference. While not specifically designed to prevent the failures you mention (I've never seen bent springs, e.g.), the pads can add some stability during descent and also offer a riser platform in walk mode (preventing a negative ramp angle when the heel is turned 90°).
Answer this question:
1/4/2015
I was wondering if I can replace the titanium forks in a SkiTrab binding with these steel forks.
1/5/2015
Hi JSD, forks are not standardized nor meant to be swapped across various models. That said, despite being thicker, the SCTT forks do fit in the Trab housing. The pins stick out further so you'd need something like a 5.6mm heel gap. That could change the release mechanics to levels that may not work for you.
