ATK Heel Pieces
There's nothing worse than having an awesome backcountry setup that you can't use simply because of one measly broken heel piece. Fear not, as these ATK heel pieces are sold individually for a less costly replacement process. Single heel pieces are also good when you want a just-in-case spare.
| Binding Model | Weight (g) | Weight (oz) |
|---|---|---|

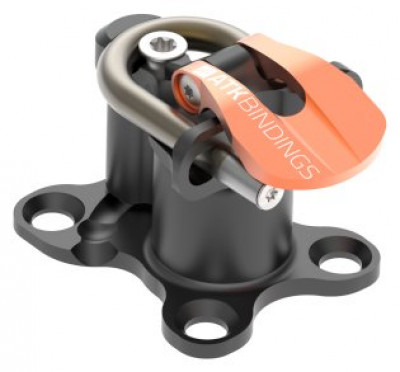

| SL World Cup | 41g | 1.4oz |

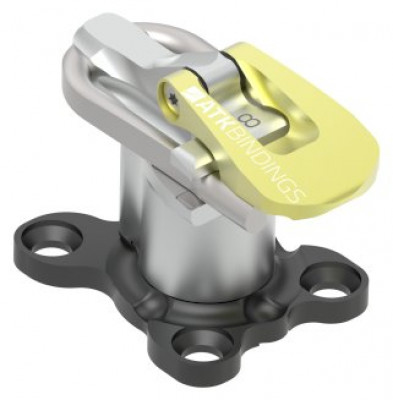

| Trofeo* | 62g | 2.2oz |

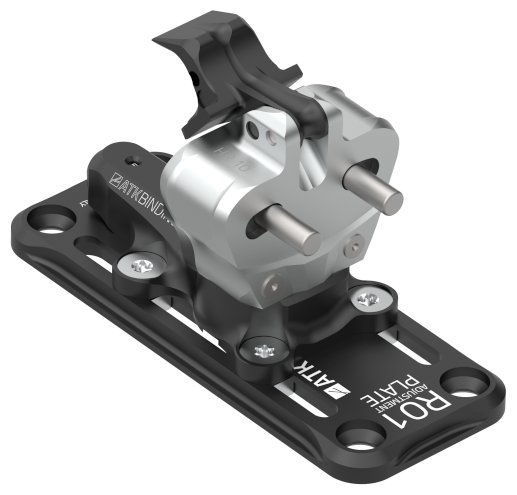

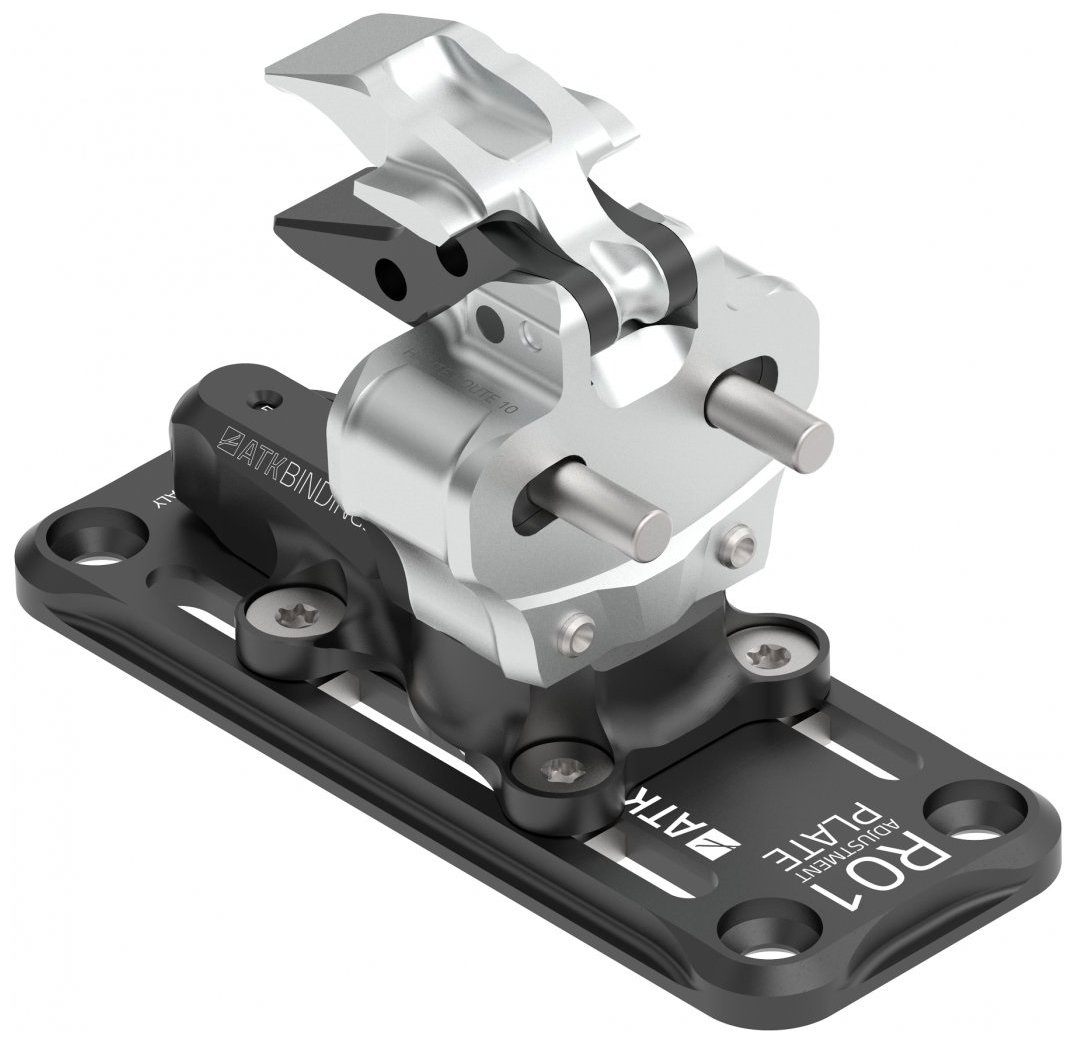

| Haute Route** | 128g | 4.5oz |
*Trofeo heel pieces are available in four fixed release values: 4, 6, 8, and 10
**Haute Route weight includes R01 adjustment plate
Related Products
Questions & Reviews
2/3/2024
Do the trofeo heelpieces ship with mounting hardware?
2/3/2024
Alex,
They do include all necessary screws.
They do include all necessary screws.
Answer this question:
1/5/2024
I know the release values would be wonky, but would the trofeo heels functionally work with a marker alpinist toe? Would it still work if I added the R06 adjustment plate?
1/5/2024
Hi Daniel,
The beauty of simple, lightweight tech bindings is that you can mix and match heels and toes. There's no reason it wouldn't work if adjusted correctly, and the plate shouldn't be an issue. However, I would want to get the release tested before skiing on it. There can be quite a bit of variation in release values once you start mixing and matching toes and heels.
The beauty of simple, lightweight tech bindings is that you can mix and match heels and toes. There's no reason it wouldn't work if adjusted correctly, and the plate shouldn't be an issue. However, I would want to get the release tested before skiing on it. There can be quite a bit of variation in release values once you start mixing and matching toes and heels.
Answer this question:
1/1/2024
The Trofeo toe is the same as the Haute Route toe, correct?
I have a pair of Trofeo toes from a previous franken-binding (the Trofeo toe was purchased last year). Looking to pick up some Haute Route heels to make a Haute Route binding but wanted to be sure first. Thanks.
I have a pair of Trofeo toes from a previous franken-binding (the Trofeo toe was purchased last year). Looking to pick up some Haute Route heels to make a Haute Route binding but wanted to be sure first. Thanks.
1/1/2024
Hi Michael, not quite. The Haute Route uses the lighter toe from the SL World Cup binding. That said, you could still pair them reasonably well.
Answer this question:
7/17/2023
Hi,
Do you have in stock 2 pieces of the Haute Route heel peace?
Do you have in stock 2 pieces of the Haute Route heel peace?
7/17/2023
Hello Fedor, There is just one in stock now. New Fall inventory will be here in just a couple of months.
Answer this question:
5/9/2023
Is there a way to get just the heel unit from an haute route/200/200lt? I don't need the plate, just the heel piece.
5/10/2023
Ezra, Currently, that is the only way we have got them from ATK.
Note, we only have one of those left in stock.
Note, we only have one of those left in stock.
Answer this question:
2/13/2023
How does the plate for the ATK line up for the plate of the Plum 170?
2/13/2023
Hi Brian,
The mounting patterns for the two. The ATK R01 plate is 25 x 86mm. The Plum R170 is 25 x 55mm .
The mounting patterns for the two. The ATK R01 plate is 25 x 86mm. The Plum R170 is 25 x 55mm .
Answer this question:
Super solid and beautifully crafted heal pieces. I originally ordered the 10s but had to move to the 8s since the 10s were very difficult to rotate. This may have been the year I purchased (pre 2020 which was ever so slightly different in design). I now have the 2022 8s which have been perfect.
Comment on this review:
1/29/2023
I just busted a haute route heel lift flap. Is it possible to buy just the flap, or am I in for a whole new heel piece?
1/29/2023
Hi Todd, sadly we don't have access to just the flaps.
Answer this question:
1/25/2023
I currently have a pair of Zero Gs with the Dynafit ST Radical Bindings. Could I replace the heels with Trofeo 6? Would this frankenset-up work?
1/25/2023
Dani,
I'd advise against it, simply because you will have unpredictable release values. The toe and heel work together to make the binding release at the desired value. When you change one part of that setup, there's no way to predict the retention/release profiles without mounting it up and testing it.
I'd advise against it, simply because you will have unpredictable release values. The toe and heel work together to make the binding release at the desired value. When you change one part of that setup, there's no way to predict the retention/release profiles without mounting it up and testing it.
1/29/2023
Hi Dani, for what it's worth, lots of folks have paired Radical toes with race heels, especially during the years there was less confidence in race toe durability.
Answer this question:
9/23/2022
could you use one of these replacement heels with an atomic backland toe?
9/23/2022
Doug, Yes. There will be some changes. Your ramp angle will now be Flat. The stiffer Backland toe will likely affect the heel release some, but cannot say how much.
Answer this question:
4/6/2022

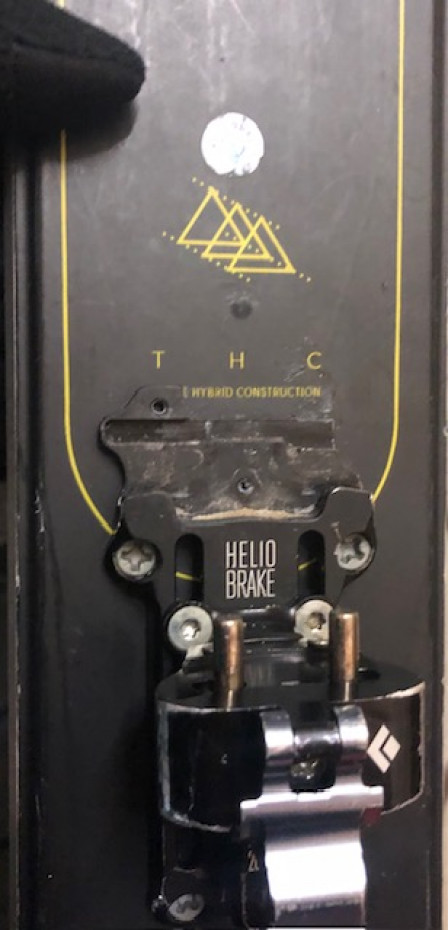

I've been using the BD 110 heel piece and have broken 2 heel flaps. The new trofeo heel looks like the flap has been beefed up.Is this true and would the holes be the same as the BD?
4/7/2022
Hi John, thanks for reaching out. The Trofeo does have a more durable heel flap than the BD 110 used to have. This heel piece will also fit right into the old holes from the 110.
Answer this question:
3/19/2022
Can the Haute Route heel be direct mounted to ski i.e. without the adjustment plate?
3/21/2022
Hi Christof. Yes, you can. It would essentially turn it into a 200-lt heel. Hope that helps.
Answer this question:
12/24/2021
Hello,

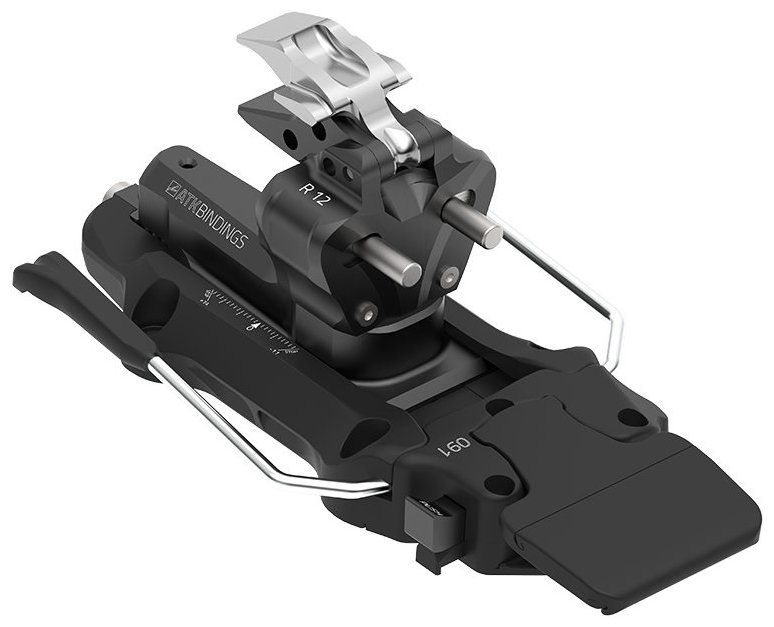

Will the ATK Haute route heel piece fit the slider plate from an older (~2016) ATK Free Raider 14 set?
Thanks and happy holidays!
Will the ATK Haute route heel piece fit the slider plate from an older (~2016) ATK Free Raider 14 set?
Thanks and happy holidays!
12/24/2021
Unfortunately it will not, as the holes on the old Raider 14 are wider apart than those of the Haute Route. For the Haute Route you'll want the ATK R01 Plate.
Answer this question:
