ATK Adjustment Plates

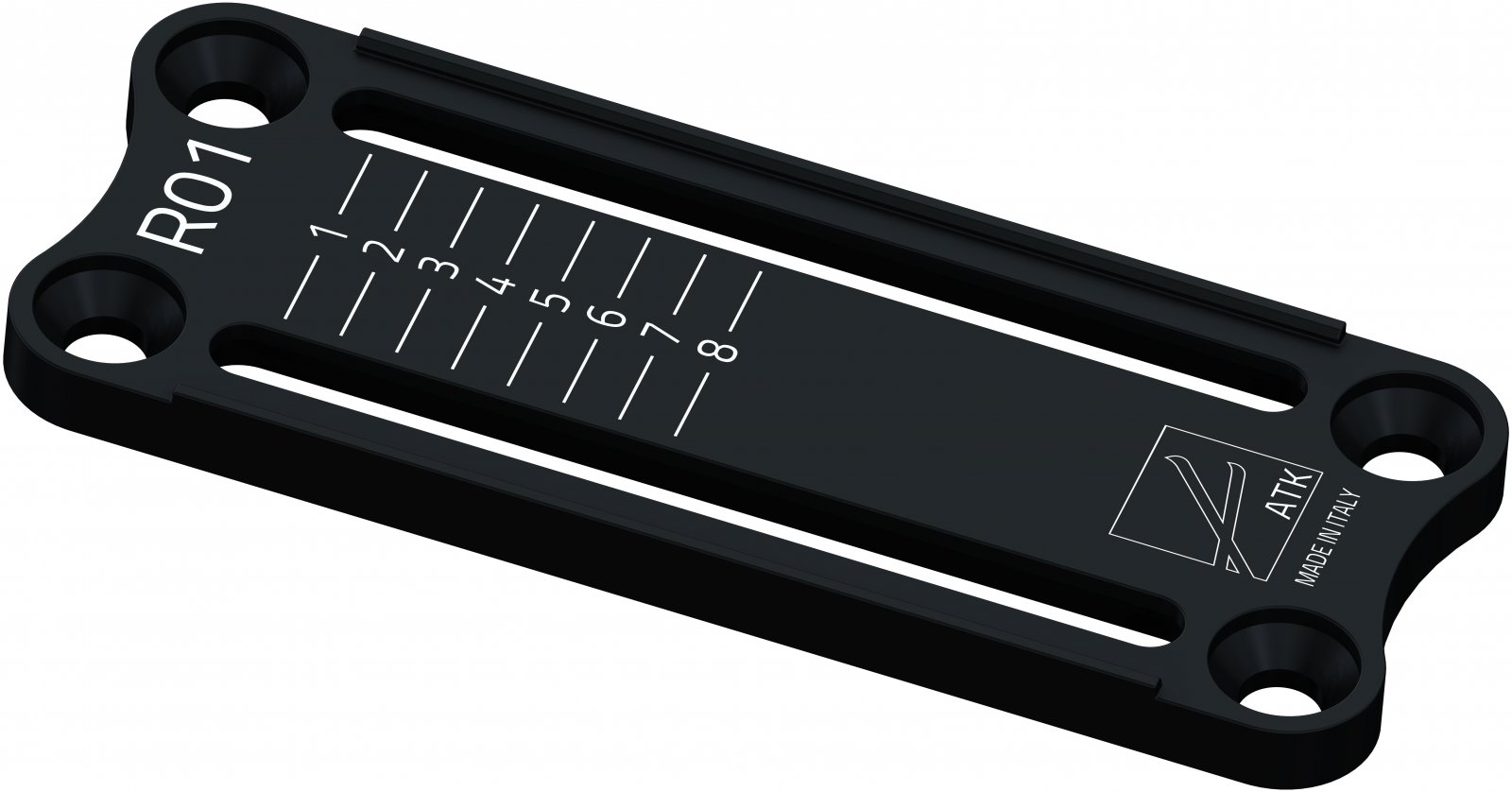

R01 - 30mm Heel - Heel adjustment plate with "30mm" of adjustment range. Compatible with all ATK race heels, noting the range is more like 25mm for these. Also compatible with Ski Trab Gara Titan, La Sportiva RSR, and other Hagan/BD race heels. With bolts it weighs just 36g (1.3oz). Adds 5.5mm of heel stack. Stock Note: If these are out, the Trab Race plates also work.

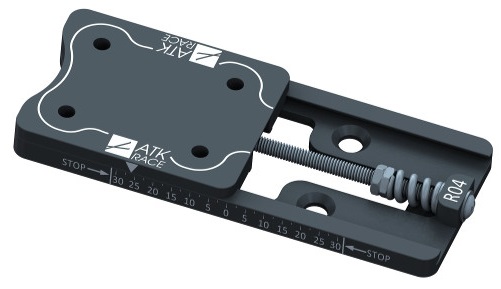

R04 - Rental Adjustment - Long 60mm plate with a quick-adjust bolt positioning mechanism and some elastic travel. Fits ATK race heels. Weighs 85g (3oz) and raises your heels by 9.5mm

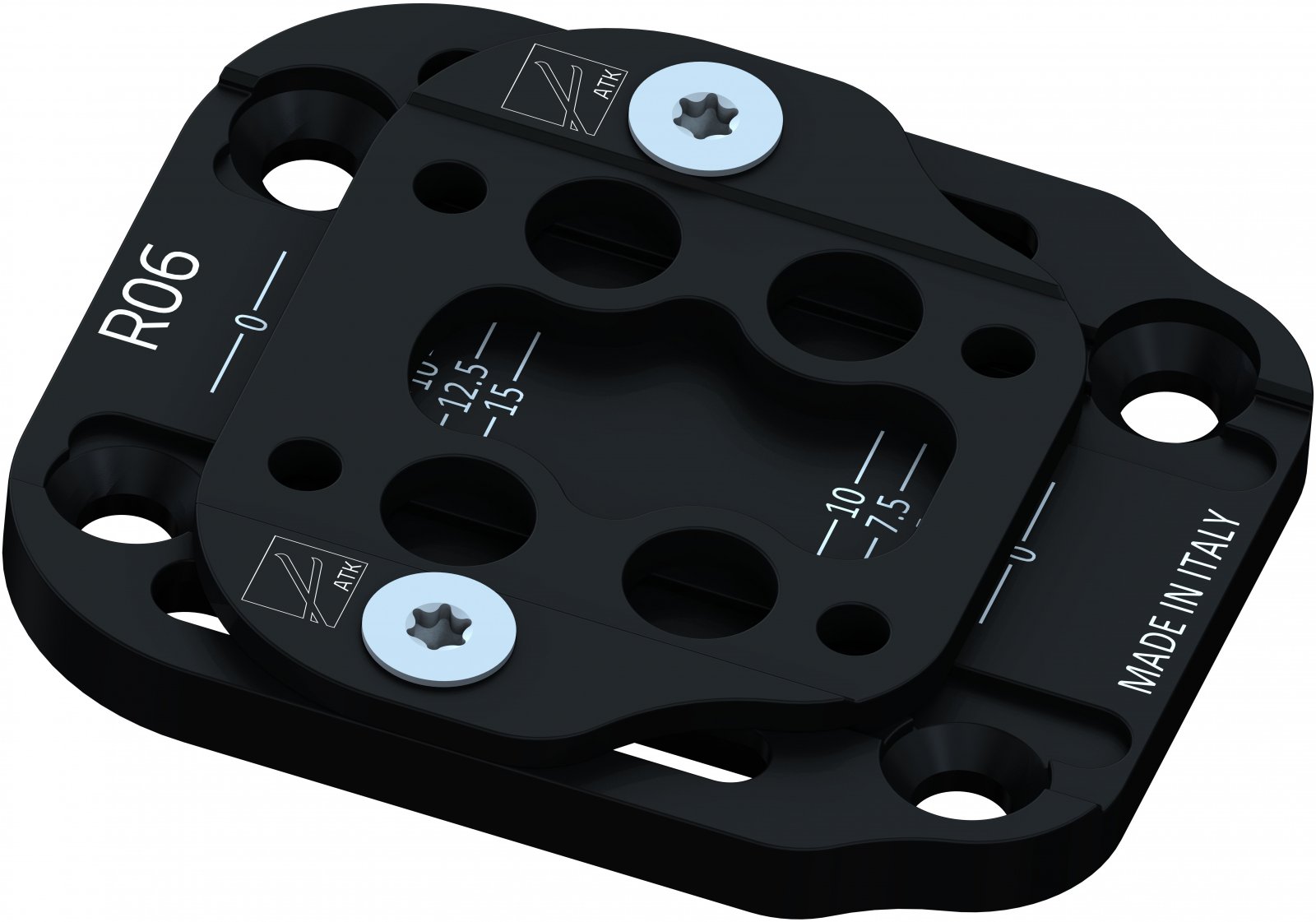

R06 - Ski Saver for Speed Radical Heels - Heel adjustment plate with 25mm of range. Compatible with all ATK race heels. The plate's mounting pattern is the Dynafit Speed Radical/Radical 1.0 heel pattern (32/36mm wide x 52.5mm long). Perfect for if you want to save weight from a Dynafit Speed Radical pattern binding to a race-style binding but don't want to drill any new holes in your skis. Comes in at just 40g (1.4oz). Adds 7.6mm of heel stack.

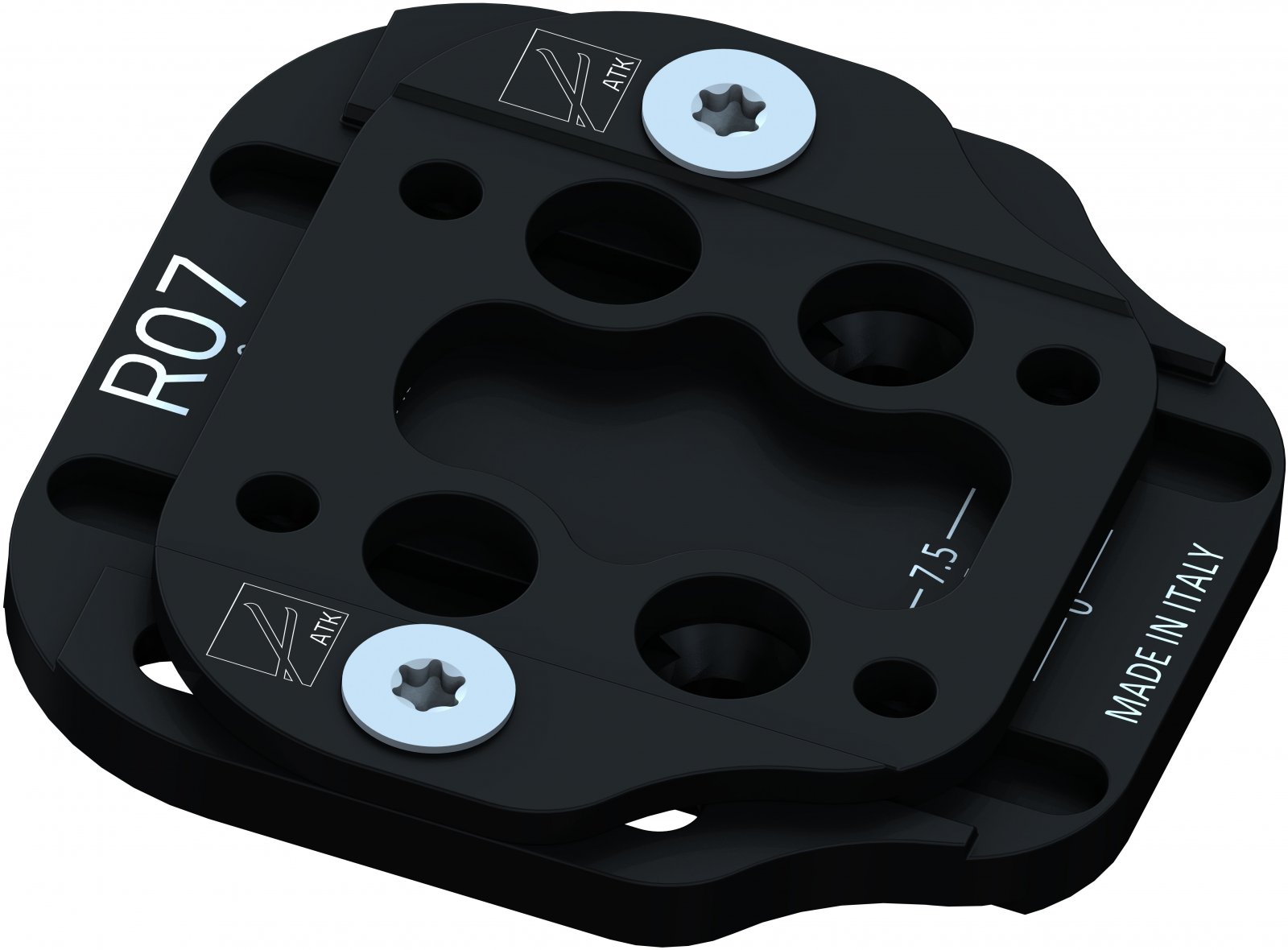

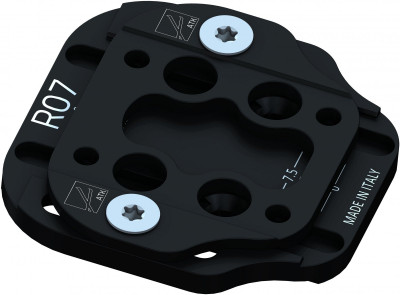

R07 - Ski Savers for ATK Race Heels - Heel adjustment plate that mounts into existing ATK race heel holes, allowing the race heel to be shifted forward or backward by 7.5mm (15mm total range) to accommodate a new boot that is similar in BSL. Easy to adjust with only two screws. Weighs just 40g (1.4oz). Adds 7.75mm of heel stack.

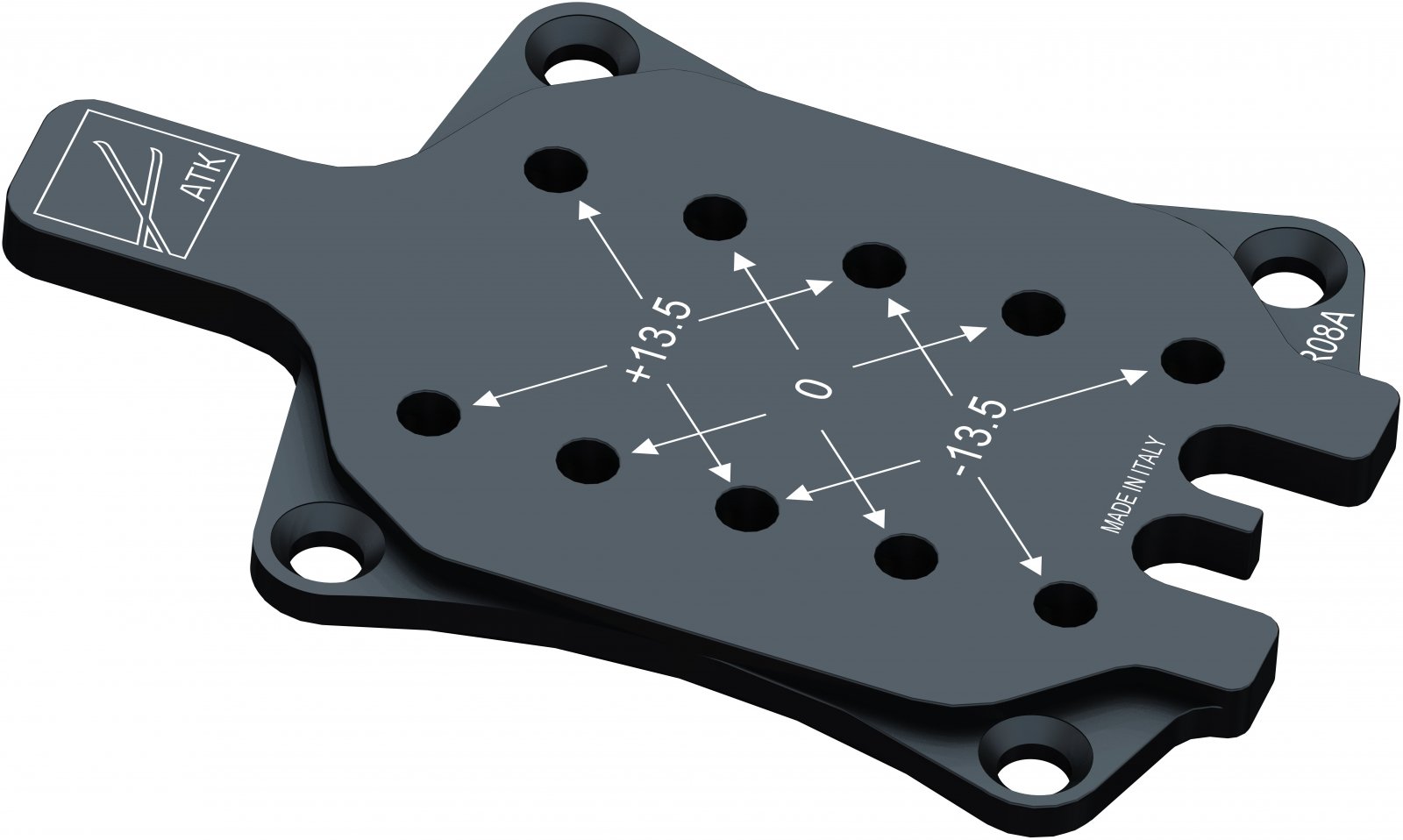

R08A - XXL Toe Adjustment Plate - Wider version of the R13 adjustment plate offering better torsional stability due to the larger contact area. Fits the standard ATK toe pattern (30mm wide x 27mm long). Offers three mounting positions: +13.5mm, 0mm, and -13.5mm. Could be useful when remounting skis over existing holes due to the wider mounting pattern of the plate. With screws it weighs 52g or 1.8oz. Raises your toes by 5.5mm.

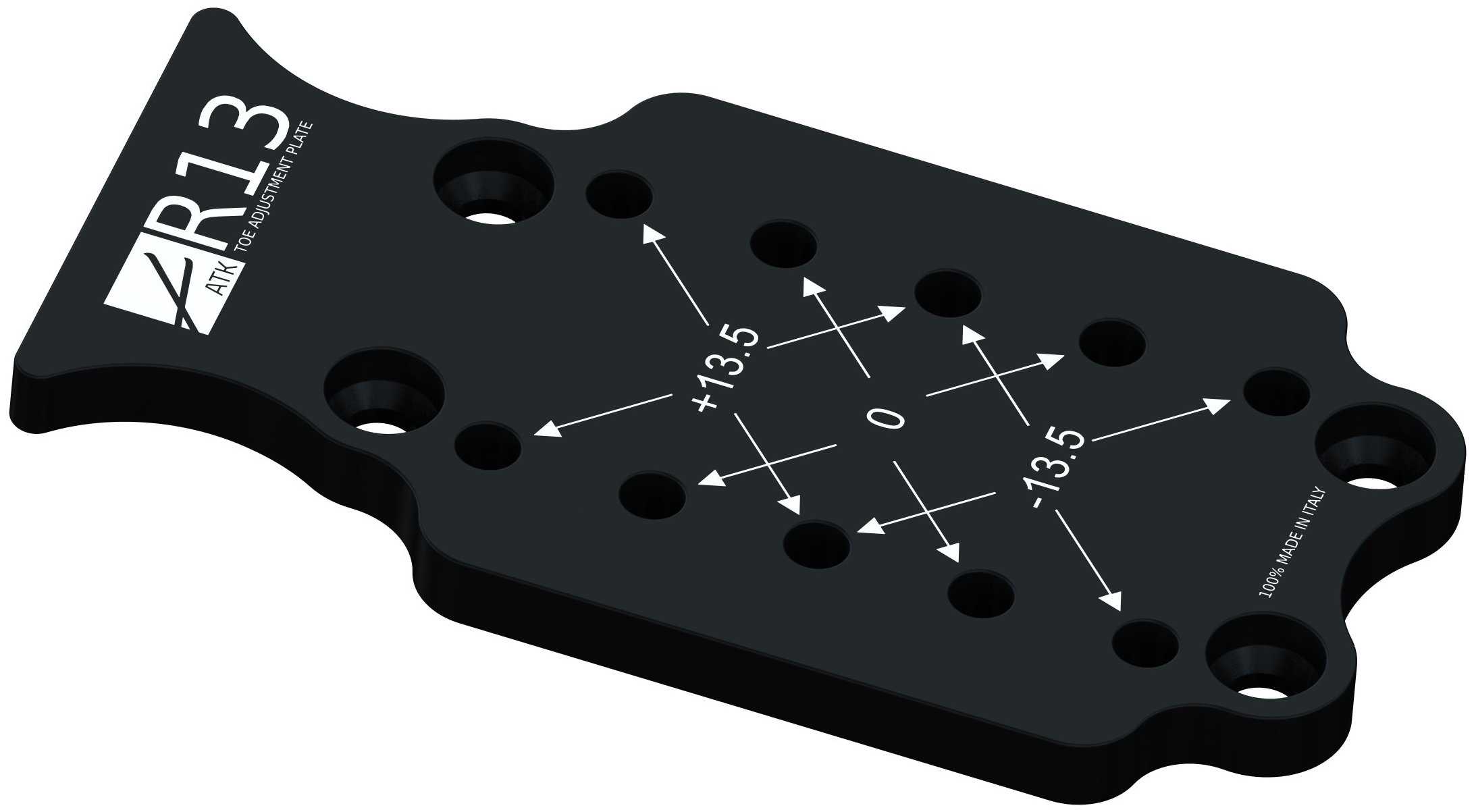

R13 - Standard Toe Adjustment Plate - Adjustable toe plate for standard ATK toes (30mm wide x 27mm long). Offers three mounting positions: +13.5mm, 0mm, and -13.5mm. Nice if you either want to experiment with mounting locations or need to dodge holes due to a remount. With screws it comes in at 38g (1.3oz). Raises your toes by 6.45mm.

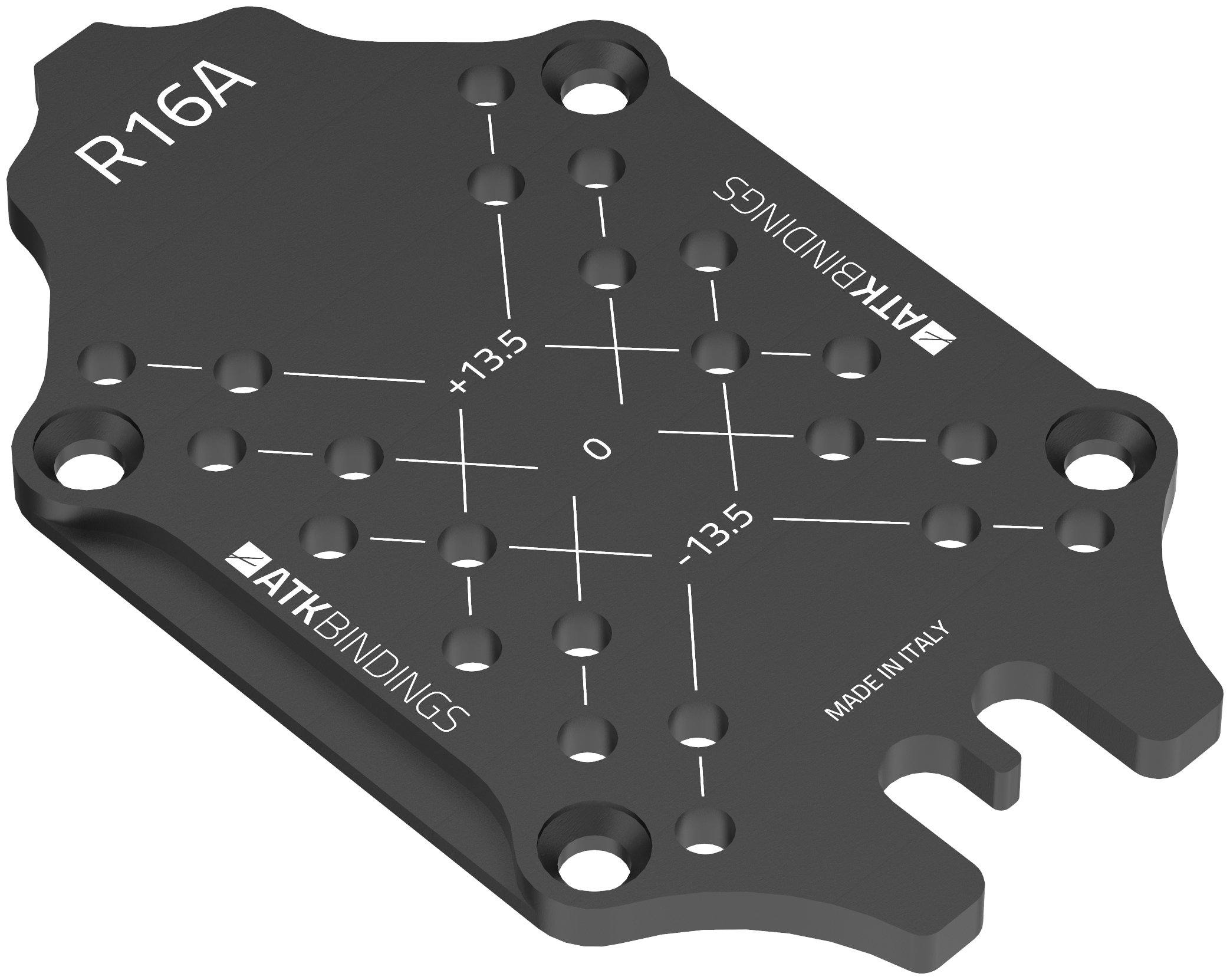

R16A - Free Touring Toe Plate - Adjustable toe plate for any ATK freeride toe (Hagan Core, ATK Raider 12, etc...) Three options: +13.5mm, 0mm, and -13.5mm. A good option if you don't know where you want to be mounted, need to dodge some toe holes, or have a large range of boot sizes to accommodate. With screws it weighs 58g or 2oz. Adds 5mm under your toes.

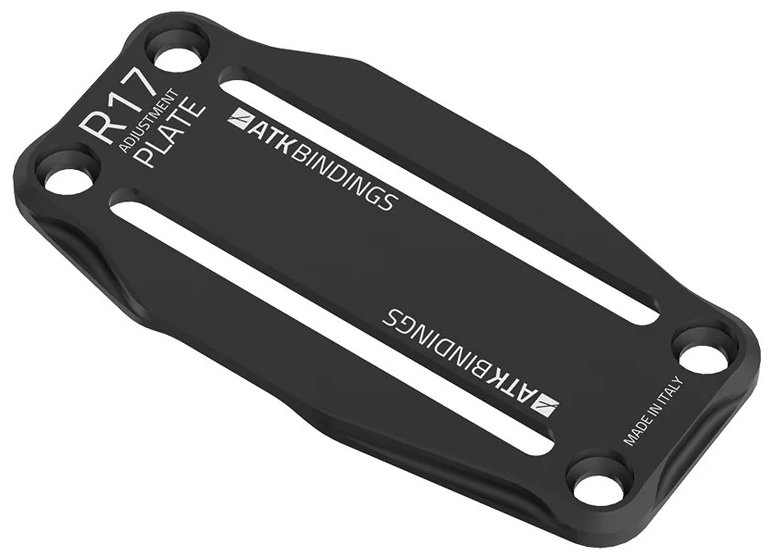

R17 - 30mm Heel - A wider adjustment plate purposefully designed for ATK's braked race bindings. Weighs 45g with screws.
Related Products
Questions & Reviews
12/22/2025
Hello! I'm trying to find out whether the holes to attach the adjustment plate to the ski for the R01 are the same as the R17. I think that the rails (for attaching the binding to the adjustment plate) are different widths, but are the holes different as well? Thanks!
12/22/2025
Keegan- The R01 and R17 plates have the same drill pattern and the same track widths. The only difference is the R17 is wider to support the brake arms of the braked versions brakes.
Answer this question:
12/22/2025
Hi. I have two sets of skis mounted with ATK Raider 13 Evos and and Hagan Core 12 Evos. I'm hoping to move slide the heel backward to fit a slightly larger boot (6mm longer BSL). The skis have been drilled previously, so I'm worried there aren't good options for a remount. Will one of these plates work?
12/22/2025
Tim-The rules for mounting is as long as you have 1cm between holes then you are fine for remounting. Now if you dont have that room in the heel holes then you would have to add a toe adjustment plate. For your bindings that would be a R16A plate.
Answer this question:
12/17/2025
Hi,
it always very helpful to read all the comments and questions. Thanks.
This time, I have one too. I was thinking to use a toe plate with ATK Candy 5 bindings (for a kid) to get extra adjustment space on ski Trab Stelvio Kid (80 mm wide) and keep the shoes centered on the ski.
I wanted to get the R13 toe plate but as far as I know, the hole patterns in the new ATK Candy 5 toe is not 30x27 anymore but 30/45 x 35. So it would not work.
Would it work with the R16 plate? I couldn’t find precisely the hole patterns on the R16 plate (apart from the fact it works with the Hagan Core binding, but which one?).
Even if it worked, the toe plate would probably be very wide for 80 mm wide skis?
Any advice would be welcome.
Best wishes.
it always very helpful to read all the comments and questions. Thanks.
This time, I have one too. I was thinking to use a toe plate with ATK Candy 5 bindings (for a kid) to get extra adjustment space on ski Trab Stelvio Kid (80 mm wide) and keep the shoes centered on the ski.
I wanted to get the R13 toe plate but as far as I know, the hole patterns in the new ATK Candy 5 toe is not 30x27 anymore but 30/45 x 35. So it would not work.
Would it work with the R16 plate? I couldn’t find precisely the hole patterns on the R16 plate (apart from the fact it works with the Hagan Core binding, but which one?).
Even if it worked, the toe plate would probably be very wide for 80 mm wide skis?
Any advice would be welcome.
Best wishes.
12/17/2025
Hi Nicolas, the R16 plate works with both the 30/45 x 35 and 45 x 44 patterns, so it would be the plate to pick for the Candy 5. The plate is about 73mm wide, so it might work on the 80mm underfoot Stelvio Kid, but I would measure the width of the topsheet to make sure, as the top of the ski may be narrower than the underfoot base measurement due to the angle of the cap/sidewall.
12/18/2025
Thanks a lot for your quick and precise answer. I’ve measured the width of the topsheet and get around 74 mm. Knowing also that the holes would be relatively close from the edge, I will drop the idea and only use the Candy 50 mm rear adjustment…
Answer this question:
7/12/2025
I have a ski I quiver kill'd for Helio 350s (45x60) but thinking about going lighter on the heel w a Trofeo. Any of these binding plates going to mount into my existing QK 45x60 and work with Trofeos 25x34?
7/12/2025
Hi Dizzy, unfortunately, there is no adjustment track that will mount to the same 45x60 pattern as your Helio 350 heels. That said, the holes for R01 plate (which is the adjustment plate for the Trofeo and other race heels) won't interfere with your current heel holes, so you could redrill the ski for an R01 adjustment plate without issue.
Answer this question:
1/21/2025
Hi Team,
Do you know if R01 plate works with Ski Trab Gara brake? I've been using my regular Titan Gara binding without a brake and R01 plate installed but now I need to comply with ISMF regulations and I wanted to install the brake but I don't know if it's gonna work or I need to purchase a new plate and drill my skis another time ☹️
Do you know if R01 plate works with Ski Trab Gara brake? I've been using my regular Titan Gara binding without a brake and R01 plate installed but now I need to comply with ISMF regulations and I wanted to install the brake but I don't know if it's gonna work or I need to purchase a new plate and drill my skis another time ☹️
1/21/2025
Jakub, For the Gara brake to work properly, you need the Race Heel Wide.
Same mounting pattern as the Trab plate, not the same as the R01.
Same mounting pattern as the Trab plate, not the same as the R01.
1/24/2025
Hello Jeff. Thanks for the response. Would a R17 plate be an alternative? I already have 2 different hole patterns drilled in my skis and I really don't want to to drill another 2 or 4 holes. I know that R17 has the same pattern as R01 and that it works with ATK bindings with a brake but for me it's not an option. Thanks!
Answer this question:
The R16a “Free touring” toe plate also fits “standard/old” ATK toes with the 30x27mm pattern, like the old Crest or Haute Route (plus).

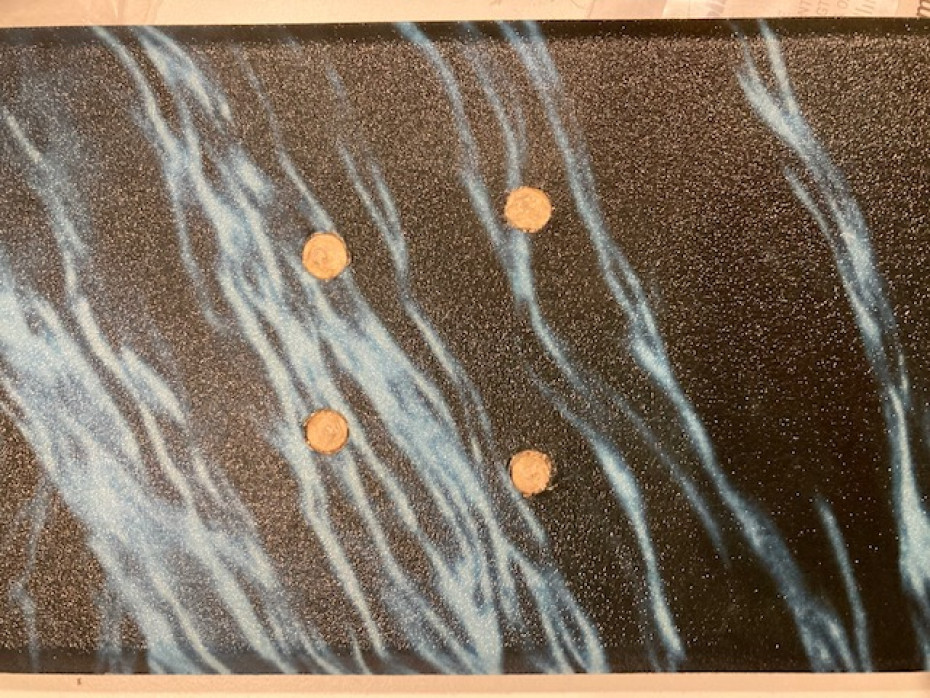

You can see the narrower holes in the picture.
Note that its mounting holes are very wide. I had a ski were they fell outside the metal insert, even though it wasn’t a very skinny ski.
You can see the narrower holes in the picture.
Note that its mounting holes are very wide. I had a ski were they fell outside the metal insert, even though it wasn’t a very skinny ski.
Comment on this review:
Picked up some BD Helio 200 bindings and wanted to have some adjustability for the heel piece so paired them with the ATK R01 30mm heel plate. Easy to pair and offers tons of range for different BSL's. Stoked!
Comment on this review:
5/13/2024
What is the width of the drilling holes to fix the plate in the skis. Is it also 30mm wide. Not quite sure looking at the picture.
5/13/2024
Hi Toto,
Which particular plate are you referring to?
Which particular plate are you referring to?
5/14/2024
Hi, sorry did not mention the plate. ==> R13. Best Toto
5/14/2024
It's 25mm wide, not 30mm - kind of interesting, it's not the same width as the threaded holes.
5/15/2024
Thank you very much for the info!
Answer this question:
4/9/2024
Would you recommend the r13 or r08a for black diamond helio carbon 104
4/9/2024
Hi Quintus, the regular R13 plate should be fine for that ski, it's not yet particularly wide at 104mm.
Answer this question:
4/8/2024
are all the toe plates the same thickness @6.45mm?
4/9/2024
Hi Quintus, no they all vary. I've updated the descriptions with the measurements.
Answer this question:
4/4/2024
Would the ATK R08A or R13 plates work with Ski Trab Titan toes? Looks like the same screw patterns. Thanks!
4/4/2024
Hi Barrett,
They are the same pattern, 30x27, so they should work!
They are the same pattern, 30x27, so they should work!
Answer this question:
4/1/2024
When mounting a ATK Radical 10 bindings with the Freeride Spacer, can I then still make use of the ATK Adjustment plate?
4/1/2024
Hi Jesper,
Do you mean Raider 10? If so, you will not be able to use a heel adjustment plate - the Raider bindings (and all of ATK's full featured bindings) already have BSL adjustment built into the heel, so it would be somewhat unnecessary, and the mounting pattern is not compatible with the race heel plates.
If you were referring to a toe adjustment plate, the R16A plate is an option to move the toe around on the Raider bindings.
Do you mean Raider 10? If so, you will not be able to use a heel adjustment plate - the Raider bindings (and all of ATK's full featured bindings) already have BSL adjustment built into the heel, so it would be somewhat unnecessary, and the mounting pattern is not compatible with the race heel plates.
If you were referring to a toe adjustment plate, the R16A plate is an option to move the toe around on the Raider bindings.
Answer this question:
3/15/2024
Howdy - I’m mounting a trofeo heelpiece to a R01 plate (already on the ski) to replace a busted BD Helio 180 with stripped bolts. What size bolts do I need? Do you have them?
3/16/2024
Alex, You can find the screws and nuts here -
Plum parts
You need the Race Adjustment screws and Adjustment plate nuts.
Plum parts
You need the Race Adjustment screws and Adjustment plate nuts.
Answer this question:
3/3/2024
What's the r08a mounting pattern? Would be convenient if it was the raider toe pattern.
3/4/2024
Hi Jon, it's 60mm x 60mm, not the same as a Raider. The other large R16A plate for the Raider also has the mount pattern, though.
Answer this question:
3/1/2024
How much does the R13 Adjustment plate add to the height of the toe piece?
I'm saving some tired ski trabs with existing holes and want to check my final pin delta.
Cheers,
Alastair
I'm saving some tired ski trabs with existing holes and want to check my final pin delta.
Cheers,
Alastair
3/1/2024
Hi Alastair,
Good for you, keep those skis going!
The R13 plate is 6.45mm thick according to our calipers.
Good for you, keep those skis going!
The R13 plate is 6.45mm thick according to our calipers.
4/6/2024
are the other two adjustment plates the same thickness?
Answer this question:
2/8/2024
Hi Team!
I have 2 quick questios:
1) Regarding an ATK Kuluar binding that I am using. I bought a heel plate to be able to change the binding back and forth between 2 of my boots but I'm wondering whether I would need a toe plate to even out the height added by the heel plate?
Same goes for my Pierra Menta skis. I have a pair of Dynastar PM skis with the old ATK SL WC binding without brakes and need to change to the new ATK SL WC with the brake but would like to add a plate so that I can switch between multiple boots. Would I need a toe plate for this as well as a heel plate?
I have 2 sets of the R01 plates, will they work for both setups?
Thank you for your help!
I have 2 quick questios:
1) Regarding an ATK Kuluar binding that I am using. I bought a heel plate to be able to change the binding back and forth between 2 of my boots but I'm wondering whether I would need a toe plate to even out the height added by the heel plate?
Same goes for my Pierra Menta skis. I have a pair of Dynastar PM skis with the old ATK SL WC binding without brakes and need to change to the new ATK SL WC with the brake but would like to add a plate so that I can switch between multiple boots. Would I need a toe plate for this as well as a heel plate?
I have 2 sets of the R01 plates, will they work for both setups?
Thank you for your help!
2/8/2024
Hi Karl,
The R01 plate is not compatible with the ATK Kuluar binding, it is designed for race pattern heels. The Kuluar has its own adjustability built in, it does not need a heel adjustment plate.
The ATK SL WC will work with an R01 plate, the brake doesn't interfere. So that setup is fine. You do not need to add a toe shim. The delta will not change by that much, with an R01 plate.
If you need to return the R01 plate you bought for the Kuluar, or have other questions, email us at help@skimo.co!
The R01 plate is not compatible with the ATK Kuluar binding, it is designed for race pattern heels. The Kuluar has its own adjustability built in, it does not need a heel adjustment plate.
The ATK SL WC will work with an R01 plate, the brake doesn't interfere. So that setup is fine. You do not need to add a toe shim. The delta will not change by that much, with an R01 plate.
If you need to return the R01 plate you bought for the Kuluar, or have other questions, email us at help@skimo.co!
Answer this question:
1/26/2024
Which plates should I get for ATK Raider 11 Evo Binding?
1/26/2024
Hi Barney,
If you want to be able to move the toe forward and back on your ATK Raider 11 Evo, you would want the R16A - Free Touring Toe. That would be the only plate on this listing that fits the Raider hole pattern.
If you want to be able to move the toe forward and back on your ATK Raider 11 Evo, you would want the R16A - Free Touring Toe. That would be the only plate on this listing that fits the Raider hole pattern.
1/26/2024
Thanks so much for the quick reply. Would I need to also add heel plates to add height to the heel to make them even? It doesn't look like there is a heel plate that fits the ATK Raider 11 Eco. Probably because the binding already has an adjustable heel.
1/26/2024
Alternatively, if I used a shim for the heel plate, what thickness shim would match R16A?
1/26/2024
Hi Barney,
You are correct, there is no heel plate for this binding because the heel is already adjustable. And most people would not want to raise the heel on a binding that already has a positive delta of +11mm. Personally, I wouldn't do anything to the heel. Since the binding has some decent ramp angle to begin with, this plate will raise the toe much like a toe shim would, which will make the binding flatter. For most people, this is a good thing, unless you prefer a higher ramp angle. It will still be a positive delta even with the toe plate.
You are correct, there is no heel plate for this binding because the heel is already adjustable. And most people would not want to raise the heel on a binding that already has a positive delta of +11mm. Personally, I wouldn't do anything to the heel. Since the binding has some decent ramp angle to begin with, this plate will raise the toe much like a toe shim would, which will make the binding flatter. For most people, this is a good thing, unless you prefer a higher ramp angle. It will still be a positive delta even with the toe plate.
Answer this question:
1/21/2024
Are there torque specs for the T20 screws on these? Also, it seems like a dab of blue thread locker would be a good idea, any recommendations from ATK? The geeky ex-bike mechanic in me wants to know :)
1/22/2024
Hi George, Unlike the Bike world, pretty much no torque specs here.
So just "tight" . And a dab of Blue Loctite is a good idea, they can work loose.
So just "tight" . And a dab of Blue Loctite is a good idea, they can work loose.
Answer this question:
12/19/2023
Zdravim , ktoru dosku potrebujem na ATK fr 16 , špička aj päta ,lyže 4 frnt Raven 104 mm, montažne diery v lyži po viazani Salomon Backlund , ďakujem
12/19/2023
Ahoj Miroslav! Na opätovnú montáž možno nebudete potrebovať nastavovacie dosky. Pätky majú zabudovanú úpravu bsl, ktorá vám umožní vyhnúť sa dieram a zároveň nájsť dobrý stredový upevňovací bod topánky. Ak by ste chceli pridať nastavovaciu platňu pod prsty, R16A, Free Touring Toe Plate by bola tá pravá pre vás, pretože umožňujú umiestnenie +13,5 mm, 0 mm a -13,5 mm. Vďaka!
Answer this question:
12/7/2023
Is my understanding correct that the R01 heel plate will work with Black Diamond Helio 200LT bindings? Pretty sure it's the BD version of the Haute Route binding. Also, all of the necessary screws come with the plate?
12/7/2023
Hi Matt, that is correct all around, the R01 kit is all you need.
Answer this question:
