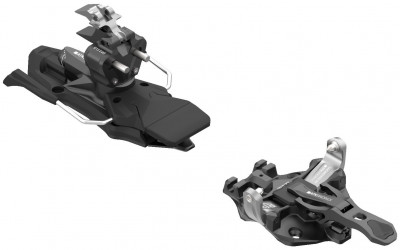

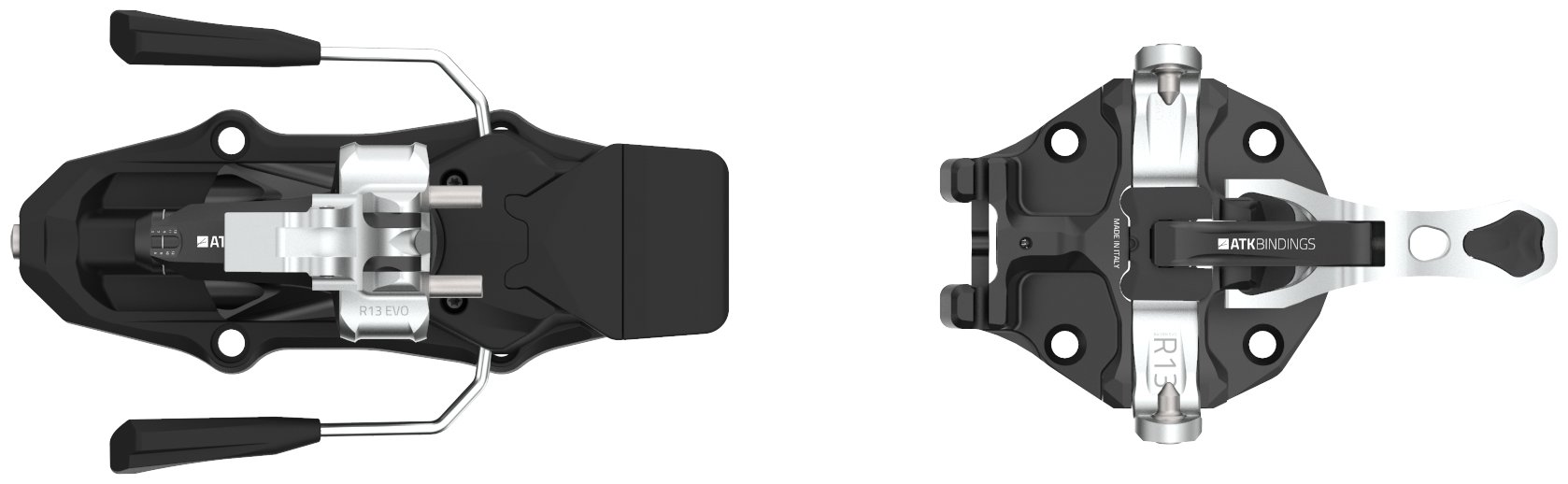

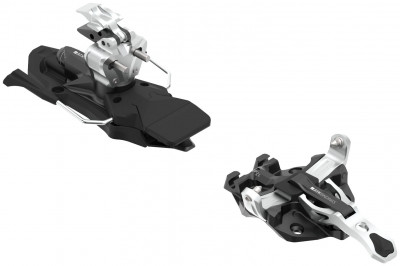

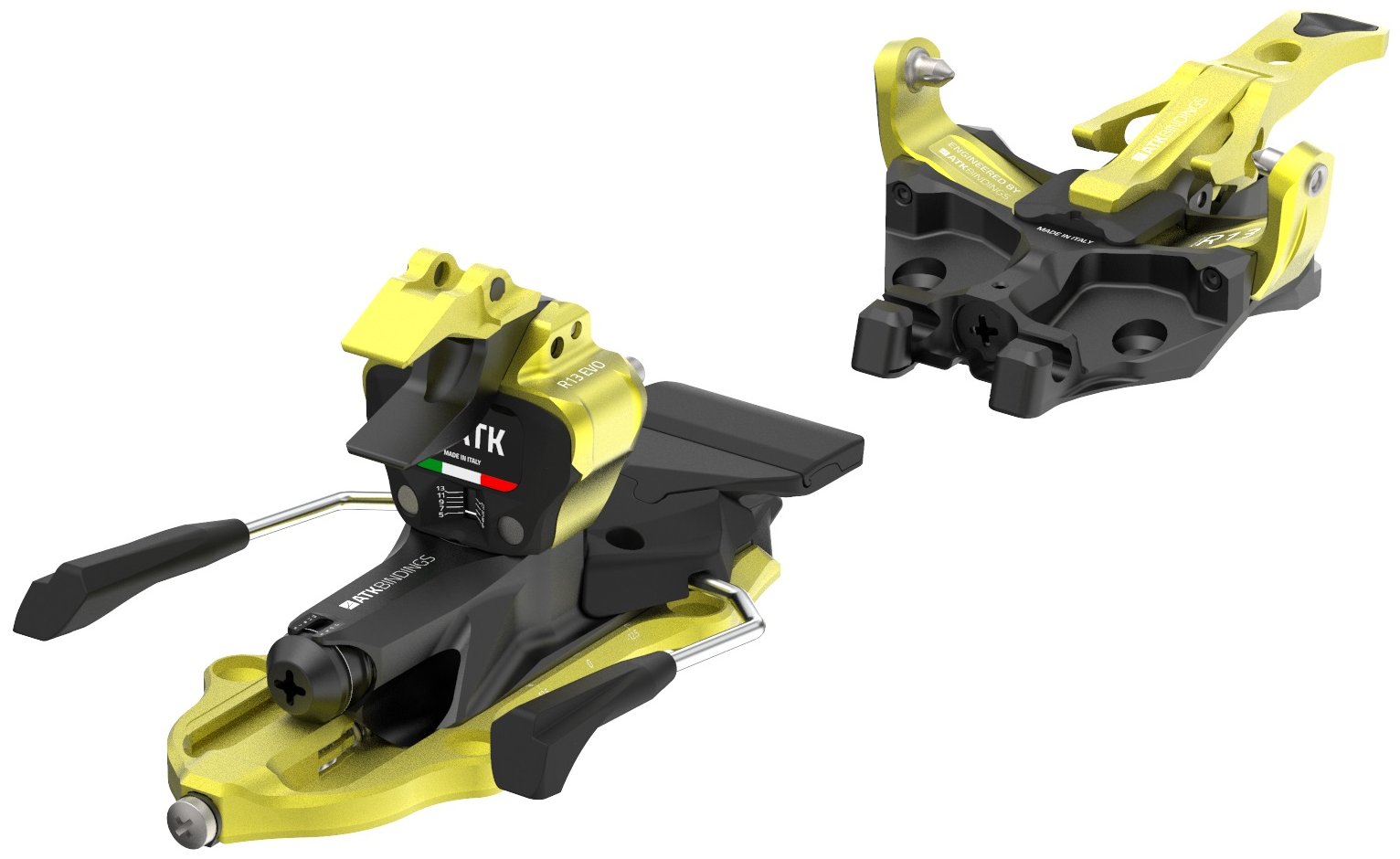

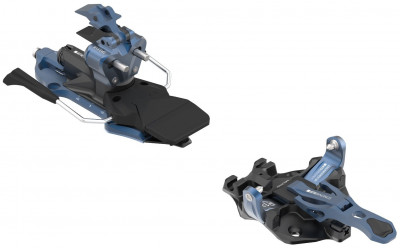

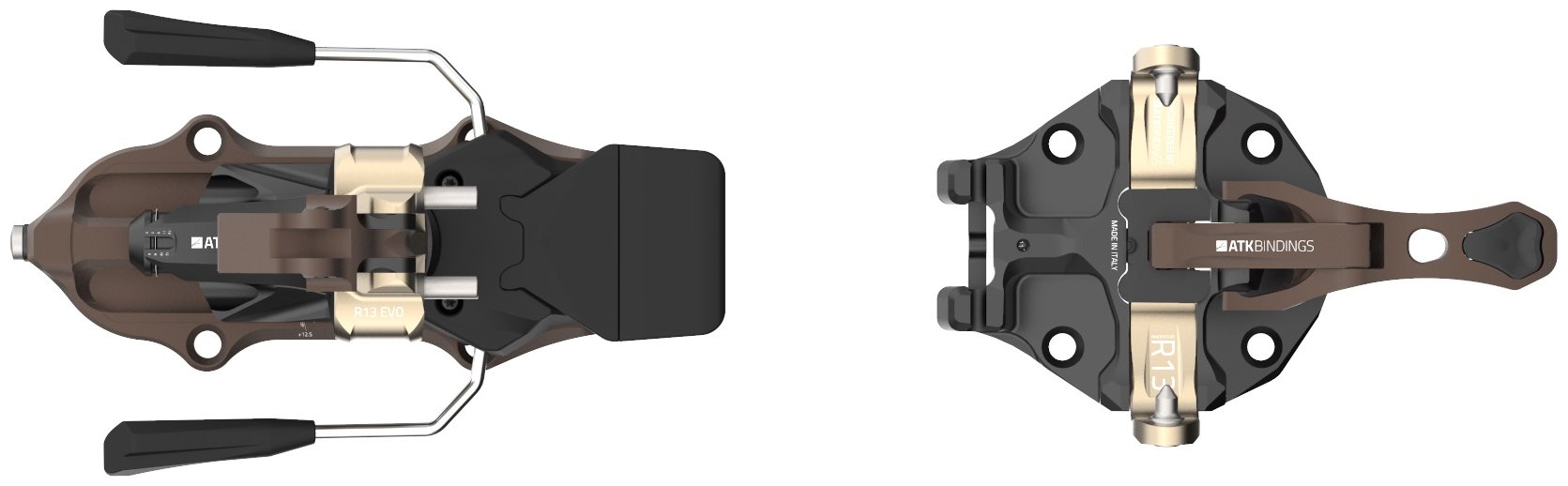

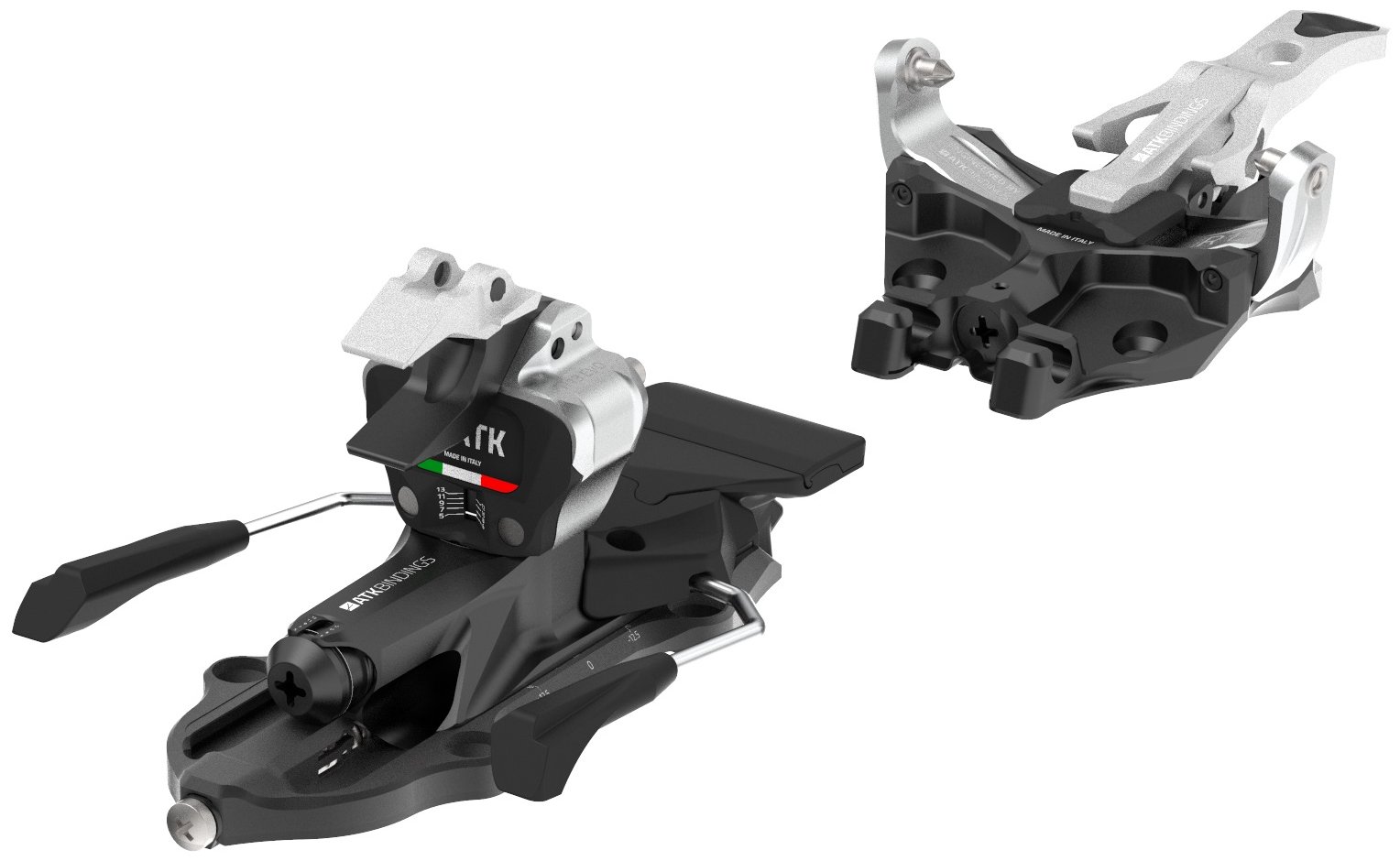

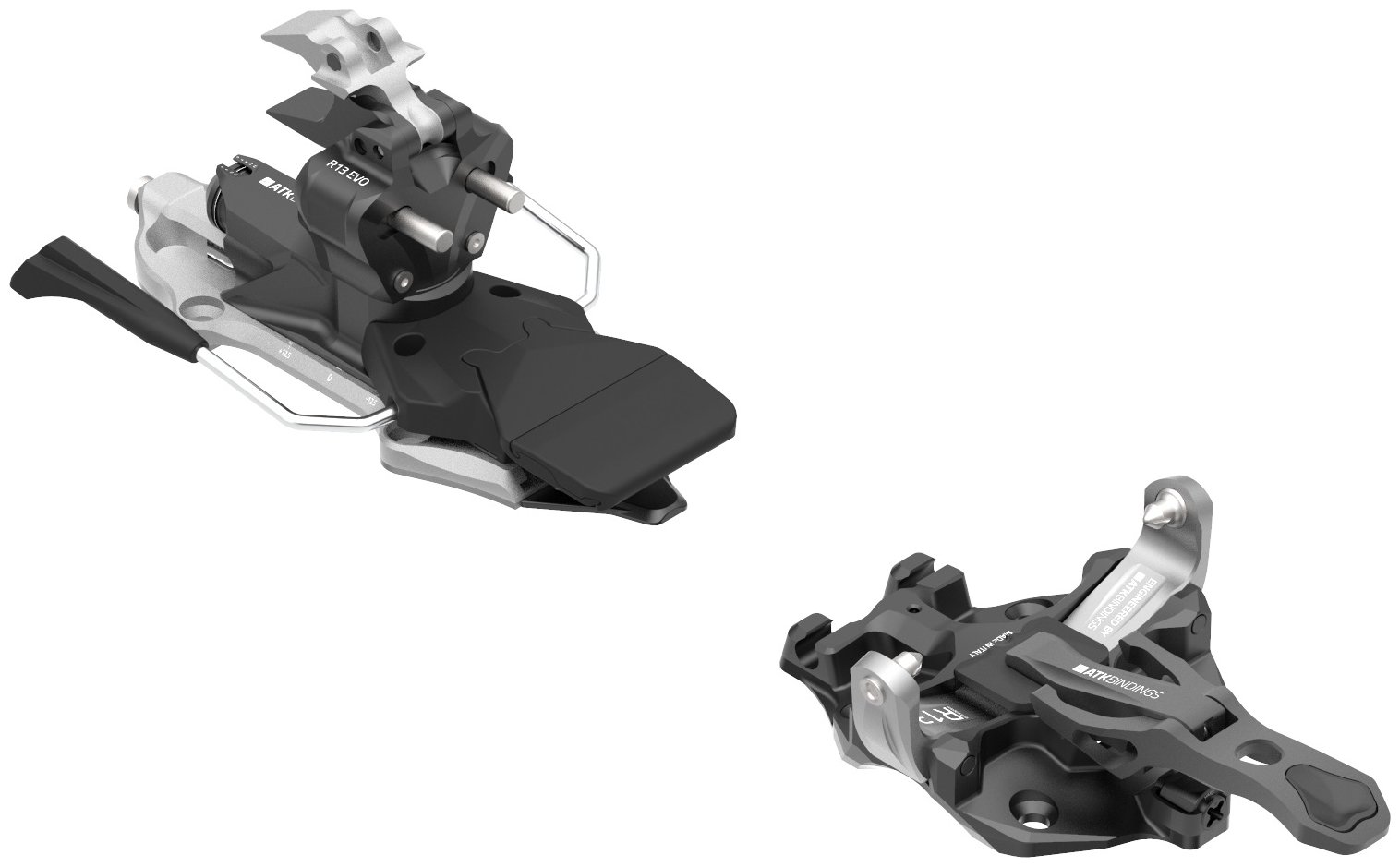

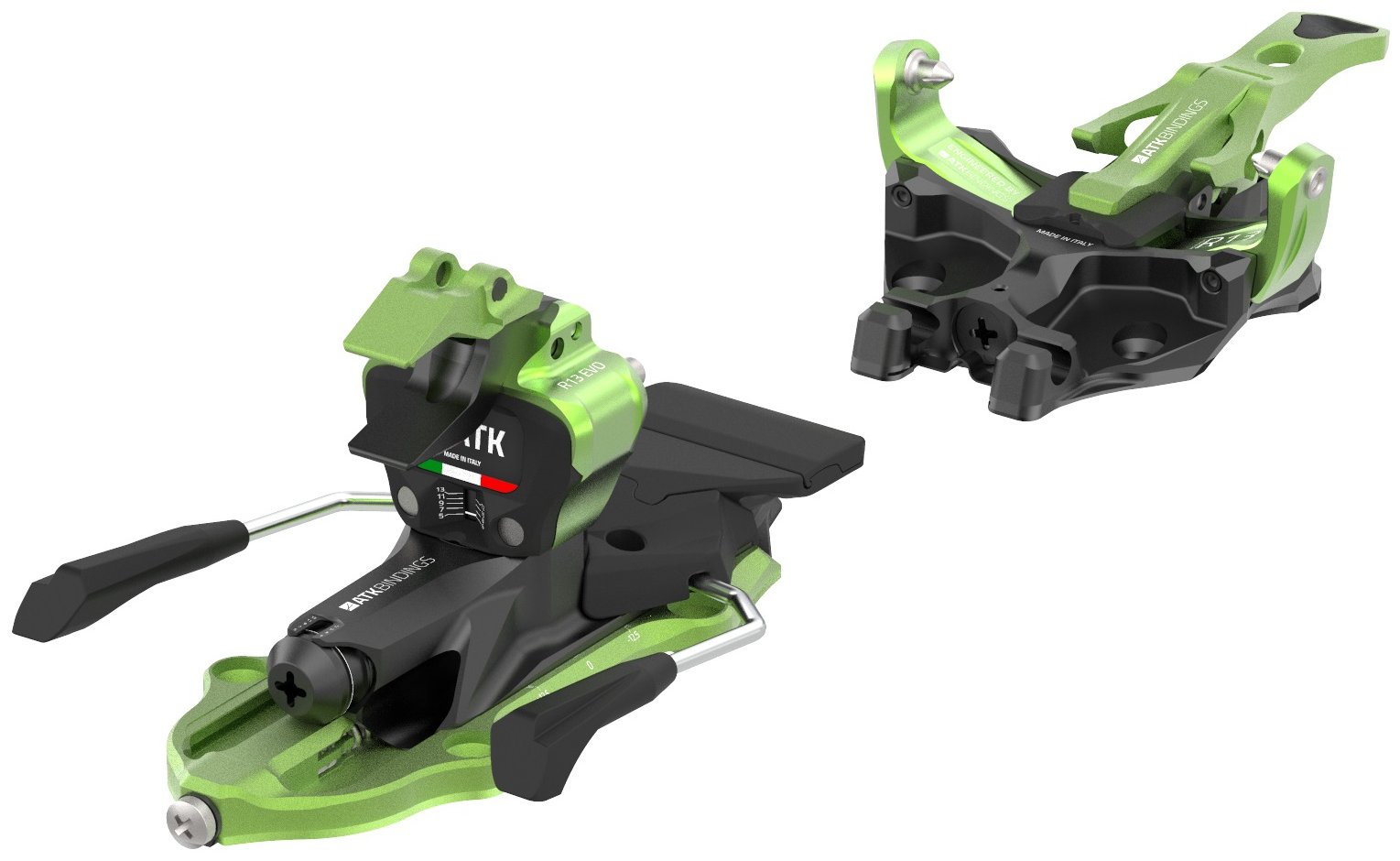

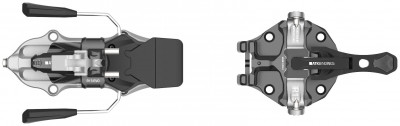

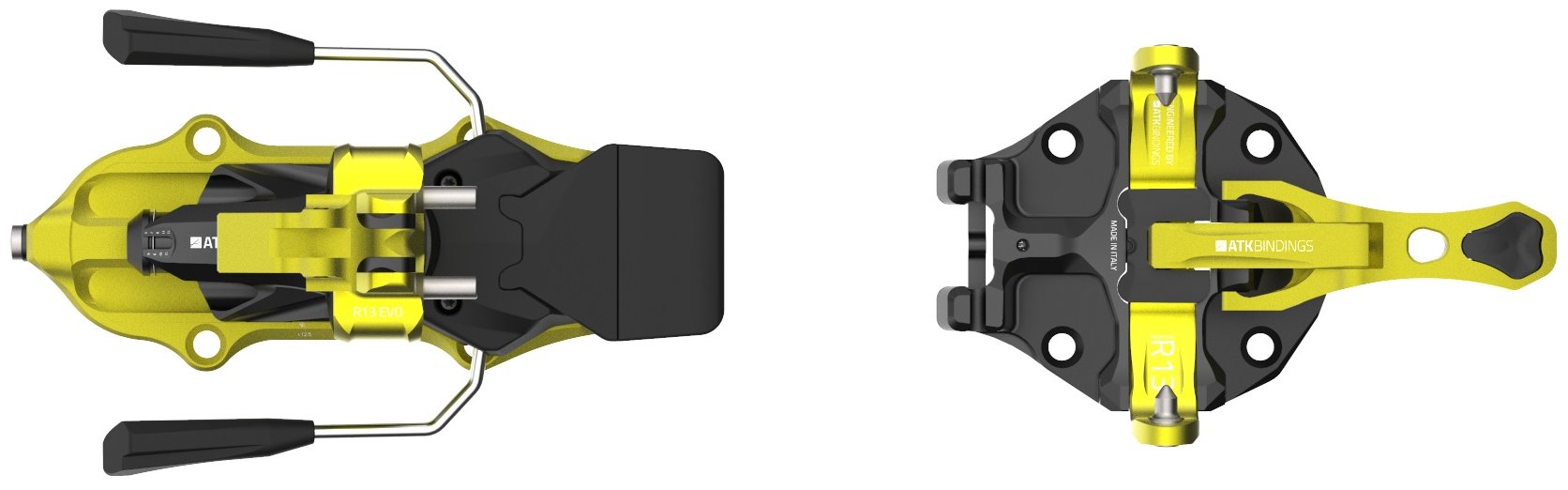

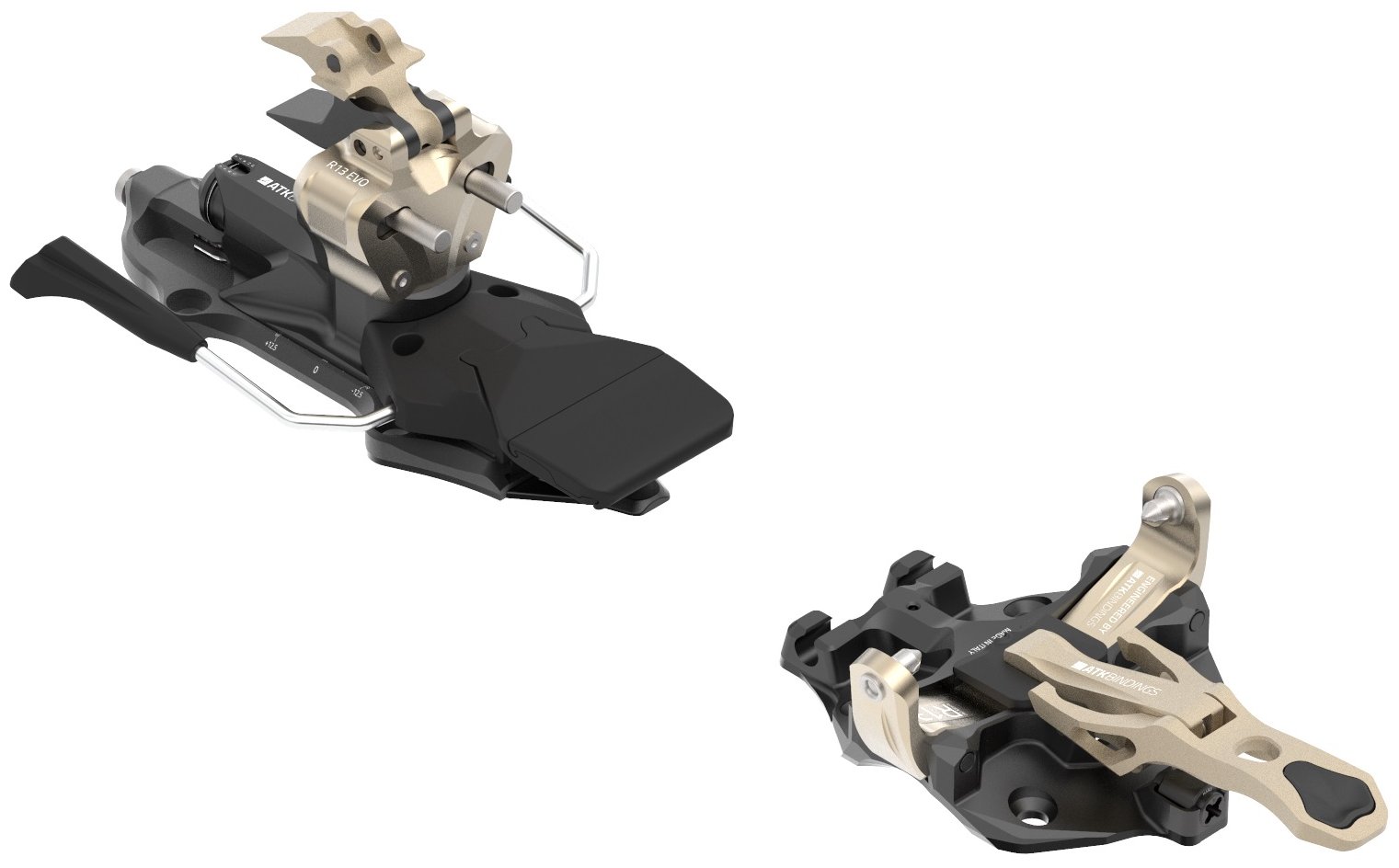

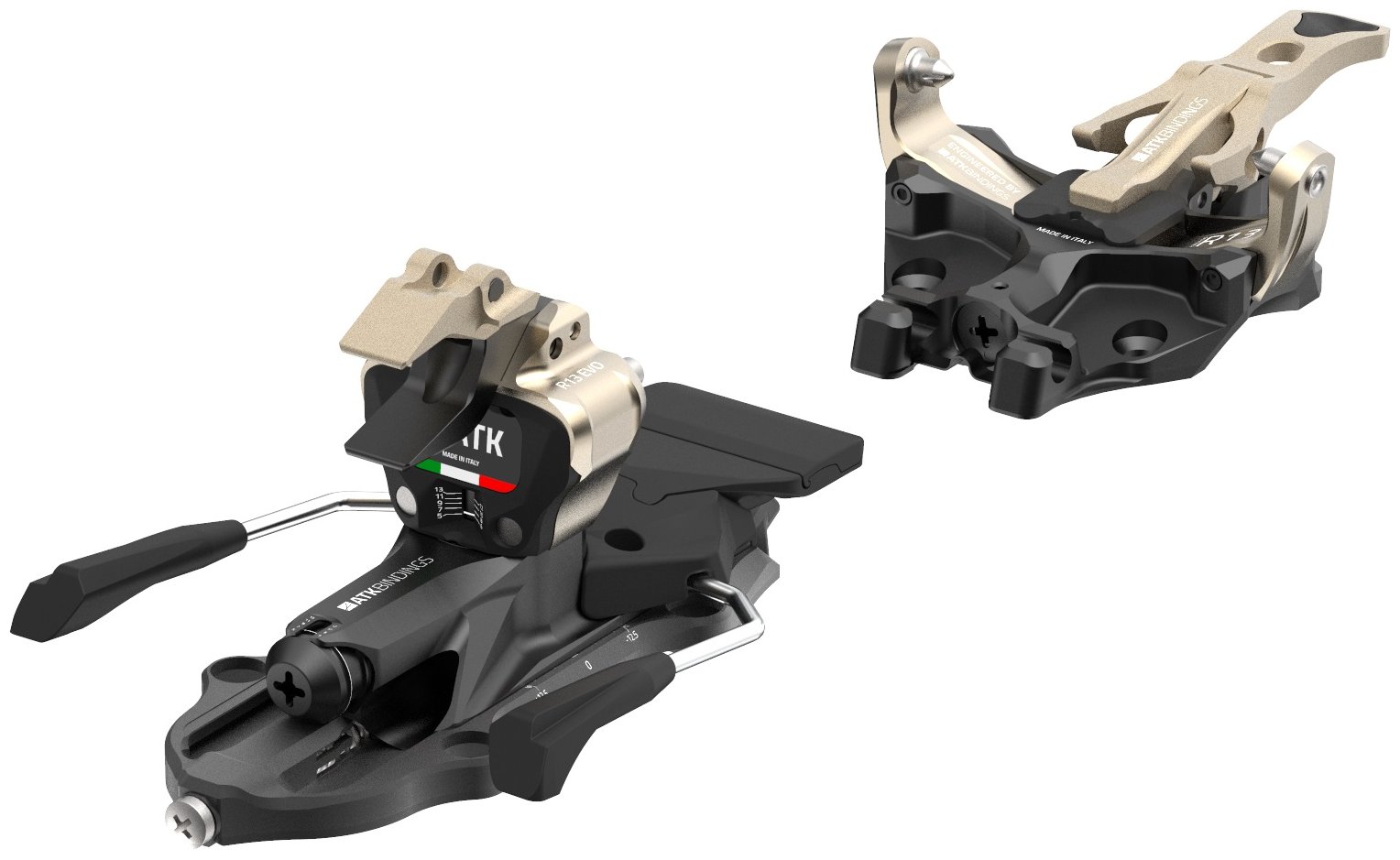

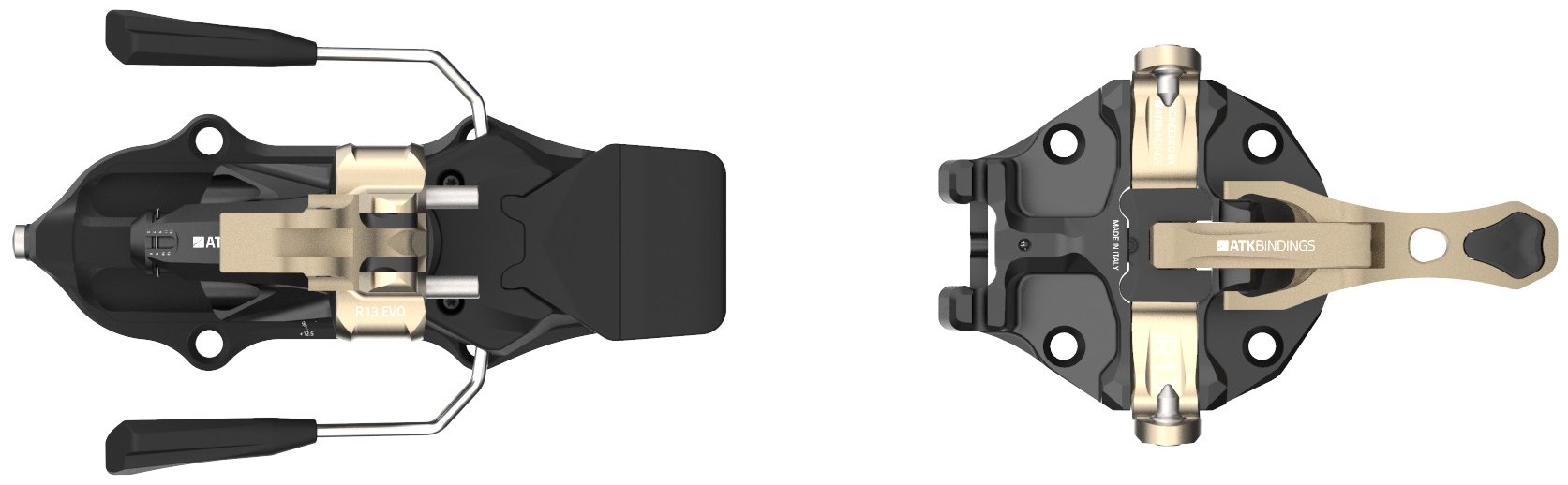

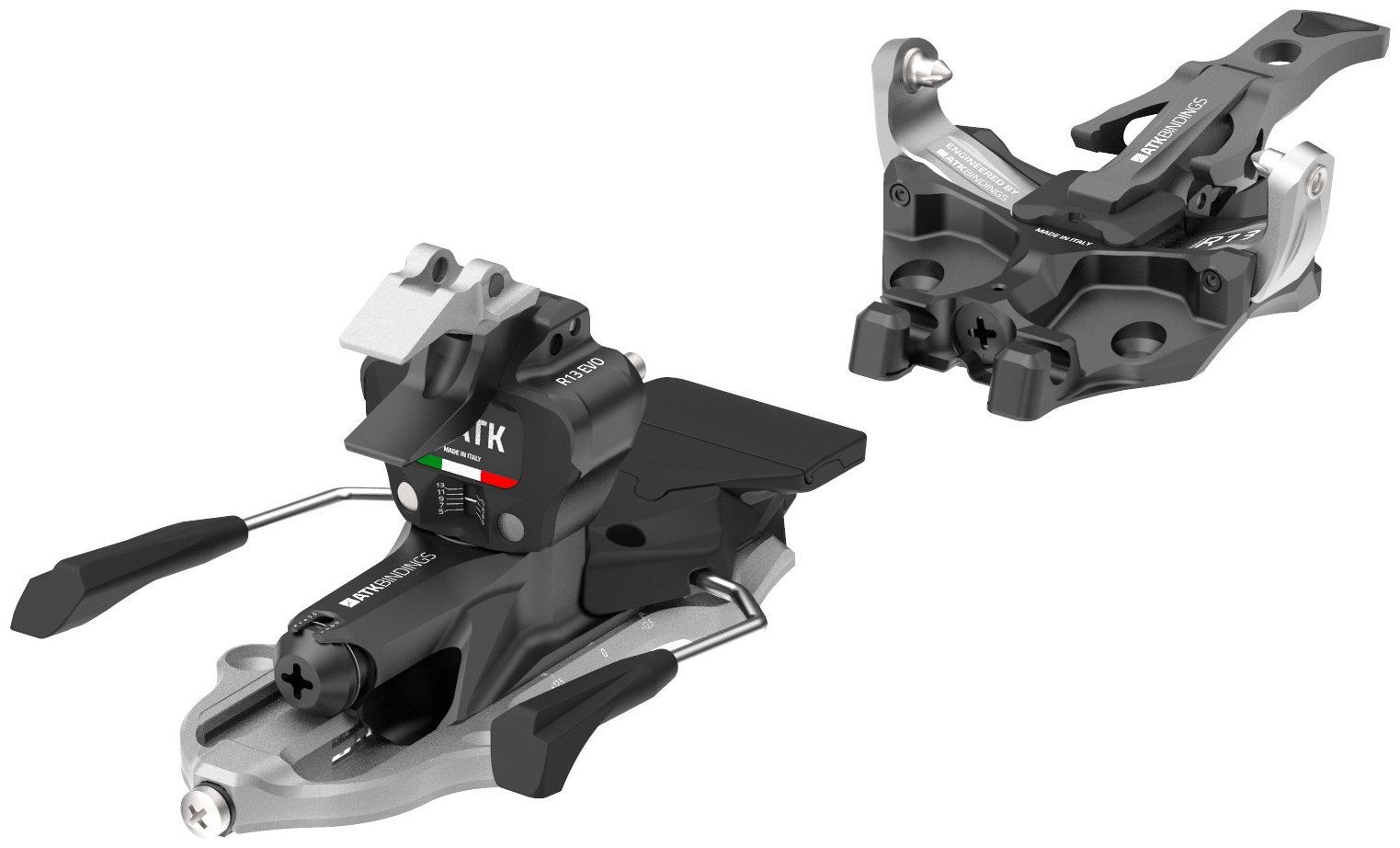

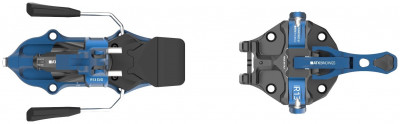

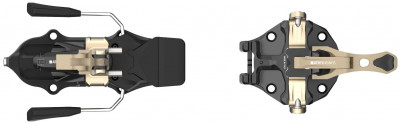

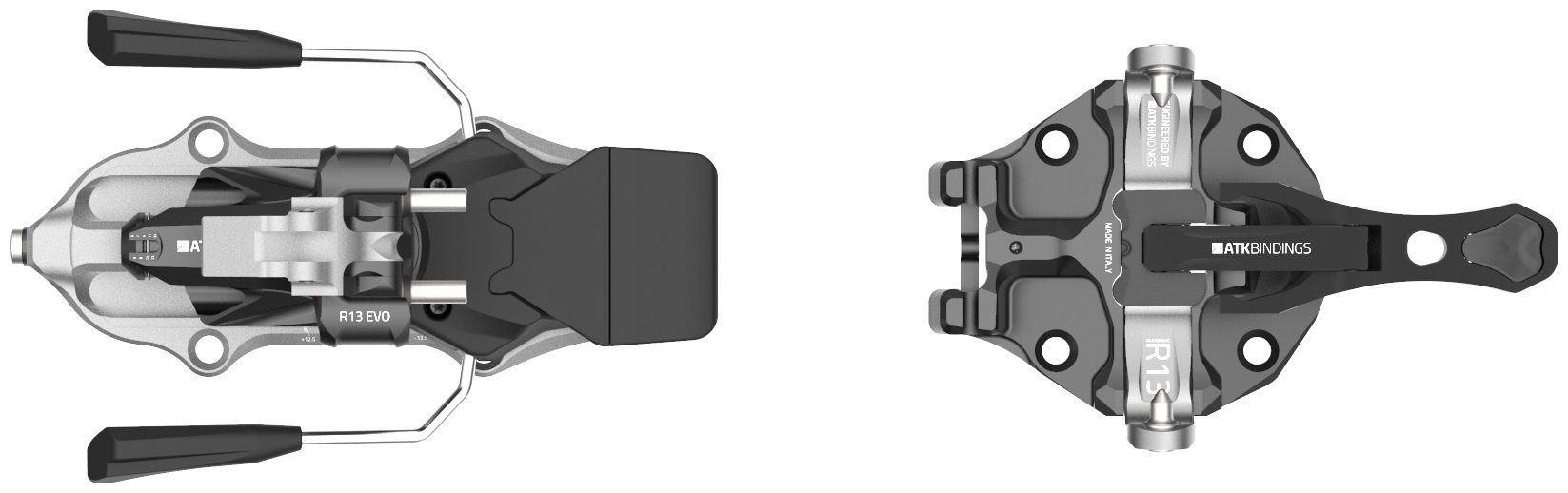

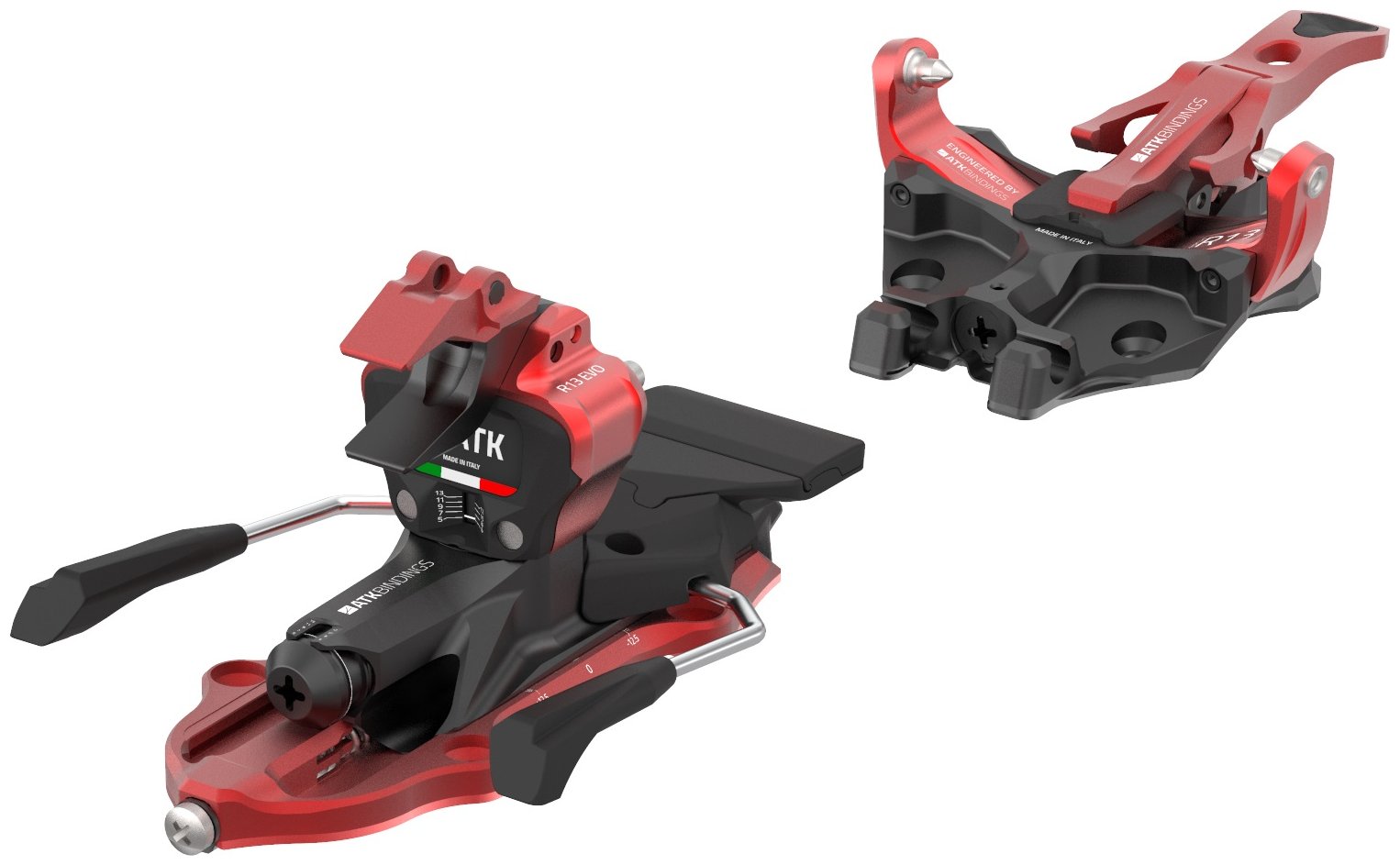

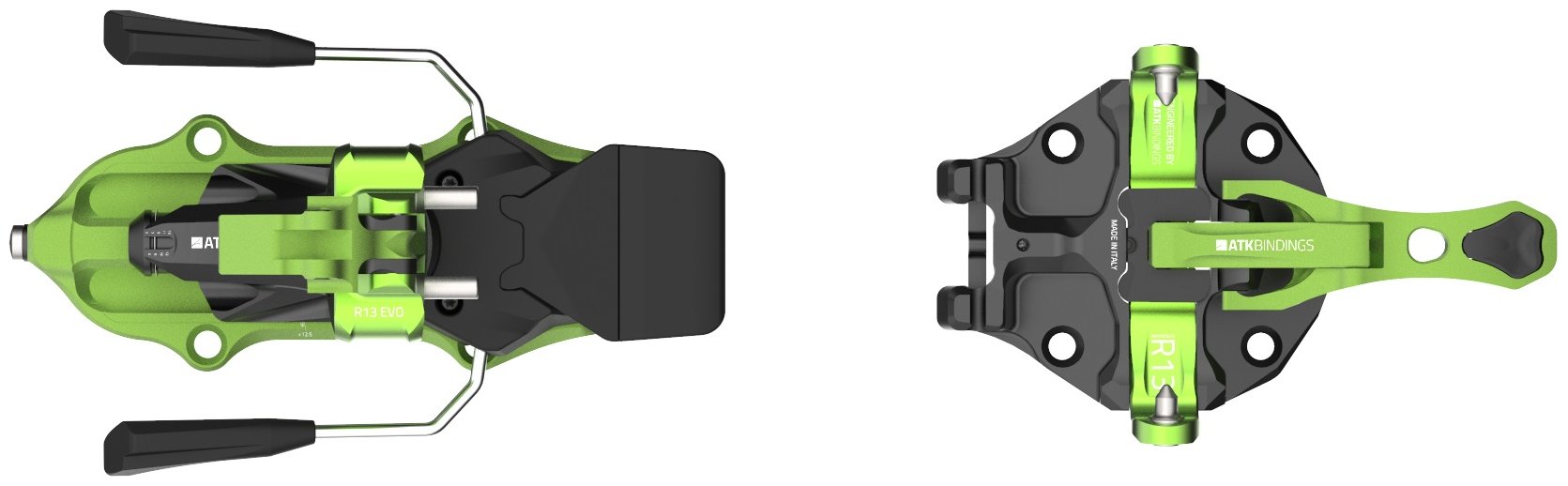

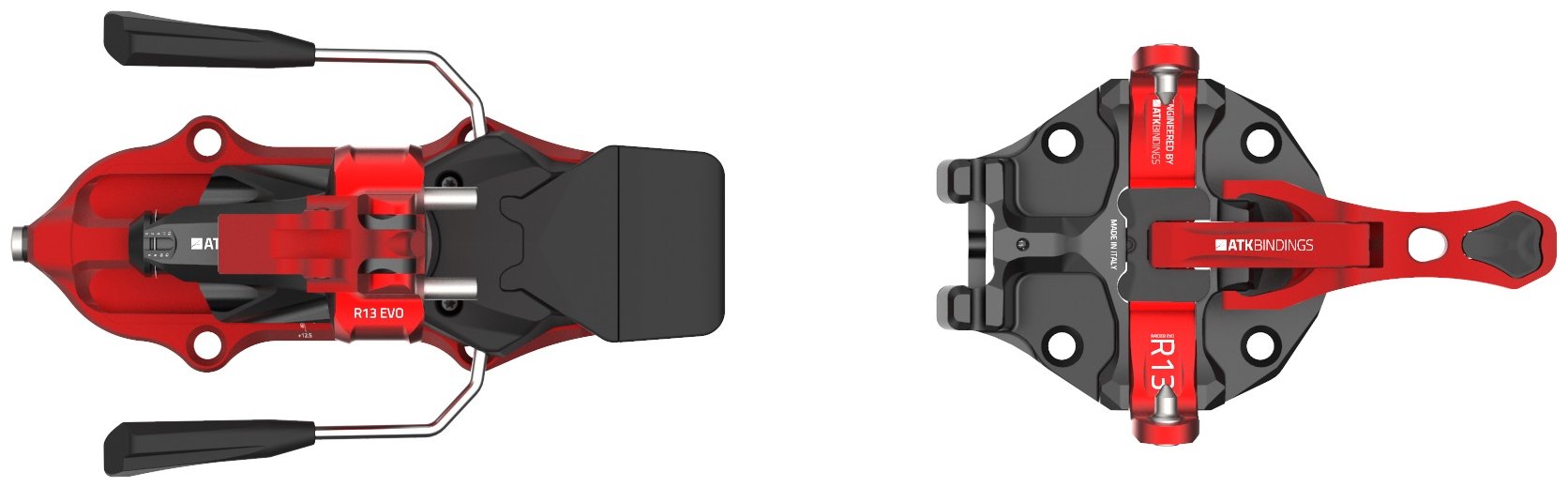

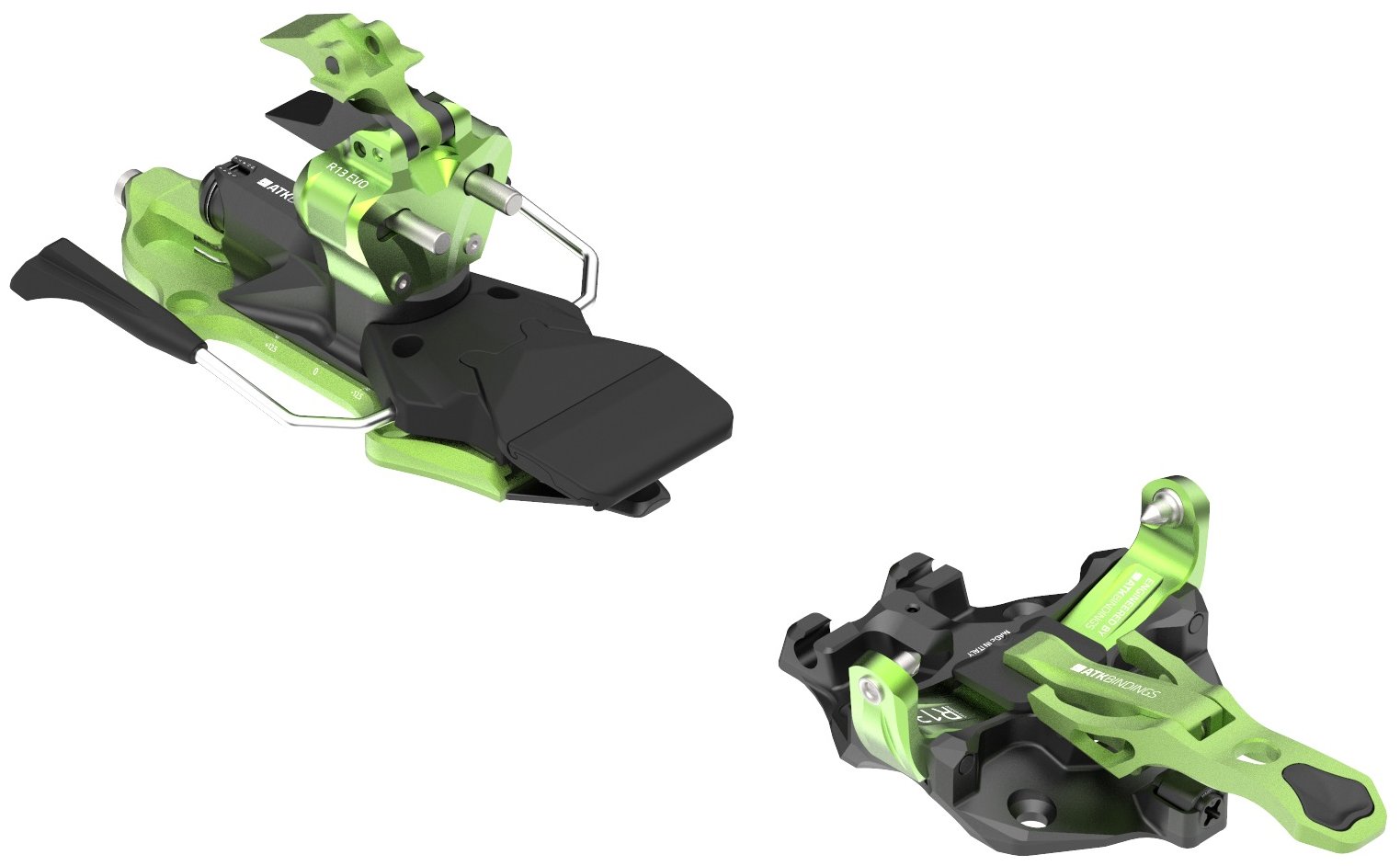

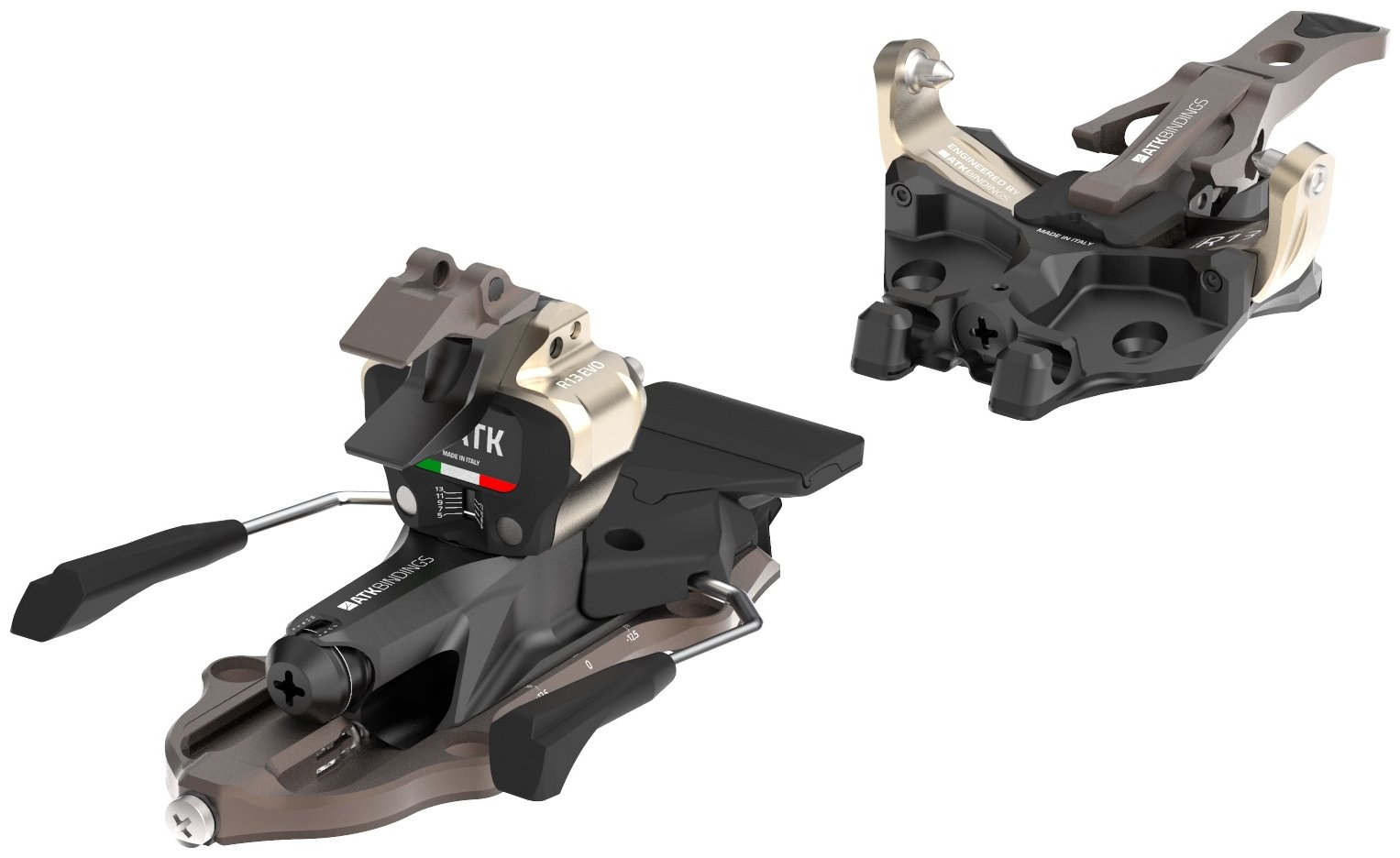

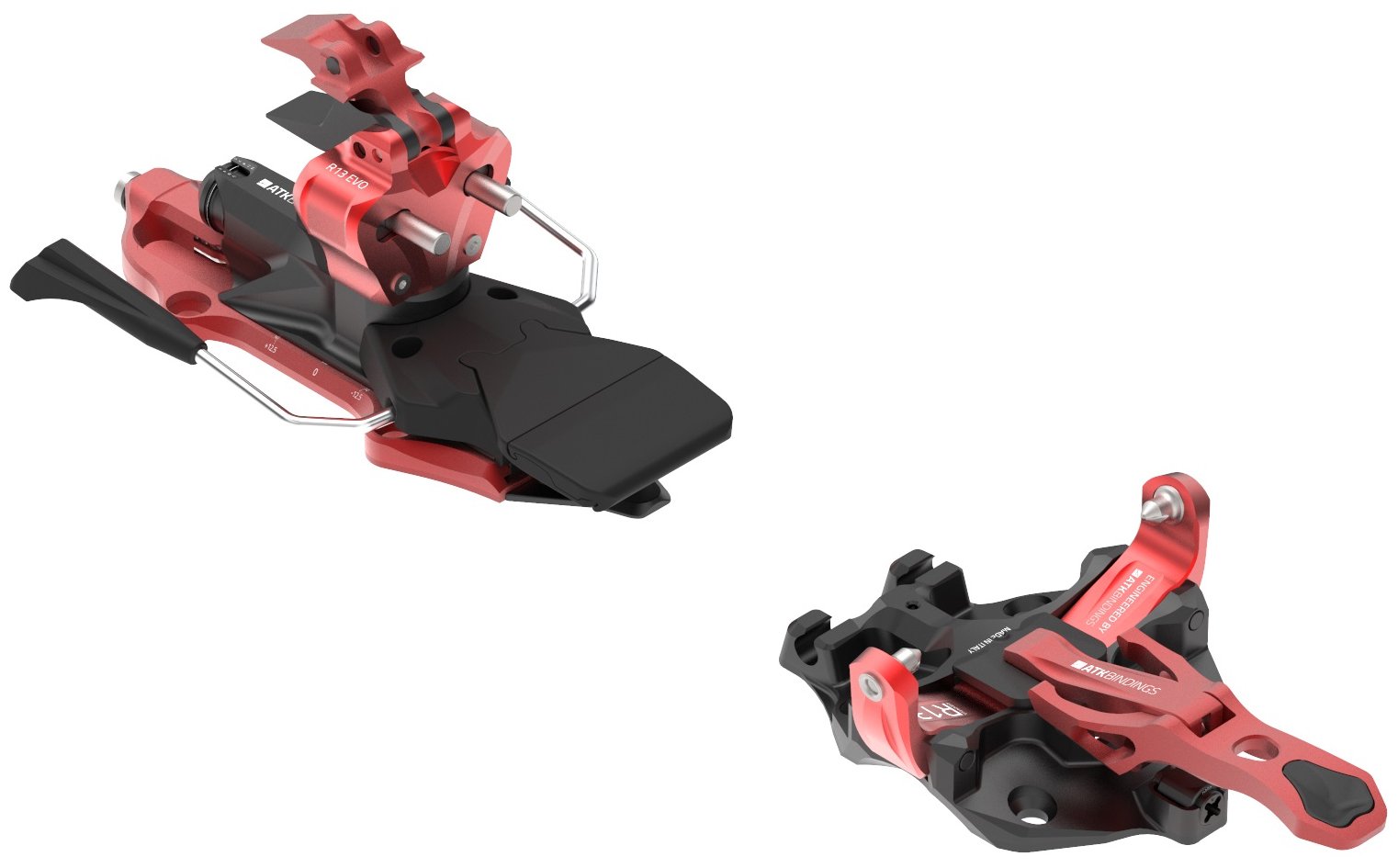

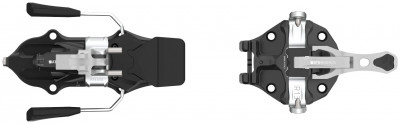

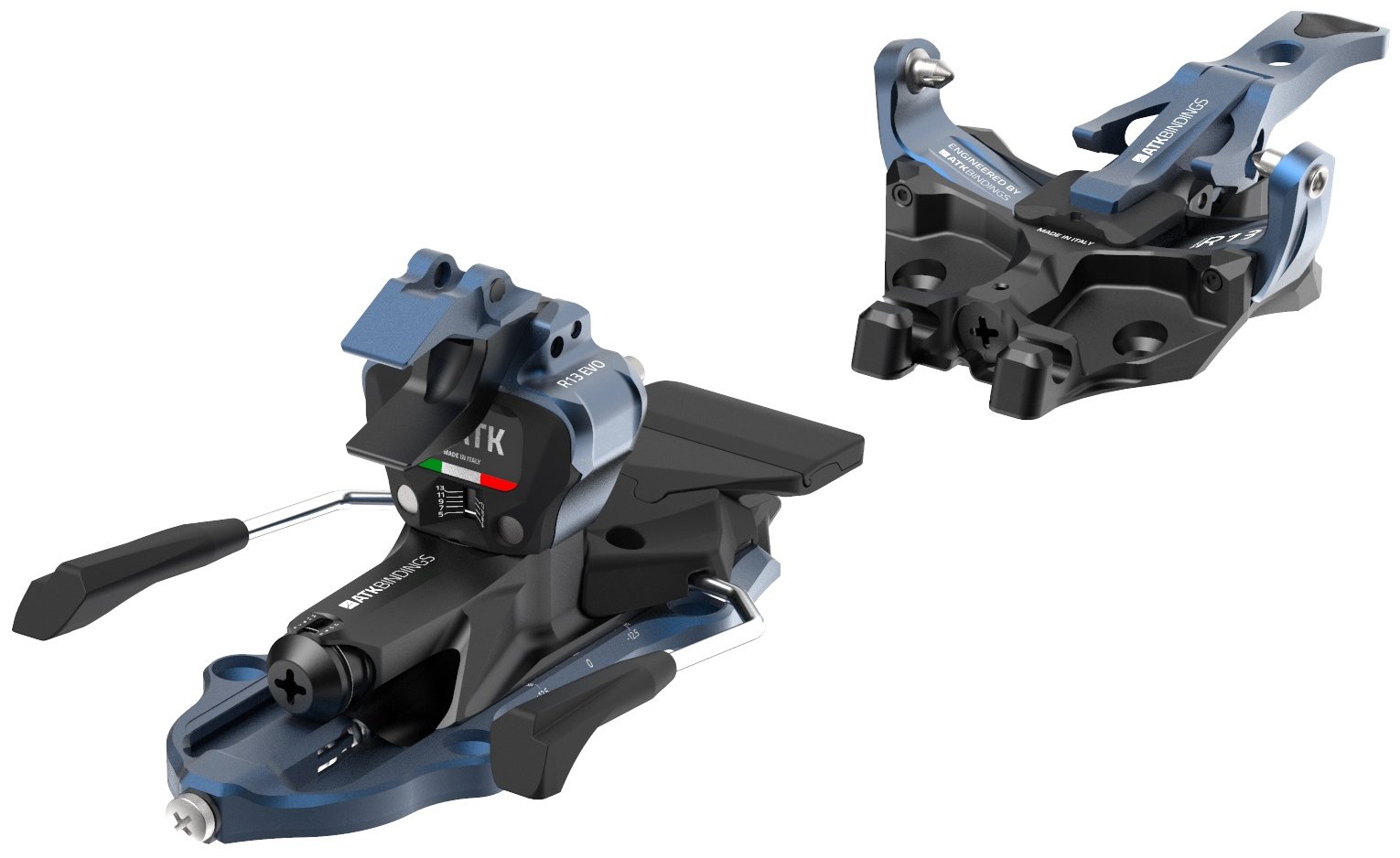

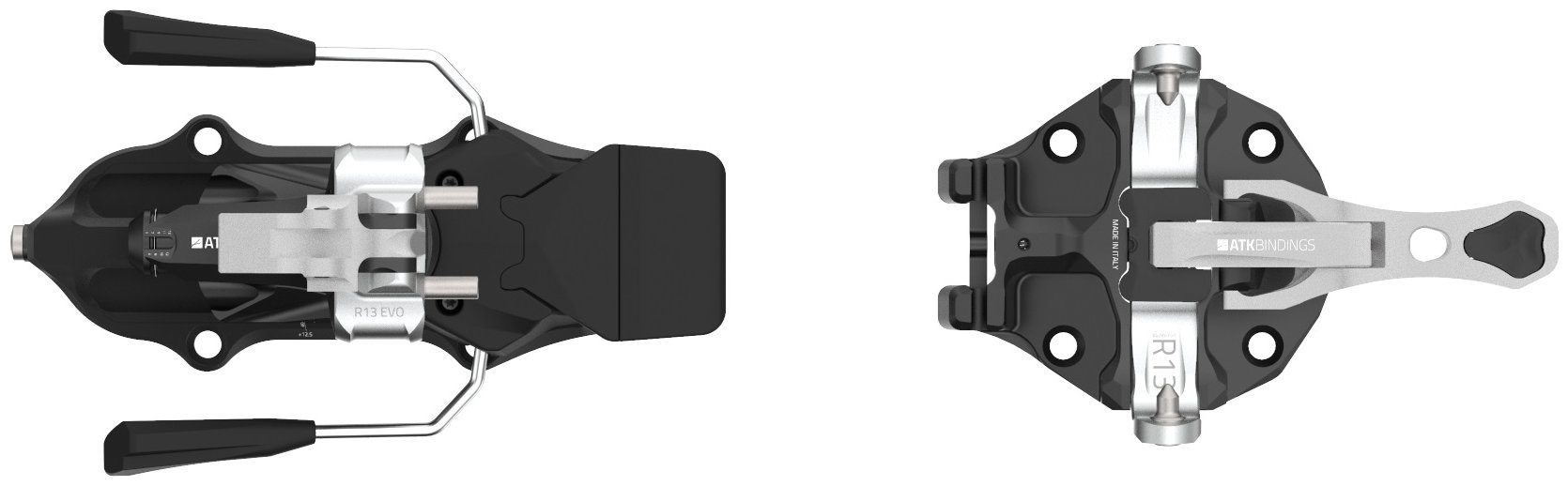

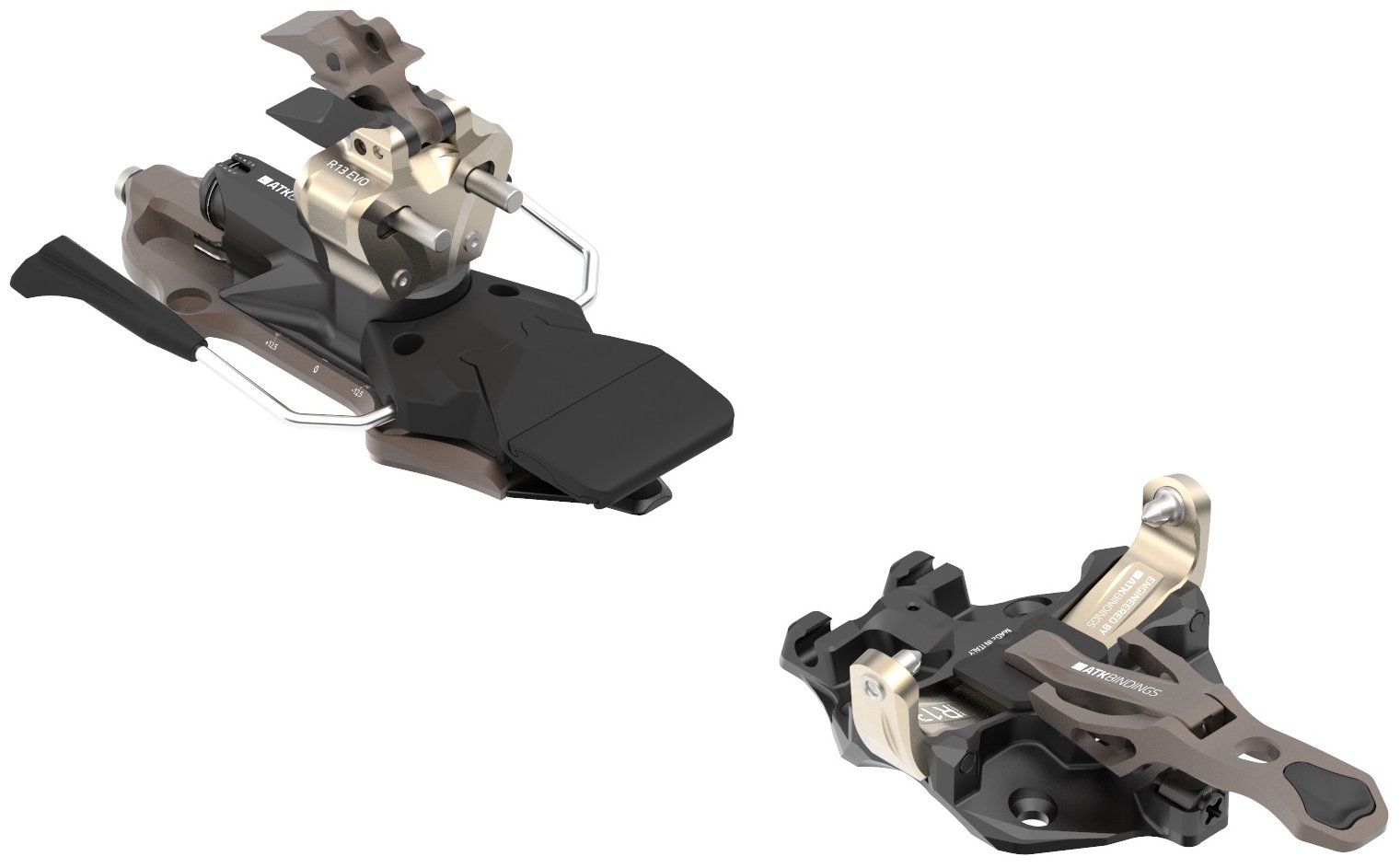

ATK Raider 13 Evo Binding
The Raider 13 Evo is ATK’s new flagship binding, and it’s ready to take you to the top of the mountain and get you down in just about any manner you desire. A couple of key features make it stand out from past models and the competition: automatic ski brake retraction and a toe release adjustment, respectively.
After testing for a season in Europe, ATK is releasing into the US the Evo brake system in lieu of the push-button mechanism found on other Raider models. Simply turn the heel 180 degrees when transitioning and an internal mechanism will do the rest. When heading uphill, step or push on the brake to make it auto-lock into place. At the top, spinning the heel again will auto-deploy the brakes so you’ll never forget. While you’ll no longer have the option of skiing with the brakes up, ATK makes plenty of brakeless bindings for that.
ATK also added lateral release adjustment in the toe of the Raider Evo series. This, to be clear, does *not* mean that the binding releases laterally at the toe like alpine bindings. Experienced tech binding users know that toes and heels work in conjunction during lateral release, evidenced by the fact that locking your toe effectively disables the release. The new lateral toe adjustment means that both are adjusted in unison which expands the range of release values available: in the case of the Evo 13 a whopping 5-13 adjustment will work for most backcountry skiers out there.
The new features combined with ATKs renowned precision machining makes the ATK Raider Evo 13 a supremely functional and reliable touring binding at a weight that is unmatched in the category. This is a gear choice you won’t likely come to regret.
- Exquisitely machined 7075 aluminum, POM, and stainless steel for a rock-solid build.
- Adjustable lateral and vertical release over a wide range of 5-13 due to toe spring adjustment.
- Optional freeride spacers support your heel while having a decent anti-friction mechanism.
- Evo autobrake system means no fuss transitions…the brakes lock and deploy automatically.
- Snowpack proof toe piece is relatively sealed to prevent dangerous snow creep under the wings.
- 25mm adjustment in the heel track so you can adapt to a few boots with one mount.
- Magnetic risers offer multiple climbing heights with a flick of your finger or pole.
- Cam release heel pins work independently for smooth step-in and vertical release.
- 14mm elastic travel in the heel means you won’t eject if you overflex your skis.
- Uphill Hardness Variator lets you tweak the toe tension for skinning.
Update 2024/25: The baseplate is now made from aluminum for even more durability. Heel gap markings have been laser etched on the heel pins to help adjust for different boots. Total weight including screws is within a few grams.
| Specifications | |
|---|---|
|
Weight |
382g [97mm] |
| Weight (pair) | 764g [97mm] |
|
Boot |
Tech |
|
Brakes |
97, 102, 108, 120 |
|
BSL |
25mm |
|
Riser |
2 + flat |
|
Vertical |
5-13 |
|
Lateral |
5-13 |
|
Crampon |
Yes |
| Specs Verified | Yes |
| Design | |
|
|
Aluminum alloys, POM, stainless steel |
| Skimo Co Says | |
| Usage | Free touring, general backcountry skiing |
| Notes | Toe adjustment offers a wide range of release values |
| Bottom Line | The "Evo"lved flagship ATK binding |
| Compare to other Full-featured Bindings | |
Related Products
Questions & Reviews
Will the ATK Raider 13 Evo, 108mm brake, fit DPS Wailer 107, 179cm length skis?
Yes it will!
The 97mm brake will definitely fit your 95mm waisted Camox!
The 102mm brake will work on the 105mm ski; however, yes, you will need the 108mm crampon. The crampons are much more precise than the brakes.
1: should I add a shim to the toe piece given a 316 bsl? From what I've found, the ramp angle on the Quattro pros is 5.7°, so combined with the +11 delta, that might be too forward of a lean.
2: If I do get the shims, would I also have to buy extra long mounting screws for the toe pieces?
3: will the 102 brakes be wide enough for the 105 skis at that bsl?
4: should I just consider another binding with a less steep delta?
+11 is high enough to bother some people, but not most. With that long of a boot, it's generally less of an issue. That said, we rarely hear of people wishing they didn't add the shim. If you get the Raider Evo Toe Shim found here, it includes the longer screws necessary.
The 102mm would work, maybe with a little bit of bending, but we recommend against bending ATK brakes, since it can be easy to damage the internal mechanism. I doubt the 108mm would be too wide.
If you add the shim, I would think you'll be totally fine unless you have prior issues with binding delta.
Thank you!
Unless you have an unusually long BSL, the 102s would be the way to go!
I have a pair of Kastle FX106 HP in a 176cm that weigh about 2050g each. I also have Raider 13 Evo binding currently mounted to a Hagan touring ski in an 87 width. The weight difference is about 700 grams between these two skis. Do you think the Raider 13 Evo with the freeride spacer will work well with the heavier Kastle skis? I would be using a Cochise boot in a 295bsl. Just curious if I should look at a hybrid binding instead. Will mostly be skiing uphill, but I like to charge on the way down. Drops no larger than 4-5 feet. Dins are currently at 8.5 on the Hagans, but unsure if I would need to go higher with the beefier sticks. 165lb, 5' 7". Would appreciate your insights. Thank you!
thx.
Yeah, the heel gap won't change with the Freeride Spacer installed!
The heel riser flaps can be replaced by a certified ATK tech. Feel free to email us at help@skimo.co so we can help get your bindings fixed up!
Sounds like you might benefit from a toe shim!
The pin delta on these bindings is on the higher side. While many users do not use shims, that could also be attributed to the fact that many are not aware that the shim is an option. If you feel like you are tipped too far forward, the standard ATK shim fits very nicely and won't change the aesthetics of the binding or add much weight. It will bring you more upright!
You will need the Evo freeride spacers for all of the Raider Evo bindings, including this one!
I had an ATK Raider Evo 13 and kept releasing vertically (I had the same issue previously with the C-raider). I decided to go away from ATK and got a Dynafit Ridge. After two weeks of use the heel raiser broke and I overall found the heel unit a bit vague.
In my heavier set ups I have Tectons and I am very happy with them, yet I was not able so far to find a good binding solution for my light set up.
Following your reviews I am now thinking of a Trab Vario 2. How does it compare in terms of downhill performance vs the ATK raider?
Many thanks,
Thanks for writing in, and sorry to hear of the binding troubles! If you can email help@skimo.co, we'd be happy to talk more in-depth about your issues. Generally, when we see vertical pre-releases with ATK bindings, it's related to freeride spacers that are set too high - did you have spacers on yours?
The Ski Trab Titan Vario.2 offers a lot of downhill performance for such a lightweight binding! While it may not feel quite as stiff as the much beefier ATK's and Tectons, it does have a very good level of retention due to the elastic travel in the heel. The Vario.2 releases at the top end of its ranges, so the 5-7 is a 7, 7-9 is a 9, and so on. It is one of the best performers in the lightweight/lean category in terms of downhill retention.
