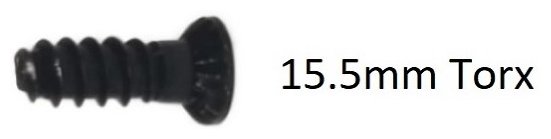

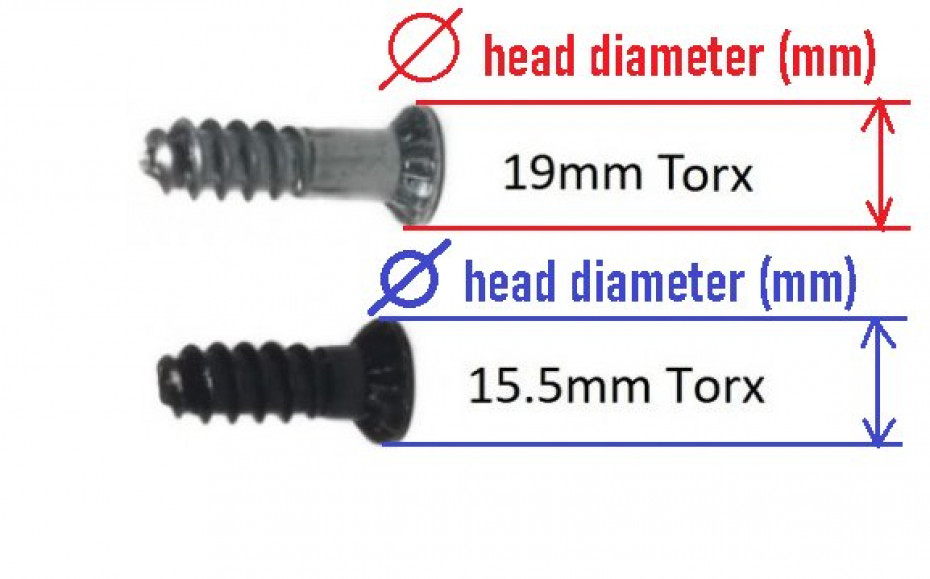

Hello, can you measure the diameter of two screws 15.5 mm and 19 mm in the picture? I need to know the dimension marked in the photo (head diameter mm) and if possible the angle of the head 45 degrees or 60 degrees.

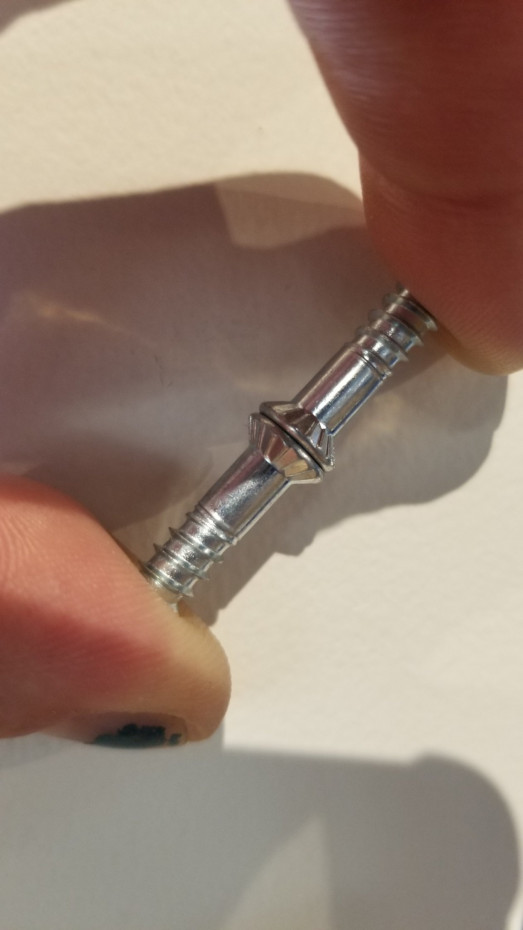

Hey Jiri, for both screws the head diameter is right around 8.25 mm. The head pitch appears be 45 degrees as holding two heads together form a right angle.
Answer this question:
4/10/2024
Question from
Casey S
Hey! I'm trying to find out what screws were used to mount my Dynafit Superlight 2.0s (from 2015/2016). I'm putting together repair kit and having a hard time finding the mounting screw length. Thanks
You'll want a 24.5mm screw - we don't have any of those, but we sometimes have 25.5mm screws that you could grind/file to length. Shoot us an email at help@skimo.co and we can put an order together if you want those!

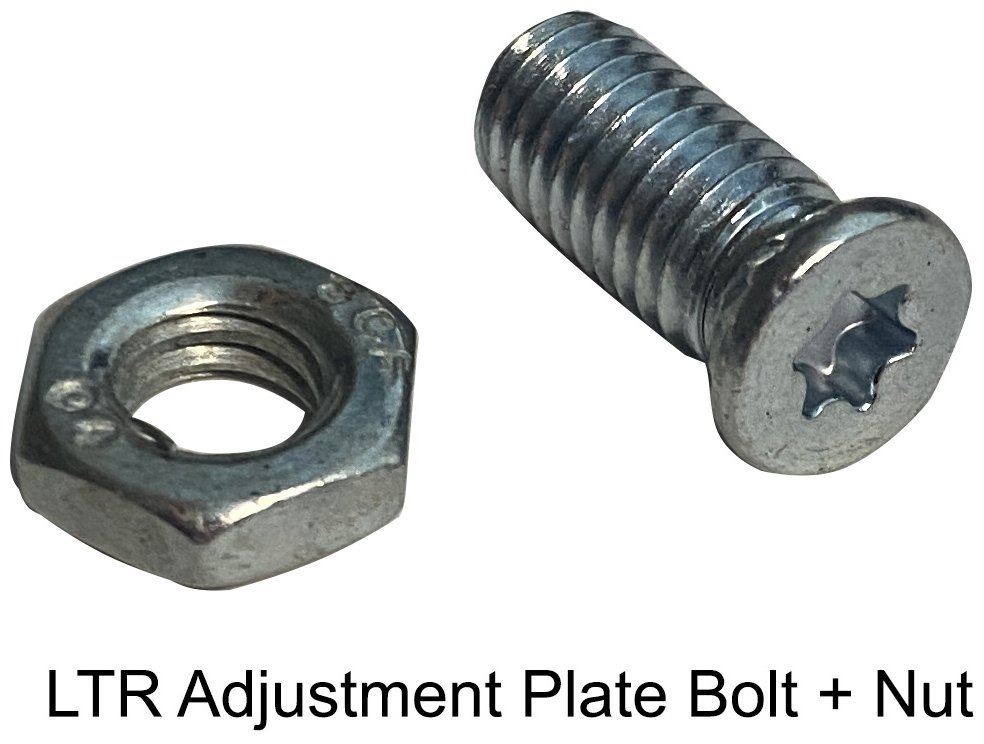

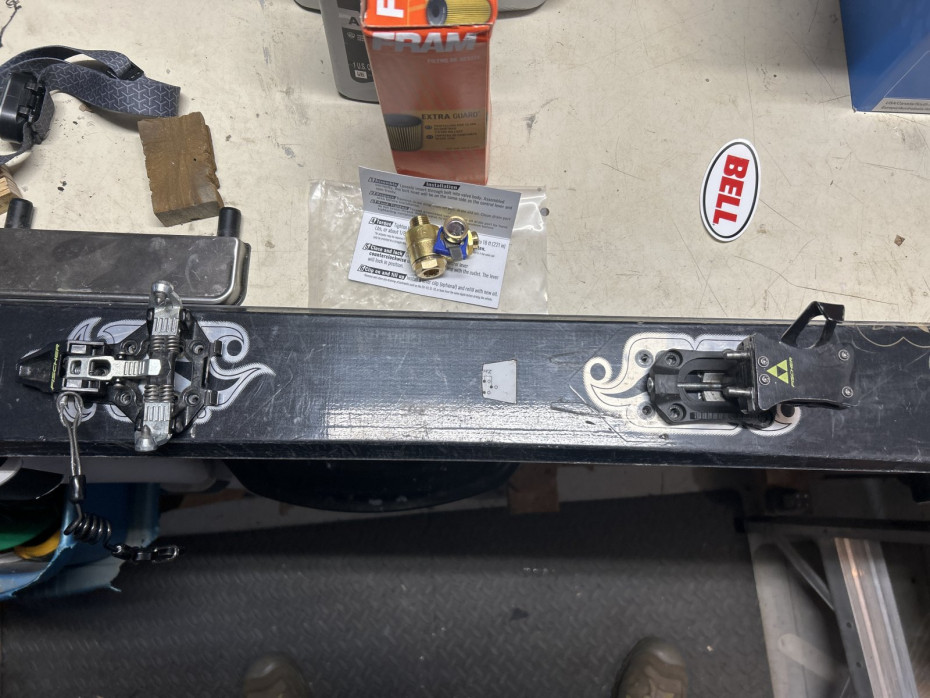

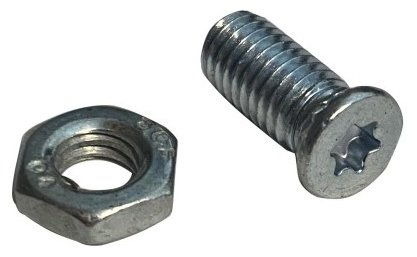

The LTR Adjustment screw + nut looks a lot like the screw I would need to mount my Hagan Core 12 EVO's to the R16A adjustment plate thru the 4mm AL14 spacer...
I have been unable to source the correct screw for this job anywhere. M6 countersunk screw heads are too large. M5 screws don't fit. Imperial screws aren't the answer either. I've looked everywhere. Even the Fastenal guys have no idea where to get this screw. I believe the one that comes with the R16A adjustment plate is 9.5mm ϕ5.7 t-20 machine screw. If that is true, I would need one that is 13.5mm to reach the threads of the R16A.
This is all in an effort to level the binding delta on my core 12 EVO's as much as possible. Can you guys manufacture this screw? Do you have any other suggestions for me? Thanks in advance!
Hi William, you have to shrink some M6 heads. A quick method is to chuck the shaft in a drill and spin it on a grinding stone. May have to trim length as well. Yes we can make these but they aren't works of art.
Answer this question:
11/29/2023
Question from
Alex Tiberio
What is the appropriate screw for speed turn heel pieces?
I see this question has been asked before.

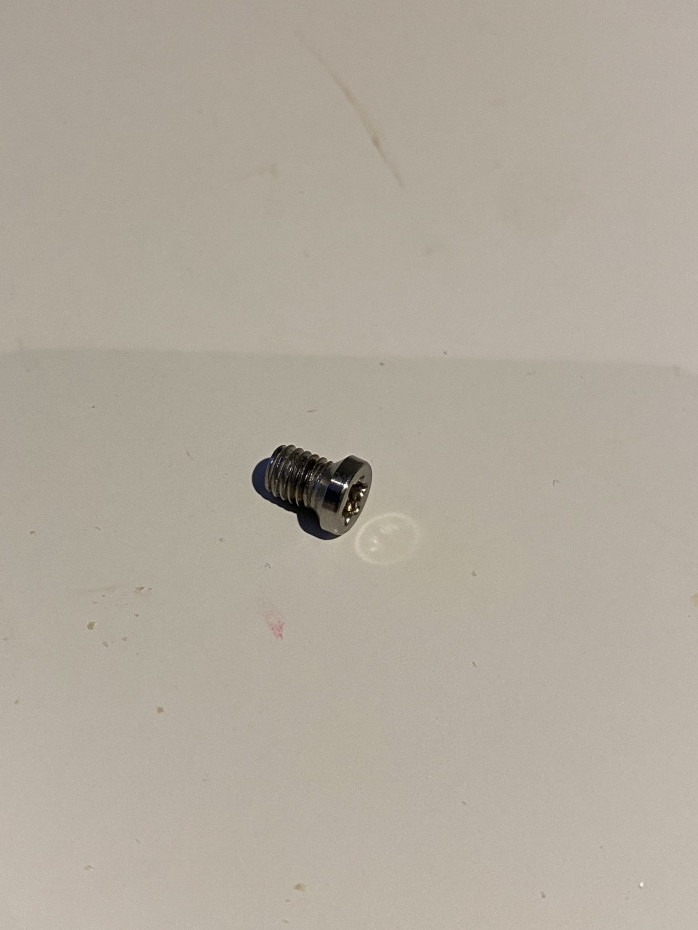

Do you guys have M5 (5mm shaft diameter) 8mm long, 7mm head diameter machine screw?
They are used to attach Dynafit Speed Superlite to an adapter for a splitboard. Same question as asked by Sheila on 6/28/2021
Thank you
Hey Jason, we have some screws we might be able to modify for you! Send us an email(help@skimo.co) with the quantity you need and your shipping address, and we'll calculate the labor and shipping costs for you! Also, which brand/model adapter plate is this for?
Answer this question:
9/1/2023
Question from
John
Does dynafit list what the material for the screws on the toes of st radical 1.0 is. I’m trying to drill one out and I’ll be damned it doesn’t seem to want to drill.
9/2/2023
Answer from
Gabriel I
Hi John, they are stainless steel, probably hardened. You will probably need a pretty hard bit.

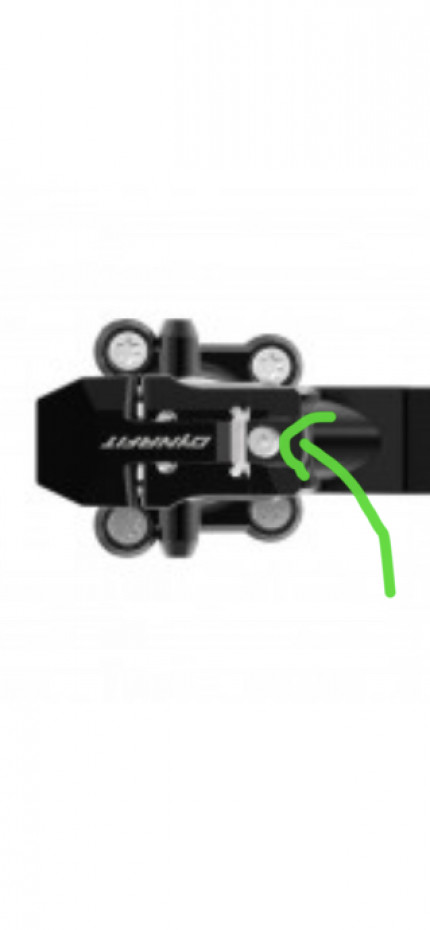

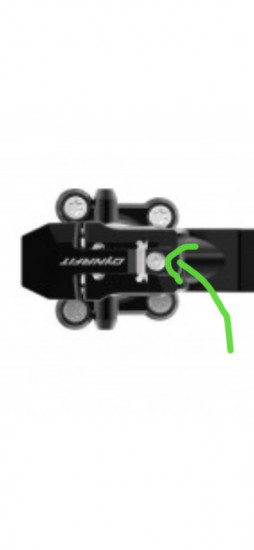

Hello! I’m sure this has been asked several times but was wondering which screw is needed for the Dynafit Superlight 150 heel, which holds the pins?
Two other questions: (1) do you know what bit type and size will be needed? (2) Is it recommended to use that blue or red screw thread tape when screwing in?
Hi Michael, unfortunately, that screw is not a part that we carry, but shoot us an email at help@skimo.co and we can see about trying to source one for you. As for your other questions, it uses a standard 2mm allen key and comes stock with blue Loctite. You could use red for a stronger hold but that will make it nigh impossible to get it back out later if you need to. Personally, I would recommend using blue thread locker.
Answer this question:
3/9/2023
Question from
Mark

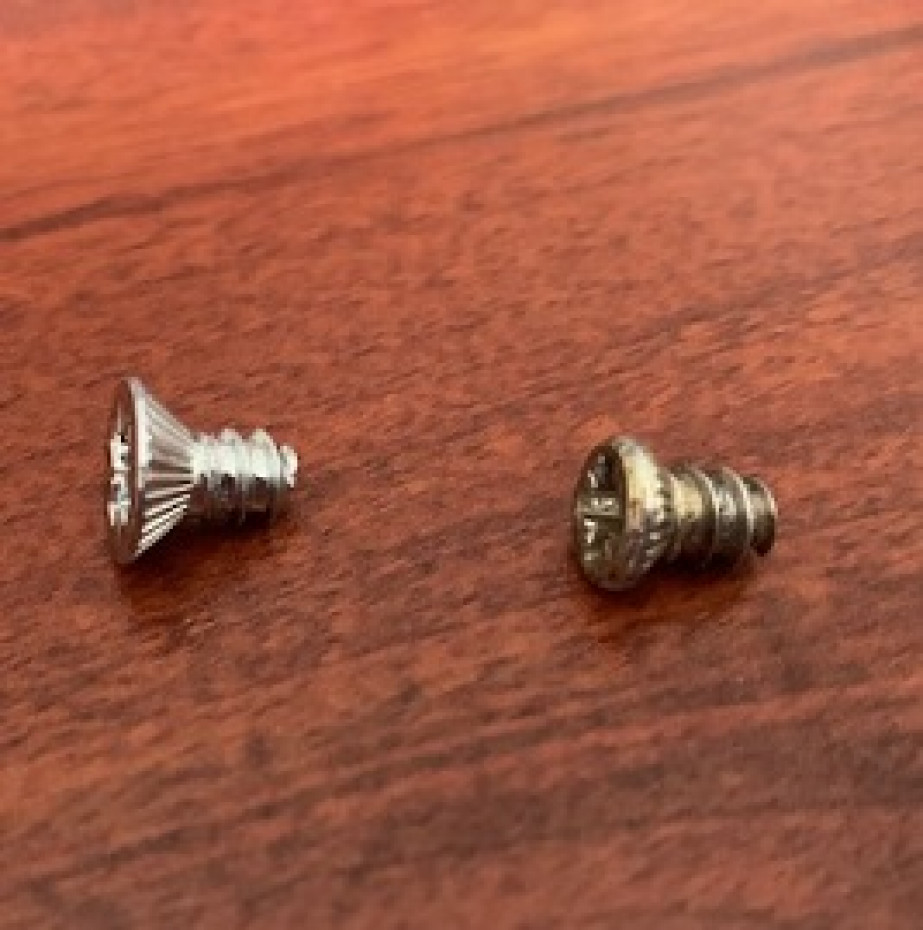

I'm looking for a replacement screw that attaches the base of the ski brake to the binding. In the photo, the screw on the right is what I need. The screw on the left has a length of 9.5 mm and a diameter of 5.5. The screw head diameter is 9.7 - which is too big. Any suggestions?
3/9/2023
Answer from
Gabriel I

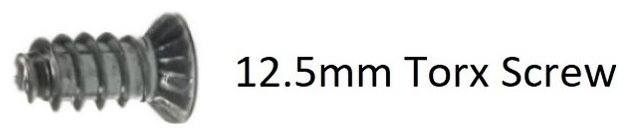

Hi Mark, Torx drive heads tend to be smaller than Pozi, the 12.5mm Torx Screw from this page should have a head diameter closer to what you're looking for if the 12.5mm length isn't too long. You may need to grind it down a bit.
Or, you can grind down the head diameter of the screw you have by putting the threads into a drill and rotating it against some sandpaper or grinder.
Answer this question:
2/26/2023
Question from
Dan

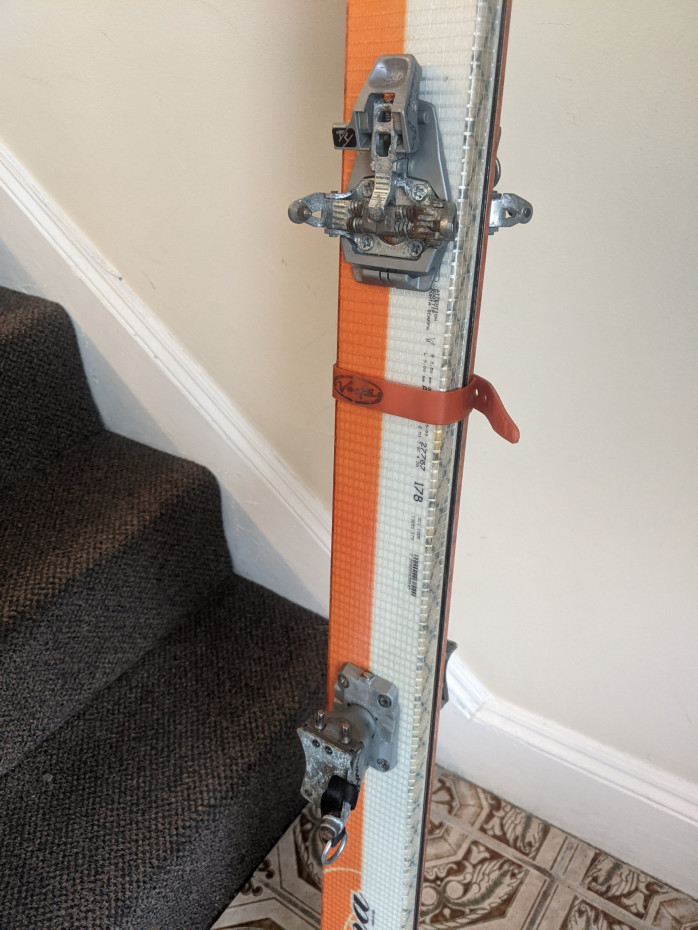

Do you which screw to use for a ~2008 Dynafit TLT Speed bindings? Thanks
Hi Dan, that binding looks quite corroded! Sadly, we don't have the exact screws for that binding, but you could measure them and maybe get something close.
3/4/2023
Answer from
Dan S
Ok thanks jbo. Yeah these have been through quite a bit, but they are still working great
Answer this question:
1/25/2023
Question from
Travis
What screw do I use for the TLT Vertical. I need the 4 heel piece screws and 5 toe piece screws. (I had these mounted with Quiver Killers and am moving them to new ski for my daughter and no longer have original mounting screws). Thanks, Travis
Hey Justin, both the lateral release adjustment screw and fore/aft adjustment screw are specific to Dynafit and can't be sourced at a local hardware store. Sorry about that!
4/2/2022
Answer from
Justin G
I didn't think Brett was right, after some sleuthing the forward adjustment screw is an m3x22 machine screw with a pan head.
Hey Justin, thanks for keeping on this, and I apologize if I miss understood your question. Let me clarify a few things:
1. With this binding, there is no DIN or forward pressure (it should have a 5.5mm gap between the boot and binding).
2. The screw that is used to adjust the fore/aft position of the binding is not proprietary in design, but in the way it is attached. The end of the screw has been pressed causing the end to flare against a washer so that the screw can't be walked out of the binding. For all but a few individuals, copying what Dynafit did would be exceptionally challenging. So even if the screw can be sourced, most wouldn't be able to replicate the way it was installed.
3. Most folks associate the lateral release adjustment screw with "DIN," however, it should again be noted there is no DIN release with this binding. The screw that adjusts the lateral release is quite specific to Dynafit. It is designed to push against a given spring, and the depth it is screwed into will determine the release value. Additionally, the length of the screw has to be exact so that the release value can be accurately identified.
4. If none of these screws are what you were referring to, please send pictures to help@skimo.co so we can better help you out!
Happy skiing!
Answer this question:
2/26/2022
Question from
Anton
Hi! Need all mounting screws for the Speed 12 binding. Is it the same screws for toe and heel and is 12,5mm the correct one? This is the binding: https://skimo.co/dynafit-speed-binding In advance, thanx for the help:) AT
The toe piece on the Speed 12 requires 4 x 12.5mm Torx screws each. They are available in the listing above. The heel requires an 11.3mm Torx (8x for a pair of heels). It is a pretty unique screw that we do not carry. You may have some luck at your local hardware store. Before mounting, just double check that you are getting between 8.0 and 8.5mm of thread penetration.
Answer this question:
11/23/2021
Question from
Mark
I have a never mounted set of Dynafit Beast 16s I'm trying to mount. I'm missing the screws for the toe pieces. (12 total)
You list Dynafit binding screws for sale. What size do I need to purchase?
Thanks,
11/23/2021
Answer from
Mark R
As a follow-up I see below you answered the question with 2 each 12.5 and 19 Torx screws. Unfortunately. It doesn't appear you sell the 19s online. Any suggestions?
As you mentioned, you will need 2x12.5mm Torx Screws, and 4x19mm Torx Screws per toe piece. Your local alpine shop may be a good resource for sourcing those 19mm screws. Otherwise, I can set you up for a notification that will alert you if we get more in stock if you reach out to help@skimo.co.
Answer this question:
11/19/2021
Question from
Pike
I have a pair of Dynafit Beast bindings that are missing screws for the toe pieces. What size should I order?

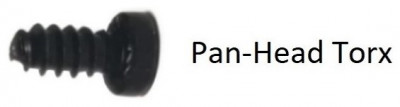

Thanks for your question, Pike. The heels of both the 14 and 16 will use the same screw (Pan-head Torx Screw), however, the toe pieces will use different screws, depending upon whether you have the 14 or 16. Please reach out to us at help@skimo.co with your specific toe piece, and we can help you out!
Do all these screws have the same thread size/external diameter? I'm trying to track down some helicoils for my speed rads repair kit but I think I need to know a metric or standard screw size.
Great question! They do not all have the same diameter and thread count, however, they will all work with a helicoil. The helicoil is shaped more like a spring than a nut so can adapt to different thread counts. Hope this helps!
Answer this question:
10/26/2021
Question from
Matt
Need screws to install a 2-deg canting strip under my Speed Radicals (2020). Strip measures 1.3mm low and 3.17mm high. I think the lowside I go with the original screws and the highside I go 15.5mm toe and 19mm heel?
Thanks for reaching out, Matt. Your math checks out to me! Ideally, 8mm of the screw thread should be in contact with the ski. Keeping with the stock screw size on the low side of the shim will push this lower than 8mm, however, it should still work. Please let us know if you have any other questions!
Answer this question:
6/28/2021
Question from
sheila
I lost one of the four small screws for the toe piece. What replacements should I get?
Hey Sheila, thanks for reaching out! If this setup uses machine screws to attach the toe piece to the lower plate(instead of the wood screws that are typically used to mount a binding to a ski), I'll need a few measurements to make sure we have the right part.
Could you email me(help@skimo.co) the total screw length, head diameter and shaft diameter in millimeters along with a photo of the screws? Thanks!
