Used Dynafit Parts
Price: From $6.00
New parts for old bindings are hard to find. Used parts for old bindings should now become easier. Trade in your used and/or broken Dynafit bindings for store credit, and we will make the working parts available for others.
Please note these parts come with absolutely no warranty. We do a reasonable eyeball inspection of the parts, but can in no way guarantee their integrity. If you are not comfortable taking risks with used parts, please purchase a new part, toe, heel, or complete binding instead.
For information on trading in your alpine touring binding, see our current policy on binding recycling. Below is a list of some the parts we have accumulated.

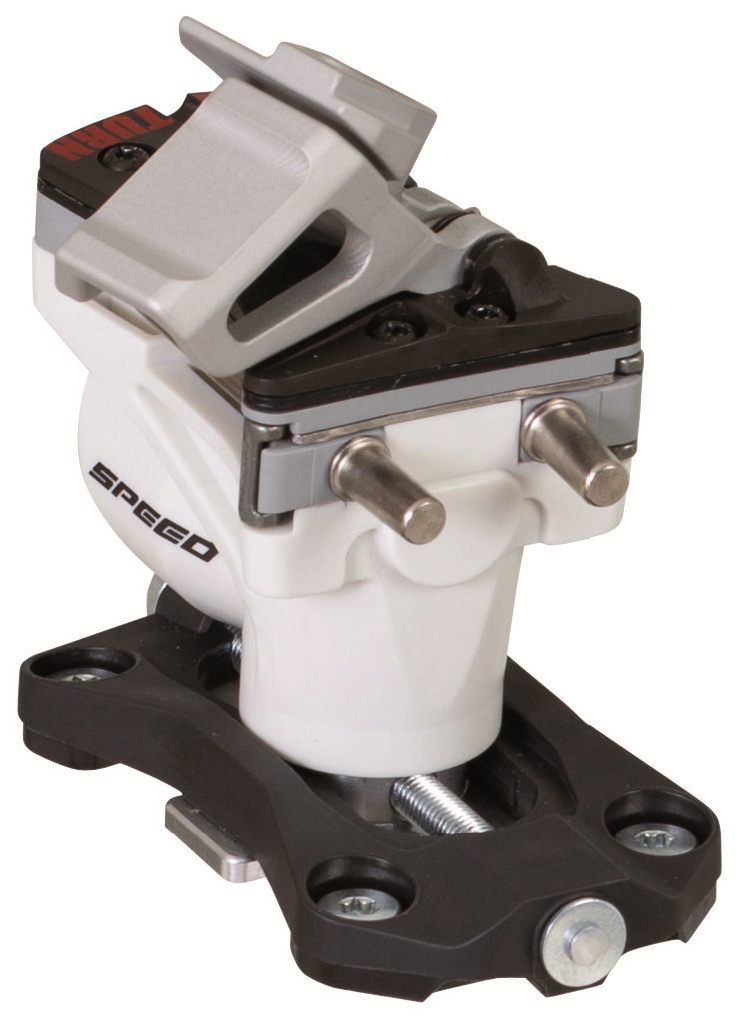

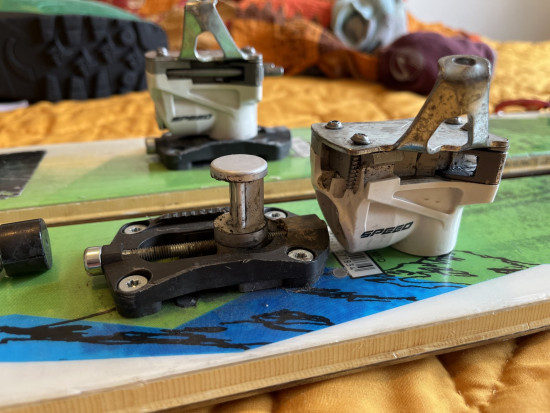

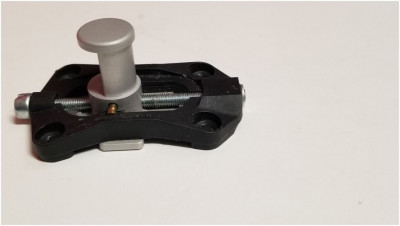

Speed Rad Heel Base - Adjustment mechanism w/ heel post. Often the older model with a brass pin for anti-rotation.

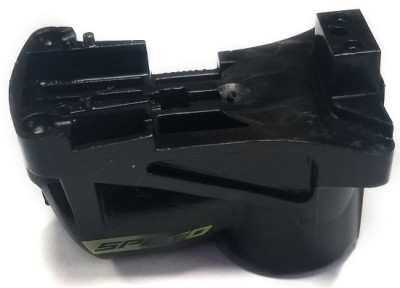

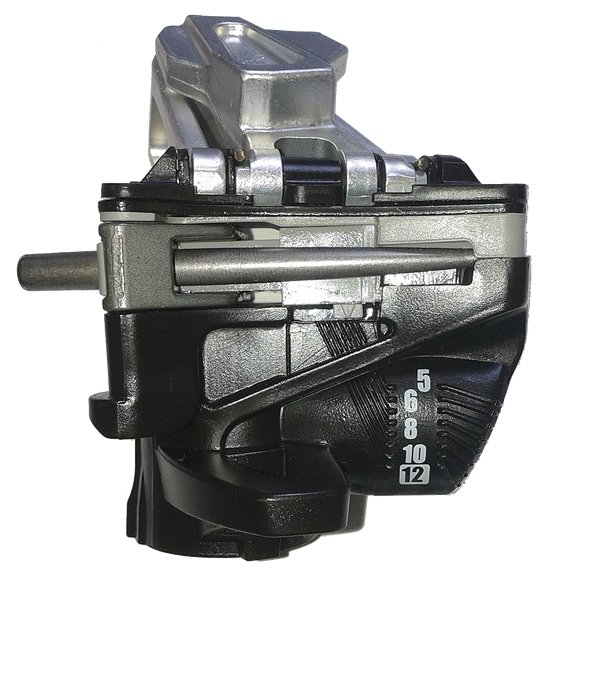

Speed Rad Heel Housing - A full heel piece except for the base plate.

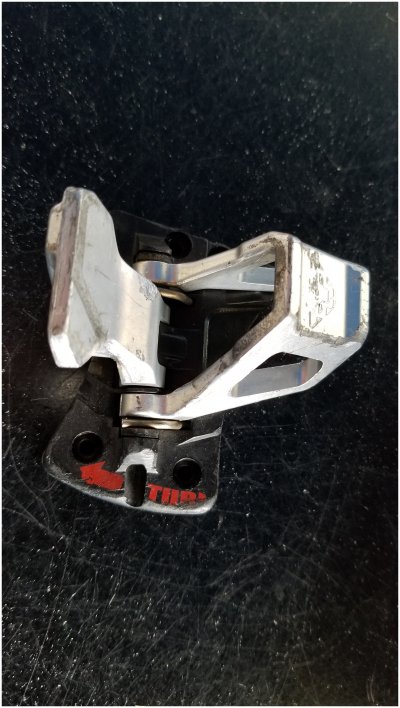

Radical Roof - Black top with risers for Speed, ST, FT.

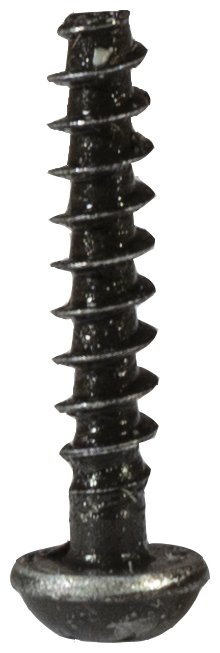

Radical Roof Screws - The little Torx screws that hold the lid on.
Radical Heel Pins - Pin with plastic spacer they pass through.

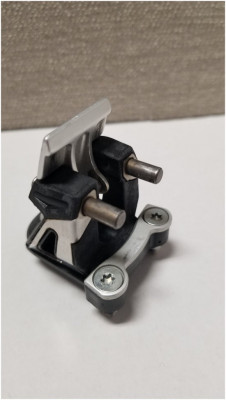

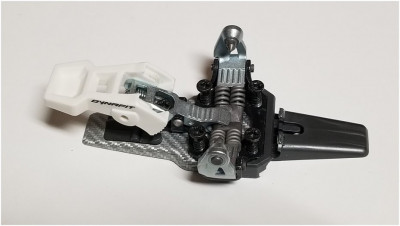

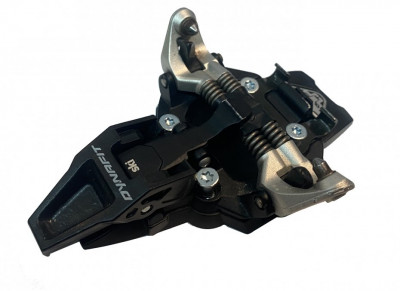

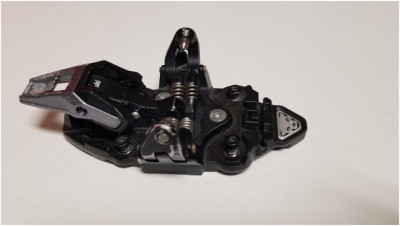

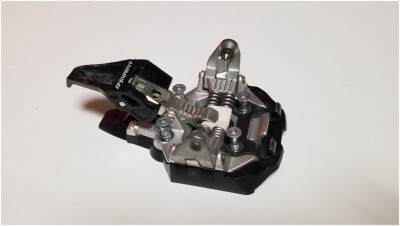

Radical ST/FT Toe Piece - Whole toe unit. No baseplate or screws.

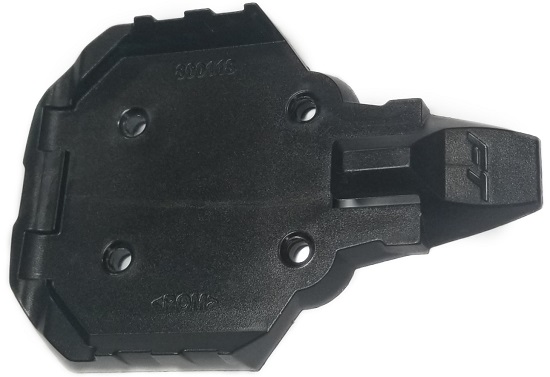

Radical ST Toe Plate - Plastic lifters under the ST toe pieces.
Radical Crampon Receptors - Bent metal pieces that hold crampons.

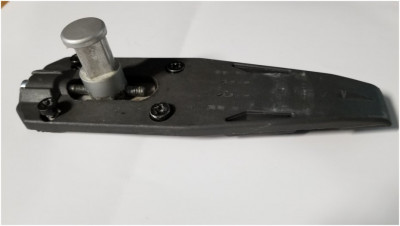

Radical ST Heel Baseplate - Original ST baseplate that had removeable brakes. No brakes included but Vertical ones will work.

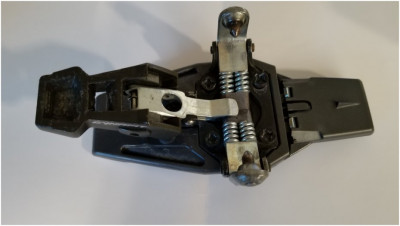

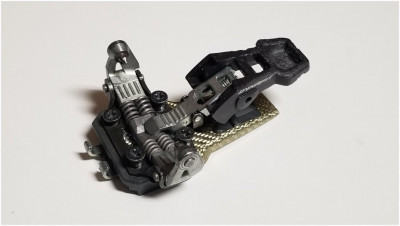

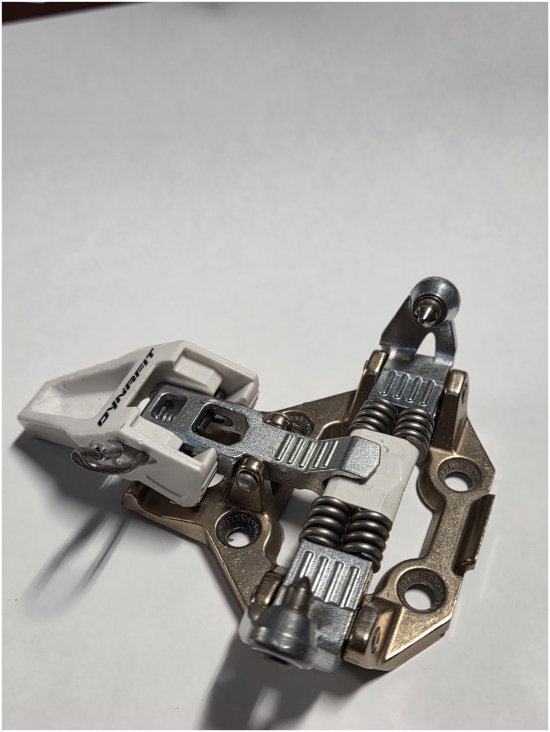

Vertical ST/FT Toe Piece - Complete toe piece for the old ST or FT (as listed), with baseplate.

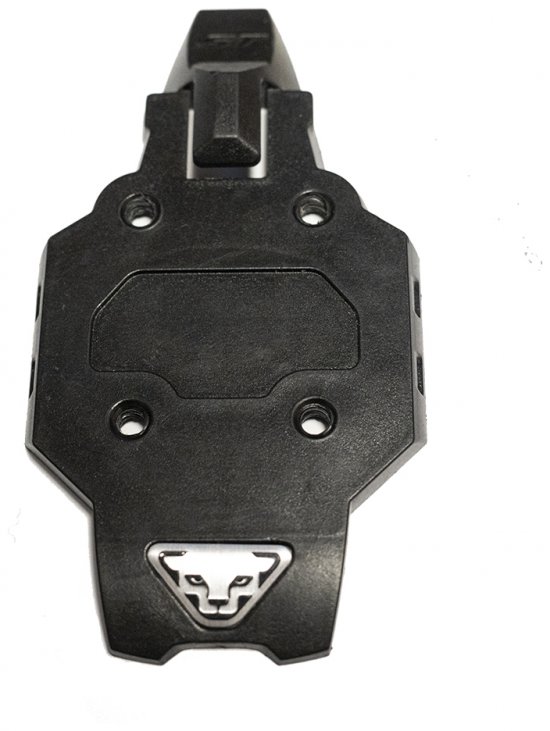

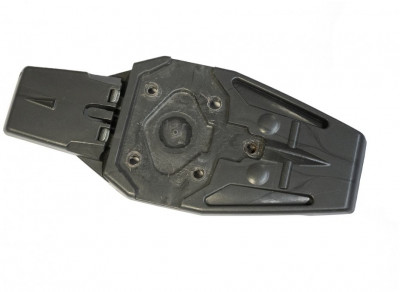

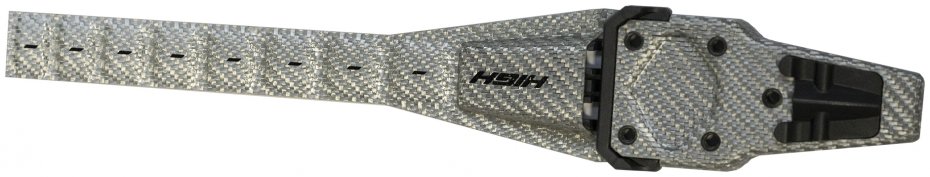

Vertical ST/FT Toe Plate - Plastic baseplate that goes underneath the toe pieces. Includes integrated metal crampon receptor.

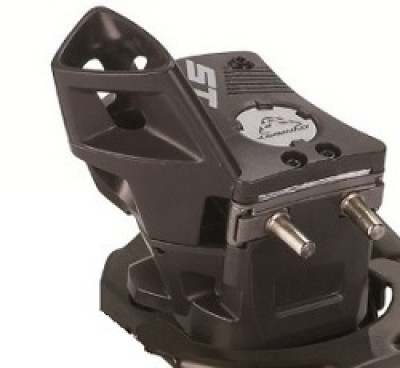

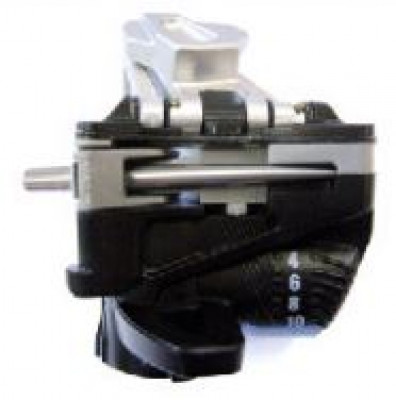

Vertical ST/FT Heel Piece - Brakeless heel piece for the Vertical ST or FT (as listed), including base plate. These are sometimes white and sometimes brown. Brakes sold separately.

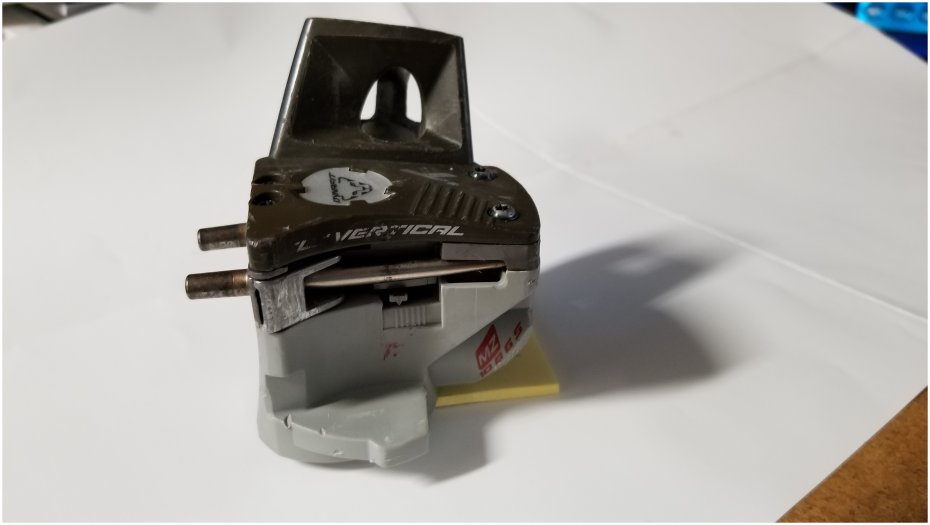

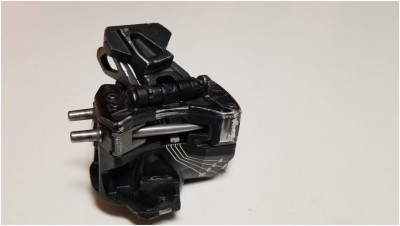

Vertical ST/FT Heel Housing - The whole turret that rotates on the base plate tower, complete with riser. No baseplate

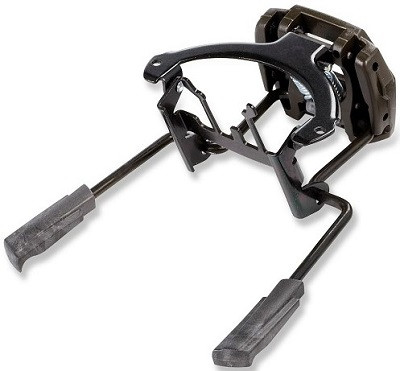

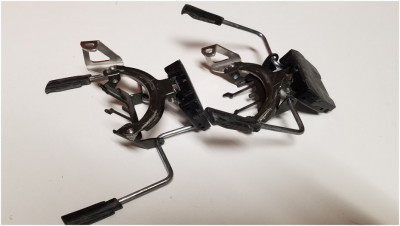

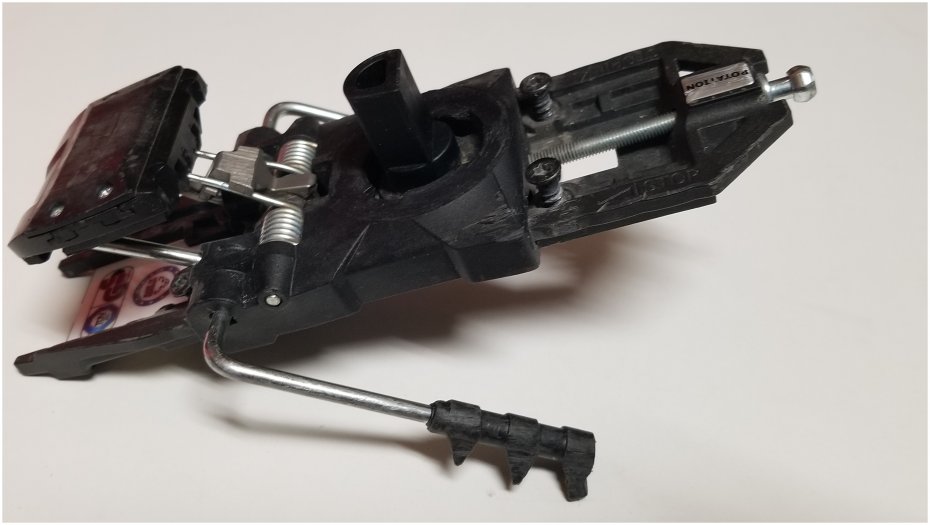

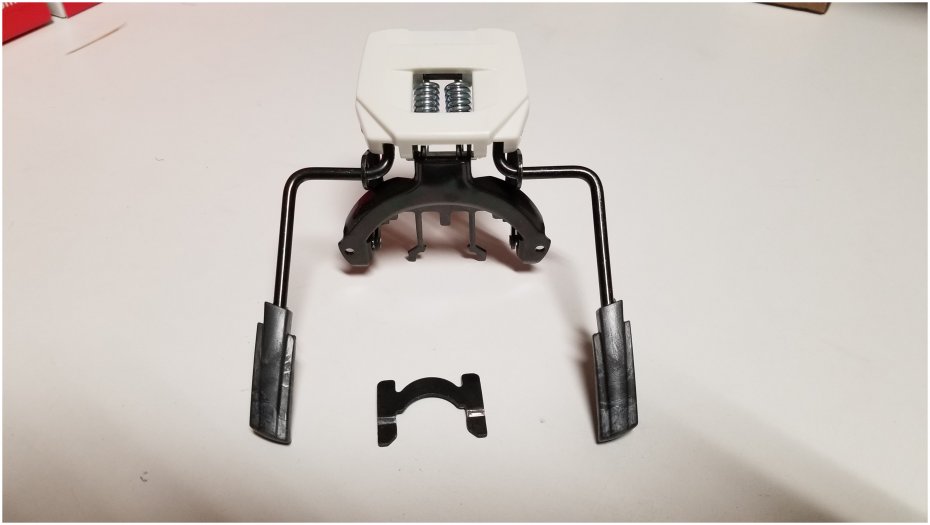

Vertical Brake - Brakes that work with either Vertical model and likely the Comfort series.

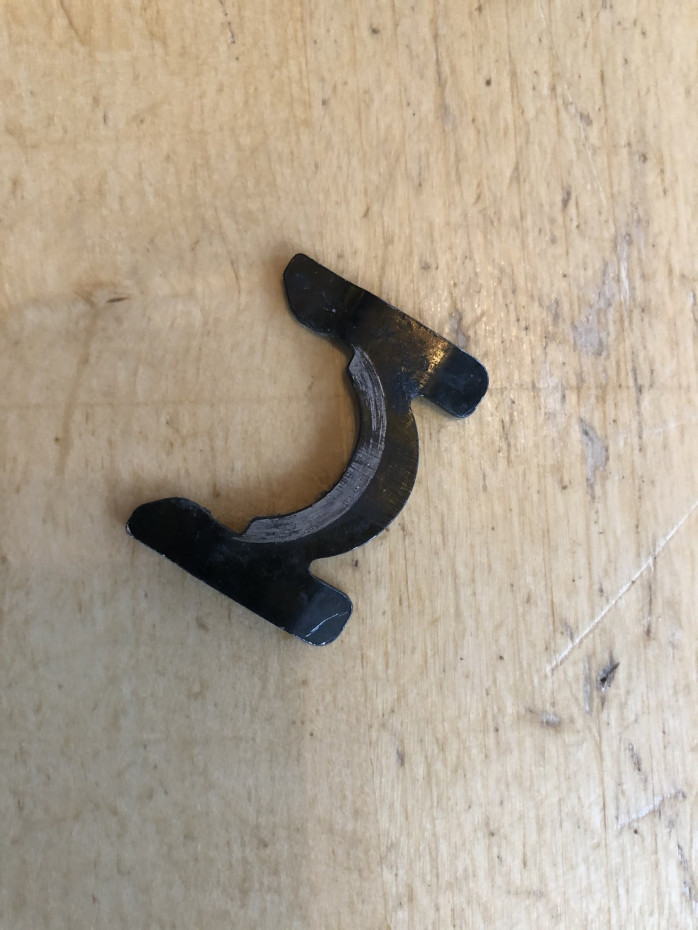

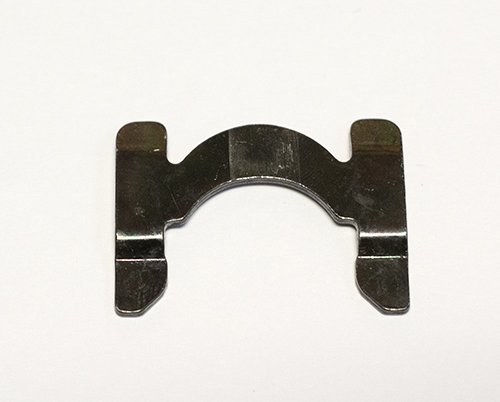

Vertical Brake Retainer - Retainer "H" clip that holds Vertical, Comfort, and first-gen Radical brakes onto the heel piece.

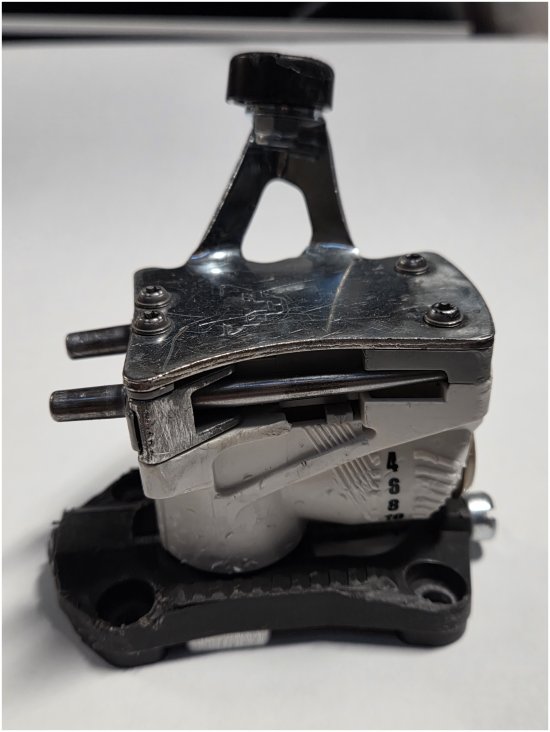

TLT Speed Heels - Just the housing & lateral springs, not the baseplates. Available with standard riser or a B&D Speed top plate (roof). Nubbins optional.
Tri-Step Toe Piece- Tri-Step toe piece, complete with baseplate.

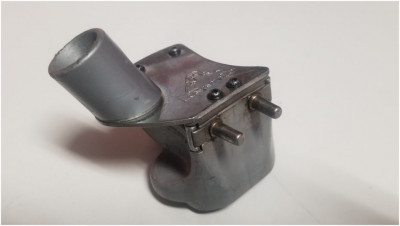

Tri-Step Heel Piece- Complete heel piece for Comfort or Tri-Step binding, including baseplate.
Tri-Step Heel Housing- Just the plastic body of the heel piece for a Tri-Step.
Tri-Step Volcano- Red volcano riser for the Tri-Step binding. Works for Comfort series as well.

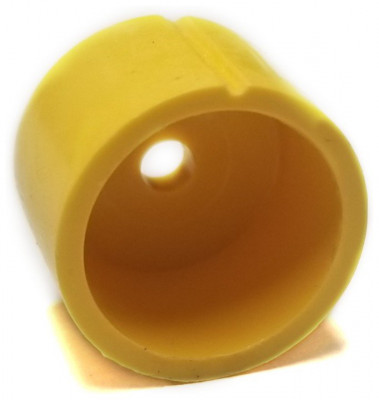

Thimble Bushing - Bushing that holds the lateral springs against Vertical or Radical heel towers.

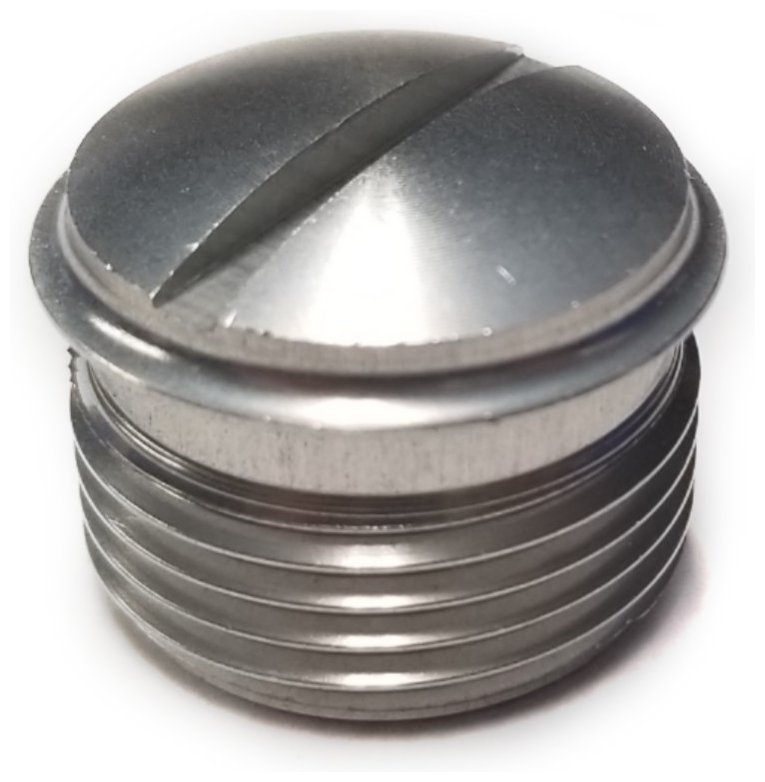

Adjustment Screw - Grey lateral release screw.

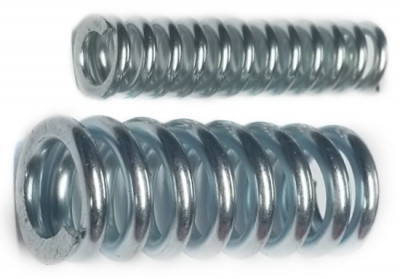

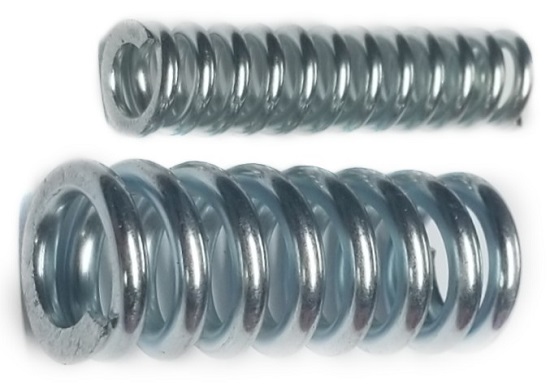

Light Lateral Springs - For bindings up to RV 10 (Speed Rad, STs). Both inner and outer springs for one heel.
4/11/2018
4/12/2018

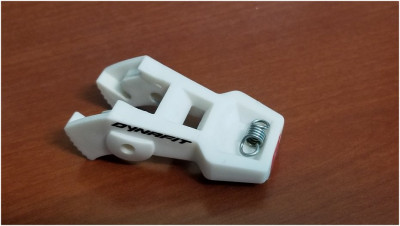

Hi Kase Paul, you are looking for the toe lever or "excenter" as Dynafit calls it. We do not have any in stock for the Vertical, but I have successfully repaired them in the past by using the toe lever from a Speed Radical or Radical ST/FT binding. You can find those in our Dynafit Parts Listing
Answer this question:
3/18/2018

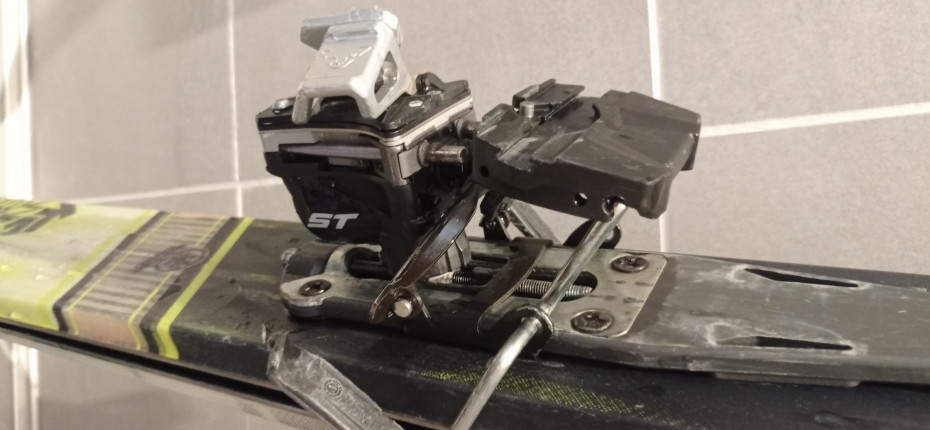

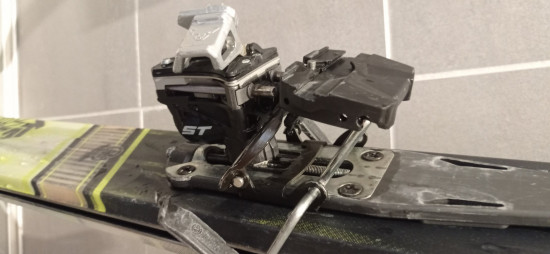

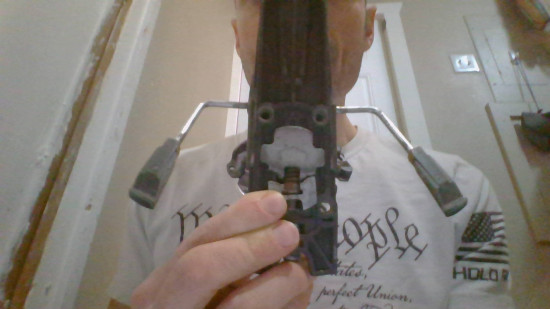

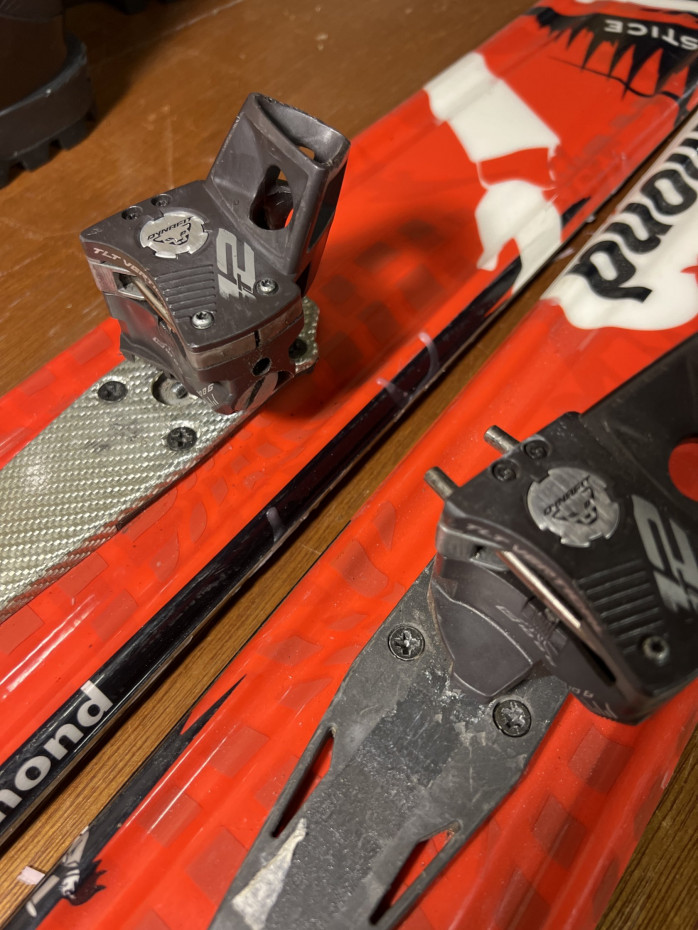

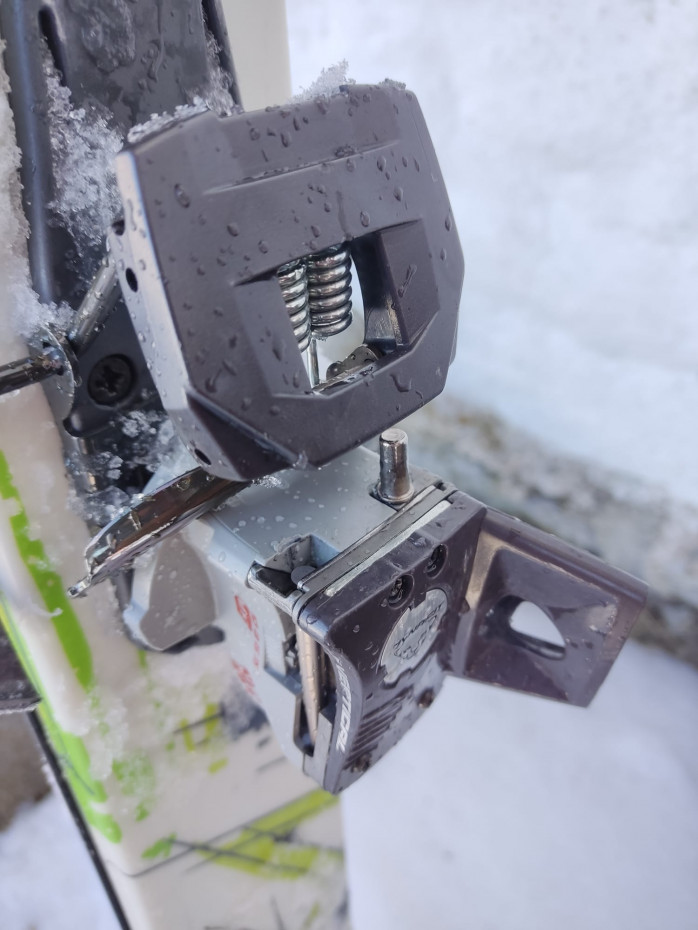

I'm looking for a heel riser for a dynafit vertical st binding, photo attached. Thanks
3/18/2018
Hi Anita, those are out of production. Your best bet is a B&D comfort plate + volcano.
Answer this question:
3/7/2018
Hi,

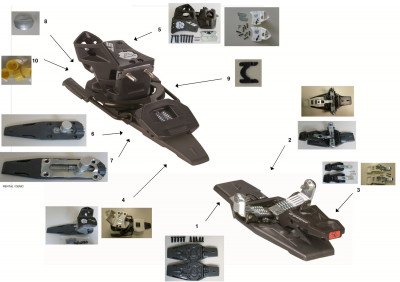

I would need a pair of heel raisers (part 5), and one H-clip (part 9) for Verticals. Do you have any? The text is not visible anymore, so I don't know if the bindings are FT or ST.
I would need a pair of heel raisers (part 5), and one H-clip (part 9) for Verticals. Do you have any? The text is not visible anymore, so I don't know if the bindings are FT or ST.
3/7/2018
Henrik,
Unfortunately, we don't have either part in at the moment.
Unfortunately, we don't have either part in at the moment.
3/7/2018
Hi Henrik, please note you can use the B&D comfort plate and volcano to replace the riser mechanism.
Answer this question:
2/23/2018

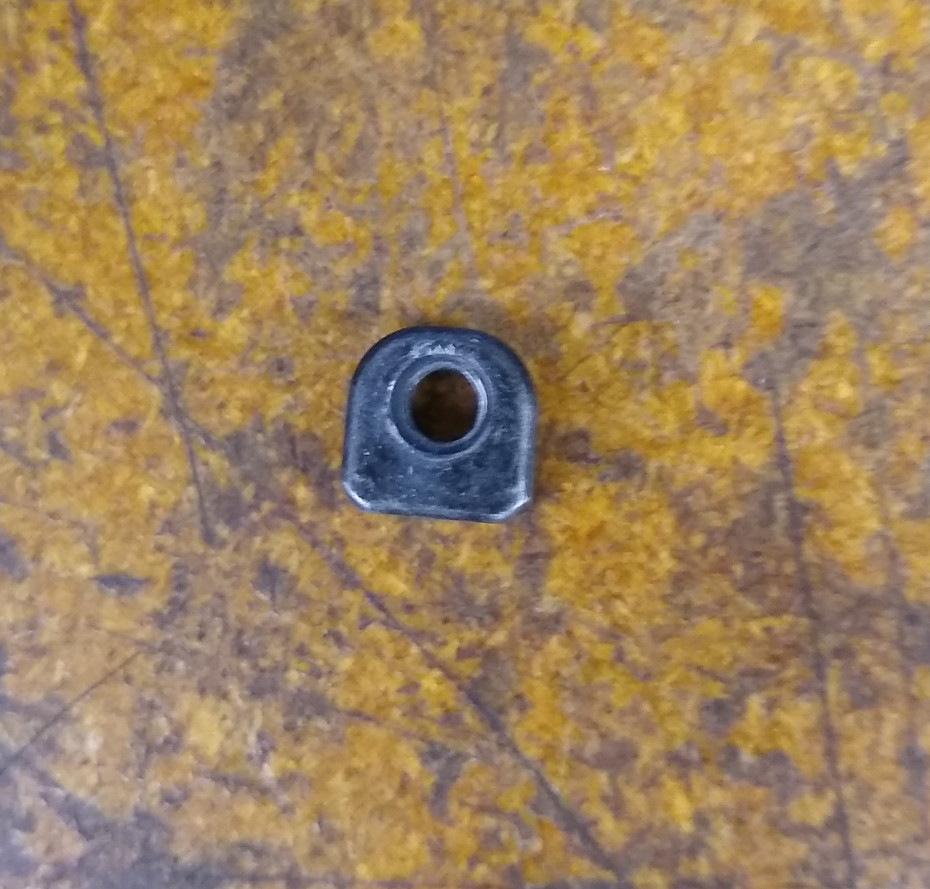

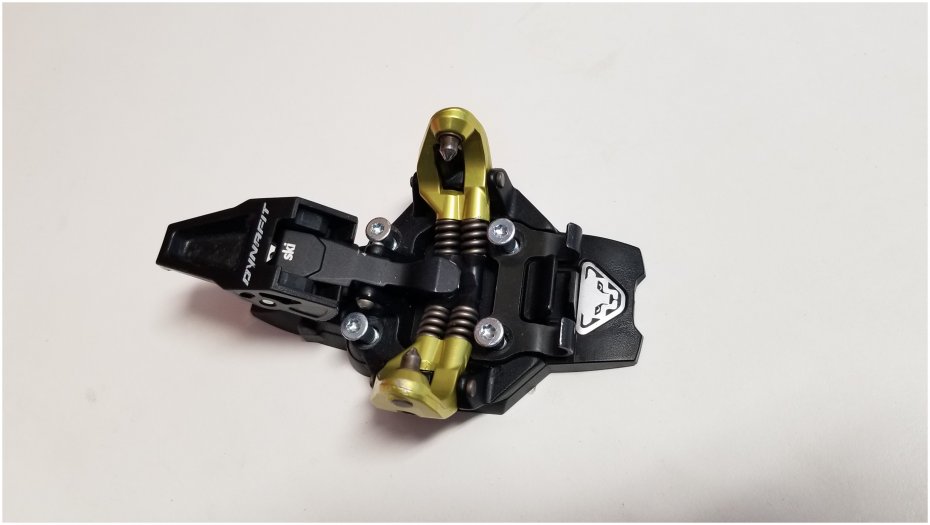

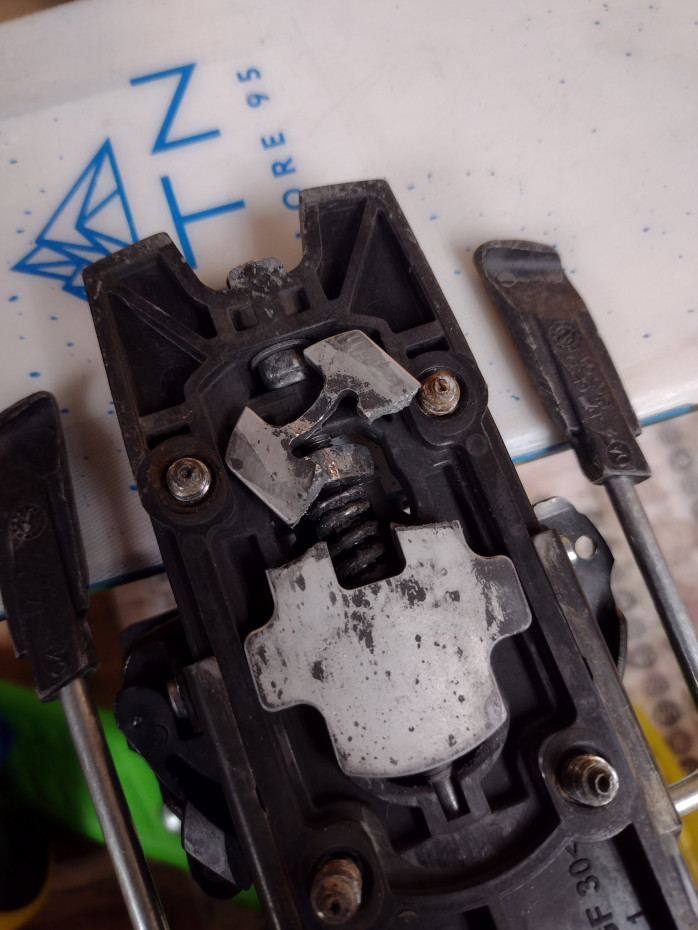

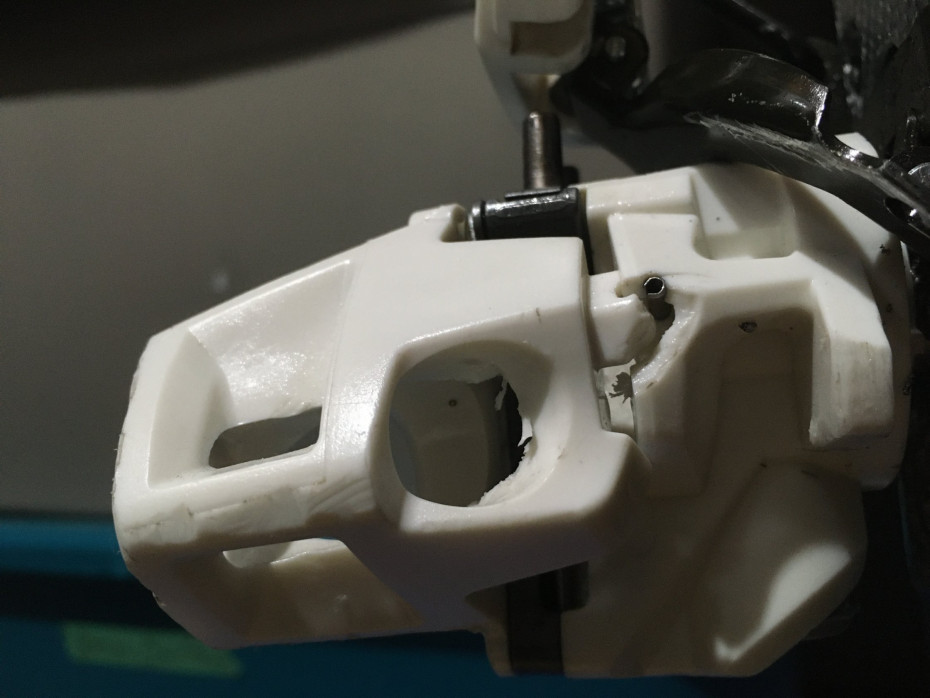

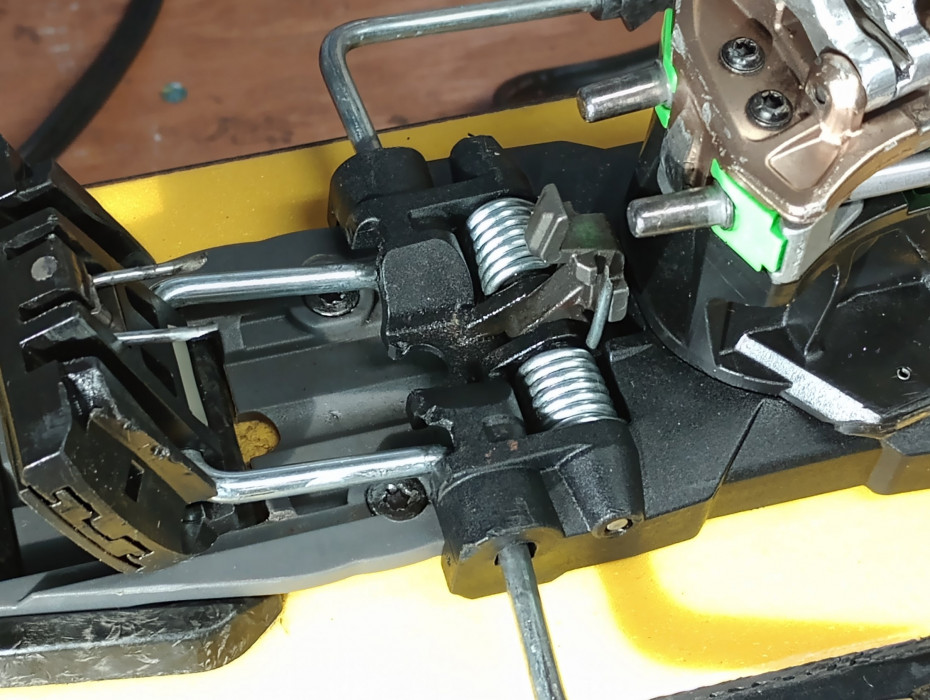

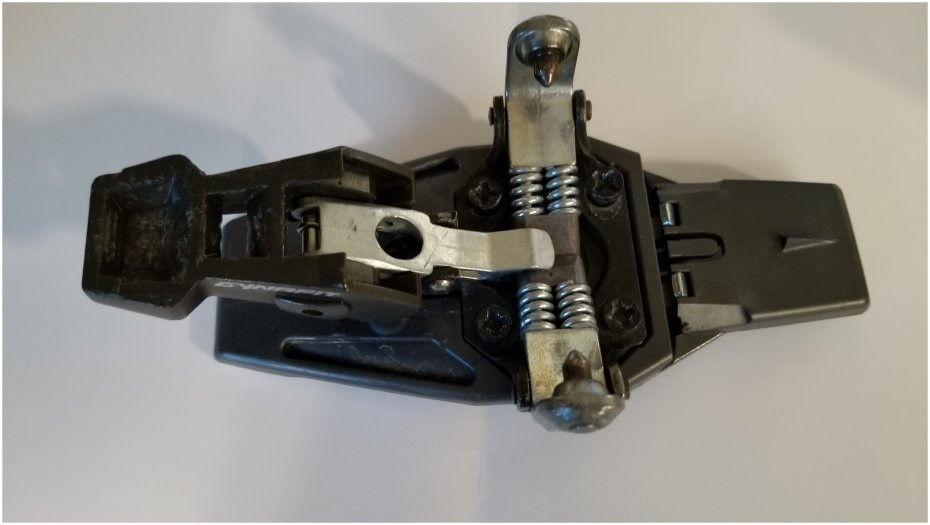

I am looking for a replacement part for the toe piece - little plastic around the spring showed in the picture.
Thank you.
Thank you.
2/24/2018
Hi Tomek, that is not a part that Dynafit offers separately but we do have spring coupler sets from Maruelli.
Answer this question:
2/21/2018
I recently ordered a set of plastic heel cones for my old pair of Comfort bindings. Thanks. What are the specifications of the 8 bolts (image 5) which secure the heel pieces together, I need some replacements.
2/21/2018
Hi chrisallan, unfortunately we don't have the specs on those. The threads appear to be a type of wood screw.
Answer this question:
1/22/2018

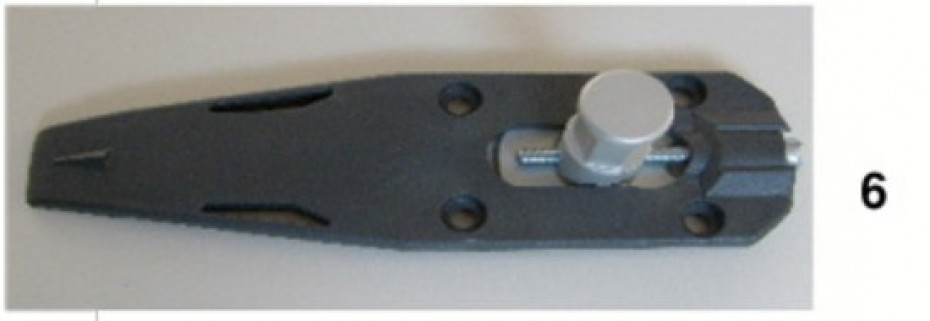

I\m looking for the adjustment screw for the heal on a Radical FT. Its maybe M5 and 90 mm long?
1/22/2018
Hi Fredrik, we don't have those separately but you grab one of the used brake units and pull it out.
Answer this question:
1/20/2018

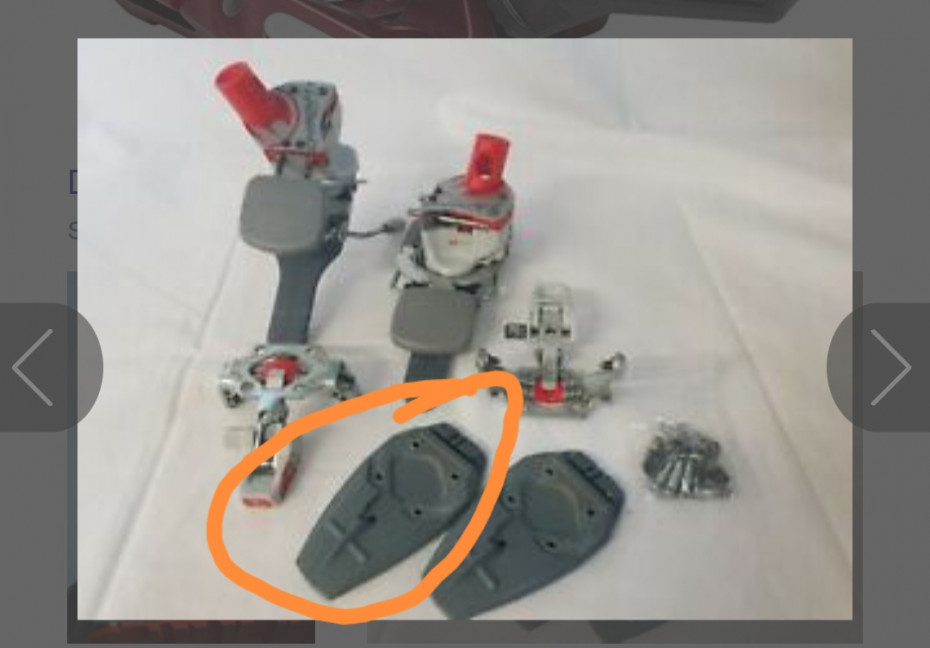

Looking for a Vertical st toe plate.
1/21/2018
Hi Gregg, we have Vertical ST toe plates here.
Answer this question:
1/17/2018
Looking for a compression spring and metal spacer pin from a radical 2.0 ski brake AFD. Spring is about 53mm long and 3.5mm outside diameter. The pin floats inside the coil. Please contact me if you can source these parts new or used. Thx
1/17/2018
Hey Steven! Unfortunately I don't have any used AFD parts, though I do have an AFD kit here that includes the spring as well as an AFD, but no pin. If you have one to take a picture of would you mind sending it in? That may eliminate some confusion.
Answer this question:
1/16/2018

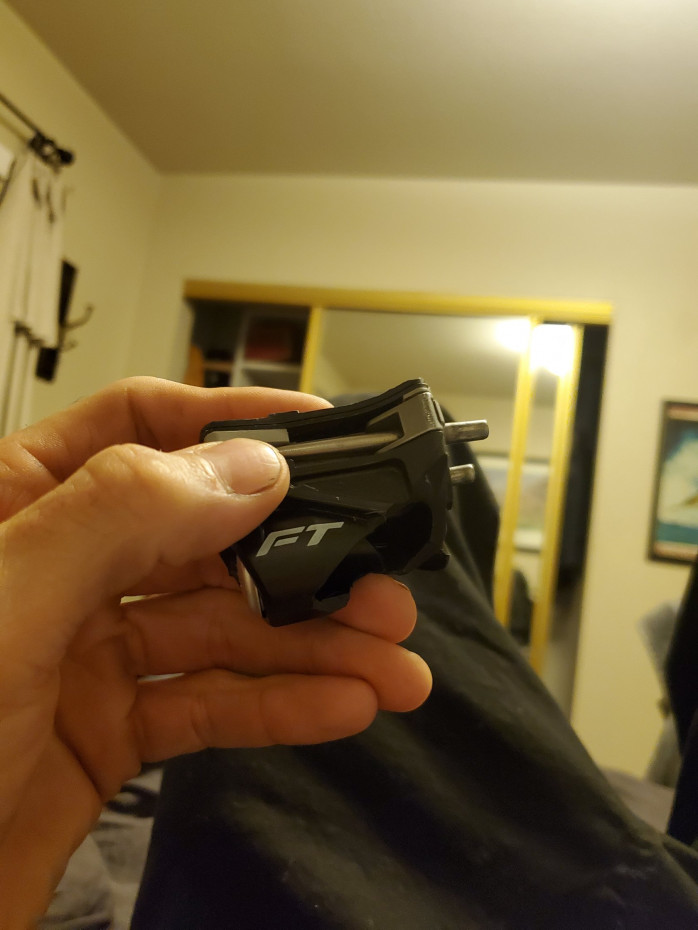

Hey. So I crashed by truck and in the carnage, my brand new Radical 2.0 FT 120's broke- sorta. I am interesting in selling/trading/buying so I can get new pin tech bindings without buying new Dynafits, cause I am in school and broke, so if you have any ideas, and I mean ANY ideas, lemme know. Here is the situation with the bindings.
Both toes pieces are 10/10 not damaged, used twice and not even a paint chip to remember the turns. One heel piece is the same way, in perfect conditions and looking gucci. The other heel piece is where the sad part lies. I don't know the names of all the parts, so bear with me here. The grey track that mounts to the ski? Yeah, the black rotating heel piece that can be adjusted via the rear screw popped outa the track, and I am missing a small tab of plastic on the bottom rear of that same heel piece. This plastic tab holds the black bolt which is screwed midway onto the silver screw underneath the black rotating heel piece. This black screw presses against the plastic tab I am missing, providing a place for the silver spring which is set around the silver screw underneath the black heel piece to push back on. I am also missing this spring, and I suspect I am missing a piece which the end of the silver screw screws into, which I further suspect to provide the other end of the spring a place to press against.
Thank you for reading this novel, and if you have ANY help at all please let me know.
Both toes pieces are 10/10 not damaged, used twice and not even a paint chip to remember the turns. One heel piece is the same way, in perfect conditions and looking gucci. The other heel piece is where the sad part lies. I don't know the names of all the parts, so bear with me here. The grey track that mounts to the ski? Yeah, the black rotating heel piece that can be adjusted via the rear screw popped outa the track, and I am missing a small tab of plastic on the bottom rear of that same heel piece. This plastic tab holds the black bolt which is screwed midway onto the silver screw underneath the black rotating heel piece. This black screw presses against the plastic tab I am missing, providing a place for the silver spring which is set around the silver screw underneath the black heel piece to push back on. I am also missing this spring, and I suspect I am missing a piece which the end of the silver screw screws into, which I further suspect to provide the other end of the spring a place to press against.
Thank you for reading this novel, and if you have ANY help at all please let me know.
1/17/2018
Jacob,
From the sound of it the damage is only to the baseplate and not the actual heel piece. You can potentially get a new Dynafit Radical 2.0 baseplate/brake in a 120mm width, remount it and place the old heel piece on the new plate. Otherwise, it definitely gets more complicated to fix.
From the sound of it the damage is only to the baseplate and not the actual heel piece. You can potentially get a new Dynafit Radical 2.0 baseplate/brake in a 120mm width, remount it and place the old heel piece on the new plate. Otherwise, it definitely gets more complicated to fix.
1/18/2018
I-M,
No, the damage is to the heel piece itself, to the very bottom part of the headpiece that grabs onto the tracks of the heel piece...
No, the damage is to the heel piece itself, to the very bottom part of the headpiece that grabs onto the tracks of the heel piece...
1/18/2018
Hi Jacob, that's a lot of words! I think it would best best if you sent us a photo of the damage. That way there will be less room for confusion.
1/18/2018

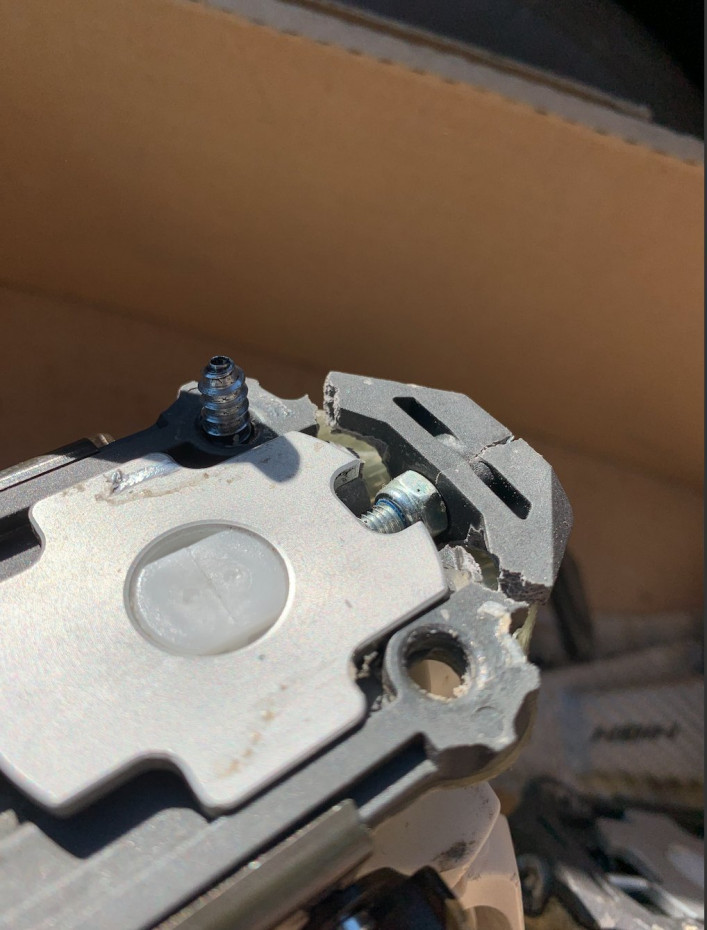

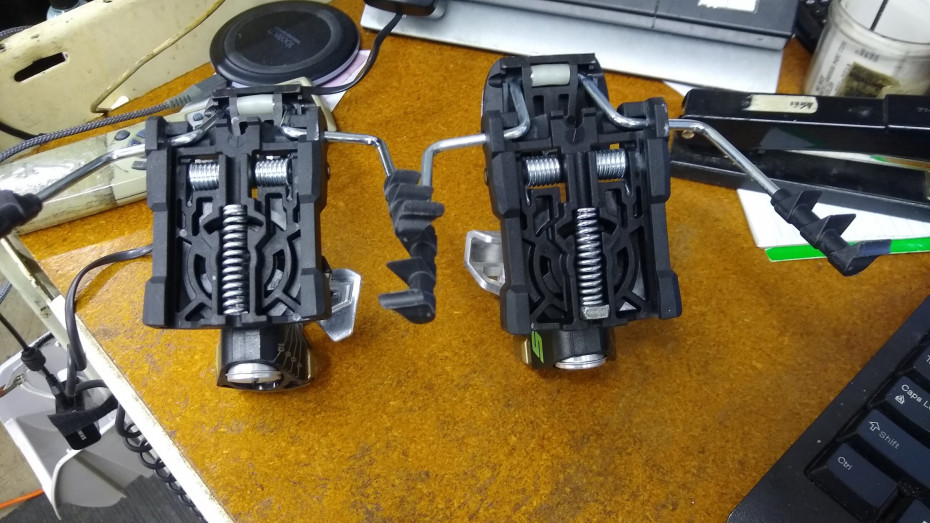

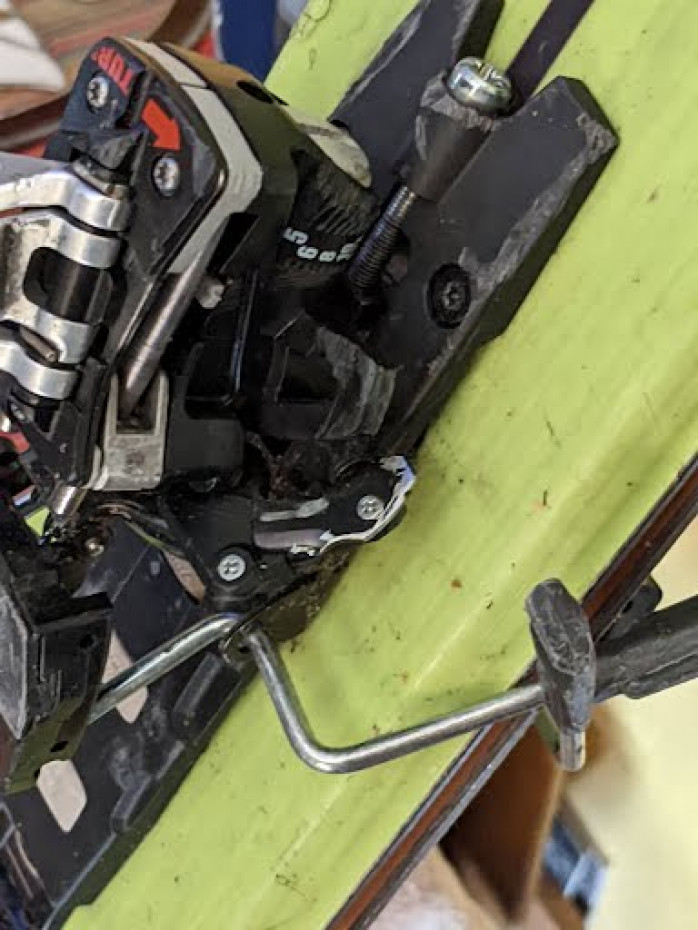

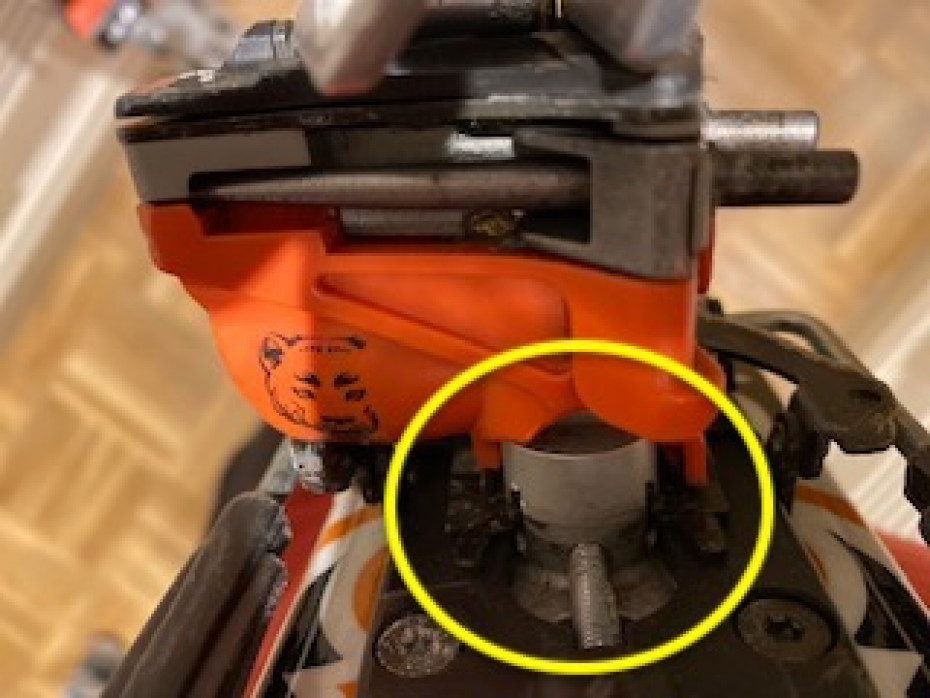

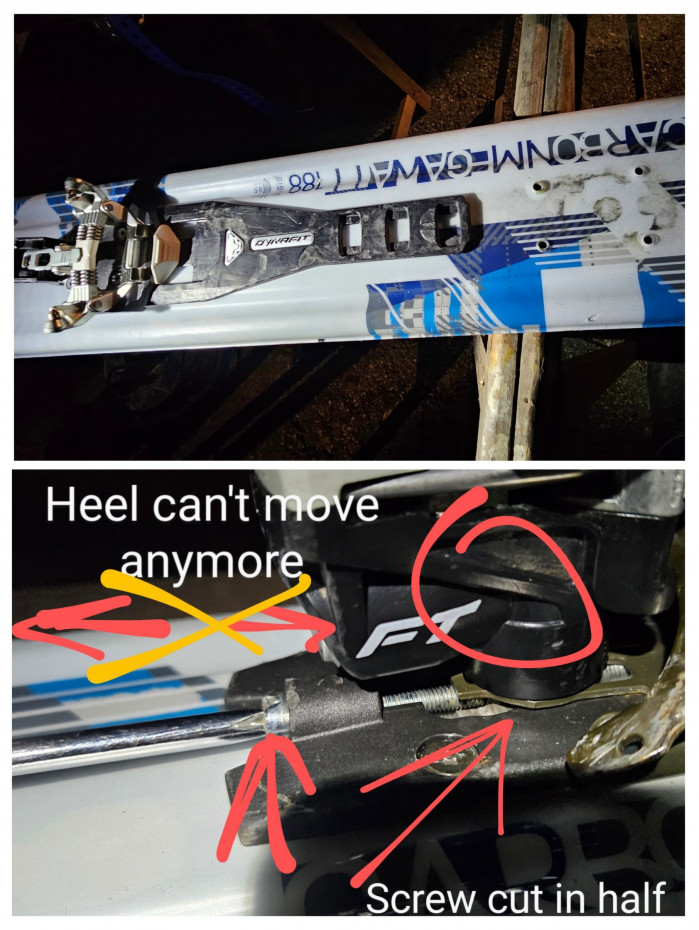

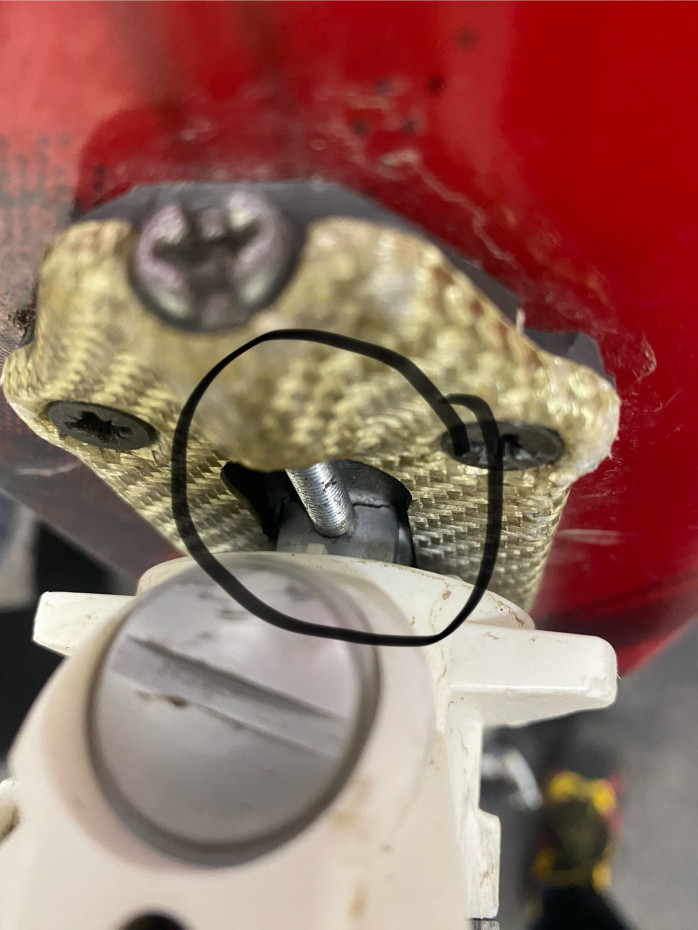

*** here’s the broken part
1/18/2018
Hi Jacob, I concur with I-M that you need a new baseplate+brake! It's possible you need a new housing as well, but I don't see any specific damage to that in the photo.
1/18/2018

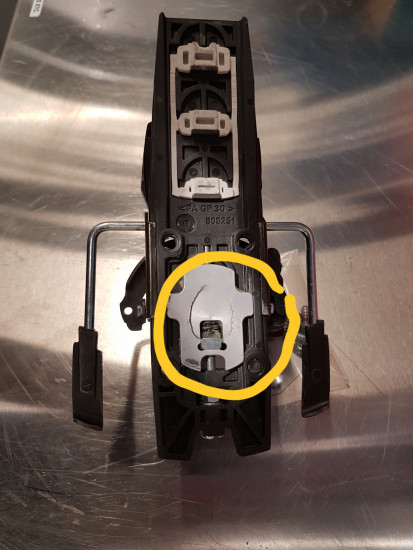

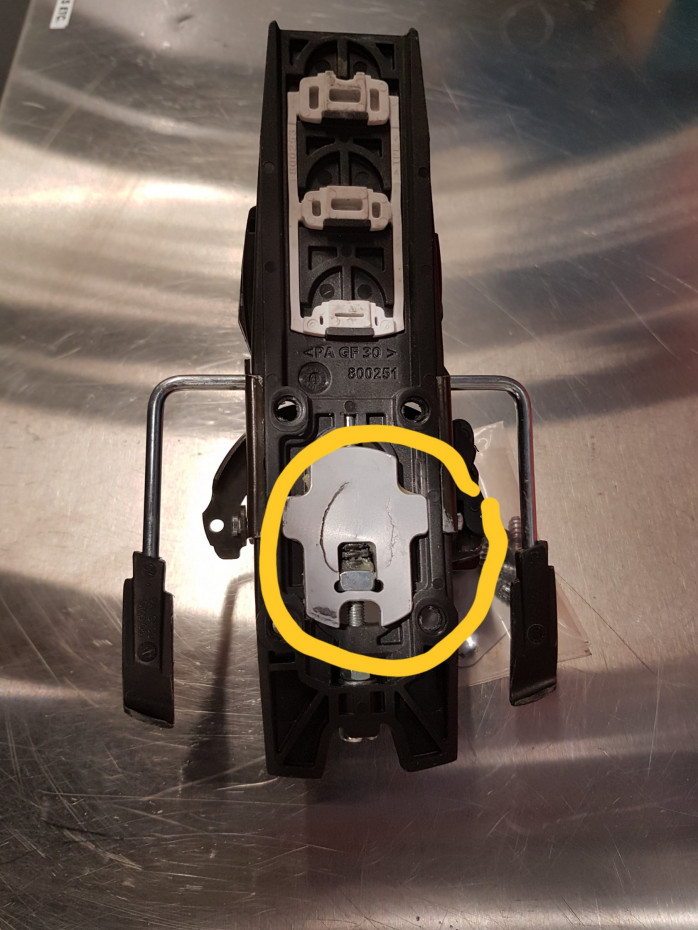

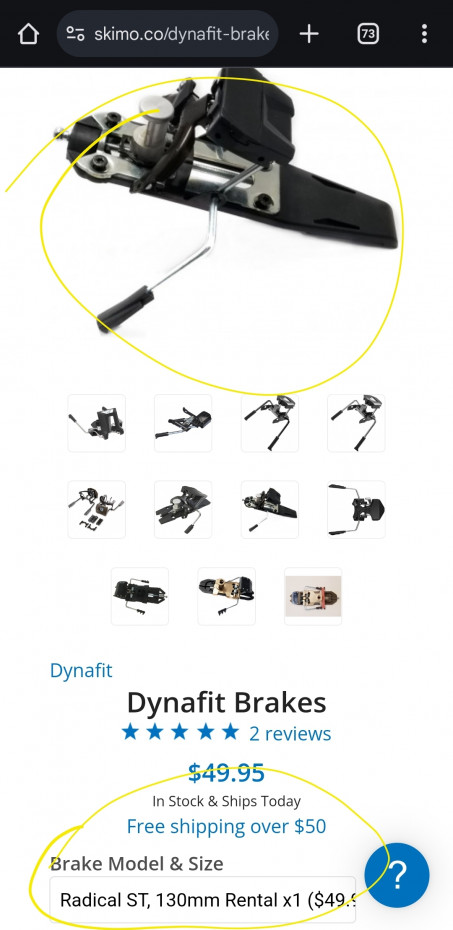

So this bit broke off, circled. Am I using the wrong name? The grey track at the bottom of the binding is what I am calling the baseplate- am I wrong???
1/18/2018

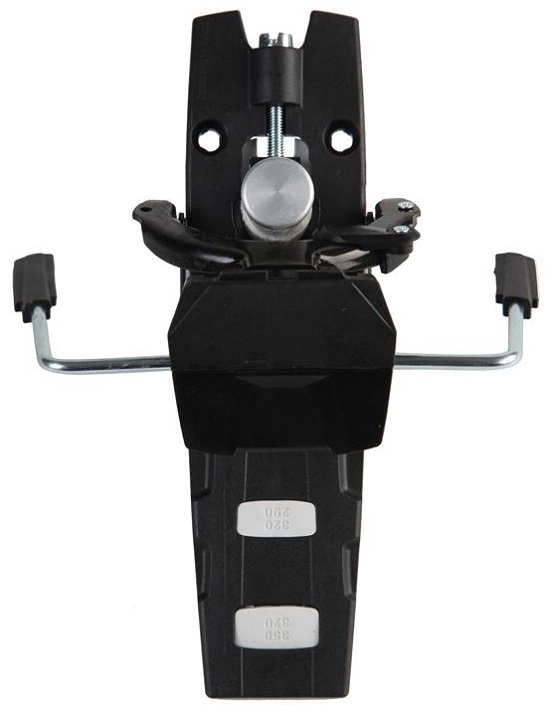

Hi Jacob, as you can see in our photo on the Dynafit Brakes listing, the black area is also part of the baseplate+brake system.
1/19/2018
jbo, if you were here right now you'd get a huge highfive and maybe even a hug holy cow that gets me stoked. THANK YOU SO MUCH
Answer this question:
1/3/2018

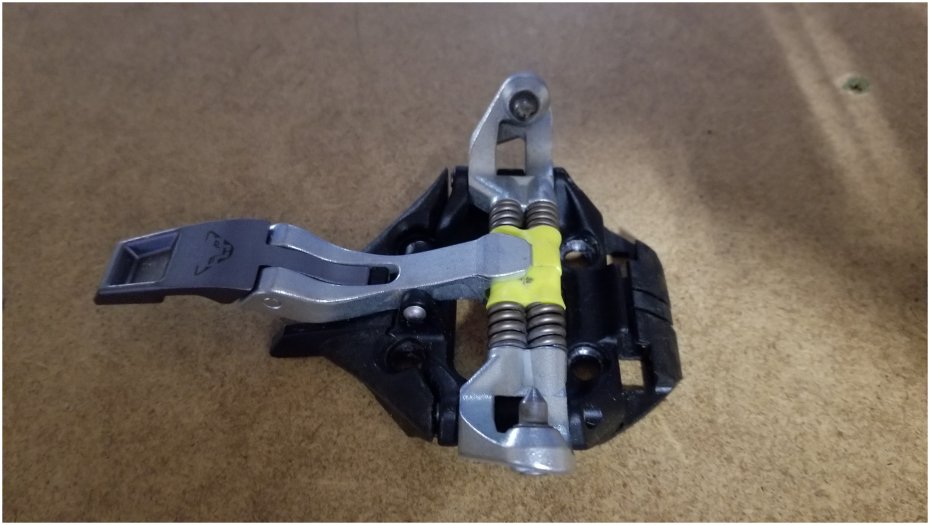

Looking for a new toe lever for one of my Vertical ST bindings. I still have the pins and spring, but the plastic lever piece is broken. Cheers!
1/4/2018
Hi Nick, while we are no longer able to get Vertical toe levers, Dynafit recommends the Speed Radical toe levers as replacements. You can find those levers in our Dynafit Binding Parts listing.
Answer this question:
