Dynafit Heel Pieces

Brand: Dynafit
Model: Dynafit Parts
Shipping: FREE*
Availability: In Stock & Ships Today
Price: From $89.95
* Binding Model:
Qty:
 - OR -

If you already have ten toes, you might consider getting some heels to match. The Dynafit binding heel pieces can be used to replace borked ones, build an unsanctioned super binding, or be stashed in your collection of other unusual parts. It's also not a bad idea to have a backup plan if you're planning an extended stay in a remote place. See the table below for details.

Weight (g) Weight (oz) INCLUDES
Low Tech Race 48 1.7 NO screws
Expedition 56 2.0 NO screws
Speed Superlite 126 4.4 NO screws

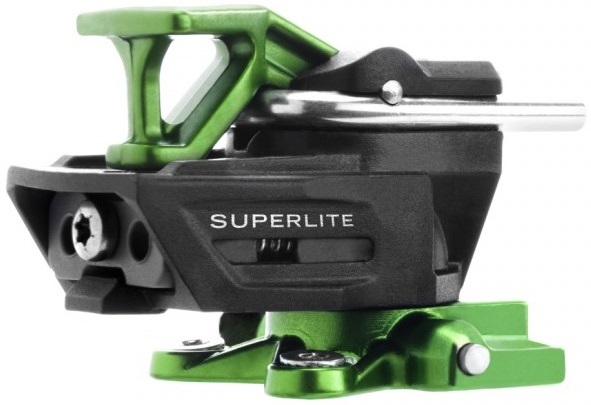

Superlite 2.0 101 3.5 NO screws
Speed Turn 199 7.0 4 screws
Speed Radical* 235 8.3 4 screws
Radical ST / FT 155** 5.5** NO baseplates, brakes, or screws

Please note that heel pieces are sold individually. If you have two feet, you might want two heels. Also, Dynafit does not include screws with all replacement heels as indicated in above table, but they can be found in our listing for parts.

* The Speed Radical heels are current as of 2018/19 and include the anti-rotation mechanism and reinforced roofs.

** The Radical ST/FT heels do not come with baseplates since those are integrated with the brakes.

*** Low Tech Race 2.0 Heels come in either green or red and your first choice of color may have already gone to the other skier.

11/28/2018
Question from Ned

Hey,

Have a pair of fischer branded Dynafit Beast 16s, but just learned that I won’t be able to use the Hojis I was gifted with them. Would the radical 2 FT heel pieces work, or do you have another recommendation?
11/29/2018
Answer from Trace Leches

Hey Ned! That's a good gift! Not sure if the Beast 16 toe and Radical 2 heel have ever been "officially" cleared to work with one another. I suppose technically they would, but who knows what kind of release characteristics you'll end up with if you mix that combo, all I can do is speculate at this point.
Answer this question:

5/4/2018
Question from Pico

Parts query: I just broke off the plastic "shelf" on a Dynafit Vertical heel piece. Dynafit says they have no spare parts available. Would you happen to have a Vertical heel piece for parts in your bone yard?
5/4/2018
Answer from Trace Leches

Hey Pico! Looks like we're out at the moment and probably for the foreseeable future. The good news is that we have a Used Dynafit Parts page that's worth keeping an eye on. Worst case, the Vertical heel hole pattern matches up with the Speed Radical and Speed Turn heel pieces so a full blown replacement wouldn't be the end of the world.
Answer this question:

2/7/2018
Question from Adrian B

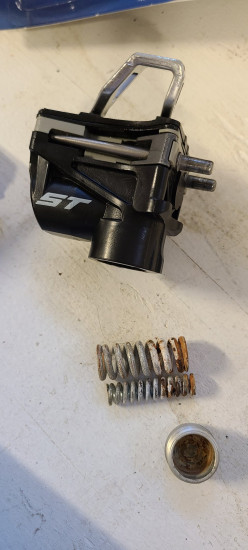

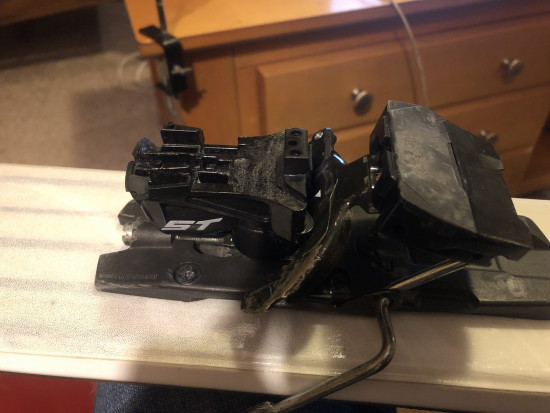

I have a broken Radical ST heel as in the picture. I would like to buy a replacement, but as far as I heard damages on this model are quite frequent. What other heel piece is compatible with this one? Thank you!
2/7/2018
Answer from Nate

Hi Adrian, for the number of Radical ST bindings that have been sold over time, they actually have a decent track record of performance. The design and most of the bindings out there are getting on in age and are probably ready for retirement so it's not a shock when a heel breaks from time to time but the parts are still pretty available and worth replacing.

As for compatibility, there really isn't anything that's cross compatible as a drop in replacement/upgrade. Only the Radical ST heel pieces will be compatible with the base plate that you have pictured.
2/11/2018
Answer from Adrian B

Hi Nate,

Thank you for your answer.
Which Radical ST? 1 or 2.0?
2/11/2018
Answer from jbo

Hi Adrian, Nate is referring to the 1.0 version, which you have.
Answer this question:

2/4/2018
Question from jake lyman

Hey, I have some old old Radical FT bindings, with the black plastic volcanos, and my heel piece broke. I would love to fix them, or jerry rig something by getting another headpiece which would be compatible. Any help? Screw pattern is the standard dynafit pattern, or something like that. Thanks!!
2/4/2018
Answer from jbo

Hi Jake, if you mean Vertical FTs (the ones with volcanoes), you can get replacement roofs (speed or comfort plates) from B&D. Note you'll also need the volcanoes if you go with comfort plates. Other than that, you're looking at new heel pieces.
2/5/2018
Answer from jacob l

Thanks JBO!! I think I'll just get a new heelpiece, the speed turn 2.0's, and make a mutant binding. Thanks!!
Answer this question:

1/19/2018
Question from Mark Mueller

Good morning,
I've broken my Dynafit Radical ST heel piece (about 2 years old). I'd like to order a new one, but don't know which to choose; Radical ST or Radical ST 2.0? Thanks for the help.
I've broke several of these heels over the last couple of years where the top portion with the pins attaches to the lower part of the binding. Do you know, is this problem common or rare? Thanks.
1/19/2018
Answer from Nate

Hi Mark, it sounds likely that you have a Radical ST binding. If it is all black and gray, you have a Radical ST, if there is some green and bronze color to it, you have a Radical ST 2.0. We currently have both in stock, and you can select the one you need from the drop down menu above.

I'm sorry to hear that you've broken several of these. It seems that if there is going to be a failure of the Radical ST binding, that the heel piece is the weakest link. That being said, we have many customers who have never had a problem so it seems to be hit or miss as to whether or not its an issue.
Answer this question:

12/14/2017
Question from Toby W

Hello from Kyrgyzstan. I am here for the winter and have q question for you. I have a pair of Fischer Hannibal 94 with Dynafit TLT Radical 2.0 bindings. The ski is light but the bindings are not as I am now skiing on the set up I bought from you this summer. I am skiing with a pair of Fischer Carbon Ski Mo boots I bought from you. I want to ski the Hannibals at times with these boots and am considering putting a pair of Superlight 2.0 heels on the skis (with Quiver Killers). What do you think? How do you think they would do with the TLT Radical 2.0 toe pieces as I dont really want to replace those too. I think the pattern of the two heel pieces is the same.
So there you have it. Thanks, Toby Wheeler
12/15/2017
Answer from Trace Leches

Hey Toby! Ha, it's tough to go back to heavy gear once you get a taste of the good stuff isn't it?

Officially the Radical 2.0 toe is only compatible with the Radical 2.0 heel because of the forward pressure/rotating plate. The Rad 2.0 toe has seriously soft toe springs (intentionally) to help with the lateral release factors, so it could potentially give you some really low release values. Short answer: I wouldn't do it. If you're looking at lightening up then I'd say just sell the old binding and start from square one with a complete Superlite 2.0.
Answer this question:

11/22/2017
Question from Joe

I am looking to swap heel pieces from speed turns to speed radicals, is the stack height/pin height the same and toe piece compatibility the same that it will be an easy swap? Thanks.
11/22/2017
Answer from jbo

Hi Joe, yes they are pretty much interchangeable. Same pin heights and mounting patterns.
Answer this question:

11/18/2017
Question from John

Hey guys
What kind of epoxy do you recommend for the binding screws?
11/18/2017
Answer from jbo

Hi John, the sealant recommendations typically come from the manufacturer of the skis, not the bindings. It depends on the construction of the ski what works best.
11/18/2017
Answer from Spindogg

Ah ok
Well while I have you - do you happen to know what kind of epoxy is recommended for Atomic Backland Descenders?
11/18/2017
Answer from jbo

A waterproof wood glue is fine with those. You can step up to epoxy if the holes are janky.
11/18/2017
Answer from Spindogg

Any kind of epoxy? Is there a brand that's better than others?
11/18/2017
Answer from jbo

Orange double bubble works great!
Answer this question:

11/12/2017
Question from John Spinney

Hey guys
I just cracked part of the tower (white plastic near base) on a speed radical heel (older generation before the rotation fix). I have a set of speed turn heels - is it possible to do surgery and replace the white plastic part of the speed radical with the white plastic part of the speed turn? The white part looks exactly the same as far as I can tell.
11/13/2017
Answer from Trace Leches

Hey John! Dang, that's a bummer! I'm gonna say yes, it's probably possible, but unless you already have a speed turn heel that you were going to throw away it's probably not worth it. I'd just grab a completely new Speed Rad heel piece.
11/13/2017
Answer from jbo

Hi John, you probably also want to pull out the pins that cause that cracking and install the anti-twist kit.
11/13/2017
Answer from Spindogg

thanks guys - i actually just ordered a set of new radical heels from you instead of trying to tinker with this.
Answer this question:

10/10/2017
Question from Ryan

Two questions:

1) Is it possible to use the Speed Radical heel with the TLT Radical ST 2.0 toe? Or is this a case of "yer gonna die"? Since I already have the toes, and they're mounted with Quiver Killers, I'm wondering if I can save a few bucks this way. If this isn't the best idea, is it possible, using Quiver Killers, to switch between the TLT Radical 2.0 toe and the Speed Radical toe? Or will it be too close?
2) Is it possible, using Quiver Killers, to switch between the TLT Radical 2.0 heel and the Speed Radical heel on the same ski? Or will it be too close?

Considering this setup on my Nanga Parbats to save a little weight for longer tours.

Thanks in advance.
10/10/2017
Answer from Trace Leches

Hey Ryan, thanks for reaching out!

1) This isn't definitely a case of "yer gonna die" but it's also not definitely not a case of "yer gonna die." Maybe more of a case of "we don't recommend it, but try at yer own risk if yer motivated." Either way, probably not wise to mix any part of the Rad 2.0 and any part of a more traditional binding like the Speed Rad as the springs in both the toe and heel on each binding is tuned differently and who knows how they will end up behaving in release tests. Could be so low that the binding is barely usable or it could be so high that the binding release forces exceed that of the strength of your bone structure. Either scenario isn't anywhere near ideal though and I don't recommend it.

2) I checked the hole pattern for both bindings and it looks like that's probably not gonna work. We recommend at least 15mm between each QK insert and there's just not enough space in the Radical 2.0 hole pattern for a Speed Radical to fit with inserts. You could potentially get away with it if you didn't have inserts in the ski, but there's still not a whole lot of potential there.
9/8/2018
Answer from CALVIN E

FWIW, I'm doing the inverse of that with very good results - Using Speed Radical toes with Radical ST 2.0 heels. Releases are appropriate (it does release, but no pre-releases). Skied many times with this setup on Voile Vectors last year, both BC and on Resort. I used the B&D 6.4mm shims under the toes.
9/8/2018
Answer from Trace Leches

That's awesome to hear actually, I'm glad to hear that it's going well. We have definitely built a few of these setups before and have had no negative reactions (so far) so it sounds like it's entirely doable. Sounds like my apprehension was a bit excessive to begin with. Still not recommended by Dynafit and we haven't been able to put these setups on our release testing machine so I can't comment on exactly how it performs under stress, but it sounds like it's working close enough to appropriately that it's feasible, which is sweet.
Answer this question:

4/26/2017
Question from Andres

Looks like the radiacal ST heels are sold without the bases. Is this correct? Id so will they fit on the base/spindle from the older vertical ST?
4/26/2017
Answer from jbo

Hi Andres, unfortunately the Radical and Vertical spindles are not compatible.
Answer this question:

4/12/2017
Question from Alexis

I have a pair of first gen (2012) radical st bindings (I already updated both heel pieces, which broke). I would like to get some spare parts for an extended trip I will do soon. Just want to confirm that the radical st heel pieces above would work. Thanks!!
4/12/2017
Answer from jbo

Hi Alexis, yes all Radical ST generations are compatible.
Answer this question:

3/7/2017
Question from brian

I have a pair of first gen radical ft with a broken roof plate. I am starting to understand that this is a very common failure and that there was an updated parts package or replacement heel to fix it. I can't find any mention of it on Dynafit web site. How can I resolve this issue with my bindings. Do the gen 1 FT heel pieces you guys sell have the update?
3/7/2017
Answer from Trace Leches

Hey Brian, yeah that is an issue with the older Radical heel pieces unfortunately. There are 3 iterations of that heel piece now, the original, an updated heel piece (reinforced so it's a bit stronger), and then the latest iteration that has addressed this issue even further. How old are your bindings?
Answer this question:

2/23/2017
Question from Bjornar

Hey,
Which heel piece will fit reasonably with the speed radical toe piece that weighs less than the original speed radical heel tower? I have been using a la sportiva rt heel piece but these have broken on me and I want a bomber (and reasonably light) heel piece to match with the speed radical toes. Thanks!
2/23/2017
Answer from jbo

Hi Bjornar, you could try something like a Plum Race 150 heel on a Kreuzspitze 14mm plate (same hole pattern as Speed Radical).
Answer this question:

2/15/2017
Question from Markus Geiss

Does the Radical ST heel piece come with springs and end caps?

Thanks,
2/16/2017
Answer from Trace Leches

Hey Markus. Yup, the dual springs and end cap are in there, but no base plate.
Answer this question:

2/12/2017
Question from CVT

will the speed turn heel pieces work to replace comfort heel pieces?
2/12/2017
Answer from eric

Hi CVT speed turn will fit into the same holes as your comfort heels.
Answer this question:

2/3/2017
Question from James

Do you have instructions for swapping the heel piece on the Radical ST 2.0? I can't get my old one off the brake / base assembly!
2/3/2017
Answer from jbo

Hi James, the key is to turn it 180 degrees so it's facing backward. Then it will lift off.
2/3/2017
Answer from James J

Hi - thanks for the reply, but I can't see how to turn it 180 degrees; the metal clip which locks the brakes in the up position while touring stops the heel piece rotating around this far (it physically doesn't fit). I've tried all other possible rotations and no joy.
2/7/2017
Answer from jbo

Hi James, it'll go 180, don't be shy. Hold down the brake and go for it.
2/7/2017
Answer from James J

Yep I figured it out, thanks. The trick was to partially depress the brake, and then it all fits perfectly - there's a sweet spot. The mind boggles at the design that goes in to designing these things; true 3D chess!
Answer this question:

1/31/2017
Question from Marcus

Speed radical heel update...this was asked last year though an update would be helpful. Do the speed radical heel pieces come with the metal plate, stronger screws and reinforced housing? Thank you.
2/9/2017
Answer from Trace Leches

Hey Marcus, the heel pieces have stronger screws and reinforced housings but haven't gotten the metal plate update yet! Should be sometime this summer that we see that update.
Answer this question:

11/28/2016
Question from Neil

Wondering if there is an older Dynafit heel piece that has the same hole configuration as the latest TLT Radical ST 2.0 bindings? I'm looking for a spare heel piece for my repair kit. Same for the toe piece? Thanks
11/28/2016
Answer from Trace Leches

Hey Neil, unfortunately that hole pattern is unique to the Radical 2.0 and won't match any other toe, heel, or adjustment plate. We do sell the toes and heels individually though, why not just carry another one of each of those if you're worried about something? Check our article about Binding Hole Patterns if you have any further questions.
Answer this question:

10/21/2016
Question from Scott S

Do you know of any way to increase the step-in resistance of the RC1 heel piece?

It clicks in with less than body weight (<150#) which makes for potentially awkward race transitions if it happens at the wrong time.

Any ideas? Thanks.
10/21/2016
Answer from jbo

Hi Scott, that's a hard thing to change. I'd just flip them up last!
Answer this question:
