New parts for old bindings can be hard to find. Used parts for old bindings should now become easier. Trade in your used and/or broken Dynafit bindings for store credit, and we will make the working parts available for others. Please note that the photos shown here are often of new products, simply for reference. The item you receive may have visible wear. Used parts can be returned within 10 days if you are unhappy with the condition or discover the part will not work for you.
Please note these parts come with absolutely no warranty. We do a reasonable eyeball inspection of the parts, but can in no way guarantee their integrity. If you are not comfortable taking risks with used parts, please purchase a new part, toe, heel, or complete binding instead.
Check the drop list for the parts we currently have in stock. For parts with model names, the model should match your binding exactly. If a part works with more than one model, we use a generic descriptor with a reference chart below. Some specific notes:
B&D Classic Shim, 6.4mm - Drilled for ATK toe pieces.
B&D Speed Plates - Flat top plates for Dynafit binding heels which weigh just 20 grams per pair. Go without a high riser and save up to 60 grams (2.1 ounces) over stock Classic, Comfort, Vertical, or Speed Turn roofs.
Brake Retainer - Retainer "H" clip that holds Vertical, Comfort, and first-gen Radical brakes onto the heel piece.
Expedition Heel Pieces - Note, these are Non releasable bindings. includes mounting screws
Heel Adjustment Screw - Big lateral release screw cap for Radical 1.0, Speed Rad, Speed Turn. Often grey color.
Heel Thimble Bushing - Bushing that holds the lateral springs deep within Vertical, Radical 1.0, Speed Rad, and Speed Turn heel towers.
Radical 1.0 Crampon Receptors - The curved metal pieces that hold ski crampons onto Radical 1.0 toes.
Radical 1.0 Heel Pins - Pin with plastic spacer they pass through. Works with Radical 1.0 ,Speed Rad, and Speed Turn bindings.
Radical 1.0 Roof - Black top piece with risers for the Radical ST, FT and Speed Rad.
Radical 1.0 Roof Screws - The little Torx screws that hold the Radical 1.0 roofs on.
Radical ST Heel Complete - Heel piece like new. With screws.
Radical ST 1.0 Heel Turret - Includes the heel turret, heel adjustment screw, springs, and thimble bushing. Does not include the baseplate. Also compatible with the Radical FT.
Radical ST/FT 1.0 Toe Piece - Whole toe unit, but no baseplate or screws.
Radical ST/FT 1.0 Toe Plate - Plastic lifters under the Radical ST or FT (1.0) toe pieces.
Radical ST/FT 1.0 Heel Baseplate - Baseplates for the very first version of the Radical 1.0 that had removeable brakes (brakes not included). The newer version with the integrated brakes are listed as Radical ST/FT 1.0 brakes.
Radical Removable Brakes - Brakes for the first version of the Radical 1.0 bindings that required the "H" clip brake retainer. Retainer not included, listed as Brake Retainer above.
Speed Rad Heel Base - Adjustment mechanism w/ heel post. Often the older model with a brass pin for anti-rotation.
Speed Rad Heel Turret - A heel piece minus the base plate.
Superlite 2.0 Toe Piece, Green - Toe piece only with crampon connector and connector screws
Tristep Volcano - Can be used on Speed Turn, Radical or Vertical bindings.
Vertical ST/FT Toe Piece - Toe piece for the old ST or FT (as listed), w/out baseplate.
Vertical ST/FT Toe Plate - Plastic baseplate that goes underneath the toe pieces. Includes integrated metal crampon receptor.
Vertical ST/FT Heel Piece - Brakeless heel piece for the Vertical ST or FT (as listed), including base plate. These are sometimes white and sometimes brown. Brakes sold separately.
Vertical ST/FT Heel Turret - The whole turret that rotates on the base plate tower, complete with riser. No baseplate
Vertical Brake - Brakes that work with either Vertical model (ST or FT) and likely the Comfort series.
Looking for a compression spring and metal spacer pin from a radical 2.0 ski brake AFD. Spring is about 53mm long and 3.5mm outside diameter. The pin floats inside the coil. Please contact me if you can source these parts new or used. Thx
Hey Steven! Unfortunately I don't have any used AFD parts, though I do have an AFD kit here that includes the spring as well as an AFD, but no pin. If you have one to take a picture of would you mind sending it in? That may eliminate some confusion.
Answer this question:
1/16/2018
Question from
Jacob Lyman
Hey. So I crashed by truck and in the carnage, my brand new Radical 2.0 FT 120's broke- sorta. I am interesting in selling/trading/buying so I can get new pin tech bindings without buying new Dynafits, cause I am in school and broke, so if you have any ideas, and I mean ANY ideas, lemme know. Here is the situation with the bindings.

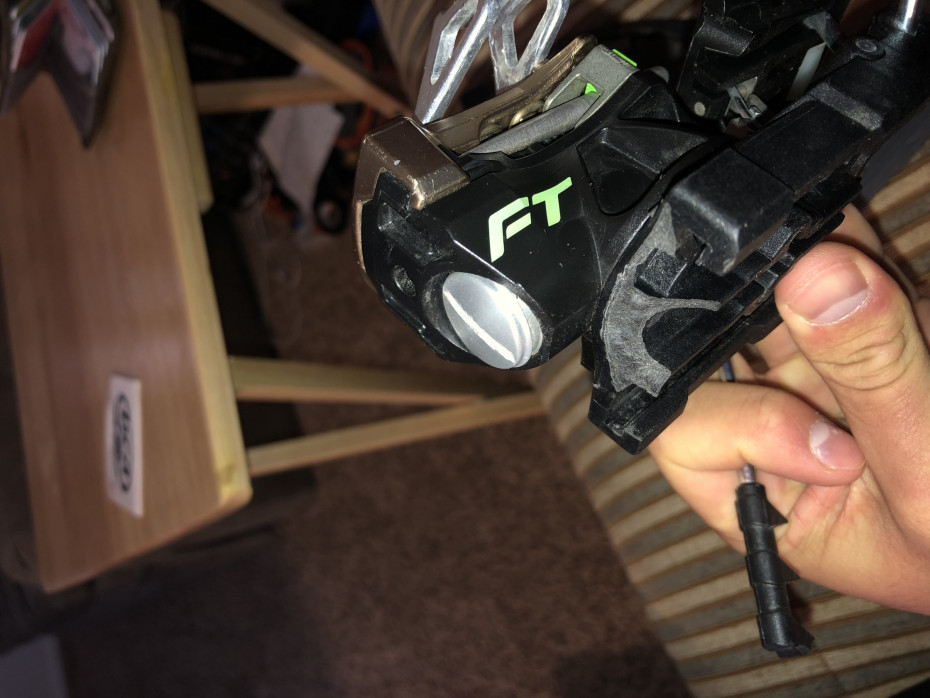

Both toes pieces are 10/10 not damaged, used twice and not even a paint chip to remember the turns. One heel piece is the same way, in perfect conditions and looking gucci. The other heel piece is where the sad part lies. I don't know the names of all the parts, so bear with me here. The grey track that mounts to the ski? Yeah, the black rotating heel piece that can be adjusted via the rear screw popped outa the track, and I am missing a small tab of plastic on the bottom rear of that same heel piece. This plastic tab holds the black bolt which is screwed midway onto the silver screw underneath the black rotating heel piece. This black screw presses against the plastic tab I am missing, providing a place for the silver spring which is set around the silver screw underneath the black heel piece to push back on. I am also missing this spring, and I suspect I am missing a piece which the end of the silver screw screws into, which I further suspect to provide the other end of the spring a place to press against.
Thank you for reading this novel, and if you have ANY help at all please let me know.
Jacob, From the sound of it the damage is only to the baseplate and not the actual heel piece. You can potentially get a new Dynafit Radical 2.0 baseplate/brake in a 120mm width, remount it and place the old heel piece on the new plate. Otherwise, it definitely gets more complicated to fix.
Hi Jacob, I concur with I-M that you need a new baseplate+brake! It's possible you need a new housing as well, but I don't see any specific damage to that in the photo.

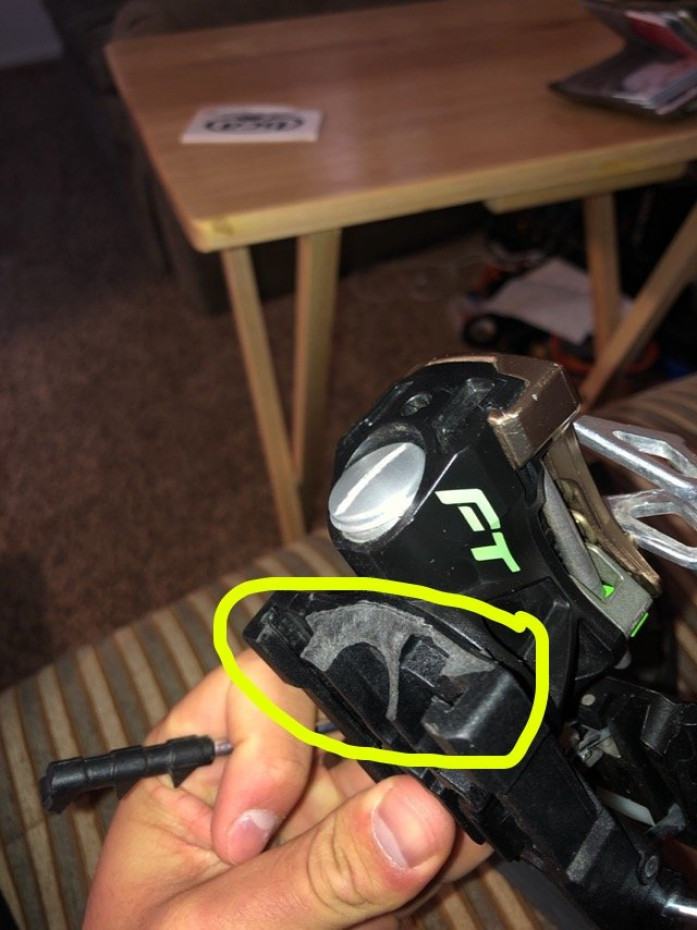

So this bit broke off, circled. Am I using the wrong name? The grey track at the bottom of the binding is what I am calling the baseplate- am I wrong???
Hi Nick, while we are no longer able to get Vertical toe levers, Dynafit recommends the Speed Radical toe levers as replacements. You can find those levers in our Dynafit Binding Parts listing.
Answer this question:
12/11/2017
Question from
Mirek

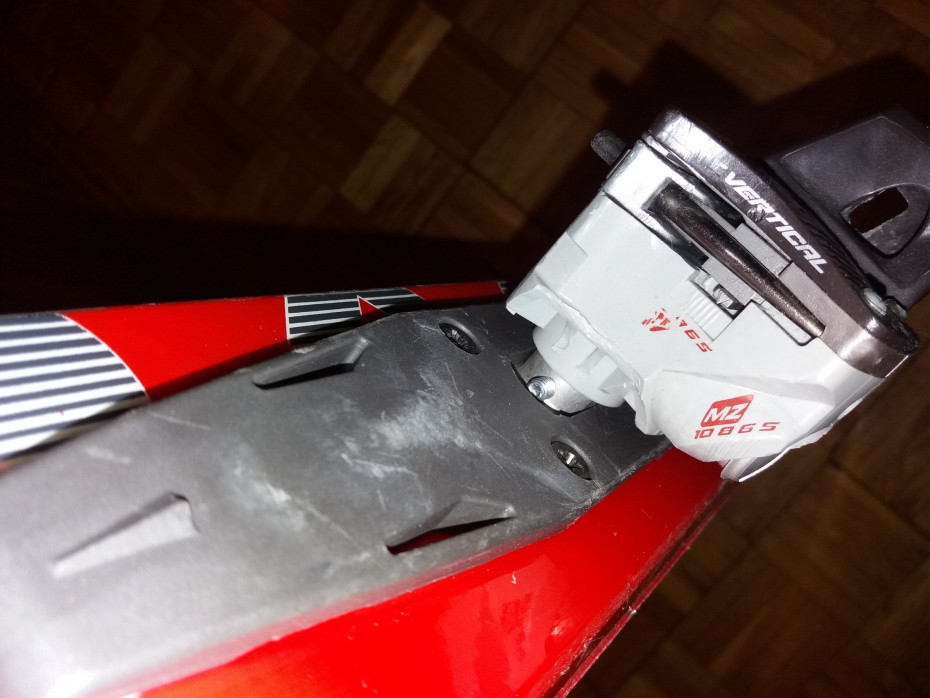

Hi I have Dynafit TLT Vertical ST bingings. Unfortunatly one heel stand(handler) was broken (see attached foto). Do You have this spart part in stock? (I think that this is part number 4 on picture above).
Mirek- You have to replace the whole heel housing to replace that tab. Unfortunately we do not have any at the moment. We get people trading in bindings and we then list the usable parts here. The heel should still function unless you want to use a brake in which case the tab is necessary.

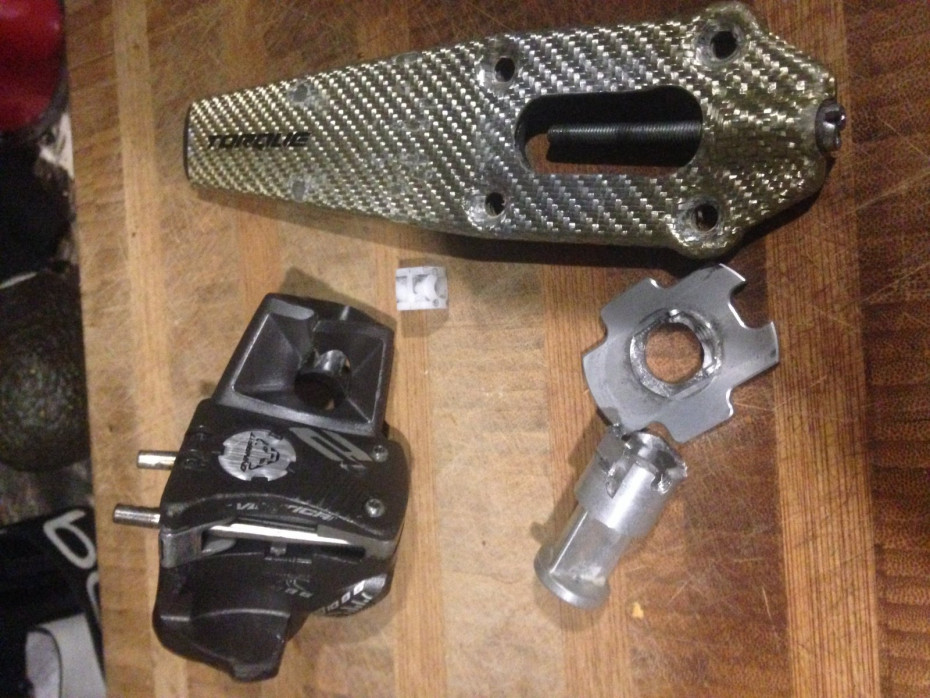

I have a set of the old pre 2011 tlt speed heels (the grey ones) that both have cracked screw holes on the mounting plates, which from my experience is very common for that generation. Would the heel housing of those mount to the tlt speed plates you have listed here?
What's up Adam? Good to see your name come through here again! I think there's a good chance that'll work, but why don't you send a picture of your heel pieces to make sure we're talking about the same thing?
Answer this question:
11/25/2017
Question from
Mike
Hi,
I am looking for the vertical ft heel plate, as the adjustment base broke. Do you have any?
Hi Mike, no used ones at the moment, but we do have a few new parts.
Answer this question:
10/28/2017
Question from
Aaron
I'm looking for the Radical Brake Retainer - Retainer "H" clip that holds Vertical, Comfort, and first-gen Radical brakes onto the heel piece. I think it is #9 on the diagram. Do you have one to purchase?
Hey Aaron, thanks for reaching out. We have those "H" clips in a box labeled "Gold" because they're so valuable, but unfortunately we are fresh out at the moment. Keep your eyes on this listing though, we get them in every so often and they will be available once they are listed.
Hey Mark, thanks for reaching out! I don't have Tri-Step toe parts, however, the toe plates on most of Dynafit's 5-hole pattern bindings are interchangeable. We just got in a bunch of Vertical ST Toe Plates that are compatible!
Answer this question:
6/19/2017
Question from
Mark
You list a part for sale that doesn't have a description - the Vertical Crampon Receptor. Can you explain what part this is?
I need the "Vertical ST/FT Toe Plate" which apparently includes the crampon receptor. My need is for the front portion of the plastic baseplate - the ridges that engage the lever in tour mode have completely worn off on mine.
Hey Mark. Yup, you got it, the Vertical ST/FT Toe Plate includes the crampon receptor. The Vertical Crampon Receptor is just the little metal bracket that threads through the plastic plate. The complete Vertical ST/FT Toe Plate is what you'd need to get your toe piece back in working order!
Answer this question:
4/21/2017
Question from
Nick
Does the Radical Toe Piece come in a set for 70 or 70 each?
Hey John. I am assuming you mean that the Vertical binding that is pictured is the one that you currently have, in which case Dynafit has stopped supporting that model so an aftermarket solution from B&D Binding Parts is your best bet. You'll need a new roof and Volcano.
Answer this question:
3/27/2017
Question from
Sarah
I have a pair of old dynamite bindings and the plastic piece under the toe broke - it's #1 in your figure shown, but I didn't see a key so I'm not sure which part to order. I'd probably get 2 so that things will match - my bindings are silver, including the plastic plate below that broke, so I'd like to match. I'm assuming the plates underneath are universal? If not, what can I do to check? I bought these used this year so I don't know what the exact model is, but it's probably from 2006-ish. Thanks for your help!
Hi Sarah, I wouldn't say anything is universal in this game! Feel free to send us a photo to double check your version. There is a good chance the Vertical ST toe plate would work, but I can't be sure without a photo. It certainly won't match the color though.
Answer this question:
3/18/2017
Question from
Mark
I have the dynafit vertical ST and the heal piece is broken. I believe they are also called the TLT? would the TLT Speed Heel work for this?
Hi Mark, looks like you need a new roof. The Speed Heel is not compatible, but you can get some aftermarket parts from B&D. The Comfort Roof + Volcano will get you back in working order.
12/6/2017
Answer from
Maxx C
Do you have any more of these in stock? I can't seem to find "comfort roof+volcano" on the parts list drop down.
Hi Johnny, we often get used ones. None in stock at this moment, but we are happy to give you store credit for your working parts.
Answer this question:
12/16/2016
Question from
Jim
HI Folks,
I have a broken #5 plastic "volcano" - (highest heel lift position only) for a Vertical ST. This is probably a silly question, but there are a couple threads above that mention you are out of Vertical ST bindings? They are however still available for purchase in the drop down menu. Should I purchase on your site? Cheers and happy turns!
Hi Jim, this listing is for used parts, which come and go since we offer a trade-in program. Send us your broken binding for store credit or shop for working parts here. You'd need a Vertical ST heel roof or a Vertical ST heel piece to fix your issue, which we have from time to time.
Answer this question:
12/9/2016
Question from
Cris Wilhelm
I have a broken Vertical ST base plate. I see that I can order that piece. Can I also order the complete heel piece with brakes and bindng?
Hi Cris, we get those in occasionally, none at the moment, sorry.
Answer this question:
11/30/2016
Question from
Mischa
I have a pair of Scott phantom AT boots and I'm wondering if the used dynafit vertical toe lever will work with the toe on those boots. I'm using the boots on a splitboard so I only need toe pieces for touring
