Dynafit Heel Pieces
If you already have ten toes, you might consider getting some heels to match. The Dynafit binding heel pieces can be used to replace borked ones, build an unsanctioned super binding, or be stashed in your collection of other unusual parts. It's also not a bad idea to have a backup plan if you're planning an extended stay in a remote place. See the table below for details.
| Weight (g) | Weight (oz) | INCLUDES | |

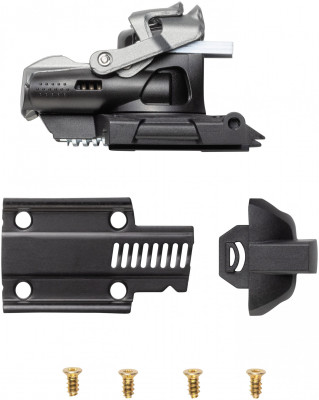

| Blacklight | 188 | 6.6 | 4 screws |
| Low Tech Race | 48 | 1.7 | NO screws |

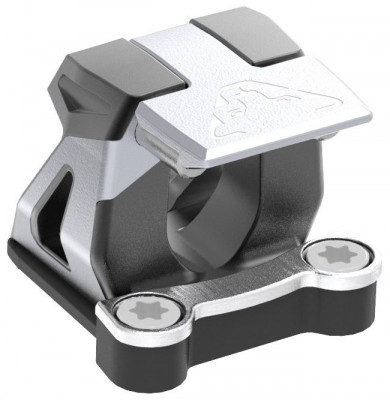

| LTR2 / PDG*** | 30 | 1.1 | 3 screws |
| Expedition | 56 | 2.0 | NO screws |

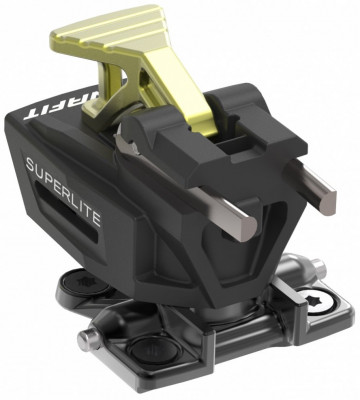

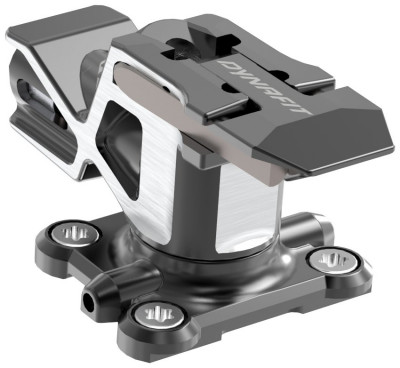

| Superlite 150 | 89 | 3.1 | NO screws |
| Speed Superlite | 126 | 4.4 | NO screws |
| Superlite 2.0 | 101 | 3.5 | 4 screws |

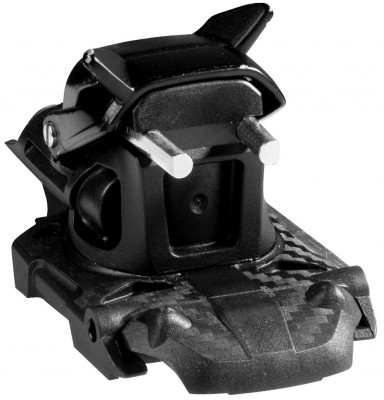

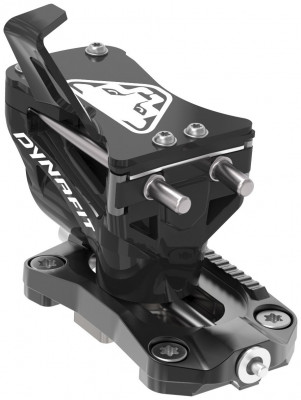

| Speed Turn | 199 | 7.0 | 4 screws |

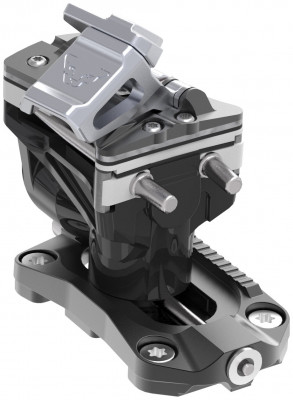

| Speed Radical* | 235 | 8.3 | Antitwist plate, 4 screws |

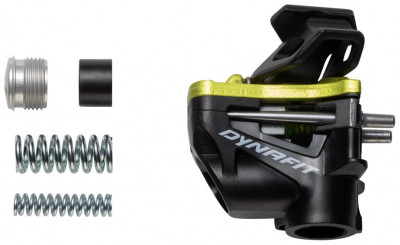

| Radical ST / FT | 155** | 5.5** | NO baseplates, brakes, or screws |
| ST Rotation 7 / Rotation Lite 7 | 155** | 5.5** | Housing Only |
| Speed 12 | 174 | 6.7 | Track, brake plate, 4 screws |
Please note that heel pieces are sold individually. If you have two feet, you might want two heels. Also, Dynafit does not include screws with all replacement heels as indicated in above table, but they can be found in our listing for parts.
* The Speed Radical heels are current and include the anti-rotation mechanism and reinforced roofs.
** The Radical ST/FT and Rotation 7 heels do not come with baseplates since those are integrated with the brakes.
*** Low Tech Race 2.0 Heels come in either green or red and your first choice of color may have already gone to the other skier.
*** PDG Heels come in either orange or blue and your first choice of color may have already gone to the other skier.
Related Products
Questions & Reviews
3/7/2020

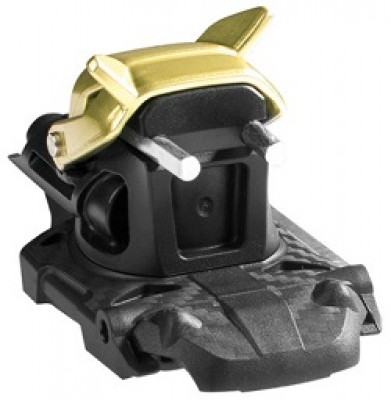

Are the Dynafit PDG heels compatible with the Dynafit Speedfit toe piece?
3/8/2020
Hey Aaron, the PDG heel/Speedfit toe combo would give you a -2.5mm ramp angle, which would be a little too far back on the heels for most folks. Consider running an LTR 2.0/PDG heel adjustment plate, which would add 5mm of thickness under the heel and give you a +2.5 mm ramp angle.
Answer this question:
2/13/2020
I Have a pair of Radical ST bindings dating from some time between 2011/2012 and 2015. The heel piece top plate is lifting off on of them, so I need to replace the entire heel turret, says Dynafit. I don't see it in your list of heel pieces. Is it possible to get this?
Thanks
Thanks
2/14/2020
Hello Alain, thanks for reaching out! We've ordered more Radical ST heels, and they should be arriving in a few weeks. Sent us an email at help@skimo.co and we can set up an inventory notification for you!
Answer this question:
1/14/2020
I have an old pair of radical FTs and my heelpiece finally gave out. Can I just replace with the radical STs that you are currently selling? Thanks.
1/15/2020
Jason, yes, they are interchangeable with a little bit of mechanical know-how! Radical ST and FT utilize the same heel piece.
Answer this question:
12/12/2019
Can I just buy at set of ST Radical heel pins, from the older black version that has integrated brakes to base plate??
The pins look to be about 2.5 inches long and have a ball at the back of heel piece to hold it in
The pins look to be about 2.5 inches long and have a ball at the back of heel piece to hold it in
12/13/2019
Brian, Skimo has you covered. dynafit binding parts. Radical heel pins, sold individually.
Answer this question:
11/3/2019
Just double checking to make sure the Radical FT binding heel piece you sell is the same as mine...
11/3/2019
Hey Ryan, sorry for the binding troubles! We have the Radical ST in stock right now, but not the Radical FT. The Radical FT 2.0 that is showing in the drop down menu currently is the newer generation.
Answer this question:
10/7/2019
Any problems running Dynafit Speed Radical heels with Kingpin toes?
10/7/2019
Mike, people have been mixing toe and heel pieces together for years, without much issue. Toes do not have a release value, even the 6 spring Kingpin toes. So go for it. Myself and Skimo are not responsible for the contents of this comment!
Answer this question:
8/7/2019
I have Dynafit Expedition bindings - without rotation release at the heel. Can I replace the heel piece with a compatible heelpiece with rotation release?
8/7/2019
Simon, Yes you can. You can use any of these and it will work fine. The toe piece with the Expedition is the Radical steel toe. The Speed Radical heel will give you a solid binding.
Answer this question:
6/1/2019
I happen to have a pair of Speed Radical toes, from late 2017. Any concerns with adding a pair of Speed Radical heels and making a full binding out of it?
6/2/2019
Hi Anton, no major concerns, two toes and two heels make a full binding, as designed!
Answer this question:
4/13/2019
Do all of the three holed dynafit heel pieces share the same screw pattern? LTR, LTR 2, 1st gen superlite, and RC1 heels
4/13/2019
Pete, All have a Different pattern except the RC1 is same as LTR 2.
4/13/2019
Hi Pete, fyi the patterns are listed here.
Answer this question:
3/13/2019
Jeff M, thanks for your response! Another question, Im curious if the yoke piece from the Radical ST is the same as the Vertical ST, that way, I could swap out the broken.. Again, thanks for the advice!!
3/13/2019
Jonah , contact us at help@skimo.co. Send me a side view picture
Answer this question:
3/11/2019
I broke the yoke piece on my Vertical ST bindings in addition to some plastic piece that didnt effect performance. With the yoke gone, the pins dont stay locked in my boot. Can i straight replace this older heel binding with the radical st version?
3/12/2019
Jonah, The Radical heel will not work with the Vertical base plate. You would have to replace both. Then have a somewhat mismatched binding.
Answer this question:
3/7/2019

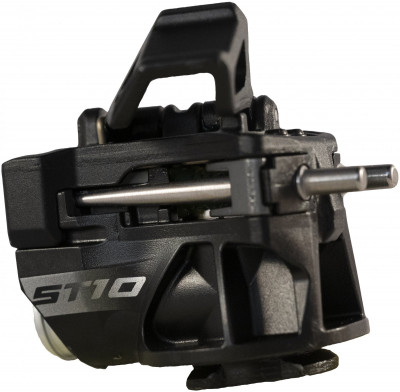

I ripped the rotating part off my dynamite rotation st 10 bindings.I need to replace the whole heal assembly.Are the brakes transferable?If not I will need a brake with the heal piece for a 105 mm ski.Do you have one?
3/7/2019
Hi Brian, the heel housing and baseplate/brake are separate parts. Depending on your situation, you may be able to reuse one of those parts. You can e-mail us photos if you'd like specific assistance.
Answer this question:
3/6/2019

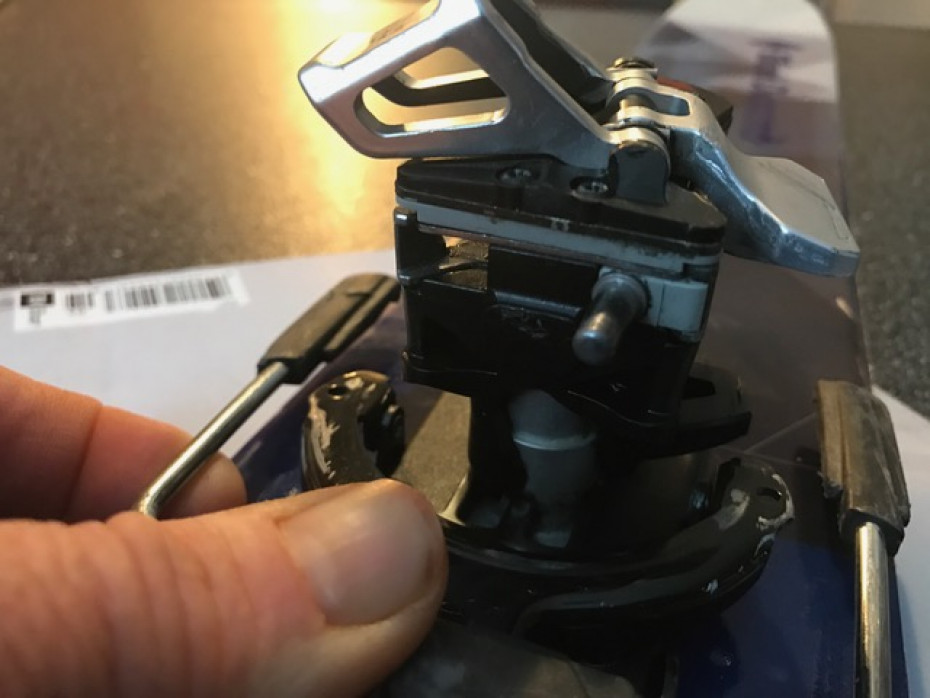

Hello - I have a pair of Radical 2.0's in 105. On one of them, the heel piece keeps working backward while skiing until the separation between the boot heel and the two prongs on the Dynafit heel piece gets so wide that the binding releases. When I then adjust the screw to move the heel back into place, it feels like there is little to no tension on the screw. It seems to be happening with only one of my two skis. Is this a known problem? Dynafit suggested I purchase a new baseplate. Do you agree?
Thanks in advance for the help.
Thanks in advance for the help.
3/6/2019
Hi George, yes it sounds like something is broken in the baseplate/brake combo. Those are available here.
Answer this question:
11/28/2018
Hey,
Have a pair of fischer branded Dynafit Beast 16s, but just learned that I won’t be able to use the Hojis I was gifted with them. Would the radical 2 FT heel pieces work, or do you have another recommendation?
Have a pair of fischer branded Dynafit Beast 16s, but just learned that I won’t be able to use the Hojis I was gifted with them. Would the radical 2 FT heel pieces work, or do you have another recommendation?
11/29/2018
Hey Ned! That's a good gift! Not sure if the Beast 16 toe and Radical 2 heel have ever been "officially" cleared to work with one another. I suppose technically they would, but who knows what kind of release characteristics you'll end up with if you mix that combo, all I can do is speculate at this point.
Answer this question:
5/4/2018
Parts query: I just broke off the plastic "shelf" on a Dynafit Vertical heel piece. Dynafit says they have no spare parts available. Would you happen to have a Vertical heel piece for parts in your bone yard?
5/4/2018
Hey Pico! Looks like we're out at the moment and probably for the foreseeable future. The good news is that we have a Used Dynafit Parts page that's worth keeping an eye on. Worst case, the Vertical heel hole pattern matches up with the Speed Radical and Speed Turn heel pieces so a full blown replacement wouldn't be the end of the world.
Answer this question:
2/7/2018

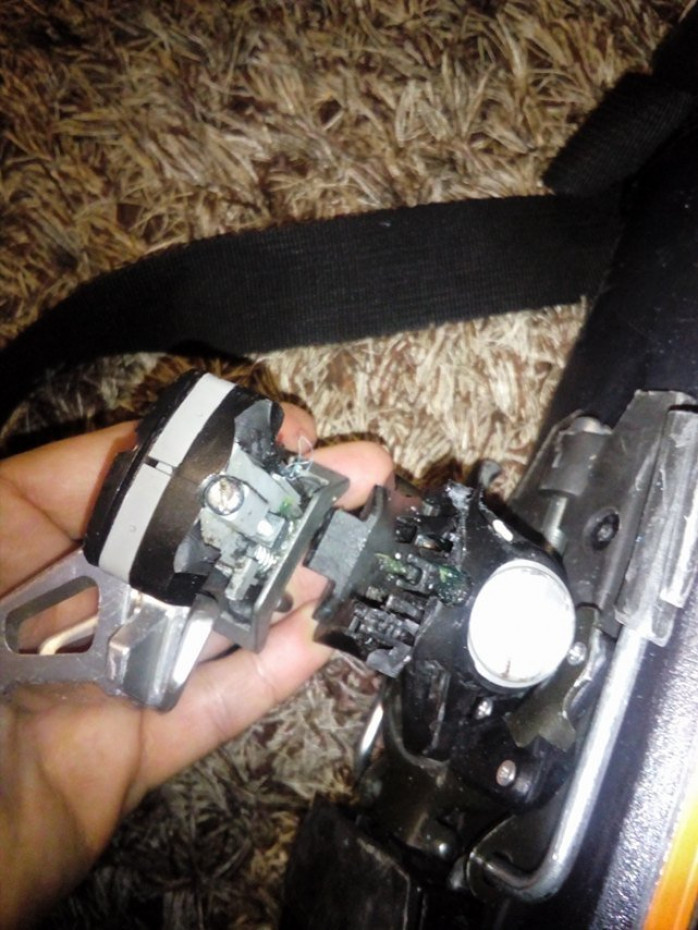

I have a broken Radical ST heel as in the picture. I would like to buy a replacement, but as far as I heard damages on this model are quite frequent. What other heel piece is compatible with this one? Thank you!
2/7/2018
Hi Adrian, for the number of Radical ST bindings that have been sold over time, they actually have a decent track record of performance. The design and most of the bindings out there are getting on in age and are probably ready for retirement so it's not a shock when a heel breaks from time to time but the parts are still pretty available and worth replacing.
As for compatibility, there really isn't anything that's cross compatible as a drop in replacement/upgrade. Only the Radical ST heel pieces will be compatible with the base plate that you have pictured.
As for compatibility, there really isn't anything that's cross compatible as a drop in replacement/upgrade. Only the Radical ST heel pieces will be compatible with the base plate that you have pictured.
2/11/2018
Hi Nate,
Thank you for your answer.
Which Radical ST? 1 or 2.0?
Thank you for your answer.
Which Radical ST? 1 or 2.0?
2/11/2018
Hi Adrian, Nate is referring to the 1.0 version, which you have.
Answer this question:
2/4/2018

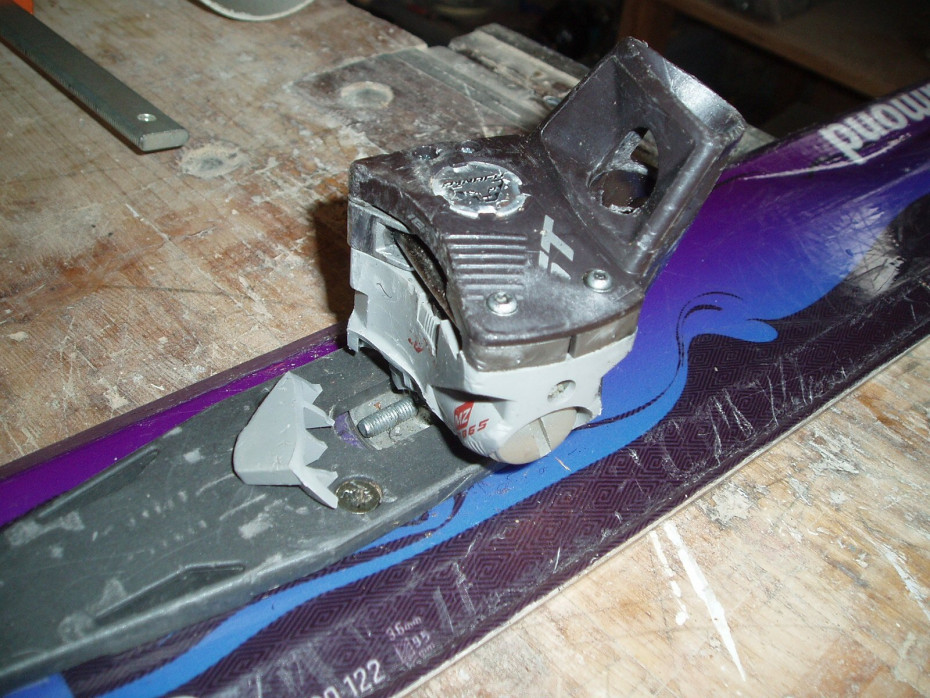

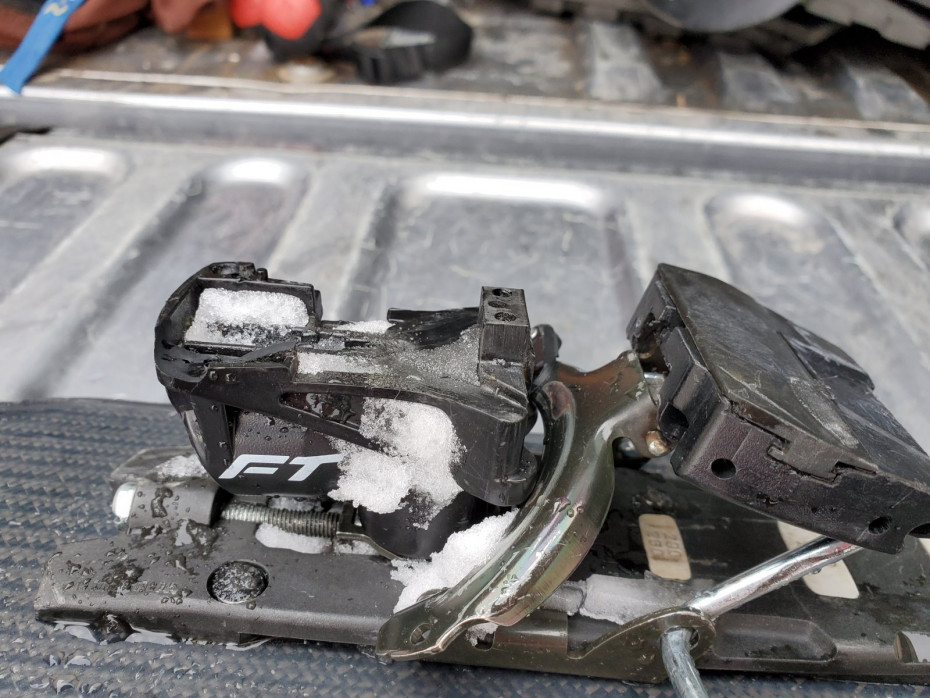

Hey, I have some old old Radical FT bindings, with the black plastic volcanos, and my heel piece broke. I would love to fix them, or jerry rig something by getting another headpiece which would be compatible. Any help? Screw pattern is the standard dynafit pattern, or something like that. Thanks!!
2/4/2018
Hi Jake, if you mean Vertical FTs (the ones with volcanoes), you can get replacement roofs (speed or comfort plates) from B&D. Note you'll also need the volcanoes if you go with comfort plates. Other than that, you're looking at new heel pieces.
2/5/2018
Thanks JBO!! I think I'll just get a new heelpiece, the speed turn 2.0's, and make a mutant binding. Thanks!!
Answer this question:
1/19/2018
Good morning,
I've broken my Dynafit Radical ST heel piece (about 2 years old). I'd like to order a new one, but don't know which to choose; Radical ST or Radical ST 2.0? Thanks for the help.

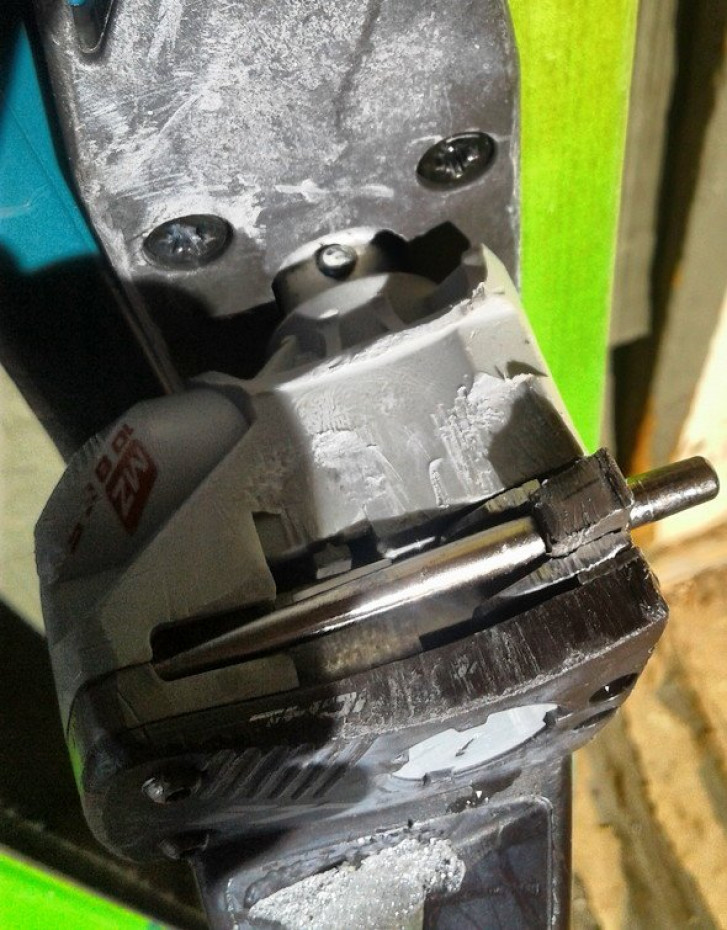

I've broke several of these heels over the last couple of years where the top portion with the pins attaches to the lower part of the binding. Do you know, is this problem common or rare? Thanks.
I've broken my Dynafit Radical ST heel piece (about 2 years old). I'd like to order a new one, but don't know which to choose; Radical ST or Radical ST 2.0? Thanks for the help.
I've broke several of these heels over the last couple of years where the top portion with the pins attaches to the lower part of the binding. Do you know, is this problem common or rare? Thanks.
1/19/2018
Hi Mark, it sounds likely that you have a Radical ST binding. If it is all black and gray, you have a Radical ST, if there is some green and bronze color to it, you have a Radical ST 2.0. We currently have both in stock, and you can select the one you need from the drop down menu above.
I'm sorry to hear that you've broken several of these. It seems that if there is going to be a failure of the Radical ST binding, that the heel piece is the weakest link. That being said, we have many customers who have never had a problem so it seems to be hit or miss as to whether or not its an issue.
I'm sorry to hear that you've broken several of these. It seems that if there is going to be a failure of the Radical ST binding, that the heel piece is the weakest link. That being said, we have many customers who have never had a problem so it seems to be hit or miss as to whether or not its an issue.
Answer this question:
12/14/2017
Hello from Kyrgyzstan. I am here for the winter and have q question for you. I have a pair of Fischer Hannibal 94 with Dynafit TLT Radical 2.0 bindings. The ski is light but the bindings are not as I am now skiing on the set up I bought from you this summer. I am skiing with a pair of Fischer Carbon Ski Mo boots I bought from you. I want to ski the Hannibals at times with these boots and am considering putting a pair of Superlight 2.0 heels on the skis (with Quiver Killers). What do you think? How do you think they would do with the TLT Radical 2.0 toe pieces as I dont really want to replace those too. I think the pattern of the two heel pieces is the same.
So there you have it. Thanks, Toby Wheeler
So there you have it. Thanks, Toby Wheeler
12/15/2017
Hey Toby! Ha, it's tough to go back to heavy gear once you get a taste of the good stuff isn't it?
Officially the Radical 2.0 toe is only compatible with the Radical 2.0 heel because of the forward pressure/rotating plate. The Rad 2.0 toe has seriously soft toe springs (intentionally) to help with the lateral release factors, so it could potentially give you some really low release values. Short answer: I wouldn't do it. If you're looking at lightening up then I'd say just sell the old binding and start from square one with a complete Superlite 2.0.
Officially the Radical 2.0 toe is only compatible with the Radical 2.0 heel because of the forward pressure/rotating plate. The Rad 2.0 toe has seriously soft toe springs (intentionally) to help with the lateral release factors, so it could potentially give you some really low release values. Short answer: I wouldn't do it. If you're looking at lightening up then I'd say just sell the old binding and start from square one with a complete Superlite 2.0.
Answer this question:
11/22/2017
I am looking to swap heel pieces from speed turns to speed radicals, is the stack height/pin height the same and toe piece compatibility the same that it will be an easy swap? Thanks.
11/22/2017
Hi Joe, yes they are pretty much interchangeable. Same pin heights and mounting patterns.
Answer this question:
